Description
Special converter for the supply of a 12V anti-lock system ABS/EBS out of 12V or 24V.

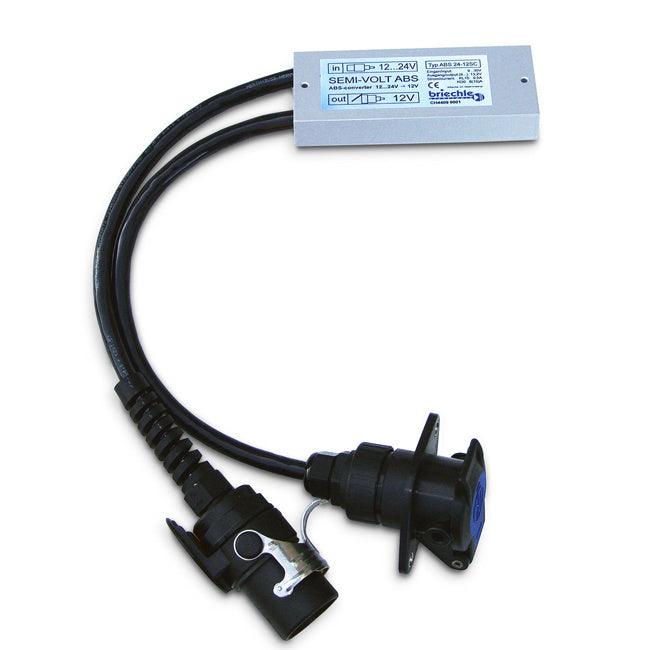

Briechle SEMI-VOLT ABS CONVERTER ABS 24-12SC
The converter input is equipped with a 24V ABS/EBS plug and the output with a 12V ABS/EBS socket. For towing vehicle side mounting only. The contacts 6 and 7 ("CAN-Bus") are unequipped.
▪ IN: 12V ... 24V / OUT: 12V
▪ Input: 24V plug
▪ Output: 12V socket
- input voltage 12V and 24V
- compact size because of a high efficiency
- simply plug in on the towing vehicle side
- the function of the info module remains effective
- protection against overload
- ABS-socket divisible for mounting the converter from behind
| Input\n voltage: |
9 ... 33V DC both lines |
| Output voltage: |
13,2V +-5% (at U< 13,2V 8,5...13,2V) |
| Output current line (term.\n 30): |
0 ... 8A (10A) |
| Output current line (term.\n 15): |
0 ... 300mA (600mA) |
| Connection input: |
ABS / EBS plug 24V ISO'7638 |
| Connection output: |
ABS / EBS socket 12V ISO'7638 |
| Cable length input: |
_ |
| Cable length output: |
_ |
| Efficiency: |
app. 80% |
| Electrical protection: |
_ |
| Mechanical protection: |
entirely sealed |
| Dimensions: |
170 x 70 x 25mm without cabel outlet |
| Mass: |
app. 1600g |
