About the DC182B-692L Motor Reversing Solenoid
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The DC182 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using brackets available separately via the M5 mounting holes - 16 off, 8 per side), mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
The Albright HV500AF-47S 24V DC PWM + Auxiliary (NC) is a high-performance solid-state relay designed to cater to specific and demanding applications requiring precise control and high reliability. This device is part of Albright’s HV500 series, known for its robust design and advanced technology, making it suitable for critical applications such as electric vehicles, renewable energy systems, and industrial machinery.
Key Specifications and Features:
Voltage Rating:
The HV500AF-47S is specifically rated for 24V DC applications. This makes it particularly useful in systems where lower voltage levels are essential, such as in certain automotive, solar, and industrial environments.
Pulse Width Modulation (PWM):
The relay supports PWM control, which is crucial for managing power efficiently and maintaining smooth operation. PWM allows for variable power delivery, reducing wear on components and increasing the overall efficiency of the system. This control mechanism is essential for systems that require fine-tuned power adjustments and enhanced energy savings.
Auxiliary Contacts (NC):
The HV500AF-47S includes Normally Closed (NC) auxiliary contacts. These contacts provide an additional layer of control and monitoring, useful in safety circuits or for feedback to a control system. The NC contacts ensure that the circuit remains closed and operational until a certain condition is met, which then opens the circuit, providing a safety mechanism or an alert to the system.
Durability and Reliability:
Constructed from high-quality materials, the HV500AF-47S is designed to operate reliably in harsh environments. Whether it’s extreme temperatures, dust, moisture, or vibration, this relay maintains consistent performance. Its robust design ensures longevity and reliability, critical for systems where maintenance access may be limited.
Safety Features:
The device is engineered with built-in overcurrent protection and arc suppression. These features protect both the relay and the connected equipment from damage due to electrical faults, making the HV500AF-47S a safe choice for sensitive applications.
Compact Design:
The compact form factor of the HV500AF-47S allows for easy integration into existing systems, even in space-constrained environments. Despite its small size, it delivers the high performance and reliability expected from Albright products.
Applications:
The versatility of the HV500AF-47S makes it ideal for a wide range of applications. It is particularly well-suited for electric vehicles, where reliable DC control is crucial for battery management and motor control. In renewable energy systems, it can be used for managing power flow in solar inverters or wind turbines. Additionally, in industrial machinery, it offers precise control in automation systems, enhancing efficiency and reducing downtime.
Summary
The Albright HV500AF-47S 24V DC PWM + Aux (NC) relay is a powerful and reliable component designed for precision control in a variety of demanding applications. Its features, such as PWM control, NC auxiliary contacts, and robust design, make it a top choice for industries requiring high reliability and precise power management. By integrating this relay into your system, you not only improve operational efficiency but also ensure a safer and more durable setup, aligning with the best practices in modern electrical engineering.
About the DC88-641L Motor Reversing Solenoid(replacing Lewmar Solenoid 24V DC88-459L - B11127)
Model: DC88-641L
Voltage: 24V
Current Rating: Intermittent 100A
Poles: 1 pole
Features:
Integral bracket
Top cover reversed
T-contact towards bracket, positioned next to bracket
Bar contact on the right side
Dust covers
End cap mounted
Duty Cycle: 25%
Manufacturer: Albright International
Replaces: DC88-459L B11127
DC88-641L Albright Motor Reversing Contactor – 12V, 100A
The DC88-641L motor reversing contactor by Albright is a heavy-duty, highly reliable solution designed for motor reversing applications. With an innovative double-pole configuration and compact design, it provides superior performance in DC motor control circuits, making it ideal for vehicles, winches, and other electrical equipment.
Key Features:
Voltage Rating: 12V DC – Suitable for low-voltage motor applications
Current Rating: 100A/150A – Supports a higher current load than comparable contactors for more demanding tasks
Durability: Built with high-quality materials for robust performance in both standard and harsh environments
Compact Monoblock Design: Space-saving and easy to install in tight control panels or vehicle setups
Double Pole Configuration: Ideal for controlling the forward and reverse motion of DC motors
High Resistance to Vibration and Shock: Ensures consistent operation even in mobile applications like electric vehicles, forklifts, and heavy machinery
Intermittent and Continuous Duty Capable: Operates reliably over varied duty cycles depending on the operational demands
Applications:
Electric Vehicles (EV): Suitable for handling directional control in electric car or truck motor systems
Winches & Hoists: Used to control the directional movement of motors in winch systems, providing seamless direction changes
Marine & Industrial Equipment: Ideal for use in boat winches, hoists, and other reversing DC motor applications
Forklifts & Warehouse Equipment: Commonly employed in battery-operated equipment, where dependable motor reversing is essential
Why Choose the DC88-641L?
The DC88-641L offers improved current handling, making it an excellent choice for systems that require higher performance. Albright's proven engineering ensures long-lasting, trouble-free operation, making this contactor a solid investment in terms of both cost and longevity. It’s engineered to reduce maintenance and improve efficiency for professionals seeking to optimize their motor control systems.
SU280B + Magnetic Blowouts
These contactors are of double break configuration and are fitted with magnetic blowouts - denoted by 'B' suffix in the SU280B range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. Fitting of blowouts makes the contacts polarity sensitive and the Positive markings on the top cover of the contactor must be observed.
Type : SU280B-1699
Coil Voltage (V) 48 CO DCCoil Resistance (Ohms) 150Pull In Voltage (V) 32.0 MaximumDrop Out Voltage (V) 12.0 MaximumCoil Power Dissipation (W) 15.36
Additional Features:
ENCLOSED TOP COVER FITTED
SPECIAL BACKPLATE FITTED
About Intermittent - Int. SU280B Solenoids
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The contactors have double-breaking main contacts with silver alloy tips, which are weld-resistant, hardwearing and have excellent conductivity. They are easy to install, with M5 tapped holes in the switch frame together with a range of available mounting brackets. Mounting can be vertical or horizontal, when vertical the M10 contact studs should point upwards
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
About the DC182B-691L Motor Reversing Solenoid
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The DC182 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using brackets available separately via the M5 mounting holes - 16 off, 8 per side), mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

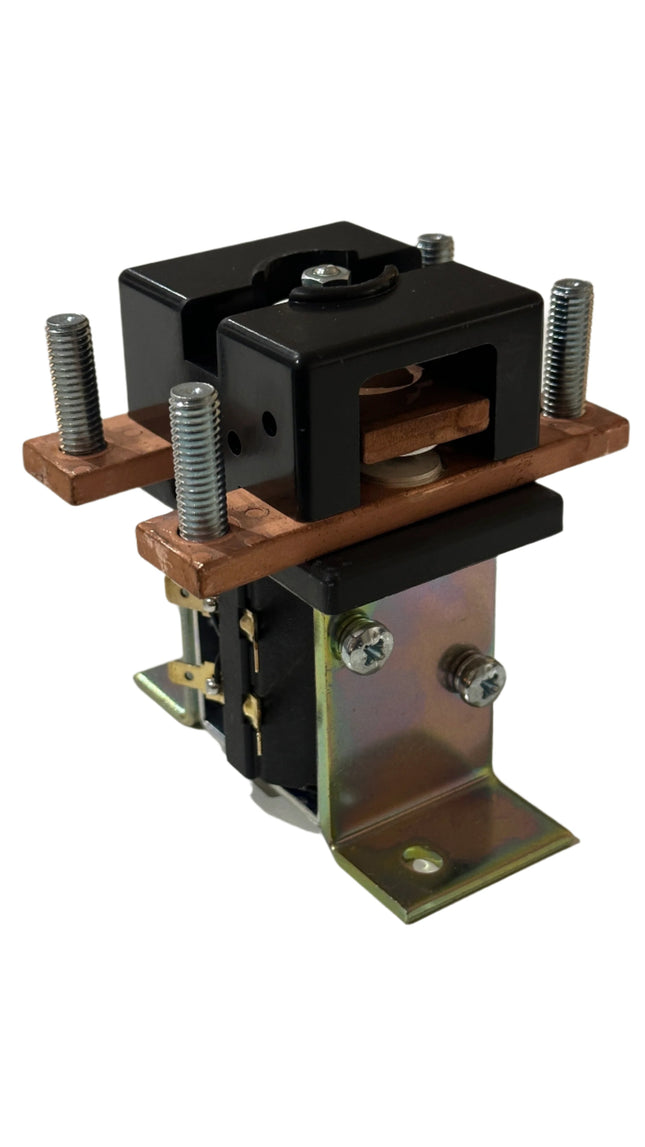

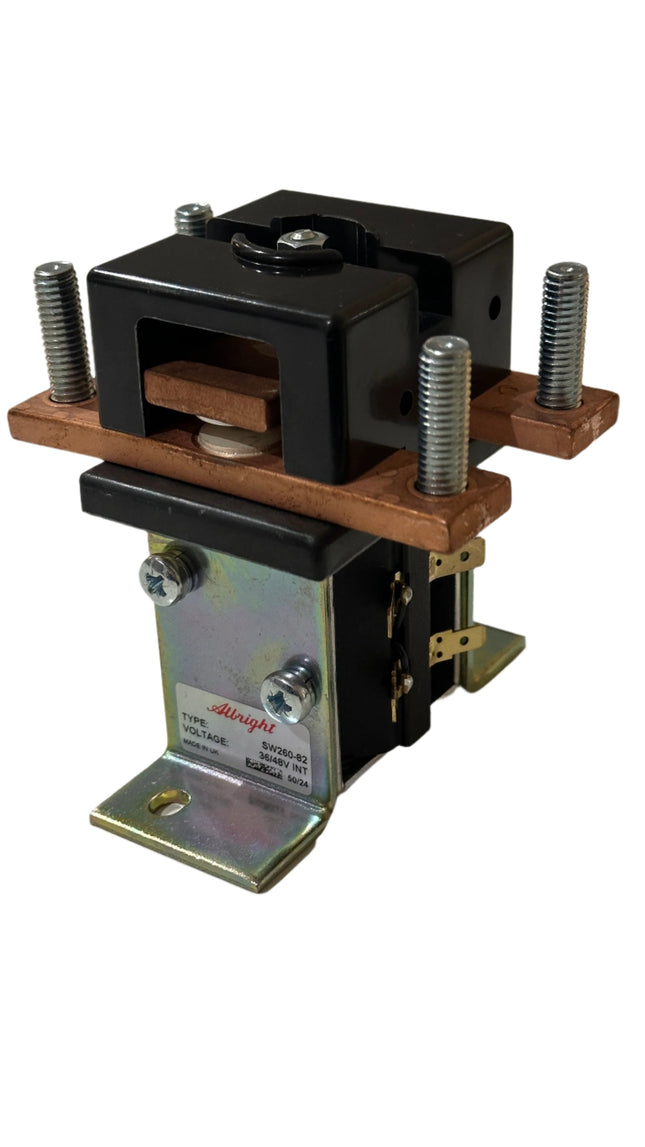

SW260-82 36/48 Volts DC, Single-acting Busbar Solenoid ContactorAlmost HO type INT coil.
The Albright SW260-82 36-48V Solenoid Contactor is a high-performance, single-pole, single-throw switch designed for uninterrupted current in telecommunications and power distribution. With silver-alloy contacts and double-breaking main contacts, it offers reliable and durable connectivity. Use with DC or AC supplies (with a rectifier board, sold separately) for maximum versatility.
The SW260-82 Albright Solenoid Contactor features silver plating on the main contacts for enhanced conductivity and durability. Its 2 x 2156-645 brackets provide easy installation. This contactor is ideal for use with PWM supply and has 4.8mm and 6.3mm coil tab terminals for versatility.
SW60-4 solenoid contactor for 24V DC -Continuous coil operation
About Continuous - CO SW60 Solenoids
Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
The SW60 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets - supplied as separate items). Mounting can be on the side or base of the contactor.
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
Bracket fits round surfaces
Albright SW80-2017T 12V CO = Continuous
SW80-2017T Albright 12V Single Pole Single Throw Contactor. The SW80-2017T9, a Albright SW80 -series contactor has been developed for direct current loads, including motors as used on different kind of electric vehicles like industrial trucks.
SW80-2017T has enclosed top cover (moving contacts are not visible, prevents some dust and dirt getting on the contact surfaces) + side panel for fuse
Albright SW200A-11, 24 Volts DC 400 Amps single-acting contactor with magnetic blowouts and an auxiliary microswitch, continuous type coil is suitable for "main power" applications where on/off periods are long or always on.
Genuine SW200A-11 is Albright 24V 250A CO DC-type contactor. The SW200A-11 is a SW200 series of contactor is designed for direct current loads. SW200 have double breaking main contacts with silver alloy tips. Contact tips are weld resistant, extremely hard wearing.
This is equipped with Auxiliary contacts on the top.
Reliable Power Switching in Harsh Environments
The Albright SU80-5163PL is a heavy-duty DC contactor engineered for continuous duty applications up to 150A at 28V DC. This single-acting model is part of Albright’s trusted SU80 series, known for robust construction and long operational life.
Designed with an IP66 rated sealed housing, this contactor provides exceptional protection against water, dust, and other environmental hazards—making it ideal for use in material handling, electric vehicles, marine systems, and industrial automation.
Key Features:
Voltage: 28V DC
Current: 150A Continuous
Type: Single-acting (normally open)
Protection Rating: IP66 (fully sealed)
Coil Terminals: Plated for corrosion resistance
Compact footprint, easy to install
Applications:
Perfect for mobile equipment, battery-powered systems, off-road vehicles, and any harsh environment where reliability is critical.
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case.
Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
Albright SW560A-38M 24V Magnetically Latched Contactor (INT.)
Albright International SW560A-38M is a 24 Volt single-pole, single-throw (SPST)
magnetically latched solenoid contactor, intermittent rated, supplied with auxiliary microswitch.
The SW560A is designed for telecommunications and power distribution applications
where an uninterrupted current load is switched. These contactors are primarily
intended for Direct Current (DC) loads but may also be used with Alternating Current (AC).
Key Features
24V coil voltage
Single-pole, single-throw (SPST)
Magnetically latched design
Intermittent duty (INT.)
Auxiliary microswitch fitted
Double-breaking main contacts
Silver-alloy contact tips – weld-resistant and high conductivity
Silver-plated main contacts (standard)
Special operating knob and extension fitted
Yellow warning label fitted
About Intermittent (INT.) SW560A Solenoids
Intermittent contactors are typically used for hydraulic functions on vehicles.
They make and break faster than continuous duty solenoids and are not recommended
for prolonged contact periods.
Magnetic Latching Function
The contact position is secured using a permanent magnet within the assembly.
The coil requires a pulse to close the contacts and a reverse-polarity pulse
to open them. Once operated, the contactor remains in its last energised state
without requiring continuous power.
Please note: magnetically latched contactors are not failsafe devices.
Mounting Information
The SW560A is a compact contactor that can be busbar-mounted vertically or horizontally.
If mounted vertically, the coil should be positioned at the bottom.
Auxiliary Microswitch
This version includes an auxiliary microswitch mounted on the top cover.
The auxiliary contact connection is triggered by coil energising.
Uninterrupted Current Applications
Suitable for applications with no or infrequent load switching requirements,
helping to maintain lower contact resistance over time.
Associated Parts (Recommended)
2155-165 Vertical mounting bracket (2 pcs recommended)
2065-167A Horizontal mounting bracket kit (1 pc recommended)
Technical Specifications
Device Type: NO – SP – ST Latching
Voltage: 24V D.C.
Coil Type: Intermittent
Thermal Current Rating: 600A
Application: Uninterrupted
Guideline Weight: 1.1 kg
Operating Ambient Temperature: -40°C to +60°C
Coil Data
Coil Resistance: 17 Ω
Pull-In Voltage: 17.0V (Maximum)
Drop-Out Voltage: 17.0V (Maximum)
Coil Power Dissipation: 33.88 W
Typical Pull-In Time: 30 ms
Electrical Performance
Voltage Drop per Pole (New Contacts at 600A): < 50 mV
Intermittent Current Rating
30% Duty: 1095A
40% Duty: 950A
50% Duty: 850A
60% Duty: 775A
70% Duty: 715A
SW80-6 Albright 24V Solenoid Switch. The SW80-6, a Albright SW80 -series contactor has been developed for direct current loads, including motors as used on different kind of electric vehicles like industrial trucks.
SW180-954L Albright 150A 12V INT 1-pole 1-throw Contactor
SW180-954L, a SW180L series of contactors, equipped with magnetic blowouts - B and larger contact tips (L) and has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks
