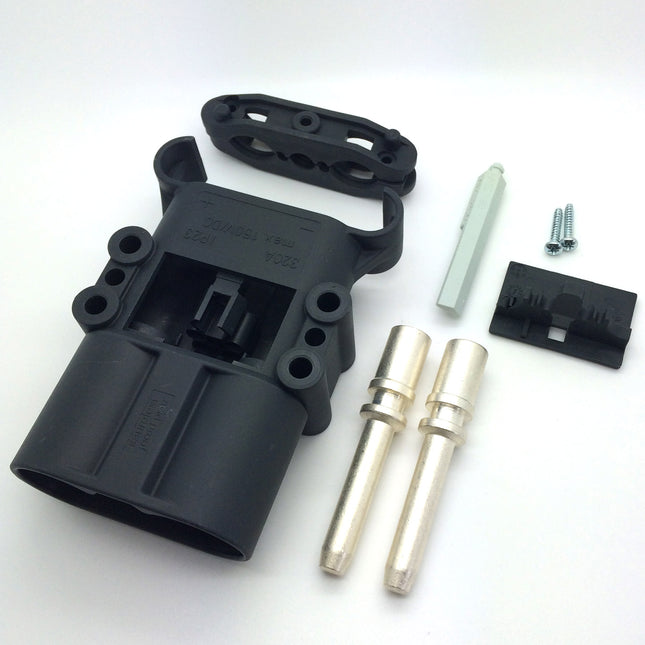

REMA 95505-01 for DIN320 70mm² - Plug
Original REMA EURO DIN 320A / 70 mm² plug with grey coding, acid-resistant 108957 / 9550501 are the REMA catalog numbers for the item indicated as (new catalog nr/old catalog nr)
95505-01 includes these parts:
1x housing, 1x lock part, 1x coding pin (grey), 1x cable clamp set
2x main contacts 70 mm², plug side
This is a Complete connector set with battery acid-resistant housing.
Extra accessories are available, such as extra auxiliary and pilot contact sets, handles, air pipes.
Housing material – IMPORTANT CLARIFICATION
🔹 This is the Battery Acid Resistant, Dark Grey housing version
Material: PP CoPo GF30 (copolymer polypropylene)
Battery acid-resistant
UL-tested version
Recommended for demanding battery and traction applications
👉 Only the housing material differs between the black and dark grey versions. All electrical and mechanical connector parts are identical.
** As an alternative, a complete black housing version is available under part number 75500-01 which features a fully black housing made from shock-resistant polyamide (PA), offering increased mechanical strength and improved impact resistance.Only the housing material is different between these two versions and to note the dark-grey version is the one the UL -tests are made with.

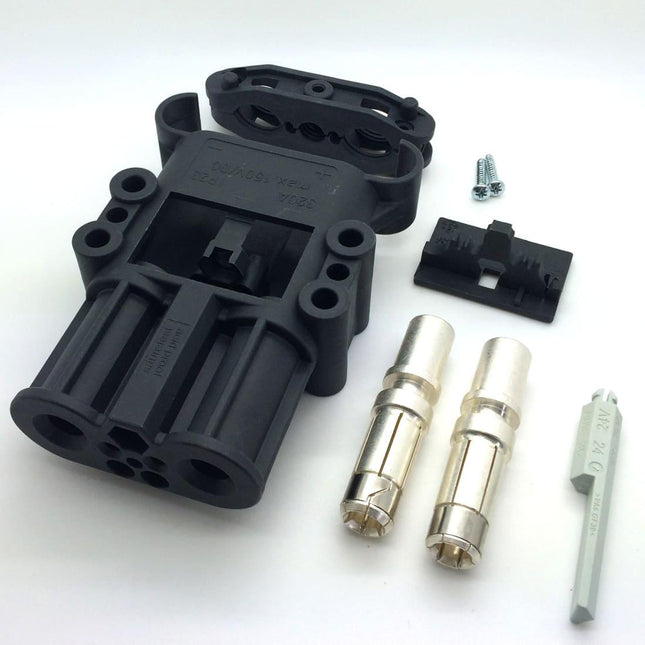

REMA 95605-01

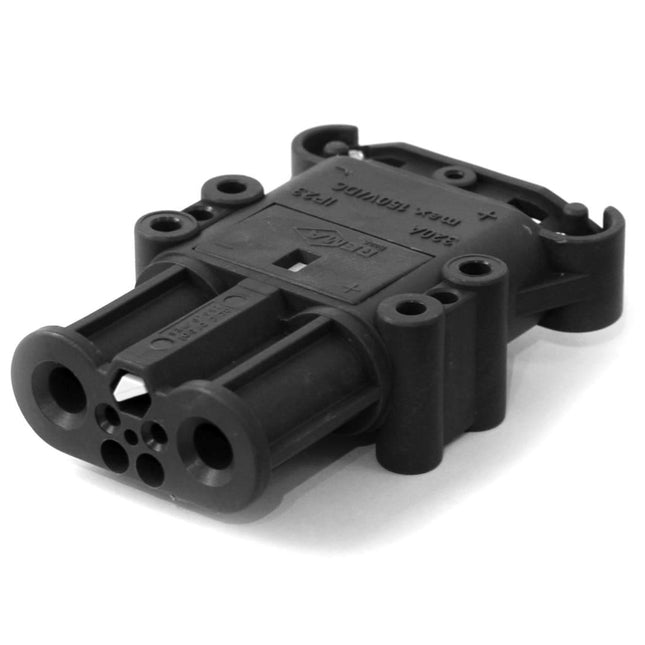

Original REMA EURO DIN 320A / 50 mm² socket with grey coding, acid resistant 108975 / 9560501 are the REMA catalog numbers for the item indicated as (new catalog nr/old catalog nr)
95605-01 includes these parts:
1x housing, 1x lock part, 1x coding pin (grey), 1x cable clamp set
2x main contacts 70 mm², socket side (the battery side)
This is a Complete connector set with battery acid-resistant housing.
Extra accessories are available, such as extra auxiliary and pilot contact sets, handles, air pipes.
Housing material – IMPORTANT CLARIFICATION
🔹 This is the Battery Acid Resistant, Dark Grey housing version
Material: PP CoPo GF30 (copolymer polypropylene)
Battery acid-resistant
UL-tested version
Recommended for demanding battery and traction applications
👉 Only the housing material differs between the black and dark grey versions. All electrical and mechanical connector parts are identical.
** As an alternative, a complete black housing version is available under part number 75601-01 which features a fully black housing made from shock-resistant polyamide (PA), offering increased mechanical strength and improved impact resistance.Only the housing material is different between these two versions and to note the dark-grey version is the one the UL -tests are made with.

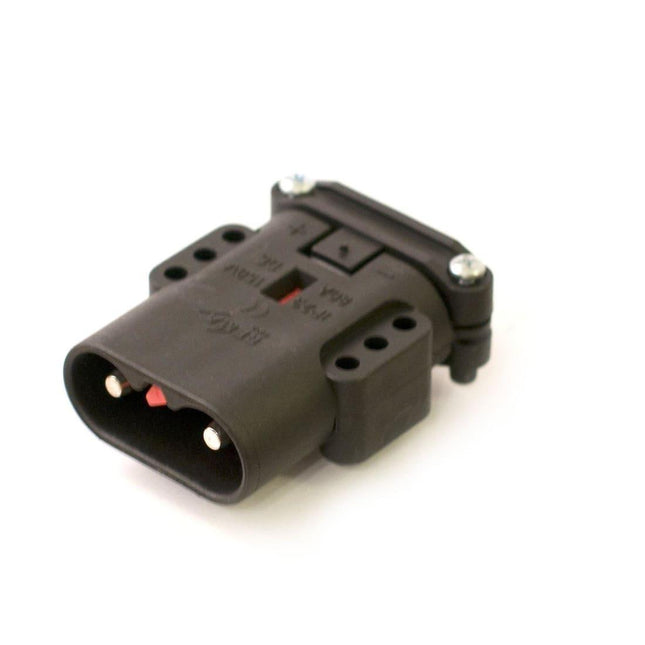

FT80 Euro-standard Battery Connector Plug / Male 16mm2 + Aux. contacts
REMA FT 80 PLUG 16mm2 (AWG 6) + auxiliary contactsCatalog code: 81225-00
Includes housing, cable stress relief ( cable clamp), red coding pin, screws, Main Contacts ( 2 pcs ), 2x auxiliary contact
T-shaped Red Handle and Auxilary contacts are available as an accessory.
To ensure optimal electrical motor performance it is necessary to use only the most reliable and high quality connections. REMA FT Series connectors are the ones to guarantee long lasting connection with very low power loss. Design of these connectors is extremely compact and durable.
REMA FT80 connectors are in compliance with EN 1175-1
Service Voltages : 12, 24, 36, 48, 72, 80 V ( can be easily selected with the RED Colored pin included with connector )
The FT 80 A does not correspond to DIN Standard but it is in accordance with the Euro Standard.
Available accessories for FT80 series are : Main contacts ( spare ) , Auxiliary Contacts , Red Handle , Coding Pin , spare housing
To secure optimal output of electrical powered motors, not only a high power battery is necessart. Only with a reliable and high quality connection guarantees a long lasting connection without power losses.
WIth REMA FT80 you gain high amperage and small dimensions in one connector model. Each FT80 connection fulfils the highest quality standards and shows excellent functionality, robust reliability, easy handling and economy. These connectors are very inexpensive compared to what they offer.
The type FT 80 is in correspondence with French industrial standard and the European EN 1175-1 standard as well.REMA® FT80 battery / charger / motor connectors are suitable for use in the following applications:
Personnel / Burden Carriers
Golf Carts
Sweeper / Scrubber Floor Cleaning Equipment
Boats, Yachts & other marine vechicles
Light On-Highway Caravans,Trailer and Mobile Homes

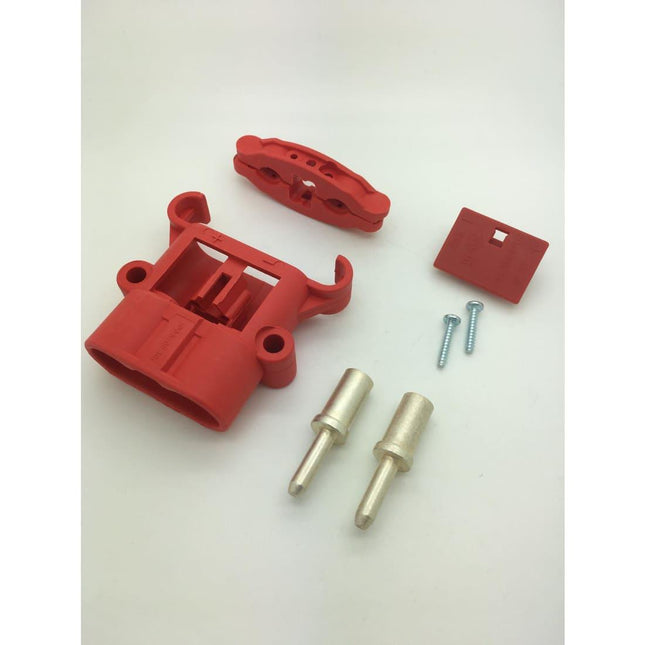

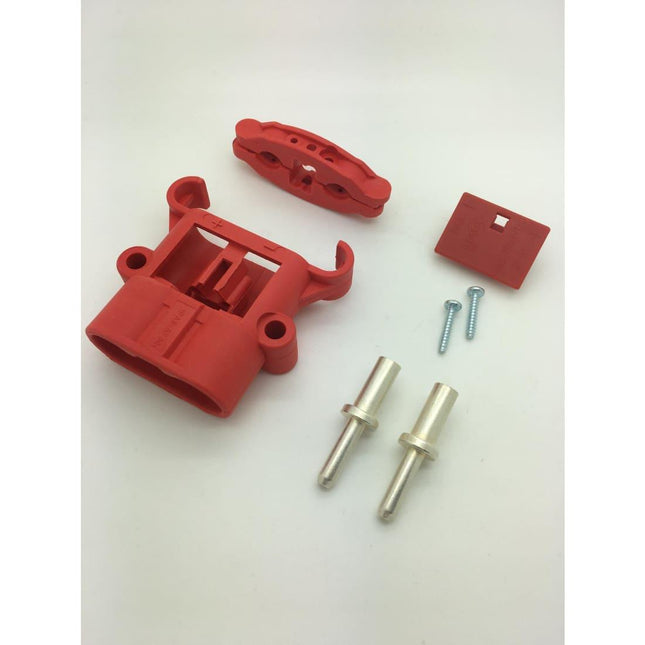

REMA DIN 80A Plug RED, with contacts, lock part, coding pin and cable stress relief = cable clamp.* No handle included, please add separate handle type if needed.* Plug without handle allows the handle to be changed upon damage very easily.

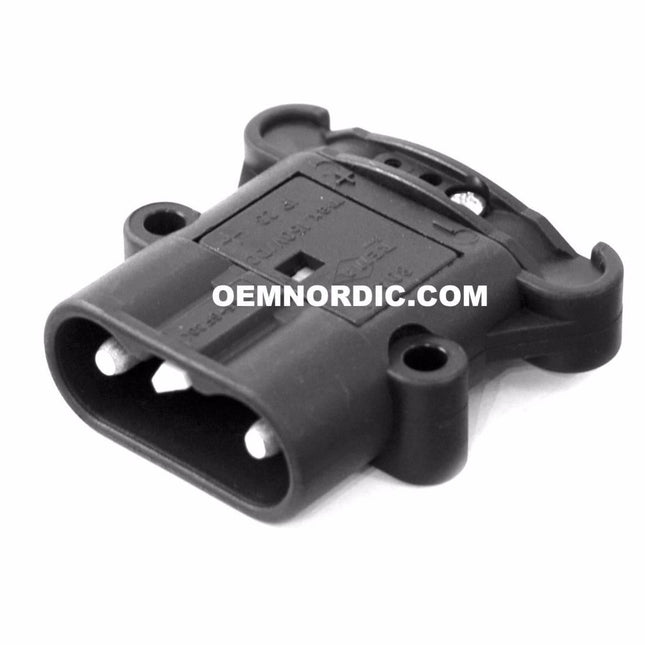

REMA DIN 80A Plug with contacts, lock part, coding pin and cable stress relief = cable clamp. Including grey coding pin for DRY battery.
Other options are
Green = Wet BatteryYellow = Wet&Dry Battery
Available with 6mm2, 10mm2, 16mm2, 25mm2 and 35mm2 contacts
Browse more REMA DIN 80 connectors here
Item description
contacts (mm2 & AWG)
New Rema Code
Old Rema Code
DIN 80 plug set, acid resistant
6mm2fits AWG 10/12
108892
95198-06
DIN 80 A plug; grey coding; acid resistant
10mm2 fits AWG 8
111077
95198-10
DIN 80 A plug; grey coding; acid resistant
16mm2 fits AWG 6
108891
95198-00
DIN 80 A plug; grey coding; acid resistant
25mm2 fits AWG 4
108894
95199-00
DIN 80 A plug; grey coding; acid resistant
35mm2 Fits AWG 2
108895
95199-10
* No handle included, please add separate handle type if needed.* Plug without handle allows the handle to be changed upon damage very easily.
Product features and advantages:
Specifically designed for the quick and opportunity charging of large battery capacities
Suitable for lead gel accumulators and lithium-ion batteries
Corresponds to the DIN VDE 0632-589 and EN 1175-1
Spring supported contact system for optimal contact pressure high electrical conductivity
High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life
Durable because of acid resistant design
Suitable for cable sizes from 10 mm2 to 35 mm2
Direct crimping without reducing bushing for all cable size
Wide range of accessories
different handle shapes are available
connect a pair of additional auxiliary and/or a pair of pilot contacts
cooling system with air supply through
Typical applications
forklift trucks
battery charging systems sweeper and cleaning devices

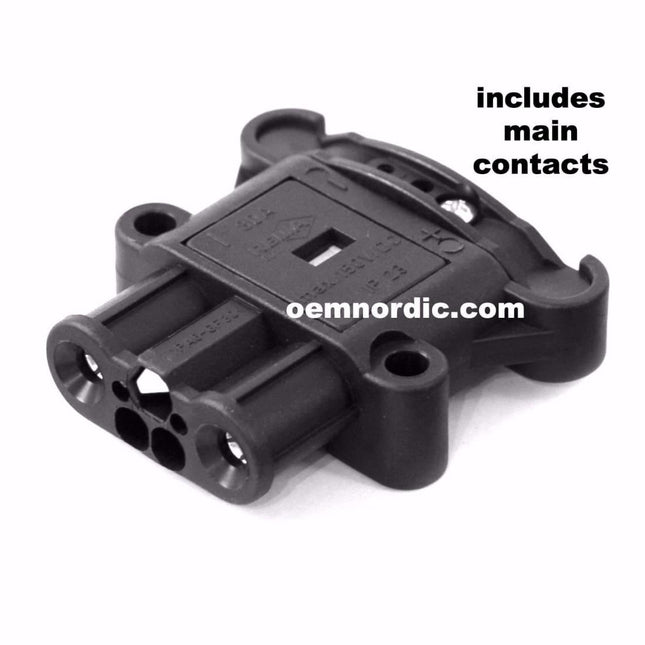

REMA DIN 80A Socket with contacts, lock part, coding pin and cable stress relief = cable clamp. Including grey coding pin for DRY battery.
Other options for coding pins are: (sold separately)
Green = Wet BatteryYellow = Wet&Dry Battery* No handle included, please add separate handle type if needed.* Socket without handle allows the handle to be changed upon damage very easily.
Product features and advantages:
Specifically designed for the quick and opportunity charging of large battery capacities
Suitable for lead gel accumulators and lithium-ion batteries
Corresponds to the DIN VDE 0632-589 and EN 1175-1
Spring supported contact system for optimal contact pressure high electrical conductivity
High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life
Durable because of acid resistant design
Suitable for cable sizes from 16 mm2 to 35 mm2
Direct crimping without reducing bushing for all cable size
Wide range of accessories
different handle shapes are available
connect a pair of additional auxiliary and/or a pair of pilot contacts
cooling system with air supply through
Typical applications
forklift truck batteries
battery charging systems sweeper and cleaning device batteries

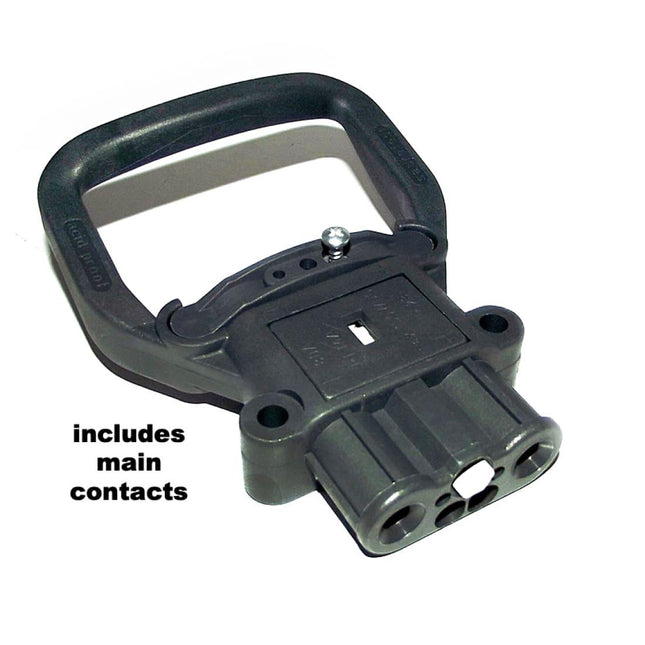

REMA DIN 80A Socket with a fixed handle, with contacts, lock part, coding pin and cable stress relief = cable clamp. Including grey coding pin for DRY battery.
Other options for coding pin are (sold separately):
Green = Wet BatteryYellow = Wet&Dry Battery* No handle included, please add separate handle type if needed.* Socket without handle allows the handle to be changed upon damage very easily.
Product features and advantages:
Specifically designed for the quick and opportunity charging of large battery capacities
Suitable for lead gel accumulators and lithium-ion batteries
Corresponds to the DIN VDE 0632-589 and EN 1175-1
Spring supported contact system for optimal contact pressure high electrical conductivity
High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life
Durable because of acid resistant design
Suitable for cable sizes from 16 mm2 to 35 mm2
Direct crimping without reducing bushing for all cable size
Wide range of accessories
different handle shapes are available
connect a pair of additional auxiliary and/or a pair of pilot contacts
cooling system with air supply through
Typical applications
forklift truck batteries
battery charging systems sweeper and cleaning device batteries

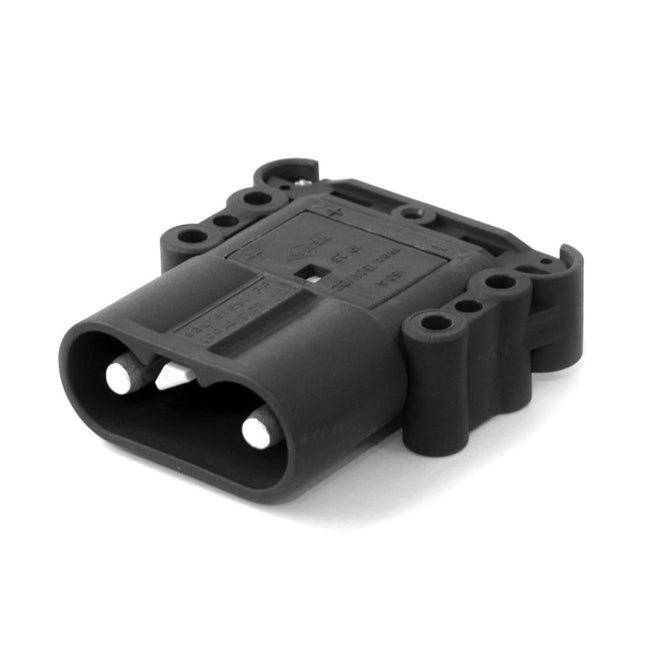

REMA DIN 160A Plug with contacts, Acid Resistant Housing, lock part, coding pin and cable stress relief = cable clamp. Including grey coding pin for DRY battery.
Other options are: ( sold separately )
Green = Wet BatteryYellow = Wet&Dry Battery
REMA 160A Plug Acid Resistant Catalog codes (new / old) below:
10mm2 = 108846 / 95029-10 ( fits also AWG 8 )
16mm2 = 108845 / 95029-01 ( fits also AWG 6 )
25mm2 = 108851 / 95034-01 ( fits also AWG 4 )
35mm2 = 108858 / 95039-01 ( fits also AWG 2 )
50mm2 = 108856 / 95044-01 ( fits also AWG 1/0 )
70mm2 = 108868 / 95044-04 ( fits also AWG 2/0 )
* No handle included, please add separate handle type if needed.* Plug without handle allows the handle to be changed upon damage very easily.
Product features and advantages:
Specifically designed for the quick and opportunity charging of large battery capacities
Suitable for lead gel accumulators and lithium-ion batteries
Corresponds to the DIN VDE 0632-589 and EN 1175-1
Spring supported contact system for optimal contact pressure high electrical conductivity
High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life
Durable because of acid resistant design
Suitable for cable sizes from 10 mm2 to 50 mm2
Direct crimping without reducing bushing for all cable size
Wide range of accessories
different handle shapes are available
connect a pair of additional auxiliary and/or a pair of pilot contacts
cooling system with air supply through
Typical applications
forklift trucks
battery charging systems sweeper and cleaning devices
70mm2 currently with 3-4 work days delivery time
REMA DIN 160A Plug with contacts, lock part, coding pin and cable stress relief = cable clamp. Including grey coding pin for DRY battery.
Other coding pin options are: ( sold separately )
Green = Wet BatteryYellow = Wet&Dry Battery
Catalog codes are:
16mm2 = 108807 ( fits AWG 6 )
25mm2 = 108813 / old 95007-08 ( fits AWG 4 )
35mm2 = 108819 / old 95012-08 ( fits AWG 2 )
50mm2 = 108831/ old 95017-08 ( fits AWG 1/0 )
70mm2 = 108832 ( fits AWG 2/0 )
* No handle included, please add separate handle type if needed.* Plug without handle allows the handle to be changed upon damage very easily.
Product features and advantages:
Specifically designed for the quick and opportunity charging of large battery capacities
Suitable for lead gel accumulators and lithium-ion batteries
Corresponds to the DIN VDE 0632-589 and EN 1175-1
Spring supported contact system for optimal contact pressure high electrical conductivity
High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life
Durable because of acid resistant design
Suitable for cable sizes from 10 mm2 to 50 mm2
Direct crimping without reducing bushing for all cable size
Wide range of accessories
different handle shapes are available
connect a pair of additional auxiliary and/or a pair of pilot contacts
cooling system with air supply through
Typical applications
forklift trucks
battery charging systems sweeper and cleaning devices

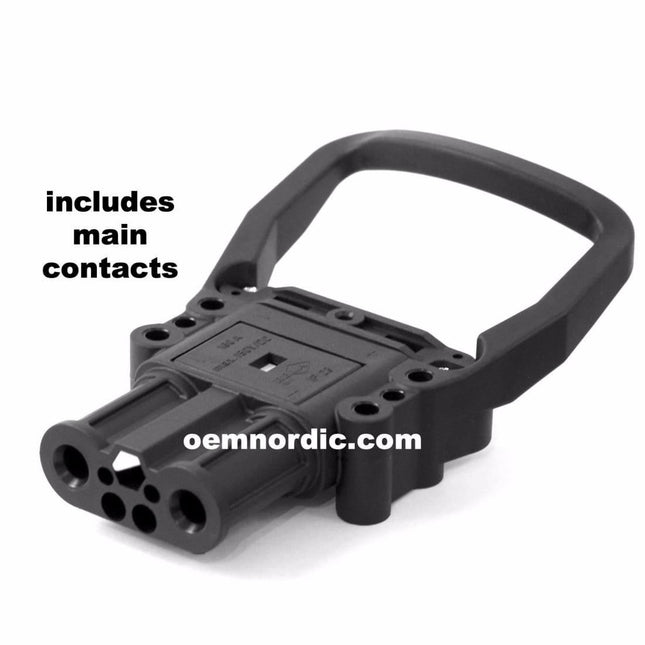

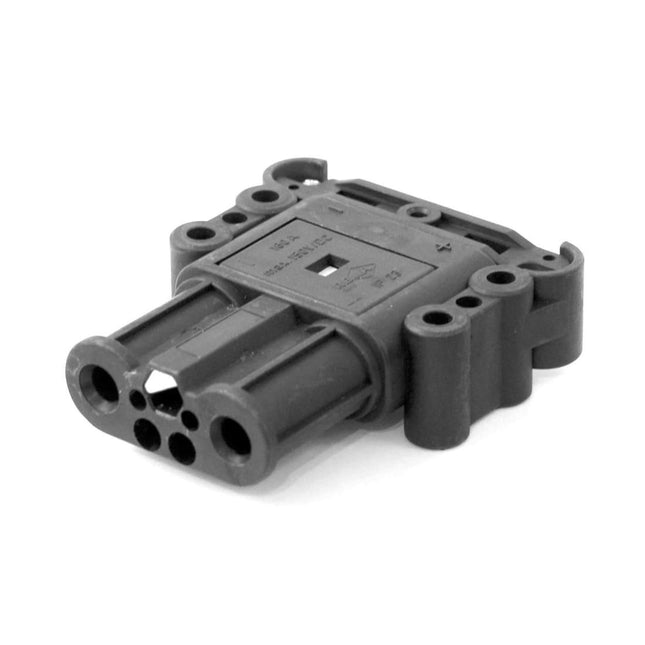

REMA DIN 160A Socket with Fixed Handle contacts, lock part, coding pin, and cable stress relief = cable clamp. Including a grey coding pin for the DRY battery.
Product features and advantages:
Specifically designed for the quick and opportunity charging of large battery capacities
Suitable for lead gel accumulators and lithium-ion batteries
Corresponds to the DIN VDE 0632-589 and EN 1175-1
Spring-supported contact system for optimal contact pressure and high electrical conductivity
High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses and long life
Durable because of acid-resistant design
Suitable for cable sizes from 16 mm2 to 70 mm2
Direct crimping without reducing bushing for all cable size
Wide range of accessories
connect a pair of additional auxiliary and/or a pair of pilot contacts
Coding Pins for different battery types
cooling system with air supply through
Typical applications
forklift trucks
battery charging systems sweeper and cleaning devices
70mm2 currently with 3-4 work days delivery time

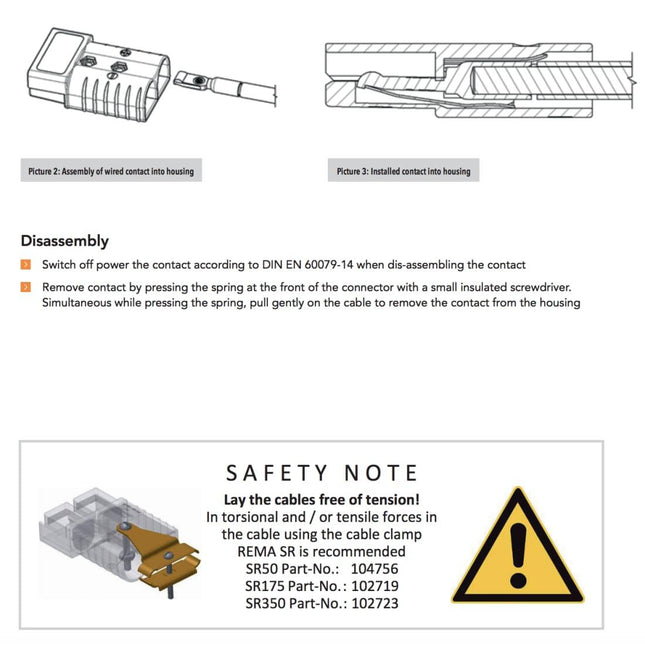

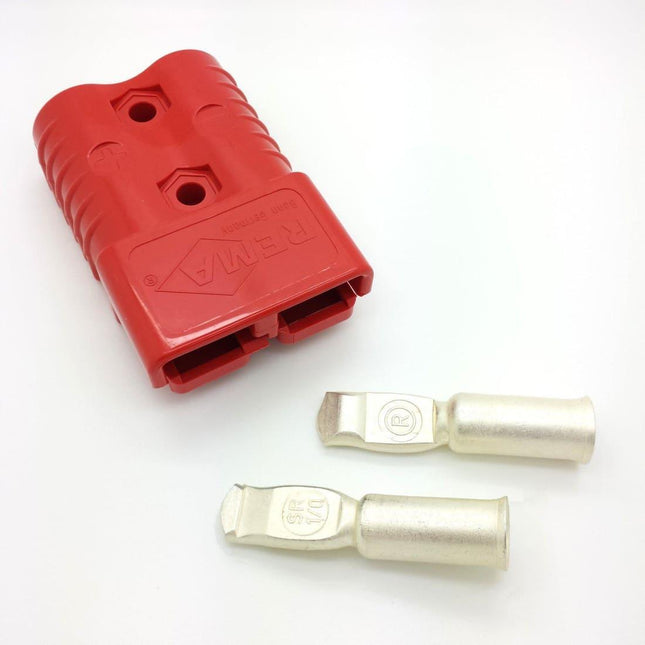

REMA SR 175 series is european market alternative to Anderson SB 175. These connectors are equal quality and specs and fit together and can be mixed freely. 100% compatible. REMA connectors have over 70% market share in EU area.
Product features and advantages:
Reliable power connection solution for Electric vehicle batteries
Battery chargers Forklift trucksOther DC voltage applications
Operating voltage determined by housing color
Simplifies mating of same voltages
Plug and socket with identical housing design
Reduces quantity of components & Reduces purchasing and storage cost
Acid resistant housing material
Handels and strain relieves available
CE Marking & UL recognized Contacts sized for AWG (American Wire Gauge)
REMA developed high-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life suitable for crimping.
Available for 50mm2, 70mm2 and 95mm2 cables

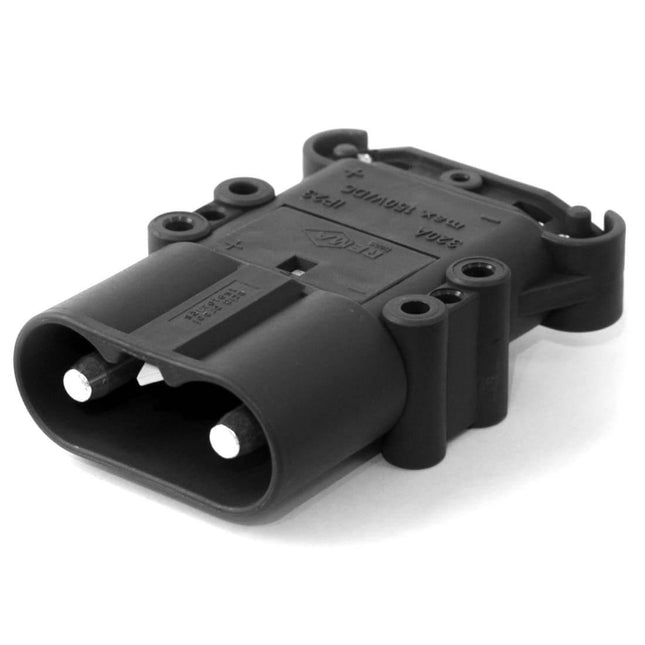

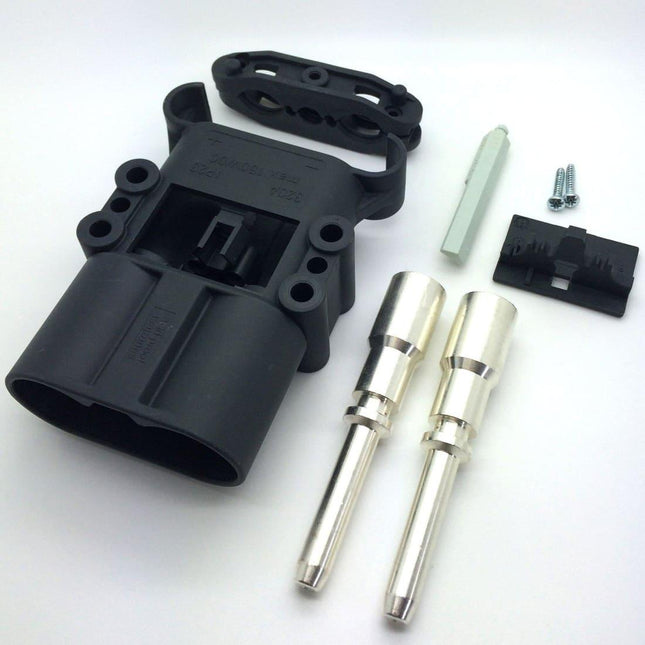

320A PLUG = MALE = STECKER = CHARGER/CAR SIDE50mm2 = 95500-01 DIN 320 A plug; grey coding; acid resistant70mm2 = 95505-01 DIN 320 A plug; grey coding; acid resistant95mm2 = 95510-01 / 108960 DIN 320 A plug; grey coding; acid resistant
REMA DIN 320 Catalog here
Check all DIN 320 connectors here
Sold without a handle, a detachable handle types can be installed and replaced in case the handle breaks. Please see the available accessory for the product. Different types of detachable handles are available as accessories.
PLUG = Male version, for the charger and car/vehicle/EV/motor side
Product features and advantages
Specifically designed for the quick and opportunity charging of large battery capacities.
Suitable for lead gel accumulators and lithium-ion batteries.
Corresponds to the DIN VDE 0632-589 and EN 1175-1
Spring-supported contact system for optimal contact pressure high electrical conductivity
High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life
Durable because of acid resistant design
Suitable for cable sizes from 50 mm² to 95 mm² ( smaller doable with 100% fit reducing bushings, look for product page for accessories )
Direct crimping without reducing bushing for all cable size
Wide range of accessories different handle shapes available
1 pair of additional auxiliary and 1 pair of pilot contacts
cooling system with air supply through
Typical applications are forklift trucks battery charging systems sweeper and cleaning devices.
REMA DIN 320A Plug with contacts, lock part, coding pin and cable stress relief = cable clamp. Including grey coding pin for DRY battery.
Other coding pin options are: ( sold separately )
Green = Wet BatteryYellow = Wet&Dry Battery* No handle included, please add separate handle type if needed.* Plug without handle allows the handle to be changed upon damage very easily.
Product features and advantages:
Specifically designed for the quick and opportunity charging of large battery capacities
Suitable for lead gel accumulators and lithium-ion batteries
Corresponds to the DIN VDE 0632-589 and EN 1175-1
Spring supported contact system for optimal contact pressure high electrical conductivity
High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life
Durable because of acid resistant design
Suitable for cable sizes 50 mm2, 70mm2 and 95 mm2
Direct crimping without reducing bushing for all cable size
Wide range of accessories
different handle shapes are available
connect a pair of additional auxiliary and/or a pair of pilot contacts
cooling system with air supply through
Typical applications
forklift trucks
battery charging systems sweeper and cleaning devices
RCC devices
Browse all REMA Connectors here
FT80 Euro-standard Battery Connector Plug / Male
Rema Catalog numbers for FT 80 plug ( Male ), for motor/charger side normally
Item codes of FT80 Plugs (old catalog code and new code)
FT80 Plug 16mm2 (AWG 6) = 81220-00 / 109111FT 80 Plug 25mm2 (AWG 4) = 81221-00 / 109112
Includes housing, cable stress relief ( cable clamp), red coding pin, screws, Main Contacts ( 2 pcs ).
T-shaped Red Handle and Auxilary contacts are available as an accessory.
To ensure optimal electrical motor performance it is necessary to use only the most reliable and high quality connections. REMA FT Series connectors are the ones to guarantee long lasting connection with very low power loss. Design of these connectors is extremely compact and durable.
REMA FT80 connectors are in compliance with EN 1175-1
Service Voltages : 12, 24, 36, 48, 72, 80 V ( can be easily selected with the RED Colored pin included with connector )
The FT 80 A does not correspond to DIN Standard but it is in accordance with the Euro Standard.
Available accessories for FT80 series are : Main contacts ( spare ) , Auxiliary Contacts , Red Handle , Coding Pin , spare housing
To secure optimal output of electrical powered motors, not only a high power battery is necessart. Only with a reliable and high quality connection guarantees a long lasting connection without power losses.
WIth REMA FT80 you gain high amperage and small dimensions in one connector model. Each FT80 connection fulfils the highest quality standards and shows excellent functionality, robust reliability, easy handling and economy. These connectors are very inexpensive compared to what they offer.
The type FT 80 is in correspondence with French industrial standard and the European EN 1175-1 standard as well.REMA® FT80 battery / charger / motor connectors are suitable for use in the following applications:
Personnel / Burden Carriers
Golf Carts
Sweeper / Scrubber Floor Cleaning Equipment
Boats, Yachts & other marine vechicles
Light On-Highway Caravans,Trailer and Mobile Homes

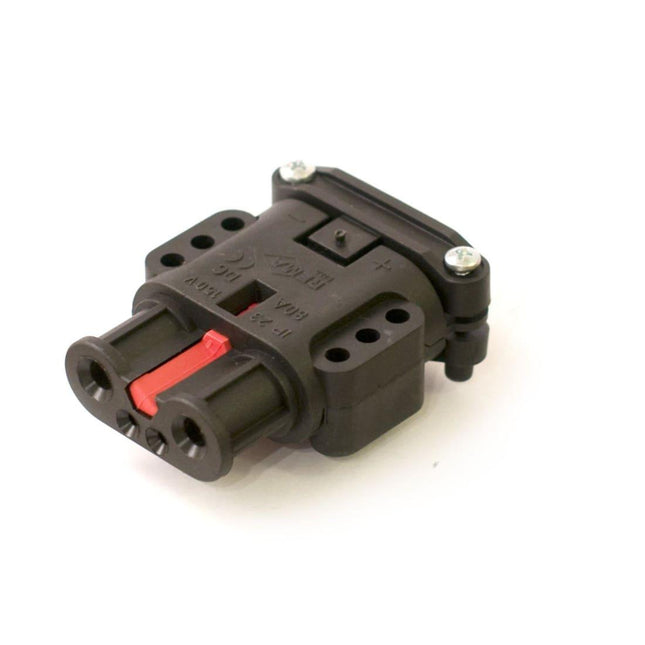

FT80 Euro-standard Battery Connector Socket / Female
Rema Catalog numbers for FT 80 socket ( Female ), for battery side normally
16mm2 (AWG 6) = 81200-00 (109102)25mm2 (AWG 4) = 81201-00 (109103)
Includes housing, cable stress relief ( cable clamp), red coding pin, screws, Main Contacts ( 2 pcs ).
T-shaped Red Handle and Auxilary contacts are available as an accessory.
To ensure optimal electrical motor performance it is necessary to use only the most reliable and high quality connections. REMA FT Series connectors are the ones to guarantee long lasting connection with very low power loss. Design of these connectors is extremely compact and durable.
REMA FT80 connectors are in compliance with EN 1175-1
Service Voltages : 12, 24, 36, 48, 72, 80 V ( can be easily selected with the RED Colored pin included with connector )
The FT 80 A does not correspond to DIN Standard but it is in accordance with the Euro Standard.
Available accessories for FT80 series are : Main contacts ( spare ) , Auxiliary Contacts , Red Handle , Coding Pin , spare housing
To secure optimal output of electrical powered motors, not only a high power battery is necessart. Only with a reliable and high quality connection guarantees a long lasting connection without power losses.
WIth REMA FT80 you gain high amperage and small dimensions in one connector model. Each FT80 connection fulfils the highest quality standards and shows excellent functionality, robust reliability, easy handling and economy. These connectors are very inexpensive compared to what they offer.
The type FT 80 is in correspondence with French industrial standard and the European EN 1175-1 standard as well.REMA® FT80 battery / charger / motor connectors are suitable for use in the following applications:
Personnel / Burden Carriers
Golf Carts
Sweeper / Scrubber Floor Cleaning Equipment
Boats, Yachts & other marine vechicles
Light On-Highway Caravans,Trailer and Mobile Homes
SR 350 - Product information
A 350 AMP FLAT BLADE CONTACT CONNECTOR SR350 SERIESThis series is 100% compatible with Anderson SB350 series connectors and housings and vice versa. REMA is the European version of this legendary connector series seen all over the EV machines such as scissor lifts. Also used in fixed installation, such as 48V UPS stations, telecommunication junction boxes and battery systems.

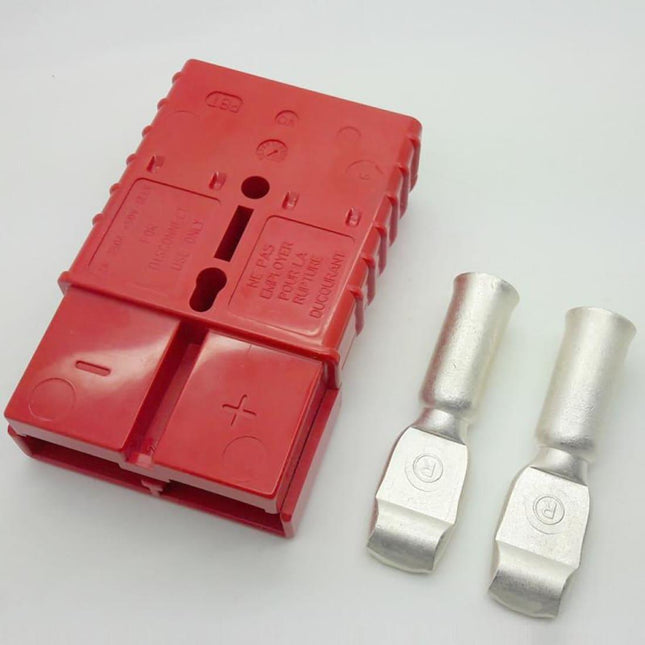

SR350 FLAT BLADE CONTACT BATTERY CONNECTOR
Product features and advantages
Reliable power connection solution for
Electric vehicle batteries
Battery chargers
Forklift trucks
Other DC voltage applications
Operating voltage determined by housing colour simplifies mating of same voltages and protects from mating to unwanted voltages
Genderless design
Plug and socket with identical housing design reduces the quantity of components
Acid resistant housing material
Handels and strain relieve available
CE Marking & UL recognized
Contacts are sized for AWG (American Wire Gauge). REMA developed high-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life suitable for crimping
REMA® SR350 Connector system is designed for optimum performance when used with 4/0 AWG cross section cable. The rated operating current is 350 A. Depending on the cross section and the laying procedure, the current rating is changed. The REMA SR 350 Connector is 100% interchangeable and mates with Anderson SB 350 Connectors.
FITS ONTO VEHICLE SIDE of Trailer Connection
REMA Vehicle socket B incl. Main contacts.
These Twin plug and sockets by REMA are commonly used with truck and trailer connection.
Prior to standardization REMA has developed this two pole electrical connection. These robust connectors have proofed there reliability already for decades. Focus of applications of these connectors are electrical connections between trailer and towing machine on road trucks. The contact design has large connection surfaces with a spring loaded connector pin sliding into the sleeves inside the female connector. This results to extremely low resistance in the electrical connection.The contacts show a differentiation between solder and crimp connections.
On top the twin plug and sockets have:
mechanical robustness
constant extraction forces
protection against humidity, acids and UV radiation
reliable design for long lifetimes and vibration protection
The contacts are made from high quality E-Cu copper, optimized for crimp connections. Crimp tooling and dies available on request from sales.

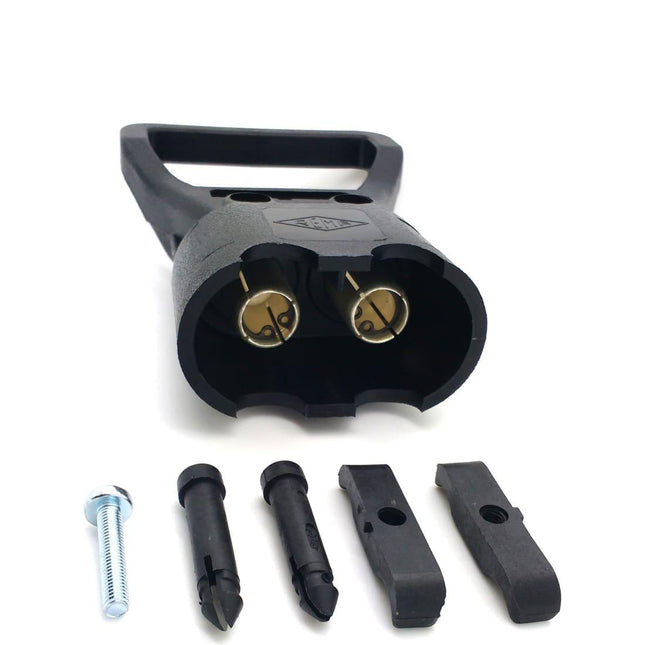

REMA (Ameise Jungheinrich) Battery Plug A incl. Main contacts
max cable size 35mm2 = REMA 76250-00 = 160Amax cable size 50mm2 = REMA 76251-00 = 200A
Contacts can be crimped or soldered with cable.
These Twin plug and sockets by REMA are commonly used with truck and trailer connection.
Prior to standardization, REMA has developed these two poles electrical connection. These robust connectors have proofed their reliability already for decades. The focus of applications of these connectors are electrical connections between the trailer and towing machine on-road trucks. The contact design has large connection surfaces with a spring-loaded connector pin sliding into the sleeves inside the female connector. This results in extremely low resistance in the electrical connection. The contacts show a differentiation between solder and crimp connections.
On top the twin plug and sockets have:
mechanical robustness
constant extraction forces
protection against humidity, acids and UV radiation
reliable design for long lifetimes and vibration protection
The contacts are made from high-quality E-Cu copper, optimized for crimp connections. Crimp tooling and dies available on request from sales.
This is the 640A Plug = Male version for charger / motor -side usually.
Select your wire diameter
(640A version contacts look a bit different from 320/160/80amp version)You can be sure about the type by looking at the housing.
does not include a handle. ADD handle
Versions for a complete 640A plug=male=stecker connector with main contacts are:
70 mm2 REMA DIN 640 A Plug = 95850-30 = new code 11116295 mm2 REMA DIN 640 A Plug = 95850-20 = new code 111161120 mm2 REMA DIN 640 A Plug = 95850-10 = new code 111160240 mm2 REMA DIN 640 A Plug = 95850-00 = new code 108995
The Original REMA DIN 640 battery connector system complements the product lines REMA DIN 80, 160, 320 with a high power battery connector at an unrivaled current rating of 640 amps. The connector system has been specifcally designed for the quick and opportunity charging of large battery capacities and corresponds to the DIN VDE 0632-589 and EN 1175-1.
POSSIBLE TO FIT 2 PAIRS OF AUXILARY CONTACTSAs special feature, it is possible to install an additional (second) pair of auxiliary contacts to the standard version with 1 pair of auxiliary and pilot contacts. The REMA devoloped contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure a power transition with minimal losses and a long life. The DIN 640 battery connector is suitable for a wide range of cable sizes. Cables from 70 mm² to 240 mm² can be crimped directly without using a reducing bushing. For best performance results and durability, the special developed REMA Crimp die sets and tools should be used.
Product features and advantagesREMA HIGH-POWER BATTERY CONNECTOR DIN 640 Complements the product lines REMA DIN 80, 160, 320 with a high power Battery Connector at an unrivaled current rating of 640 amperes Specifically designed for the quick and opportunity charging of large battery capacities Corresponds to the DIN VDE 0632-589 and EN 1175-1 Up to 2 pair of auxiliary contacts and 1 pair of pilot contacts can be equipped per connector High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated sur-face and an anti-friction and tarnish coating ensure power transition with minimal losses long life Particularly preserved by acid-resistant construction Suitable for cable sizes from 70 mm² to 240 mm²
Direct crimping without reducing bushing for all cable sizes REMA die sets and tools provide best performance and durability. Please ask tools from our sales team.
Browse all REMA Connectors here

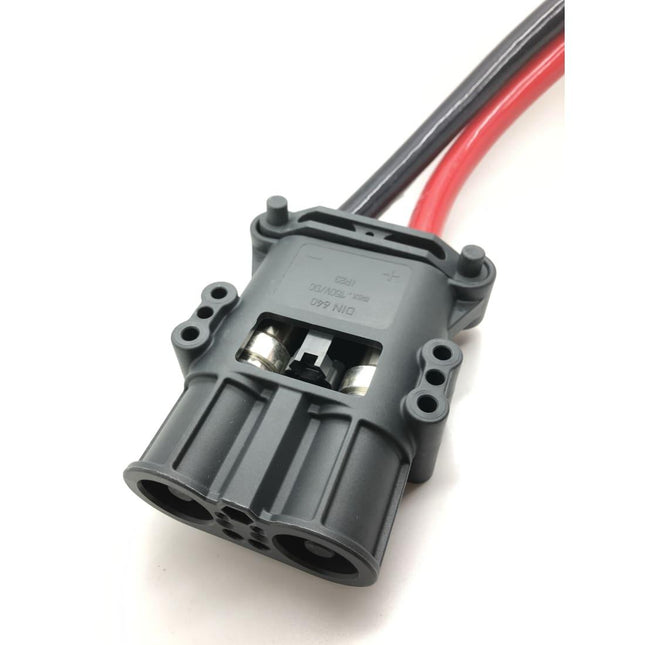

This is the 640A Socket = Female version for the battery side commonly.(640A version contacts look a bit different from 320/160/80amp version)You can be sure about the type by looking at the housing - it looks the same as 320/160/80amp versions compared to the socket.
See all REMA DIN 640 Connectors here

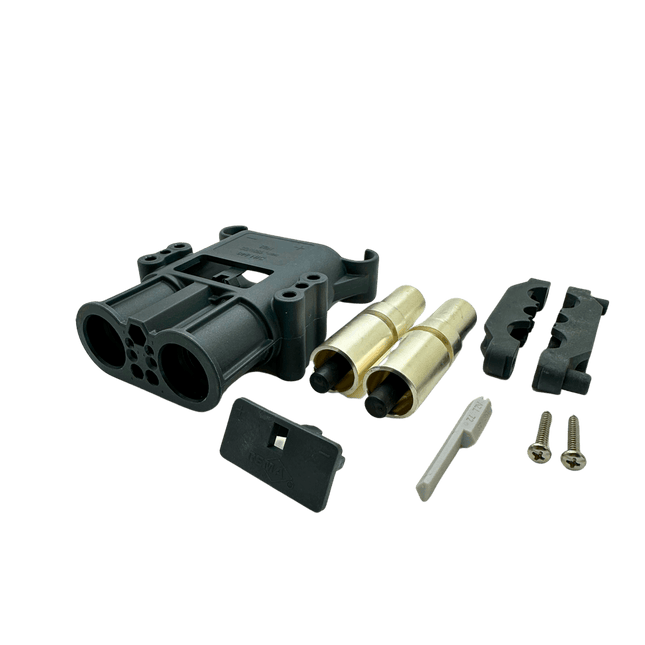

This product includes a complete connector with housing, locking part, cable stress relief, grey coding pin, and main contacts. As an accessory, you can pick also the handle and auxiliary and pilot contacts or/and the air adapter.
If you look for the opposite side of this connector, please find the plug-version here.
Versions for a complete 640A socket=female=dose connector with main contacts are:
70 mm2 REMA DIN 640 A Socket = 95950-3095 mm2 REMA DIN 640 A Socket = 95950-20120 mm2 REMA DIN 640 A Socket = 95950-10240 mm2 REMA DIN 640 A Socket = 95950-00
The Original REMA DIN 640 battery connector system complements the product lines REMA DIN 80, 160, and 320 with a high-power battery connector at an unrivaled current rating of 640 amps. The connector system has been specifically designed for the quick and opportunity charging of large battery capacities and corresponds to the DIN VDE 0632-589 and EN 1175-1.
POSSIBLE TO FIT 2 PAIRS OF AUXILIARY CONTACTSAs a special feature, it is possible to install an additional (second) pair of auxiliary contacts to the standard version with 1 pair of auxiliary and pilot contacts. The REMA developed contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure a power transition with minimal losses and a long life. The DIN 640 battery connector is suitable for a wide range of cable sizes. Cables from 70 mm² to 240 mm² can be crimped directly without using a reducing bushing. For best performance results and durability, the specially developed REMA Crimp die sets and tools should be used.
Product features and advantagesREMA HIGH-POWER BATTERY CONNECTOR DIN 640 Complements the product lines REMA DIN 80, 160, 320 with a high power Battery Connector at an unrivaled current rating of 640 amperes Specifically designed for the quick and opportunity charging of large battery capacities Corresponds to the DIN VDE 0632-589 and EN 1175-1 Up to 2 pair of auxiliary contacts and 1 pair of pilot contacts can be equipped per connector High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life Particularly preserved by acid-resistant construction Suitable for cable sizes from 70 mm² to 240 mm²
Direct crimping without reducing bushing for all cable sizes REMA die sets and tools provide the best performance and durability. Please ask for tools from our sales team.
Browse all REMA Connectors here

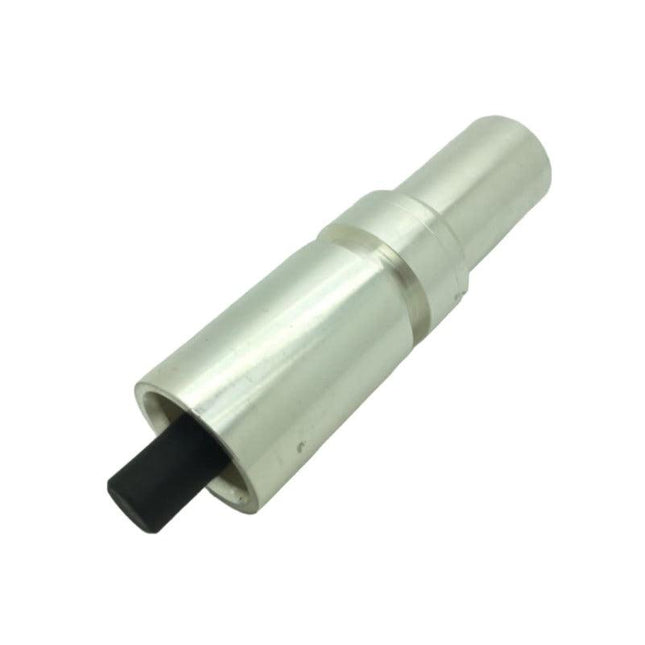

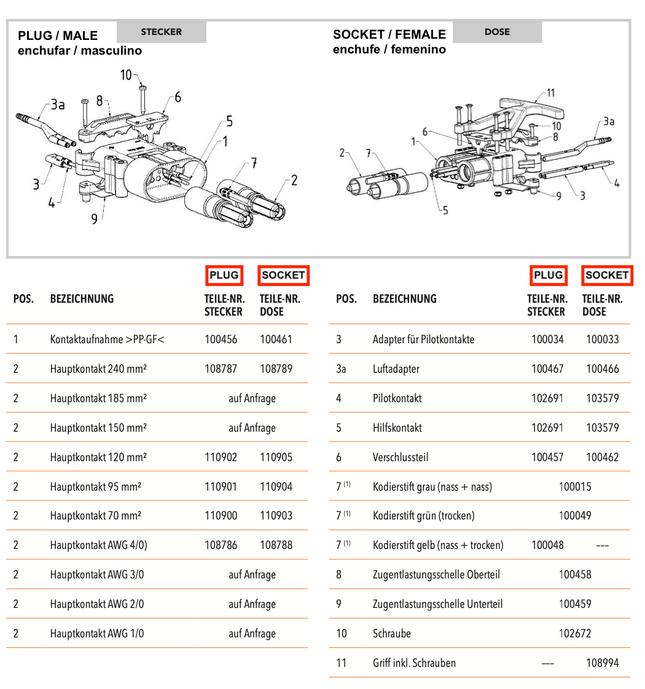

REMA 640 Amp main contact for Socket = female
Sold as these versions:70mm2 (AWG 2/0)95mm2 (AWG 3/0)120mm2 (AWG 4/0)240mm2 (240 mm2 delivery time 2 work days)
With locations in Germany, China and the USA, the REMA Group is one of the international technology leaders in the field of high-current contact systems. REMA develop and produce connector systems for charging electric vehicles, high-current connection materials and crimping tools as well as technologically advanced user interfaces with integrated electronics.
