REMA 75017-08
Original REMA EURO DIN 160A / 50 mm² socket, grey coding 108538 / 7501708 are the REMA catalog numbers for the item indicated as (new catalog nr/old catalog nr)
Original / Genuine REMA Euro DIN 160 amp battery connector socket (female)
Includes main contacts and housing, lock part, coding pin, cable clamp
This is a Complete connector set
Quick delivery
Low price
This is the total black housing -version[Nylon PA6-GF30 housing -version]
The housing material is Nylon PA6 GF 30 which is high-impact resistant.
Alternatively, you can select the dark grey housing version of this connector, which is PP CoPo GF 30 -material battery and better to resist battery acids and called the battery acid-proof.
Only the housing material is different between these two versions and to note the dark-grey version is the one the UL -tests are made with.
REMA 75017-01 DIN 160 50mm2 with fixed handle
Original REMA EURO DIN 160A / 50 mm² socket, grey coding, fixed handle 108536 / 7501701 are the REMA catalog numbers for the item indicated as (new catalog nr/old catalog nr)
Original / Genuine REMA Euro DIN 160 amp battery connector socket (female) with molded/fixed handle
Includes main contacts and housing, lock part, coding pin, cable clamp
This is a Complete connector set
Quick delivery
Low price
This is the total black housing -version[Nylon PA6-GF30 housing -version]
The housing material is Nylon PA6 GF 30 which is high-impact resistant.
Alternatively, you can select the dark grey housing version of this connector, which is PP CoPo GF 30 -material battery and better to resist battery acids and called the battery acid-proof.
Only the housing material is different between these two versions and to note the dark-grey version is the one the UL -tests are made with.
100A REMA RNK Emergency switch, with the red button and brass ring on the top of the head. Designed and constructed to provide an operator with a safe and intuitive method to disable an electrically powered vehicle in case of an unexpected event.
Current lead time around 1-2 weeksOld catalog code: 81260-31New catalog code: 108219
Alternative version (REMA 81260-11) of this switch is available (without the brass ring)
These REMA® emergency disconnect switches are designed and constructed to provide an operator with a safe and intuitive method to disable an electrically powered vehicle in case of an unexpected event. Simply pressing the red push button results in the immediate interruption of the electrical power within the vehicle.
108687 / 7531500 DIN 80 A main contact 25 mm2 for plug (1 pc.)
** please note product mage shown is 16mm2 version. We are updating 25mm2 image the soonest.
REMA 95850-00 / 95850/00 DIN 640 240mm2 Plug
old catalog code 95850-00, marked 95850/00 on the product zip-bags.The new catalog code of this connector is 108995
Complete connector set including:
DIN 640 Plug housing
2x main contacts for 240mm2 wire/cable
The locking part (the square part in the middle)
Cable stress relief parts (2 clamps + 2 screws)
Grey coding pin for voltage indication
REMA 108995 / 95850-00 DIN 640 A plug 240mm² - grey coding - acid resistant
By default, this item does not include a handle. If you need a handle: the DIN 640 handle can be found here: REMA DIN 640 handle
This is the 640A plug/male/stecker/macho, used for charger/motor-side usually.
This is the original REMA DIN 640 high-power battery connector with an unrivaled current rating of 640 amps. The connector system has been specifically designed for the quick and opportunity charging of large battery capacities and corresponds to the DIN VDE 0632-589 and EN 1175-1.
POSSIBLE TO FIT 3 PAIRS OF AUXILIARY CONTACTSAs a special feature, it is possible to install an additional (third) pair of auxiliary contacts using the air-circulation pipes and the pilot contact kit.
REMA developed contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating to ensure a power transition with minimal losses and long life. The DIN 640 battery connector is suitable for a wide range of cable sizes. Cable can be crimped directly without using a reducing bushing. For best performance results and durability, the specially developed REMA Crimp die sets and tools should be used.
Direct crimping without reducing bushing for all cable sizes REMA die sets and tools provide the best performance and durability.Please ask for tools from our sales team.
Browse all REMA Connectors here
REMA 95850-10 DIN 640 120mm2 Plug
old catalog code was 95850-10, and is still marked as 95850/10 on the product zip-bags.
The new catalog code of this connector is 111160
Complete connector set including:
DIN 640 Plug housing
2x main contacts for 120mm2 wire/cable
The locking part (the square part in the middle)
Cable stress relief parts (2 clamps + 2 screws)
Grey coding pin for voltage indication
REMA 111160 / 95850-10 DIN 640 A plug 120mm² - grey coding - acid resistant
By default, this item does not include a handle. If you need a handle: the DIN 640 handle can be found here: REMA DIN 640 handle
This is the 640A plug/male/stecker/macho, used for charger/motor-side usually.
This is the original REMA DIN 640 high-power battery connector with an unrivaled current rating of 640 amps. The connector system has been specifically designed for the quick and opportunity charging of large battery capacities and corresponds to the DIN VDE 0632-589 and EN 1175-1.
POSSIBLE TO FIT 3 PAIRS OF AUXILIARY CONTACTSAs a special feature, it is possible to install an additional (third) pair of auxiliary contacts using the air-circulation pipes and the pilot contact kit.
REMA developed contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating to ensure a power transition with minimal losses and long life. The DIN 640 battery connector is suitable for a wide range of cable sizes. The cable can be crimped directly without using a reducing bushing. For best performance results and durability, the specially developed REMA Crimp die sets and tools should be used.
Direct crimping without reducing bushing for all cable sizes REMA die sets and tools provide the best performance and durability.
Please ask for tools from our sales team.
Browse all REMA Connectors here
REMA 95850-20 / 95850/20 DIN 640 95mm2 Plug
old catalog code 95850-20, marked 95850/20 on the product zip-bags.
The new catalog code of this connector is 111161
Complete connector set including:
DIN 640 Plug housing
2x main contacts for 95mm2 wire/cable
The locking part (the square part in the middle)
Cable stress relief parts (2 clamps + 2 screws)
Grey coding pin for voltage indication
REMA 111161 / 95850-20 DIN 640 A plug 95mm² - grey coding - acid resistant
By default, this item does not include a handle. If you need a handle: the DIN 640 handle can be found here: REMA DIN 640 handle
This is the 640A plug/male/stecker/macho, used for charger/motor-side usually.
This is the original REMA DIN 640 high-power battery connector with an unrivaled current rating of 640 amps. The connector system has been specifically designed for the quick and opportunity charging of large battery capacities and corresponds to the DIN VDE 0632-589 and EN 1175-1.
POSSIBLE TO FIT 3 PAIRS OF AUXILIARY CONTACTSAs a special feature, it is possible to install an additional (third) pair of auxiliary contacts using the air-circulation pipes and the pilot contact kit.
REMA developed contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating to ensure a power transition with minimal losses and long life. The DIN 640 battery connector is suitable for a wide range of cable sizes. Cable can be crimped directly without using a reducing bushing. For best performance results and durability, the specially developed REMA Crimp die sets and tools should be used.
Direct crimping without reducing bushing for all cable sizes REMA die sets and tools provide the best performance and durability.Please ask for tools from our sales team.
Browse all REMA Connectors here
REMA 95850-30 / 95850/30 DIN 640 70mm2 Plug
old catalog code 95850-30, marked 95850/30 on the product zip-bags.The new catalog code of this connector is 111162
Complete connector set including:
DIN 640 Plug housing
2x main contacts for 95mm2 wire/cable
The locking part (the square part in the middle)
Cable stress relief parts (2 clamps + 2 screws)
Grey coding pin for voltage indication
REMA 111162 / 95850-30 DIN 640 A plug 70mm² - grey coding - acid resistant
By default, this item does not include a handle. If you need a handle: the DIN 640 handle can be found here: REMA DIN 640 handle
This is the 640A plug/male/stecker/macho, used for charger/motor-side usually.
This is the original REMA DIN 640 high-power battery connector with an unrivaled current rating of 640 amps. The connector system has been specifically designed for the quick and opportunity charging of large battery capacities and corresponds to the DIN VDE 0632-589 and EN 1175-1.
POSSIBLE TO FIT 3 PAIRS OF AUXILIARY CONTACTSAs a special feature, it is possible to install an additional (third) pair of auxiliary contacts using the air-circulation pipes and the pilot contact kit.
REMA developed contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating to ensure a power transition with minimal losses and long life. The DIN 640 battery connector is suitable for a wide range of cable sizes. Cable can be crimped directly without using a reducing bushing. For best performance results and durability, the specially developed REMA Crimp die sets and tools should be used.
Direct crimping without reducing bushing for all cable sizes REMA die sets and tools provide the best performance and durability.Please ask for tools from our sales team.
Browse all REMA Connectors here
REMA DIN 160A Socket with Fixed Handle contacts, lock part, coding pin and cable stress relief = cable clamp. Including grey coding pin for DRY battery.

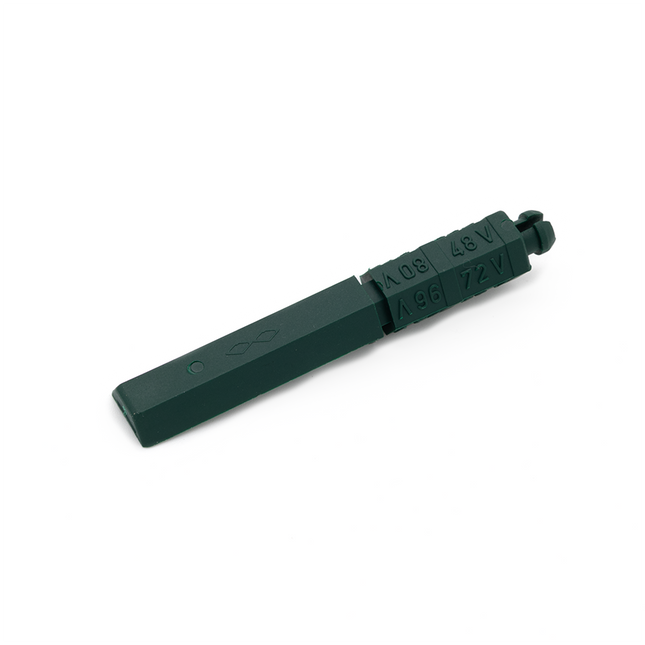

Other coding pin options are: ( sold separately )
Green = Wet BatteryYellow = Wet&Dry Battery* No handle included, please add separate handle type if needed.* Plug without handle allows the handle to be changed upon damage very easily.
Product features and advantages:
Specifically designed for the quick and opportunity charging of large battery capacities
Suitable for lead gel accumulators and lithium-ion batteries
Corresponds to the DIN VDE 0632-589 and EN 1175-1
Spring-supported contact system for optimal contact pressure high electrical conductivity
High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses and long life
Suitable for cable sizes from 16 mm2 to 70 mm2
Direct crimping without reducing bushing for all cable size
Wide range of accessories
different handle shapes are available
connect a pair of additional auxiliary and/or a pair of pilot contacts
cooling system with air supply through
Typical applications
forklift trucks
battery charging systems sweeper and cleaning devices
70mm2 currently with 3-4 work days delivery time
116934 REMA dust cap DIN 320A and MRC 320A socket, Black
This dust cap will fit both the REMA MRC 320 socket as well as on the REMA DIN 320 socket
Does not fit the Plug side, only for Female = Socket = Dose = Battery Side usually.
REMA original main contact. Cooper inside, silver finish. FITS ONLY REMA Euro DIN Battery Connectors In 160A form Socket = Female = Dose
Single 160A Socket contacts are available for the following wire sizes:108543 7502101 DIN 160 A main contact 16 mm2 for socket (1 pc.)108544 7502201 DIN 160 A main contact 25 mm2 for socket (1 pc.)108546 7502301 DIN 160 A main contact 35 mm2 for socket (1 pc.)108548 7502401 DIN 160 A main contact 50 mm2 for socket (1 pc.)108549 7502405 DIN 160 A main contact 70 mm2 for socket (1 pc.)Options for small crimp areas:16mm2 ( Direct 16mm2 contact or 25mm2 with reducing bushing 25-16 )10mm2 ( Direct 10mm2 contact or 25mm2 with reducing bushing 25-10 )108543
* You will normally get a slightly better crimp by using reducers with bigger contact having thicker crimp area.
Standard DIN Connector spare handle with slightly bent handle form. Battery acid proof handle, made of PolyPropylene.
Includes screws for both 160A and 320A housing types.
FT80 Euro-standard Battery Connector Socket / Female 16mm2
Rema Catalog numbers for FT 80 socket ( Female ), for battery side normally
REMA FT80 16mm2 (AWG 6)old catalog code: 81200-00new catalog code: 109102
References on the box/zip-bag/documents: 81200-00 / 8120000 / 81200/00
Includes housing, cable stress relief ( cable clamp), red coding pin, screws, Main Contacts ( 2 pcs ).
T-shaped Red Handle and Auxilary contacts are available as an accessory.
To ensure optimal electrical motor performance it is necessary to use only the most reliable and high quality connections. REMA FT Series connectors are the ones to guarantee long lasting connection with very low power loss. Design of these connectors is extremely compact and durable.
REMA FT80 connectors are in compliance with EN 1175-1
Service Voltages : 12, 24, 36, 48, 72, 80 V ( can be easily selected with the RED Colored pin included with connector )
The FT 80 A does not correspond to DIN Standard but it is in accordance with the Euro Standard.
Available accessories for FT80 series are : Main contacts ( spare ) , Auxiliary Contacts , Red Handle , Coding Pin , spare housing
To secure optimal output of electrical powered motors, not only a high power battery is necessart. Only with a reliable and high quality connection guarantees a long lasting connection without power losses.
WIth REMA FT80 you gain high amperage and small dimensions in one connector model. Each FT80 connection fulfils the highest quality standards and shows excellent functionality, robust reliability, easy handling and economy. These connectors are very inexpensive compared to what they offer.
The type FT 80 is in correspondence with French industrial standard and the European EN 1175-1 standard as well.REMA® FT80 battery / charger / motor connectors are suitable for use in the following applications:
Personnel / Burden Carriers
Golf Carts
Sweeper / Scrubber Floor Cleaning Equipment
Boats, Yachts & other marine vechicles
Light On-Highway Caravans,Trailer and Mobile Homes
The 95601-05 | REMA DIN 320 Socket with 50mm² Contacts + Handle is a high-quality, robust connector system designed for use in industrial and heavy-duty applications where reliable and secure power connections are essential. This socket is part of the REMA DIN 320 series, which is well-regarded for its durability, ease of use, and safety features.
Key Features:
50mm² Contacts: The socket comes equipped with 50mm² contacts, ensuring excellent conductivity and minimal power loss. This makes it suitable for high-current applications where efficiency and reliability are critical.
DIN 320 Standard: As part of the DIN 320 series, this socket complies with the DIN standards for industrial connectors, guaranteeing compatibility with other standardized equipment and ensuring safety and reliability in demanding environments.
Ergonomic Handle: The included handle enhances the usability of the socket, making it easier to connect and disconnect even in challenging conditions. The ergonomic design reduces strain on the user, allowing for safer and more efficient operation.
Durable Construction: Designed for industrial use, the REMA DIN 320 socket is built to withstand harsh conditions, including exposure to dust, moisture, and mechanical stress. Its robust construction ensures a long service life, even in the most demanding environments.
Secure Connection: The socket provides a secure and stable connection, reducing the risk of accidental disconnection or electrical faults. This reliability is crucial in applications where consistent power delivery is necessary.
Applications:
The 95601-05 REMA DIN 320 Socket is widely used in various industries due to its robust design and reliable performance. Typical applications include:
Material Handling Equipment: Ideal for use in forklifts, pallet jacks, and other material handling devices that require reliable power connections.
Industrial Machinery: Suitable for connecting power in heavy-duty industrial machinery, ensuring consistent and safe operation.
Electric Vehicles: Commonly used in electric vehicles (EVs) and related charging infrastructure where secure, high-current connections are required.
Renewable Energy Systems: Used in solar and wind energy systems to ensure efficient power transfer.
FT80 Euro-standard Battery Connector Plug / Male 16mm2
Rema Catalog numbers for FT 80 socket ( Female ), for battery side normally
REMA FT80 16mm2 (AWG 6)old catalog code: 81220-00new catalog code: 109111
REMA 109111/8122000 FT 80 plug 16mm2References on the box/zip-bag/documents: 81220-00 / 8122000 / 81220/00
Includes housing, cable stress relief ( cable clamp), red coding pin, screws, Main Contacts ( 2 pcs ).
T-shaped Red Handle and Auxilary contacts are available as an accessory.
To ensure optimal electrical motor performance it is necessary to use only the most reliable and high quality connections. REMA FT Series connectors are the ones to guarantee long lasting connection with very low power loss. Design of these connectors is extremely compact and durable.
REMA FT80 connectors are in compliance with EN 1175-1
Service Voltages : 12, 24, 36, 48, 72, 80 V ( can be easily selected with the RED Colored pin included with connector )
The FT 80 A does not correspond to DIN Standard but it is in accordance with the Euro Standard.
Available accessories for FT80 series are : Main contacts ( spare ) , Auxiliary Contacts , Red Handle , Coding Pin , spare housing
To secure optimal output of electrical powered motors, not only a high power battery is necessart. Only with a reliable and high quality connection guarantees a long lasting connection without power losses.
WIth REMA FT80 you gain high amperage and small dimensions in one connector model. Each FT80 connection fulfils the highest quality standards and shows excellent functionality, robust reliability, easy handling and economy. These connectors are very inexpensive compared to what they offer.
The type FT 80 is in correspondence with French industrial standard and the European EN 1175-1 standard as well.REMA® FT80 battery / charger / motor connectors are suitable for use in the following applications:
Personnel / Burden Carriers
Golf Carts
Sweeper / Scrubber Floor Cleaning Equipment
Boats, Yachts & other marine vechicles
Light On-Highway Caravans,Trailer and Mobile Homes
REMA (Ameise Jungheinrich) Battery Plug A incl. Main contacts
max cable size 35mm2 = REMA 76250-00 = 160Amax cable size 50mm2 = REMA 76251-00 = 200A
Contacts can be crimped or soldered with cable.
These Twin plug and sockets by REMA are commonly used with truck and trailer connection.
Prior to standardization, REMA has developed these two poles electrical connection. These robust connectors have proofed their reliability already for decades. The focus of applications of these connectors are electrical connections between the trailer and towing machine on-road trucks. The contact design has large connection surfaces with a spring-loaded connector pin sliding into the sleeves inside the female connector. This results in extremely low resistance in the electrical connection. The contacts show a differentiation between solder and crimp connections.
On top the twin plug and sockets have:
mechanical robustness
constant extraction forces
protection against humidity, acids and UV radiation
reliable design for long lifetimes and vibration protection
The contacts are made from high-quality E-Cu copper, optimized for crimp connections. Crimp tooling and dies available on request from sales.
REMA 95500-01
Original REMA EURO DIN 320A / 50 mm² plug with grey coding, battery acid resistant 108952 / 9550001 are the REMA catalog numbers for the item indicated as (new catalog nr/old catalog nr).
95500-01 includes these parts:
1x housing, 1x lock part, 1x coding pin (grey), 1x cable clamp set
2x main contacts 50 mm², plug side
This is a Complete connector set with battery acid-resistant housing.
Extra accessories are available, such as extra auxiliary and pilot contact sets, handles, air pipes.
Housing material – IMPORTANT CLARIFICATION
🔹 This is the Battery Acid Resistant, Dark Grey housing version
Material: PP CoPo GF30 (copolymer polypropylene)
Battery acid-resistant
UL-tested version
Recommended for demanding battery and traction applications
👉 Only the housing material differs between the black and dark grey versions. All electrical and mechanical connector parts are identical.
** As an alternative, a complete black housing version is available under part number 75500-01 which features a fully black housing made from shock-resistant polyamide (PA), offering increased mechanical strength and improved impact resistance.Only the housing material is different between these two versions and to note the dark-grey version is the one the UL -tests are made with.
REMA 95510-01 for DIN320 95mm² - Plug
Original REMA EURO DIN 320A / 95 mm² plug with grey coding, acid resistant 108960 / 9551001 are the REMA catalog numbers for the item indicated as (new catalog nr/old catalog nr)
Original / Genuine REMA Euro DIN 320 amp battery connector plug set (male)
Includes main contacts and housing, lock part, coding pin, cable clamp
This is a Complete connector set
Accessories are available, such as auxiliary contacts, pilot contact sets, handles, air pipes but are not included in the basic connector set.
Housing material – IMPORTANT CLARIFICATION
🔹 This is the Battery Acid Resistant, Dark Grey housing version
Material: PP CoPo GF30 (copolymer polypropylene)
Battery acid-resistant
UL-tested version
Recommended for demanding battery and traction applications
👉 Only the housing material differs between the black and dark grey versions. All electrical and mechanical connector parts are identical.
** As an alternative, a complete black housing version is available under part number 75510-01 which features a fully black housing made from shock-resistant polyamide (PA), offering increased mechanical strength and improved impact resistance.Only the housing material is different between these two versions and to note the dark-grey version is the one the UL -tests are made with.
REMA 95601-01
Original REMA EURO DIN 320A / 50 mm² socket with grey coding, acid resistant 108972 / 9560101 are the REMA catalog numbers for the item indicated as (new catalog nr/old catalog nr)
95601-01 includes these parts:
1x housing, 1x lock part, 1x coding pin (grey), 1x cable clamp set
2x main contacts 50 mm², socket side (the battery side)
This is a Complete connector set with battery acid-resistant housing.
Extra accessories are available, such as extra auxiliary and pilot contact sets, handles, air pipes.
Housing material – IMPORTANT CLARIFICATION
🔹 This is the Battery Acid Resistant, Dark Grey housing version
Material: PP CoPo GF30 (copolymer polypropylene)
Battery acid-resistant
UL-tested version
Recommended for demanding battery and traction applications
👉 Only the housing material differs between the black and dark grey versions. All electrical and mechanical connector parts are identical.
** As an alternative, a complete black housing version is available under part number 75601-01 which features a fully black housing made from shock-resistant polyamide (PA), offering increased mechanical strength and improved impact resistance.Only the housing material is different between these two versions and to note the dark-grey version is the one the UL -tests are made with.
With locations in Germany, China and the USA, the REMA Group is one of the international technology leaders in the field of high-current contact systems. REMA develop and produce connector systems for charging electric vehicles, high-current connection materials and crimping tools as well as technologically advanced user interfaces with integrated electronics.
