About the DC88-259 Motor Reversing Solenoid
The DC88-259 Albright 100A 12V DC - INT Monoblock Motor Reversing Contactor is a high-quality motor-reversing solenoid designed for intermittent use with direct current loads. Ideal for small electric vehicles and marine equipment, it features double-breaking main contacts with silver-alloy tips for excellent conductivity and durability. Its monoblock construction offers a compact design, with built-in fail-safe mechanisms for safety. This contactor is suitable for applications requiring quick make and break connections, and it is not recommended for prolonged contact periods.
"Bow & Stern -thruster solenoid contactor with flying leads connection"
This Albright 100A 12V DC - INT Monoblock Motor Reversing Contactor represents a pinnacle of design and engineering in the realm of motor-reversing solenoids.. It is specifically tailored for intermittent use across a wide array of direct current (DC) load applications. This product is a standout choice for operators and designers of small electric vehicles and marine equipment. DC88-series is your safe pick, providing a robust solution for the most demanding environments.
One of the hallmark features is its double-breaking main contacts equipped with silver-alloy tips. This choice of materials ensures superior electrical conductivity and exceptional durability. This enabling the contactor to handle high current loads with ease while offering a prolonged service life. The silver-alloy tips play a crucial role in minimizing contact resistance and enhancing performance under load.
The DC88-259 (DC88 259 revision) Monoblock Design
The monoblock construction of the DC88-259 contactor is another key attribute, emphasizing compactness and efficiency in design. This integrated construction approach not only saves space, making it ideal for applications where space is at a premium, but also contributes to the overall reliability and robustness of the device. The compact design does not compromise on functionality or safety, with built-in fail-safe mechanisms ensuring operation remains within safe parameters, protecting both the equipment and its users.
Designed for applications that necessitate quick make and break connections. This motor reversing contactor excels in scenarios where rapid switching is required, such as in control systems for electric vehicles or winching operations in marine environments. Its ability to swiftly connect and disconnect electrical circuits helps in reducing wear and tear on components - Thereby extending the lifespan of the overall system.
However, it's important to note that the coil is optimized for intermittent use and is not recommended for applications where contacts need to remain engaged for prolonged periods. This specification ensures that the contactor is used within its optimal performance range, safeguarding against potential overheating or damage that could occur in continuous duty applications.
In summary, the DC88-259 Albright 100A 12V DC - INT Monoblock Motor Reversing Contactor is a top-tier choice for professionals seeking reliable, efficient, and safe control of motor-reversing operations in compact applications. Its integrated construction saves space and improves overall durability, ideal for compact installations.
Adding to its accolades, the DC88-259 Albright 100A 12V DC - INT Monoblock Motor Reversing Contactor is recognized as one of the most popular thruster reversing contactors in the industry. This popularity stems not only from its robust construction and reliable performance but also from its adeptness at handling the specific demands of thruster applications in marine environments.
DC88-259 is a very Common Vessel Thruster Contactor
Thrusters, essential for maneuvering vessels in tight quarters or during docking procedures, require precise and reliable reversing controls to operate effectively. The DC88-259 excels in this role, offering quick and efficient directional changes of the thruster motors. Its ability to perform rapid make and break connections, combined with the high conductivity and durability of its double-breaking main contacts with silver-alloy tips, ensures that thrusters operate smoothly and responsively under the command of the vessel's control system.
The compact and integrated design of this model, thanks to its monoblock construction, makes it particularly suited to the constrained spaces often found in marine applications. This space efficiency does not come at the expense of safety or reliability; built-in fail-safe mechanisms ensure that the contactor operates within safe parameters, thus protecting both the equipment and its users.
Given these qualities, it's no surprise that the Albright DC88-series and its "bigbrother" DC182-series has become a go-to choice for professionals in the marine industry seeking dependable and efficient thruster reversing solutions. Its popularity is a testament to Albright's commitment to quality, innovation, and understanding the needs of its customers in diverse applications, reinforcing a status as a premier choice in the realm of motor-reversing solenoids.
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods
The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuit. This version of the DC88 has M8 stud main terminals and flying lead coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

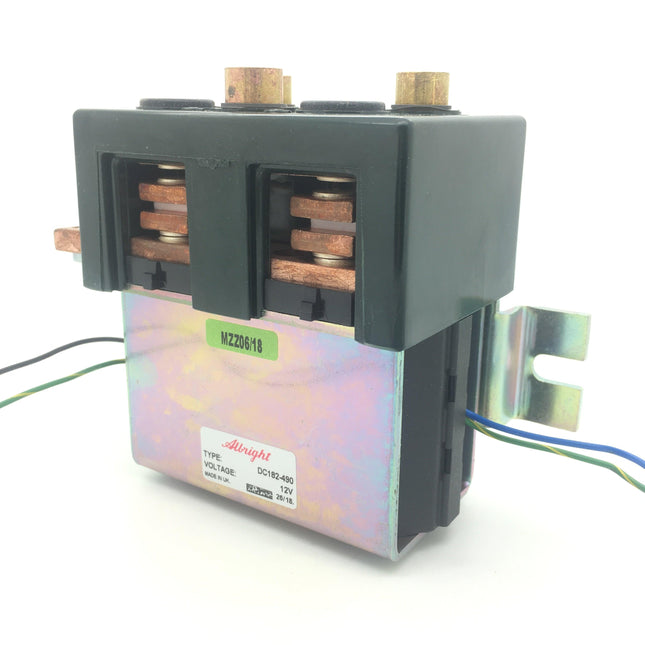

DC182-490 Albright Motor Reversing Solenoid
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The DC182 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and flying lead coil energising connection. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
The DC182-490 Albright 150A 12V DC - INT Monoblock Motor Reversing Contactor is a specific type of electrical component used for controlling the direction of rotation of a DC motor. Let's break down what each part of the name refers to:
DC182-490: This likely refers to the model number or product code of the contactor. It's the identifier used by the manufacturer to distinguish this particular model from others they produce.
Albright: This is the brand name of the contactor. Albright is a well-known manufacturer of electrical contactors and other related components.
150A: This indicates the maximum current rating of the contactor, which in this case is 150 amperes. This denotes the maximum amount of current that the contactor is designed to handle safely.
12V DC: This specifies the voltage rating of the contactor. It's designed to operate with a DC (direct current) voltage of 12 volts.
INT: This could stand for "interruptible" or "intermittent," indicating that the contactor is suitable for applications where the current flow may be interrupted or varies periodically.
Monoblock Motor Reversing Contactor: This describes the type and function of the contactor. It's designed to control the direction of rotation of a motor, meaning it can reverse the polarity of the current flowing through the motor to change its direction.
The DC182-490 Albright 150A 12V DC - INT Monoblock Motor Reversing Contactor is a heavy-duty electrical component manufactured by Albright, capable of handling up to 150 amperes of direct current, specifically designed for controlling the direction of rotation of a motor in applications where interruptions or intermittent operations may occur.

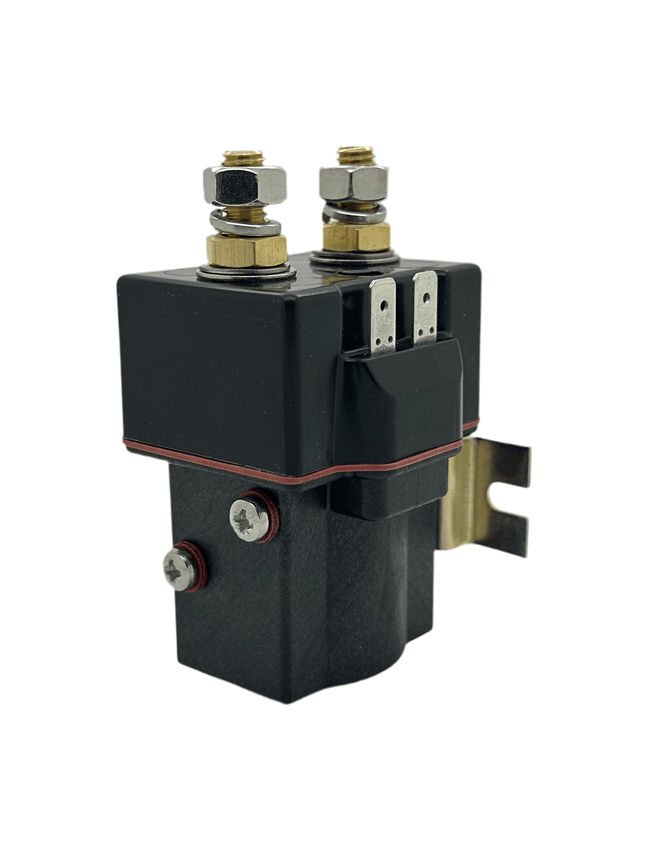

About Intermittent - Int.) SU80 Solenoids Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods. The SU80P is an up-rated version of the SW80P designed for Interrupted and Uninterrupted applications. It is sealed to IP66 and has been designed for direct current loads in more arduous environments. It is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include, but are not limited to, electric motors, hydraulic power packs, winches and speed controllers. The SU80P features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SU80P features an enclosed top cover and offers environmental protection to IP66. It has M8 stud main terminals and 6.3mm spade coil connections. Mounting can be vertical or horizontal, when vertical the M8 contact studs should point upwards.

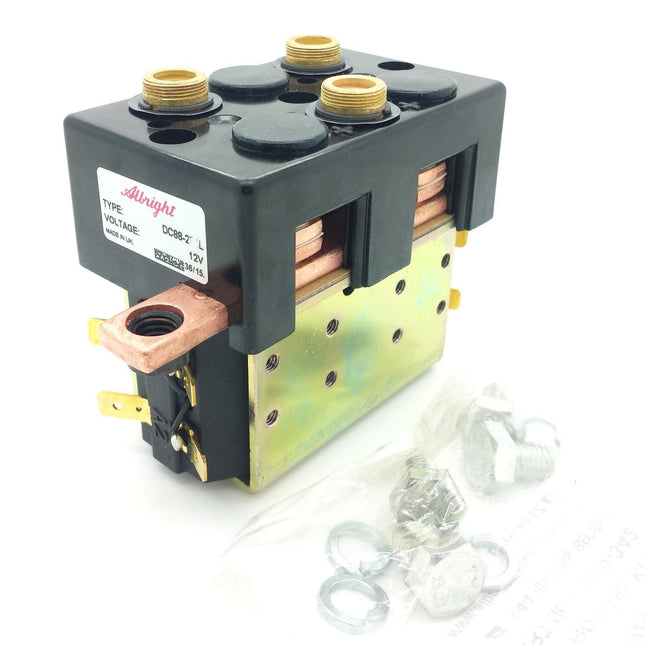

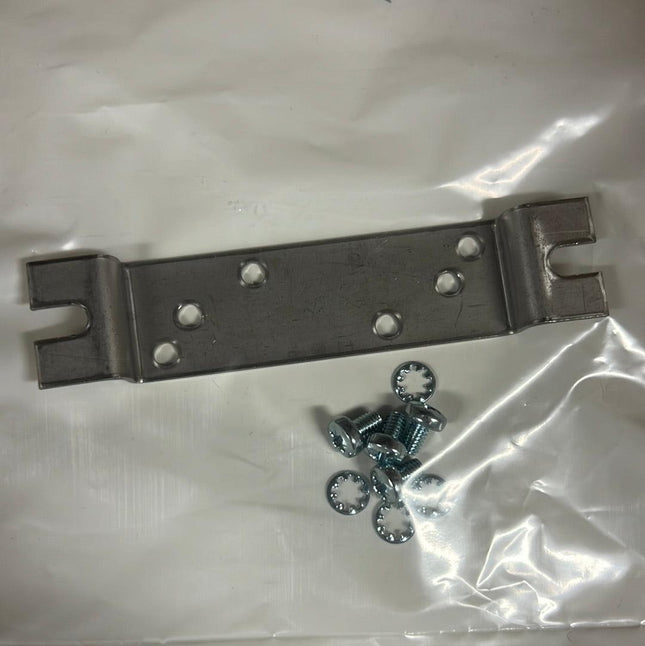

About the DC88-267L Motor Reversing SolenoidIntermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuit. Coil connections are by means of 6.3mm spades and mounting is via M4 screws on a panel fixture or using an additional bracket - e.g. part number: 2070-41) and can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
About the DC88-286L Motor Reversing SolenoidIntermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuit. Coil connections are by means of 6.3mm spades and mounting is via M4 screws on a panel fixture or using an additional bracket - e.g. part number: 2070-41) and can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
ED252 Emergency Stop Switch
The Albright ED252-1 96V 250 Amp emergency stop switchgear is a world leader in the electric vehicle market, due to its hard-wearing and ease of inspection configuration.
The ED252 range of switches has been designed to provide a rapid means of disconnecting batteries or other power supplies in the event of serious electrical faults. Whilst the switches are primarily intended for use with battery-powered vehicles they are also suitable for use with static power systems. All types are capable of safely rupturing full-load battery currents in the event of an emergency.
The ED252 is a manually operated device with an over-center spring mechanism that provides a snap action for both the opening and closing of the main contacts. The ED252 is easy to install - see drilling details) and is secured with supplied M5 Posidrive mounting screws.
Uninterrupted current - no or infrequent load switching requirements - maintains a lower contact resistance).
Genuine SW80-105 Albright 24V Single Pole Single Throw Contactor. The SW80-105, a Albright SW80 -series contactor has been developed for direct current loads, including motors as used on different kind of electric vehicles like industrial trucks as well a
Genuine SW80-357P Albright Contactor. The SW80-357P, a Albright SW80 -series contactor with IP66 protection - P), has been developed for direct current loads, including motors as used on different kind of electric vehicles like industrial trucks as well as
SW80-359 is equivalent to SW80-116 found here
Type : SW80-116 Coil Voltage (V) 24 CO DC Coil Resistance (Ohms) 52 Pull In Voltage (V) 16.0 Maximum Drop Out Voltage (V) 6.0 Maximum Coil Power Dissipation (W) 11.08 Additional Features ENCLOSED TOP COVER FITTED. INTEGRAL BRACKET MAG FRAME FITTED All figures above are stated at 20 degrees Celsius
Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.
SW80AB-19 Albright
Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods. The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
SW88-3 Albright
About the Intermittent SW88-3 Reversing Contactors
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SW88 is a configuration of two SW84-type contactors on a common bracket for the motor reversing. The SW88 features single pole double-breaking main contacts with silver alloy tips, which are weld resistant, hardwearing, and have excellent conductivity.
The SW88 main contact circuit, designed for motor reversing, is such that it has a built-in failsafe, so that if both coils are energized simultaneously the contact arrangement is open circuits.
The SW88 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using the supplied bracket, mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
The SW80P features an enclosed top cover and offers environmental protection to IP66. The SW80P has M8 stud main terminals and 6.3mm spade coil connections. Mounted using supplied brackets, mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
The Albright SW80-745 is a 12V DC single-acting continuous-duty solenoid contactor supplied with an extended mounting bracket and auxiliary switch assembly, making it ideal for industrial DC switching applications and electric vehicle systems.
The SW80 series is specifically engineered for direct current motor applications, especially in light industrial trucks, powered mobility vehicles, utility equipment, and other battery-powered systems. Unlike sealed automotive starter solenoids, the SW80 contactors are serviceable and allow inspection of contact wear, offering a more durable and cost-effective long-term solution.
Key features include:
Continuous duty 12V DC coil
Double-break main contacts for improved DC switching performance
Silver-alloy contact tips for excellent conductivity and high weld resistance
Auxiliary switch kit installed (Part No. 2070-124)
Removable auxiliary assembly secured with screws
Extended upper mounting bracket (2126-48A)
Enclosed top cover for additional protection
Integrated suppression diode fitted
Supplied with special terminals and fixing nuts
Connection details:
Upper coil terminals: standard 6.3mm spade terminals
Lower coil terminals: standard 4.8mm spade terminals
This contactor is commonly used in:
Electric utility vehicles
Material handling equipment
Hydraulic power packs
Winch systems
Battery disconnect systems
DC motor reversing and switching circuits
Its rugged construction and replaceable contact system make it particularly suitable for demanding industrial and mobile equipment environments where reliability and serviceability are important.
1 contact stud, with nuts and washers. With silver alloy contact tips which are weld resistant, hard-wearing and have excellent conductivity.
Contents 1 x 2155-19 fixed contact.
Country of origin: United Kingdom / Lithuania (depends on manufacture week)Guarantee period: 24 months or 4000 hours of operation, from the date of manufacture of the product. - RMA procedure applies and all faulty products will be replaced without any extra cost.
Product/production Certificates: UL, CCC, ISO 9001, ISO 14001 All Albright Products Follow Reach, RoHS and Conflict Minerals
Albright SW200 series contact kit (all contacts)
One moving contact and two contact studs, with nuts and washers. With silver alloy contact tips which are weld resistant, hard-wearing and have excellent conductivity.
Kit code: 2155-99 / 2199-099
One contact kit repairs: 1 standard SW200 or SW200N solenoid contact.
Contents:1 x 2155-23 moving contact (including also 2155-7)2 x 2155-19 fixed contact.
Manufacturer: Albright Country of origin: United Kingdom / Lithuania (depends on manufacture week) Guarantee period: 24 months or 4000 hours of operation, from the date of manufacture of the product. - RMA procedure applies and all faulty products will be replaced without any extra cost. Product/production Certificates: UL, CCC, ISO 9001, ISO 14001 All Albright Products Follow Reach, RoHS and Conflict Minerals Product Weight: 0.24 kg per set
DC182-491 Albright Motor Reversing Solenoid - Intermittent (INT)
The DC182-491 Albright 150A 24V DC - INT Motor Reversing Solenoid Contactor is a specialized electrical component designed for controlling the direction of rotation of a motor in applications requiring a 24-volt DC power supply. Let's delve into the details of this contactor:
Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
DC182-491: This alphanumeric code serves as the unique identifier or model number for this particular contactor within Albright's product range.
Albright: As mentioned before, Albright is a reputable manufacturer of electrical contactors and related components, known for producing high-quality products.
150A: This denotes the maximum current rating of the contactor, which is 150 amperes. It indicates the maximum amount of current the contactor is designed to handle safely in its operational environment.
24V DC: Unlike the previous example, this contactor is specifically designed to operate with a DC voltage of 24 volts. This voltage powers the coil within the contactor, which is used to control the switching of the main circuit.
INT: Similar to the previous description, "INT" signifies that this contactor is suitable for intermittent or interruptible operations, meaning it can handle applications where the current flow may vary or be temporarily interrupted.
Motor Reversing Solenoid Contactor: This indicates the primary function of the contactor, which is to control the direction of rotation of a motor. The solenoid within the contactor is responsible for reversing the polarity of the current flow to change the motor's direction.
Regarding voltage compatibility, the main circuit can be operated at any DC voltage up to a maximum of 96 volts with blowout capability. However, it's important to note that 48 volts is the recommended maximum voltage for optimal performance and safety.
DC182-491 Albright 150A 24V DC - INT Motor Reversing Solenoid Contactor is a heavy-duty electrical component designed by Albright for controlling the motor direction in applications requiring a 24-volt DC power supply. It boasts a maximum current rating of 150 amperes and is suitable for intermittent operations. Additionally, it offers flexibility in main circuit voltage compatibility, with a recommended maximum of 48 volts for best performance and safety.
The DC182 is a monoblock construction, resulting in a neat compact design that is compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and a flying lead coil energising connection. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

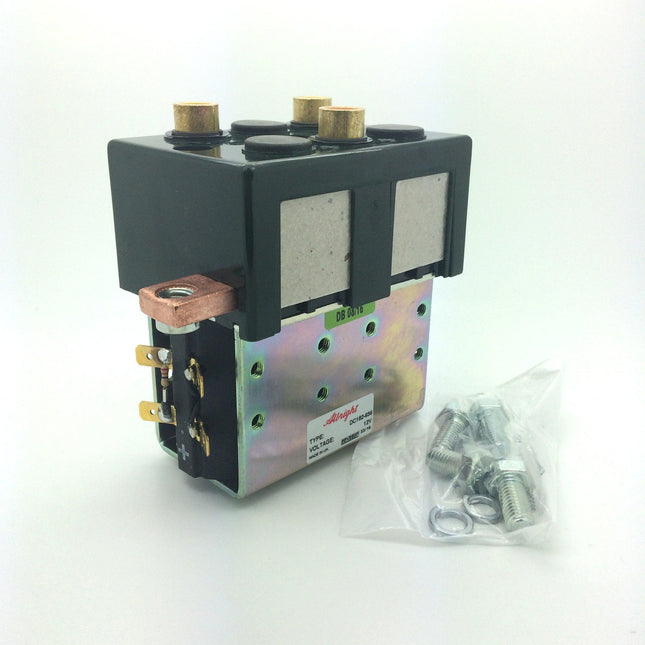

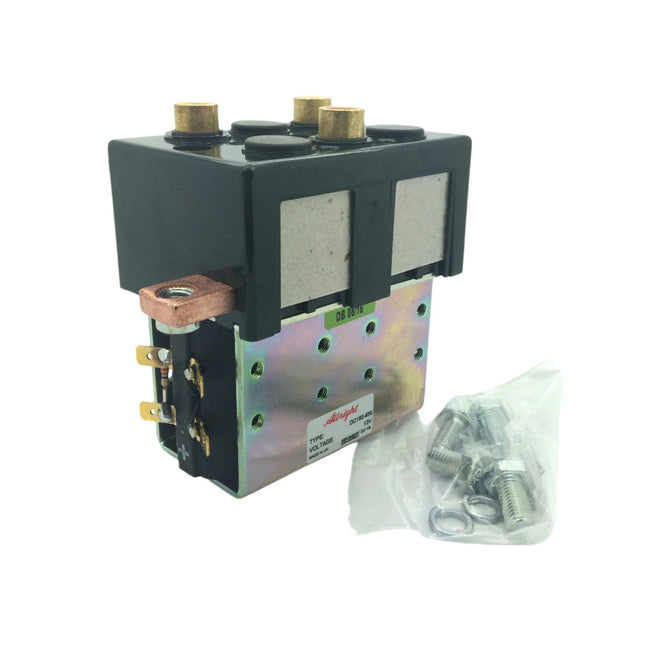

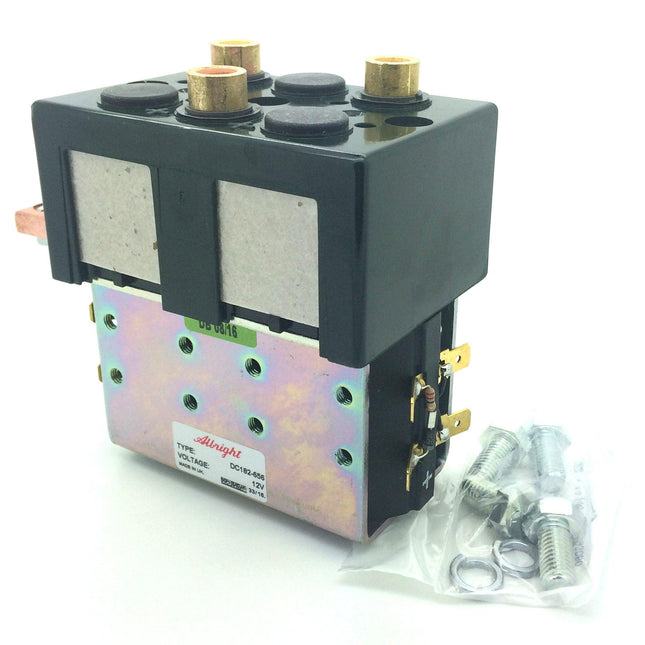

DC182-656 Albright Motor Reversing Solenoid
The DC182-656 Albright 150A 12V DC - INT Motor Reversing Contactor is a robust electrical component designed for controlling the direction of rotation of a motor in applications that require a 12-volt DC power supply. Here's a breakdown of its specifications:
DC182-656: This alphanumeric code serves as the specific model number or identifier for this contactor within Albright's product range.
Albright: Albright is the manufacturer of this contactor. They are recognized for producing high-quality electrical components, including contactors, solenoids, and related products.
150A: This indicates the maximum current rating of the contactor, which is 150 amperes. It specifies the maximum amount of current that the contactor is designed to handle safely during operation.
12V DC: This specifies the voltage rating of the contactor. It is designed to operate with a DC voltage of 12 volts, meaning that the coil within the contactor is powered by a 12-volt DC power supply.
INT: Similar to the previous examples, "INT" suggests that this contactor is suitable for intermittent or interruptible operations, meaning it can handle applications where the current flow may vary or be temporarily interrupted.
Motor Reversing Contactor: This indicates the primary function of the contactor, which is to control the direction of rotation of a motor. By reversing the polarity of the current flow, the contactor enables the motor to change its direction of rotation.
This contactor is well-suited for various industrial and automotive applications where precise control over motor direction is required. With its 150-ampere current rating and 12-volt DC voltage compatibility, it can effectively manage the demands of motors in diverse settings.
In summary, the DC182-656 Albright 150A 12V DC - INT Motor Reversing Contactor is a high-quality electrical component designed by Albright for controlling motor direction in applications requiring a 12-volt DC power supply. It offers reliability, durability, and precise control, making it a suitable choice for a wide range of industrial and automotive applications.
DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using brackets available separately via the M5 mounting holes - 16 off, 8 per side), mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
Replacement data:DC182-656 can be used to replace DC182-116
About the DC182-780L Motor Reversing Solenoid
Very Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The DC182 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. The DC182 is physically and electrically interchangeable with the SW182 reversing contactor but rewiring will be required.
This version of the DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using brackets available separately via the M5 mounting holes - 16 off, 8 per side), mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
Albright DC182B-7 48V DC INT Contactor with Magnetic Blowouts
The DC182B-7 contactors, tailored for intermittent energization (INT), feature magnetic blowouts, as indicated by the 'B' suffix in their model number. These blowouts are essential for rapidly interrupting high currents, significantly reducing arcing time. The inclusion of blowouts renders the device polarity sensitive, requiring users to carefully adhere to the positive markings on the contactor's top cover during installation.
Insights on the DC182B-7 Motor Reversing Solenoid
Designed for intermittent operation, the DC182B-7 contactors are optimal for hydraulic functions in vehicles, providing make-and-break actions that are precisely timed for such applications. This intermittent design ensures reliability and durability where activation periods are not continuous, aligning with the needs of various industrial applications.
The DC182B-7 showcases a monoblock construction, offering a compact and efficient design that integrates seamlessly with contemporary electronic control systems. While it shares compatibility with other models in terms of physical and electrical characteristics, it is specifically designed for 48V systems and may require rewiring when replacing other models.
Equipped with M8 stud main terminals and 6.3mm spade coil connections, this unit ensures ease of installation and broad compatibility. It includes an integral bracket for mounting, which can be positioned either horizontally or vertically. For vertical installations, it is crucial to ensure the M8 contact studs are oriented upwards.
Technical data of DC182B-7:
Model
DC182B-7
Part Number
DC182B-7
Brand
Albright
Colour
Black/Silver
Voltage
48V DC
Amperage
150A
Material
Copper/Silver/Bakelite
Coil Type
Intermittent
