DC-DC Converter Non-Isolated 24 V to 12 V
This non-isolated DC-DC converter from Micropower Group is designed to step down a 24 V DC input to a stable 12 V DC output with high efficiency. It uses the latest switching technology to deliver excellent performance in industrial, mobile, and automotive environments with minimal power loss.
Key Specifications
Input Voltage: 18–36 V DC
Output Voltage: 12.5 V nominal (≈13.7 V actual)
Output Power: 400 W
Efficiency: >96 %
Ingress Protection: IP21 standard enclosure
Connections: 6.3 mm Fast-on terminals
Dimensions: 116 × 88 × 18 mm
Weight: ~0.2 kg
Main Features
High Efficiency: Designed with advanced switching technology for very high efficiency, resulting in cool operation and minimal power loss.
Non-Isolated Design: Efficient step-down conversion without isolation, suited for systems where isolation is not required.
Robust Protection: Internal protection against wrong polarity and short circuits to prevent damage from misuse.
Compact & Lightweight: Small footprint and light weight ideal for integration in tight spaces.
Protection Functions
Reverse polarity protection to prevent damage on incorrect connection.
Short-circuit protection for enhanced reliability.
Overload protection under high load conditions.
Typical Applications
Industrial automation power supplies
Vehicle and mobile power systems
Battery-powered machinery and equipment
Telecommunications and remote power units
Control panel and machine power conversion
Installation & Integration
Fast-on terminal connections for straightforward installation.
Compact size integrates easily into panels and mobile systems.
Designed for reliable performance in industrial environments.
Note: This non-isolated DC-DC converter provides efficient and reliable 12 V DC power from a 24 V DC source with high efficiency and built-in protection — suitable for a wide range of industrial and automotive applications.
DC-DC Converter Non-Isolated 24 V to 12 V
This non-isolated DC-DC converter from Micropower Group is designed to step down a 24 V DC input to a stable 12 V DC output with high efficiency. Using advanced switching technology, it delivers reliable power conversion in industrial, mobile, and automotive environments with minimal power loss.
Key Specifications
Input Voltage: 18–36 V DC
Output Voltage: 12.5 V nominal (≈13.7 V actual)
Output Power: 400 W
Efficiency: >96 %
Ingress Protection: IP21 standard enclosure
Connections: 6.3 mm Fast-on terminals
Dimensions: 116 × 88 × 18 mm
Weight: ~0.18 kg
Main Features
High Efficiency: Designed with modern switching technology for efficiency above 96 %, resulting in minimal heat and energy loss.
Non-Isolated Design: Efficient step-down power conversion where isolation is not required.
Compact & Lightweight: Small footprint and light weight — ideal for integration into tight spaces.
Robust Protection: Internal safeguards against wrong polarity and short circuits help protect the device from misuse.
Protection Functions
Reverse Polarity Protection: Prevents damage from incorrect connection.
Short-Circuit Protection: Helps maintain reliability under fault conditions.
Overload Protection: Safeguards the converter under excessive load.
Typical Applications
Industrial automation power supplies
Vehicle and mobile power systems
Battery-powered machinery and equipment
Telecommunications and remote power units
Control panel and machine power conversion
Installation & Integration
Fast-on terminal connections for straightforward installation.
Compact size integrates easily into panels and mobile systems.
Designed for reliable performance in industrial environments. Note: This non-isolated DC-DC converter delivers efficient and reliable 12 V DC power from a 24 V DC source with high efficiency and built-in protections — suitable for a wide range of industrial and mobile applications.
Charger Sharp 24/45 PG
Sharp 20 is a 1-phase 230V industrial battery charger with capacity up to 1,6 kW. It is suitable for onboard mounting.
With 2-meter 10mm2 cable without connector, (open ends), for lead acid battery
MPN: OB23605B MPN2: 924231
OB23605B (924231–000 MP)SHARP 24/45 P6 Rev:10Red/IEC, PG: 2BB121K, Peters coating + silicon
Input 220 VAC 9AOutput 24 DC 45A
This product is set with the default charging algorithm ”PG” 2BB121L

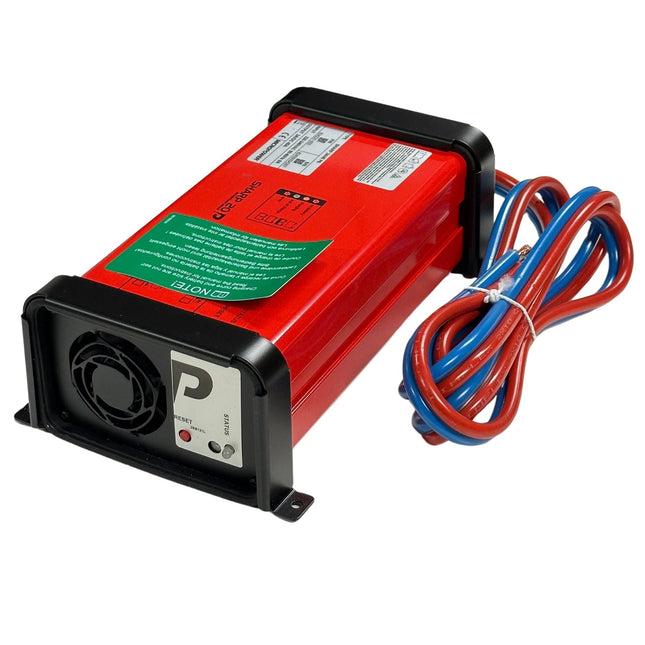

The Micropower Sharp 20 24/60 1600W is part of the Sharp Series of high-efficiency industrial battery chargers. Designed for onboard and stationary applications, it delivers 24 V at 60 A using advanced high-frequency switching technology. Ideal for fast, low-wear charging of lead-acid and other industrial batteries.
This is the alternative to discontinued Micropower / Powerfinn P/N 941340, STC 24/60
🔋 Sharp Series Highlights:
High-frequency, energy-efficient charging
Optimized charging cycles reduce water loss and battery wear
Ideal for onboard installation and continuous-duty use
Designed for most battery types and demanding environments
⚙️ Charging Technology:
Controlled by integrated microcomputer
Includes 1 to 3 selectable charging curves (incl. ionic mixing)
Ionic mixing reduces charging time and stratification
📊 Status Indicators:
🔶 Orange = Charging
✅ Green = Fully charged
🔴 Flashing Red = Error or fault
🛡️ Safety Features:
Charger requires battery voltage to start (counter voltage detection)
Short-circuit and polarity-protected output
Multiple automatic shutoff timers
Output derates if internal cooling is insufficient
Soft start ensures safe ramp-up to full power
📏 Specifications:
Output Voltage / Current: 24 V / 60 A
Power Output: 1600 W
Input: 220–240 VAC, single-phase
Enclosure: IP20
Cooling: Fan-cooled
Efficiency: ~89%
Dimensions: 295 × 138 × 89 mm
Weight: 3 kg
Cabling:
2.5 m mains cable (Schuko)
2 m battery cable with M6 terminals
🔋 Charging Capacity (C5 battery):
8 h = 459 Ah
12 h = 798 Ah
MPN: OB23602B / 924234-000Brand: Micropower
📊 Technical Specifications
Specification
Detail
Model No.
Sharp 20 24/60 1600W (MPN: OB23602B / 924234-000)
Output Voltage
24 V DC
Rated Current
60 A
Total Output Power
1600 W
Voltage Regulation
±1% typical
Input Voltage Range
85–264 VAC, 47–63 Hz
Protection Features
Over‑current, over‑voltage, over‑temp
Cooling
Variable-speed fan
Operating Temp.
-10 °C to +50 °C
Cooling / Storage
Humidity 20–90% (non‑condensing)
Safety Approvals
CE, UL (pending on build)
Dimensions
-
Weight
3000 grams

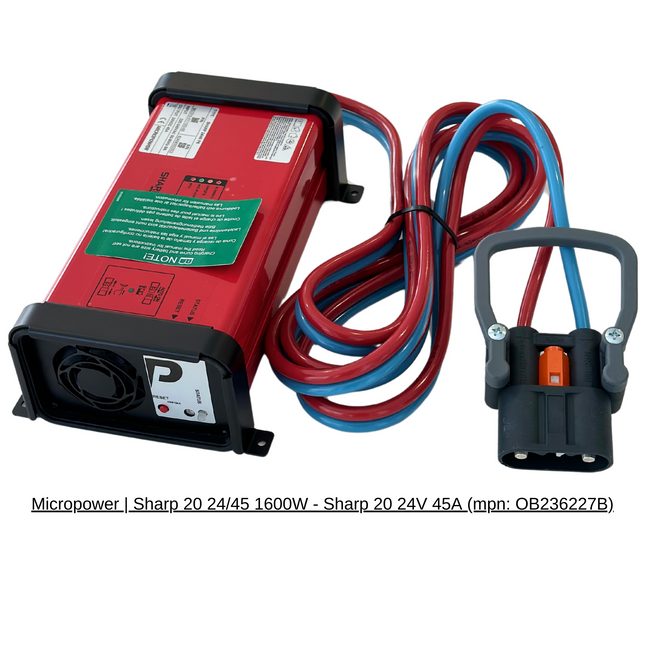

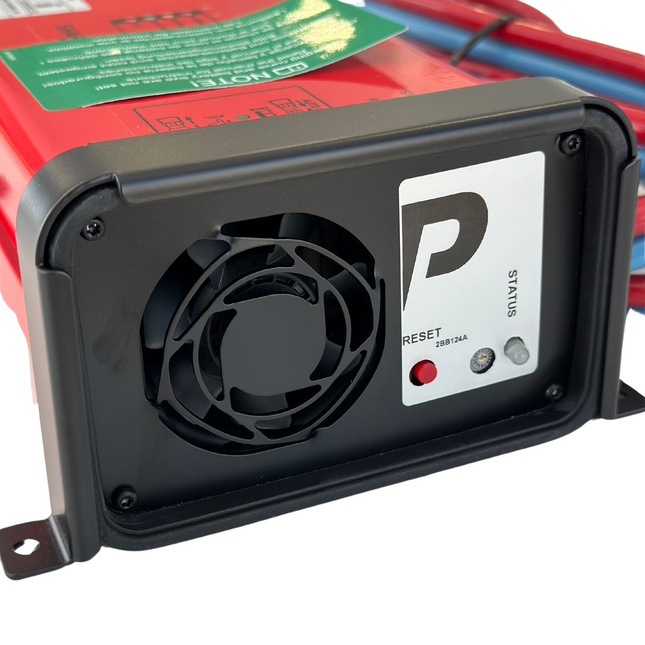

Charger - Sharp 20 24 V DC 45A is a 1-phase 230V industrial battery charger with capacity up to 1,6 kW. It is suitable for onboard mounting.
With 3-meter 16mm2 cable with Rema MRC160 -connector, (open ends), for lead acid battery
OB236227B - Sharp 24/45 P6 - CHGR 1600W 24V 45A STL3A12101 Red /IEC/Rema 160, PG:2BB124B ( limited to 45A )Peters coating + siliconMPN: OB236227BMounting brackets and screws includedSchuko power adapter includedOperating manual included
includes 3m, 2x16mm2 Twin Cable and MRC160 Plug
References: 924231-1023, OB236227B, S62310-011103–00

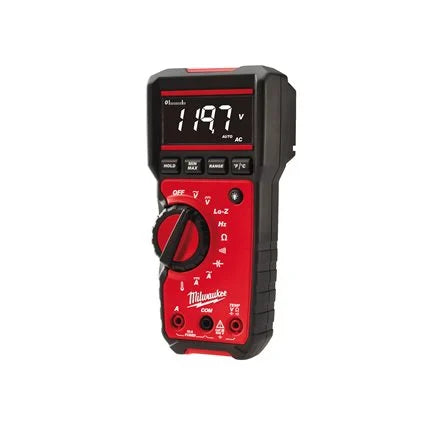

• TRMS guarantees accurate readings
• High contrast improves readability
• Safety rating: Cat III 600 V
• Side-mounted dial for easy one-handed use
• Functions tailored for electricians
• Lo-Z ensures accurate readings
• Versatile and precise temperature measurement
• Slide rail for accessory attachment
• Includes test leads, thermocouple probes (dual banana)

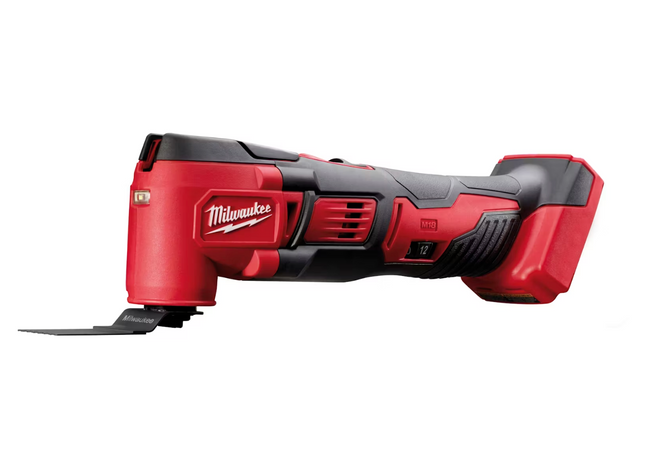

Features:
• Up to 50% faster and more versatile battery-powered solution for cutting and efficient material removal
• REDLINK™ overload protection electronics in tools and battery offer best-in-class durability
• 12 speed settings (12,000 - 18,000 rpm) enable fast, professional-grade operations on various materials like metal, wood, and plastic
• FIXTEC™ keyless blade change for increased efficiency; comes with a universal adapter compatible with other manufacturers’ blades
• REDLITHIUM™-ION battery provides superior structure, electronics, and continuous performance for longer runtime and lifespan
• Unique cutting depth limiter prevents over-cutting of materials
• Innovative dust extraction system keeps the workspace clean when connected to a power-driven dust vacuum
• Bright LED work light illuminates the work surface
• Compatible with all MILWAUKEE® M18™ batteries
Technical Specifications:
• Voltage: 18 V
• Oscillation speed: 12,000 - 18,000 rpm
• Oscillation movement: 3.4° (1.7° right / 1.7° left)
• Weight (without battery): 1.3 kg
Standard Accessories:
• Tool body only (without battery and charger), blade, sanding pad, UL blade adapter, blade adapter, clamping rod, 5 x sanding paper
