Description

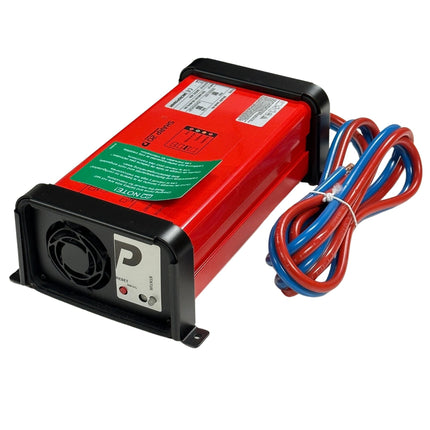

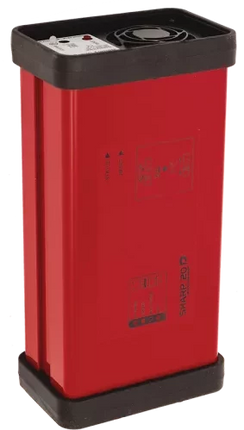

The Micropower Sharp 20 24/60 1600W is part of the Sharp Series of high-efficiency industrial battery chargers. Designed for onboard and stationary applications, it delivers 24 V at 60 A using advanced high-frequency switching technology. Ideal for fast, low-wear charging of lead-acid and other industrial batteries.

This is the alternative to discontinued Micropower / Powerfinn P/N 941340, STC 24/60

🔋 Sharp Series Highlights:

• High-frequency, energy-efficient charging

• Optimized charging cycles reduce water loss and battery wear

• Ideal for onboard installation and continuous-duty use

• Designed for most battery types and demanding environments

⚙️ Charging Technology:

• Controlled by integrated microcomputer

• Includes 1 to 3 selectable charging curves (incl. ionic mixing)

• Ionic mixing reduces charging time and stratification

📊 Status Indicators:

• 🔶 Orange = Charging

• ✅ Green = Fully charged

• 🔴 Flashing Red = Error or fault

🛡️ Safety Features:

• Charger requires battery voltage to start (counter voltage detection)

• Short-circuit and polarity-protected output

• Multiple automatic shutoff timers

• Output derates if internal cooling is insufficient

• Soft start ensures safe ramp-up to full power

📏 Specifications:

• Output Voltage / Current: 24 V / 60 A

• Power Output: 1600 W

• Input: 220–240 VAC, single-phase

• Enclosure: IP20

• Cooling: Fan-cooled

• Efficiency: ~89%

• Dimensions: 295 × 138 × 89 mm

• Weight: 3 kg

• Cabling:

  • 2.5 m mains cable (Schuko)

  • 2 m battery cable with M6 terminals

🔋 Charging Capacity (C5 battery):

• 8 h = 459 Ah

• 12 h = 798 Ah

MPN: OB23602B / 924234-000
Brand: Micropower

📊 Technical Specifications

Specifications

• Manuafacturer: OEM Nordic
• Condition: New
