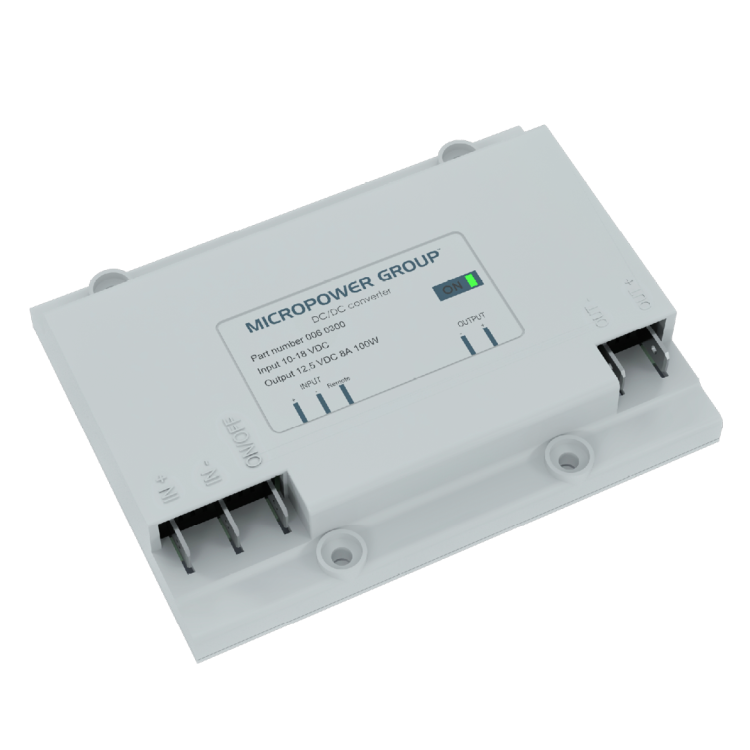

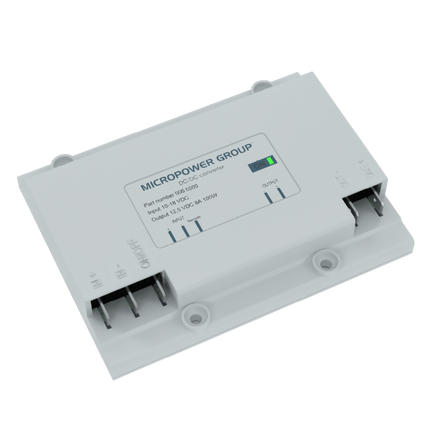

DC-DC Converter Non-Isolated 24 V to 12 V
This non-isolated DC-DC converter from Micropower Group is designed to step down a 24 V DC input to a stable 12 V DC output with high efficiency. Using advanced switching technology, it delivers reliable power conversion in industrial, mobile, and automotive environments with minimal power loss.
Key Specifications
-
Input Voltage: 18–36 V DC
-
Output Voltage: 12.5 V nominal (≈13.7 V actual)
-
Output Power: 400 W
-
Efficiency: >96 %
-
Ingress Protection: IP21 standard enclosure
-
Connections: 6.3 mm Fast-on terminals
-
Dimensions: 116 × 88 × 18 mm
-
Weight: ~0.18 kg
Main Features
-
High Efficiency: Designed with modern switching technology for efficiency above 96 %, resulting in minimal heat and energy loss.
-
Non-Isolated Design: Efficient step-down power conversion where isolation is not required.
-
Compact & Lightweight: Small footprint and light weight — ideal for integration into tight spaces.
-
Robust Protection: Internal safeguards against wrong polarity and short circuits help protect the device from misuse.
Protection Functions
-
Reverse Polarity Protection: Prevents damage from incorrect connection.
-
Short-Circuit Protection: Helps maintain reliability under fault conditions.
-
Overload Protection: Safeguards the converter under excessive load.
Typical Applications
- Industrial automation power supplies
- Vehicle and mobile power systems
- Battery-powered machinery and equipment
- Telecommunications and remote power units
- Control panel and machine power conversion
Installation & Integration
- Fast-on terminal connections for straightforward installation.
- Compact size integrates easily into panels and mobile systems.
- Designed for reliable performance in industrial environments.
Note: This non-isolated DC-DC converter delivers efficient and reliable 12 V DC power from a 24 V DC source with high efficiency and built-in protections — suitable for a wide range of industrial and mobile applications.
