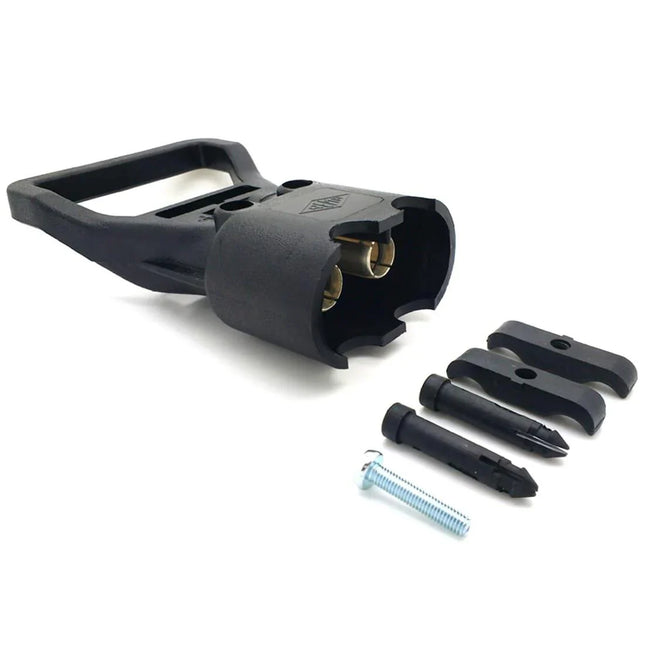

REMA (Ameise Jungheinrich) Battery Plug A incl. Main contacts
max cable size 35mm2 = REMA 76250-00 = 160Amax cable size 50mm2 = REMA 76251-00 = 200A
Contacts can be crimped or soldered with cable.
These Twin plug and sockets by REMA are commonly used with truck and trailer connection.
Prior to standardization, REMA has developed these two poles electrical connection. These robust connectors have proofed their reliability already for decades. The focus of applications of these connectors are electrical connections between the trailer and towing machine on-road trucks. The contact design has large connection surfaces with a spring-loaded connector pin sliding into the sleeves inside the female connector. This results in extremely low resistance in the electrical connection. The contacts show a differentiation between solder and crimp connections.
On top the twin plug and sockets have:
mechanical robustness
constant extraction forces
protection against humidity, acids and UV radiation
reliable design for long lifetimes and vibration protection
The contacts are made from high-quality E-Cu copper, optimized for crimp connections. Crimp tooling and dies available on request from sales.
REMA 95500-01
Original REMA EURO DIN 320A / 50 mm² plug with grey coding, battery acid resistant 108952 / 9550001 are the REMA catalog numbers for the item indicated as (new catalog nr/old catalog nr).
95500-01 includes these parts:
1x housing, 1x lock part, 1x coding pin (grey), 1x cable clamp set
2x main contacts 50 mm², plug side
This is a Complete connector set with battery acid-resistant housing.
Extra accessories are available, such as extra auxiliary and pilot contact sets, handles, air pipes.
Housing material – IMPORTANT CLARIFICATION
🔹 This is the Battery Acid Resistant, Dark Grey housing version
Material: PP CoPo GF30 (copolymer polypropylene)
Battery acid-resistant
UL-tested version
Recommended for demanding battery and traction applications
👉 Only the housing material differs between the black and dark grey versions. All electrical and mechanical connector parts are identical.
** As an alternative, a complete black housing version is available under part number 75500-01 which features a fully black housing made from shock-resistant polyamide (PA), offering increased mechanical strength and improved impact resistance.Only the housing material is different between these two versions and to note the dark-grey version is the one the UL -tests are made with.
REMA 95510-01 for DIN320 95mm² - Plug
Original REMA EURO DIN 320A / 95 mm² plug with grey coding, acid resistant 108960 / 9551001 are the REMA catalog numbers for the item indicated as (new catalog nr/old catalog nr)
Original / Genuine REMA Euro DIN 320 amp battery connector plug set (male)
Includes main contacts and housing, lock part, coding pin, cable clamp
This is a Complete connector set
Accessories are available, such as auxiliary contacts, pilot contact sets, handles, air pipes but are not included in the basic connector set.
Housing material – IMPORTANT CLARIFICATION
🔹 This is the Battery Acid Resistant, Dark Grey housing version
Material: PP CoPo GF30 (copolymer polypropylene)
Battery acid-resistant
UL-tested version
Recommended for demanding battery and traction applications
👉 Only the housing material differs between the black and dark grey versions. All electrical and mechanical connector parts are identical.
** As an alternative, a complete black housing version is available under part number 75510-01 which features a fully black housing made from shock-resistant polyamide (PA), offering increased mechanical strength and improved impact resistance.Only the housing material is different between these two versions and to note the dark-grey version is the one the UL -tests are made with.
REMA 95601-01
Original REMA EURO DIN 320A / 50 mm² socket with grey coding, acid resistant 108972 / 9560101 are the REMA catalog numbers for the item indicated as (new catalog nr/old catalog nr)
95601-01 includes these parts:
1x housing, 1x lock part, 1x coding pin (grey), 1x cable clamp set
2x main contacts 50 mm², socket side (the battery side)
This is a Complete connector set with battery acid-resistant housing.
Extra accessories are available, such as extra auxiliary and pilot contact sets, handles, air pipes.
Housing material – IMPORTANT CLARIFICATION
🔹 This is the Battery Acid Resistant, Dark Grey housing version
Material: PP CoPo GF30 (copolymer polypropylene)
Battery acid-resistant
UL-tested version
Recommended for demanding battery and traction applications
👉 Only the housing material differs between the black and dark grey versions. All electrical and mechanical connector parts are identical.
** As an alternative, a complete black housing version is available under part number 75601-01 which features a fully black housing made from shock-resistant polyamide (PA), offering increased mechanical strength and improved impact resistance.Only the housing material is different between these two versions and to note the dark-grey version is the one the UL -tests are made with.
NEW version of the aux contact!
121556 is the version without any lead, lead-free brass with silver finish
120748 is the sunset version of this 121556, old REMA catalog code was 103747 / M9372071
Sunset 120748 will work as 103747, but the borehole on 120748 has more depth and therefore the insulation must be cut accordingly to solder the cable and contact. This updated 121556 is same as 120748, but has no lead in the brass of the contact.This is lead-free brass with silver finish.
REMA 78290-00 SRE160, SRX175 Grey Handle
REMA grey handle with screw set, fits SR175, SRE 160 and SRX175.
Screws are M6 x 36mm, incl. 4 screws
This handle also works with Anderson SBE160, SBX175 and SB175 -series size of connectors.
REMA 95515-01 for DIN320 50mm² - Plug with Aux.
Original REMA EURO DIN 320A / 50 mm² plug with grey coding, acid resistant 9551501
Includes main contacts and housing, lock part, coding pin, cable clamp + auxiliary contact pair (2 single aux contacs)
This is a Complete connector set
Battery Acid Resistant
Housing material – IMPORTANT CLARIFICATION
🔹 This is the Battery Acid Resistant, Dark Grey housing version
Material: PP CoPo GF30 (copolymer polypropylene)
Battery acid-resistant
UL-tested version
Recommended for demanding battery and traction applications
👉 Only the housing material differs between the black and dark grey versions. All electrical and mechanical connector parts are identical.
** As an alternative, a complete black housing version is available under part number 75515-01 which features a fully black housing made from shock-resistant polyamide (PA), offering increased mechanical strength and improved impact resistance.Only the housing material is different between these two versions and to note the dark-grey version is the one the UL -tests are made with.
REMA 95610-01
Original REMA EURO DIN 320A / 50 mm² socket with grey coding, acid resistant 108975 / 9561001 are the REMA catalog numbers for the item indicated as (new catalog nr/old catalog nr)
95610-01 includes these parts:
1x housing, 1x lock part, 1x coding pin (grey), 1x cable clamp set
2x main contacts 95 mm², socket side (the battery side)
This is a Complete connector set with battery acid-resistant housing.
Extra accessories are available, such as extra auxiliary and pilot contact sets, handles, air pipes.
Housing material – IMPORTANT CLARIFICATION
🔹 This is the Battery Acid Resistant, Dark Grey housing version
Material: PP CoPo GF30 (copolymer polypropylene)
Battery acid-resistant
UL-tested version
Recommended for demanding battery and traction applications
👉 Only the housing material differs between the black and dark grey versions. All electrical and mechanical connector parts are identical.
** As an alternative, a complete black housing version is available under part number 75601-01 which features a fully black housing made from shock-resistant polyamide (PA), offering increased mechanical strength and improved impact resistance.Only the housing material is different between these two versions and to note the dark-grey version is the one the UL -tests are made with.
