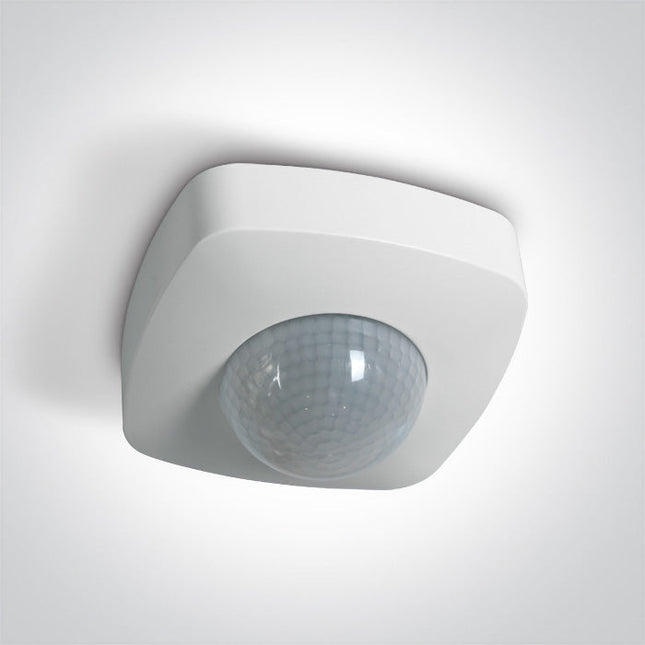

Product overviewONE Light Sensor White 22014.230V 1000W(LED) 2000W(Incadescent) Ceiling Infrared Presence Sensor. Hold time and daylight sensor are adjustable via rotary switches Complies with standard EN60669 and any other specific standards.Key specifications
Product code: 22014
Type: Sensor
Category: 23 Control & Dimming
Family: Infrared Ceiling Sensors
Colour: White
Material: Plastic
Length: 102mm
Width: 102mm
Height: 55mm
Warranty: 2 Years
Downloads & links
Datasheet
Manual
Manufacturer page

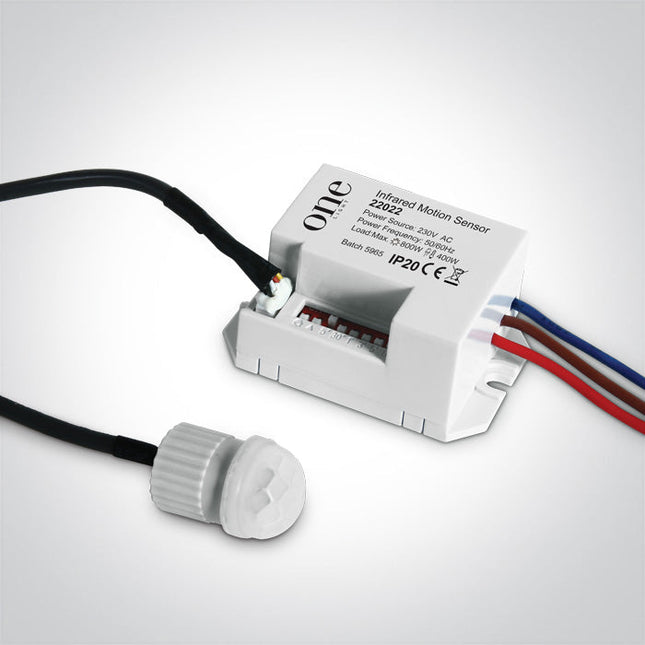

Product overviewONE Light Sensor White 22022.Infrared motion sensor for built in installation. Sensor Head: IP65. Sensor Controller: IP20.Complies with standard EN60669 and any other specific standards.Key specifications
Product code: 22022
Type: Sensor
Category: 23 Control & Dimming
Family: Infrared Motion Sensors
Colour: White
Material: Plastic
Length: 55mm
Width: 37mm
Height: 25mm
Warranty: 3 Years
Downloads & links
Datasheet
Manual
Manufacturer page
SpeedSys 200 - Transmitter & Overspeed Protection
The SpeedSys 200 stands as a pinnacle of innovation in the domain of rotating machinery protection, embodying a compact and efficient solution for overspeed detection. This system distinguishes itself through a design philosophy that prioritizes safety from the onset, diverging from traditional methods reliant on long-term proven usage. By incorporating a SIL-rated mechanism, it guarantees a high level of reliability and safety with minimal spatial requirements.
SIL 2 certified protection system
Designed for Versatility – with 1oo1, 1oo2, 2oo2 and 2oo3 configurations
Suitable for all common type sensors:- Hall-effect sensors- Electromagnetic sensors- Proximity sensors
Super fast 8 ms system response time.
Atex / IECex certified for Zone 0 installation.
“SpeedSys 200 is a Game Changing Innovation for SIL rated overspeed protection“
Technical Specifications
Sensor Inputs: 3 separate sensor inputs for different types of sensors
Outputs: 2 Safety relays, 1 additional relay, 4-20 mA & digital frequency output
LED Status indicators
Measurement Accuracy: 0.1%
Power Supply: 24 V DC (with 2 redundant power supplies)
Mounting: DIN Rail mountable
Housing: Polyamide
Applications suitable to
The SpeedSys 200 Overspeed Protection System architecture is designed to suit a wide range of applications. Most common & typical applications include the following:
Gas Turbines
Wind Turbines
Small & Micro Turbines
Marine Applications
Compressors and pumps
Emphasizing a "Safe by Design" approach, the SpeedSys 200 eschews the conventional reliance on historical data, which often necessitates extensive periods to establish reliability and complicates the process of recertification following any modifications. This forward-thinking design strategy ensures that the system remains adaptable and easy to update or recertify, thereby providing a resilient safeguard against overspeed conditions without the constraints of past methodologies.
Up to date Overspeed Protection System
Engineered to serve a broad spectrum of machinery, the SpeedSys 200 is versatile enough to offer cost-effective and reliable overspeed protection for singular applications, while also supporting the construction of redundancy and voting structures for applications demanding higher reliability or availability. Its applicability spans an impressive array of equipment, including micro turbines, wind turbines, compressors and pumps, aeroderivative and conventional gas and steam turbines, and even marine machinery.This innovative approach to machinery safety, coupled with the system's adaptability and compact form factor, ensures that the SpeedSys 200 can deliver advanced protection across a diverse range of settings, thereby safeguarding critical machinery against the potentially catastrophic consequences of overspeed conditions.
The SpeedSys 200 emerges as a paragon of certified safety and adaptability, engineered to fulfill the stringent specifications of SIL 2 certification for reliable overspeed protection. This system distinguishes itself through its rapid response capabilities and a state-of-the-art self-monitoring framework, which extends the intervals between tests while providing ample safety outputs to ensure consistent operation under a variety of conditions.Emphasizing adaptability, the SpeedSys 200 is designed with a minimal technical footprint, allowing it to seamlessly integrate into both field enclosures and control room environments. Its compatibility with industry-standard inputs and outputs simplifies the process of integration and retrofitting, making it a versatile choice for a wide array of industrial settings.A notable innovation within the SpeedSys 200 is its implementation of isolated inputs. This feature effectively removes the necessity for external isolators or barriers, streamlining the installation process and diminishing the likelihood of failure modes. Additionally, it enhances the system's ability to monitor sensors, providing an added layer of reliability and safety to the overspeed protection mechanism.
SpeedSys 200 - Features
Certified Safety: The SpeedSys 200 is engineered to comply with SIL 2 certification standards for overspeed protection. It boasts exceptionally quick reaction times, advanced self-monitoring capabilities allowing for longer intervals between tests, and numerous safety outputs to ensure robust protection.
Designed for Versatility: With its compact technical footprint, the SpeedSys 200 is adaptable for both field enclosures and control room settings. It supports industry-standard inputs and outputs, facilitating straightforward integration and retrofitting across various industrial applications.
Isolated Inputs: The system features isolated inputs, negating the need for additional isolators or barriers in the installation process. This innovation not only reduces potential failure modes but also enhances sensor monitoring capabilities, contributing to the overall reliability and efficiency of the protection mechanism.
Replacing units:
FTFU 3024-E04 obsolete / SpeedSys 200 is an alternative
SpeedSys T11 – 1‑Channel Speed Monitor and Switch with Display
Functional replacement for Jaquet T411 and T412
The SpeedSys T11 is a modern, single‑channel speed monitoring and switching device designed to replace legacy Jaquet T411/T412 units. It provides accurate speed measurement, relay output for switching or alarm functions, and an integrated display for local monitoring.
Key Features
1‑Channel Speed Monitoring – Measures rotational speed from a single sensor input.
Integrated Display – Real‑time speed readout for local monitoring and verification.
Sensor Compatibility – Works with 2‑wire passive (VR/MPU) and 3‑wire active (Hall‑effect/proximity) sensors.
Analog Output – High‑accuracy 4–20 mA output for PLC or control system integration.
Relay Output – 1× SPDT relay for overspeed/underspeed or alarm indication, fast response under 4 ms.
Diagnostic Functions – Monitors sensor health, detects open‑ or short‑circuits, and provides status indication.
Modern Configuration – Fully adjustable limits and parameters using onboard controls or digital interface.
Compact Industrial Design – Rugged housing for panel mounting, low power consumption, and wide operating temperature range.
Technical Summary
Specification
SpeedSys T11
Measurement Channels
1 (single‑channel)
Speed Range
Approx. 0.025 Hz to 35 kHz
Measurement Accuracy
±0.05 % for relay switching, ±0.1 % for analog output
Analog Output
4–20 mA, 16‑bit resolution
Relay Output
1× SPDT, fast response <4 ms
Supply Voltage
24 V DC (18–31 V), reverse‑polarity protected
Operating Temperature
−20 °C to +60 °C
Mounting
Panel‑mount or DIN‑rail compatible
Typical Applications
Turbines, compressors, motors, marine equipment, industrial automation
Benefits
Drop‑in replacement for Jaquet T411/T412 with modern electronics.
Fast, precise speed switching with integrated display.
Improved reliability and diagnostics for industrial and marine use.
Compact design for easy retrofit and integration.
SpeedSys® T10 to replace Jaquet T401
MPN: SSYT10-000-XXX
SpeedSys® is a tachometer (Speed transmitter, monitor & switch)
The SpeedSys T10 is a single-channel speed monitor and switch that delivers speed-monitoring functions to rotating equipment. It converts the signals from speed sensors to processed outputs. Its small technical footprint allows for a low-impact installation, to enable speed monitoring to a wide range of applications. The T10 is part of the SpeedSys tachometer series with the Speedsys T20 and the SpeedSys T30.
Functions: Speed, overspeed, underspeedInputs accepted: Hall effect sensor, electromagnetic sensorOutputs: 1x 4-20 mA analog output, 1x open collector frequency output
Relay: 1x DPST relay, 1x SPST relayInterface: Modbus TCPHumidity protection: Conformal coatingHousing: DIN rail with push-in connectorsCertifications: CE, UKCA, DNV
The SpeedSys T10 is used as a monitoring and switching device for speed conditions on rotating machinery. Typical applications of T10 are:
Aeroderivatives
Micro turbines
Wind turbines
Gas- and steam turbines
Hydro turbines (Kaplan, Francis, Pelton)
Compressors
Expanders
Marine applications
Elevators
General automation
If you were looking after Jaquet (TE) T401 has been made obsolete = discontinued. You can extend the life of the current installations simply swapping a T10 on place!
The SpeedSys T10 is a functional replacement for the T401 series.
Jaquet T401 replacement by SpeedSys T10 by IstecThe SpeedSys T10 is developed to replace the Jaquet transmitter series declared obsolete by manufacturer TE connectivity (Jaquet).
SpeedSys T10 can be used to replace the following Jaquet parts: T401 series, T402 series, FTW113 DC 24I, FTW113 DC 24U, FTW123 DC 24, FTV 1398 Line driver.
SpeedSys T10 and consult the datasheet for all deviations and to assess suitability for your application. If you have any questions about the conversion, please consult your Istec representative.
Disclaimer
The SpeedSys T10 has additional features, but some functionalities deviate from the Jaquet T401.
Additional features:
Remote reset
TCP Modbus
Marine class certification
Dual relay output
Deviations
Not suitable for 2-wire Hall sensors
Not suitable for Namur sensors
No voltage (0-10 V) output option
Key advantages of the new SpeedSys T10 tachometer products:
Easy replacement: Our new tachometers are designed to be a direct replacement for the Jaquet T-series. Minimal modifications are required during installation, saving time and resources.
Enhanced functionality: Our new tachometer line features several improvements to boost operational efficiency, including enhanced relay features and Modbus TCP. Please refer to the datasheet for more information.
Istec SpeedSys® T20 – Dual-Channel Replacement for Jaquet T500 / T600 Series
The Istec SpeedSys® T20 is a high-performance, two-channel speed monitor and switch, designed as a modern replacement for legacy tachometers, including the Jaquet T500 and T600 series.
Building on the reliability of the SpeedSys product line, the T20 offers advanced signal processing, flexible configuration, and rugged industrial design. It is ideally suited for monitoring redundant or dual-sensor setups, providing secure and accurate speed data for critical rotating equipment.
🔁 Replacement Compatibility
✅ Jaquet T500 Series
✅ Jaquet T600 Series
✅ Other dual-channel tachometers (consult datasheet for specifics)
🚀 Key Features
Dual sensor input (2-channel)
Flexible switching logic (AND / OR / fallback)
Modbus TCP communication
Marine class approval
Compact DIN-rail housing
Remote reset functionality
Dual relay outputs for alarm/control integration
⚙️ Applications
Ideal for machinery where redundancy, reliability, and modern digital connectivity are required:
Gas & steam turbines
Compressors
Expanders
Marine propulsion systems
Microturbines
Wind turbines
General rotating equipment
✅ Upgrade Path
For users of:
Jaquet T401 → SpeedSys T10
Jaquet T500 / T600 → SpeedSys T20

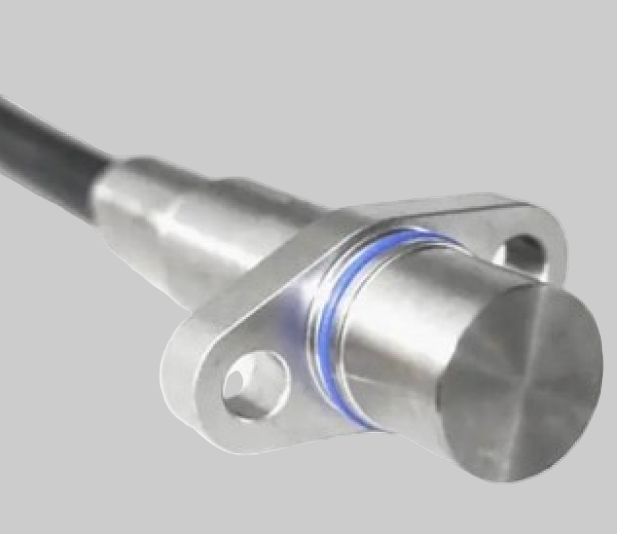

TE / Jaquet Speed Sensor – DSD 1630.73 SHW-F300G
The TE Connectivity / Jaquet DSD 1630.73 SHW-F300G is a high-performance digital speed sensor designed for reliable measurement in demanding industrial environments. Known for its robust construction and long-term accuracy, this sensor is widely used in turbine monitoring, rotating machinery, generator systems, and applications requiring precise speed feedback.
Main Features
High-precision digital speed sensing
Durable housing designed for harsh operating environments
Fast response time with stable output
TE / Jaquet proven reliability for industrial machinery
Suitable for continuous operation and vibration-heavy locations
Technical Specifications
Model
DSD 1630.73 SHW-F300G
Manufacturer
TE Connectivity / Jaquet
MPN
3742615067
Sensor Type
Digital speed sensor
Application Range
Rotating machinery, turbines, generators, industrial automation
Operating Style
High-accuracy, continuous-operation speed measurement
Build
Heavy-duty housing, resistant to vibration and environmental stress
Typical Output
Digital frequency / speed signal (depending on installation)
Applications
Industrial turbine systems
Generator speed monitoring
Pump and compressor systems
Rotating industrial equipment
OEM machine manufacturing
Why Choose This Sensor?
Jaquet sensors are known for precision, durability and decades of field-tested reliability. This model provides fast, stable digital output in environments where accuracy is critical and downtime is costly.
Product data is provided for reference. OEM Nordic supplies genuine TE / Jaquet components or fully compatible alternatives depending on availability. Always verify fit and specification for your application before ordering.

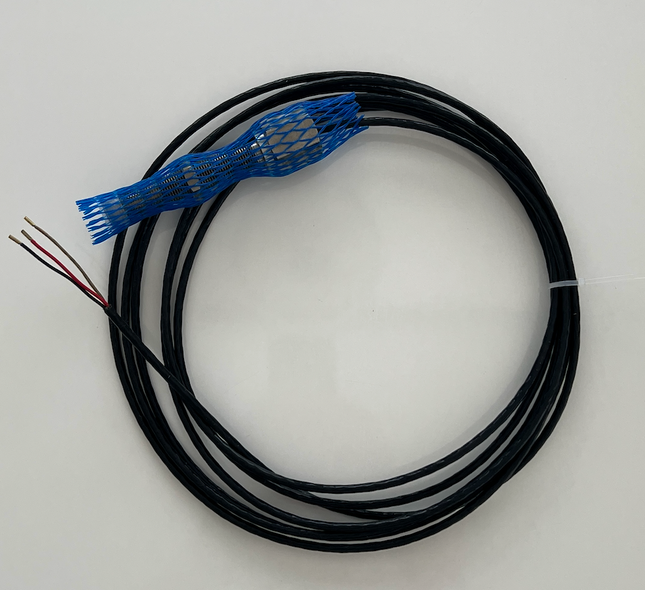

TE / Jaquet Speed Sensor DSE EH10.21 SHZ Ex-ATEX (5m)
Manufacturer Part Number (MPN): 347Z-05096
Cable Length: 5 meters
Certification: Ex-ATEX (Explosion-proof)
Product Overview
The Jaquet DSE EH10.21 SHZ Ex-ATEX is a certified explosion-proof speed sensor engineered for hazardous environments. With a 5-meter integrated cable and robust stainless steel construction, this sensor ensures precise rotational speed measurement in ATEX-rated zones such as oil & gas, mining, or chemical industries.
Key Features
Explosion-proof design (ATEX Certified)
Long 5-meter cable for flexible installation
Durable stainless steel housing
High-reliability speed sensing
Resistant to harsh industrial environments
Applications
Hazardous area speed detection (Zone 1 / Zone 2)
Oil & gas industry monitoring
Mining and underground equipment
Chemical processing systems
Technical Specifications
Brand
TE / Jaquet
Model
DSE EH10.21 SHZ Ex-ATEX
MPN
347Z-05096
Cable Length
5 meters
Explosion Proof
Yes – Ex-ATEX Certified
Application Environment
Hazardous / ATEX Zones
Need Technical Help?
Have questions about ATEX certification or compatibility? Contact our technical support team — we’re here to help.
This sensor is an alternative to an obsolete version DSE EH20.06 S1HZ Ex-Atex for example, but installation must follow the Ex-Atex data in the datasheet for the Atex application.

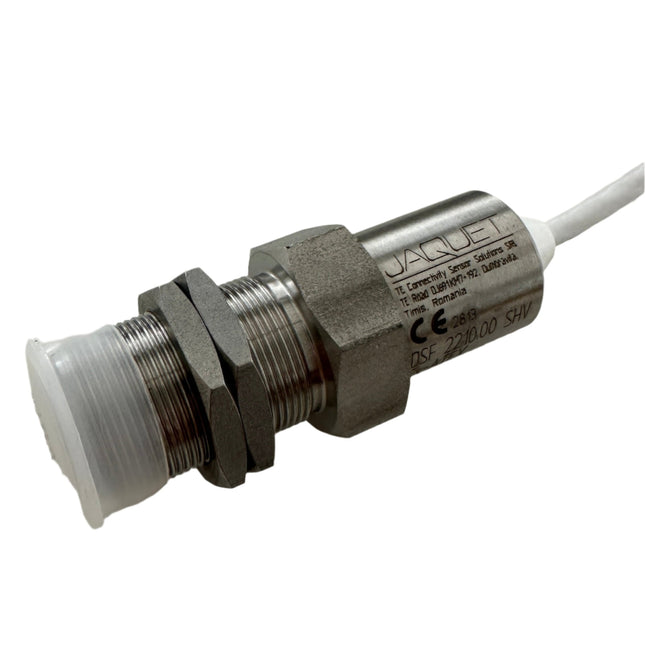

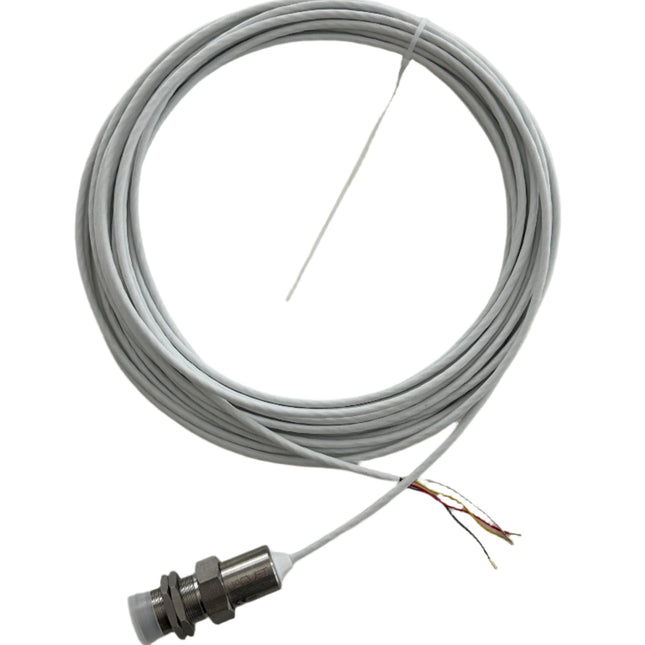

TE / Jaquet Speed Sensor DSF 2210.00 SHV Ex-ATEX (10m) | MPN: 374Z-05881
Ensure reliable and precise speed monitoring in hazardous environments with the TE / Jaquet DSF 2210.00 SHV Ex-ATEX Speed Sensor. Engineered to meet stringent ATEX standards for explosive atmospheres, this high-performance sensor is ideal for applications in the oil & gas, mining, and industrial sectors.
(If you are looking for DSF 1810.00 SHV Ex-Atex, which is made obsolete/discontinued), DSF 2210.00 SHV Ex-Atex is the same sensor but with a larger sensor head and also the screw. The diameter is 22mm.
Also available in multiple cable lengths:– 2-meter cable– 5-meter cable
Key Features:
Model: DSF 2210.00 SHV Ex-ATEX
Part Number (MPN): 374Z-05881
Cable Length: 10 meters for flexible installation
Explosion Protection: Certified for use in ATEX-rated zones
Reliable Performance: Accurate speed detection under extreme conditions
Durable Construction: Rugged design suitable for harsh environments
Perfect for integration in turbine, engine, or rotating machinery systems where safety and precision are paramount.
Applications:
Industrial automation
Hazardous zone monitoring
Rotational speed sensing

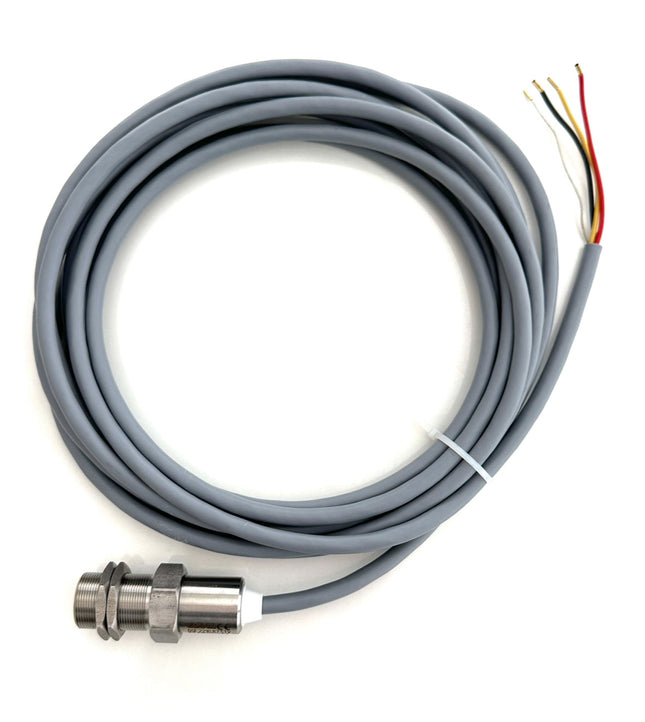

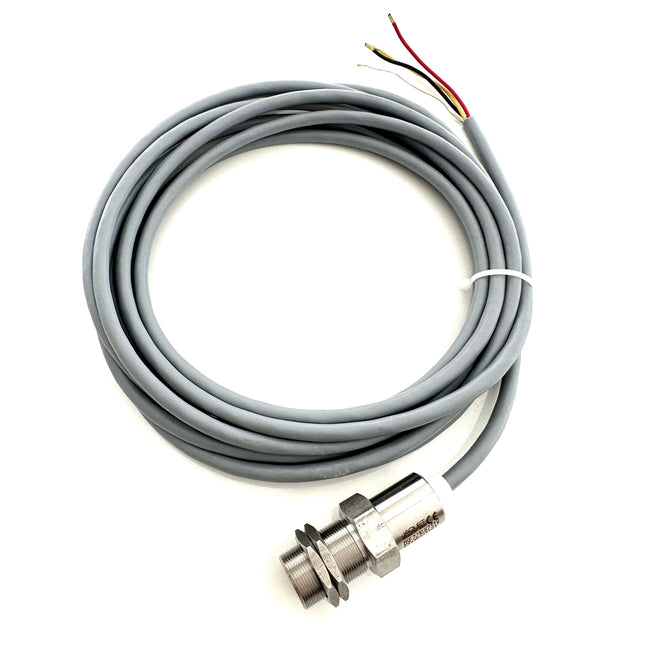

TE / Jaquet Speed Sensor DSF 2210.87 STV (5m) (MPN: 374Z-03853)
(Old Type No.: FTG 1087.00 S)
The TE / Jaquet DSF 2210.87 STV is a passive variable reluctance speed sensor engineered for reliable detection of rotational speeds in industrial and transportation applications. This sensor operates without external power, generating an analog sine wave output proportional to the speed of ferromagnetic targets such as gear teeth.
This model, with MPN 374Z-03853, is fitted with a 5-meter STV cable, which is rated for standard ambient temperatures—suitable for typical industrial environments. The STV designation distinguishes it from SHV variants, which are designed for high-temperature applications.
Key Features:
Sensor Type: Passive (Variable Reluctance)
Output Signal: Sine wave (frequency proportional to rotational speed)
Target Material: Ferromagnetic (e.g., steel gear teeth)
Housing: Rugged stainless steel for industrial durability
Cable Length: 5 meters, STV type for standard temperature ranges
Mounting: Threaded cylindrical housing for easy installation
Old Part Number: FTG 1087.00 S
Environmental Resistance: Suitable for standard industrial environments (shock, vibration, moisture)
Typical Applications:
Rail traction systems
Turbomachinery
Industrial drives and motors
Compressors and gearboxes
The DSF 2210.87 STV delivers consistent performance and long operational life, backed by TE / Jaquet’s reputation for sensor excellence.

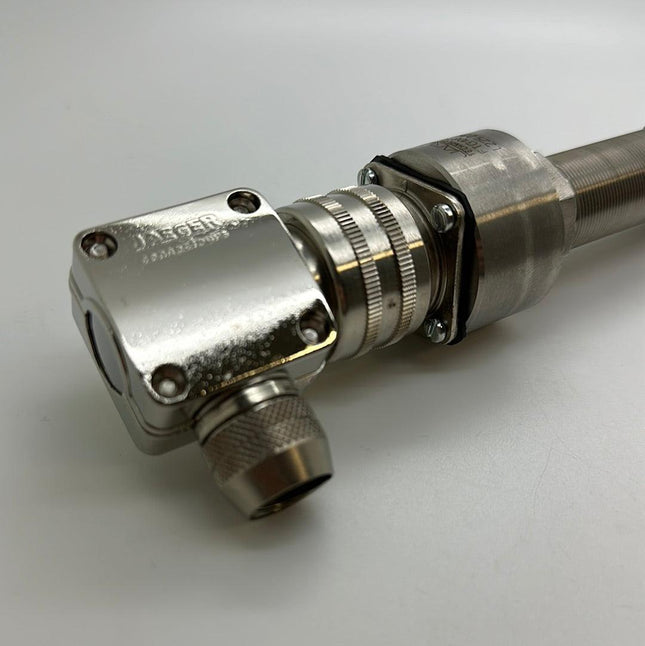

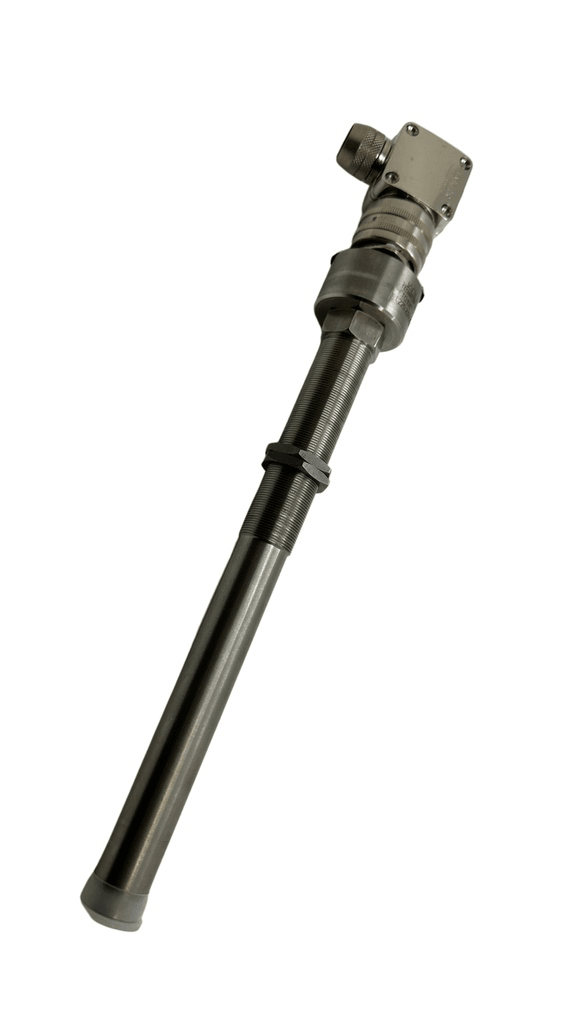

TE / Jaquet Speed Sensor FTG 1087.01AH L225
MPN: 374Z-04455
Ferrostat speed sensor with integrated signal amplifier
The TE / Jaquet FTG 1087.01AH L225 is a high-quality industrial speed sensor designed for precise and reliable rotational speed detection in demanding environments.
This Ferrostat sensor features an integrated signal amplifier, ensuring high sensitivity and stable signal output even in challenging operating conditions.
Manufacturer: TE / Jaquet
Model: FTG 1087.01AH L225
MPN: 374Z-04455
Sensor type: Ferrostat speed sensor
Integrated amplifier: Yes
Length: 225 mm
Weight: Approx. 500 g
Key features
Ferrostat sensing technology
Integrated signal amplifier for enhanced performance
High sensitivity and reliable signal detection
Robust construction for industrial environments
Typical applications
Rotational speed monitoring
Engines and turbines
Gearboxes and rotating machinery
Industrial automation systems
Power generation equipment
Original Jaquet product
This is a genuine Jaquet product, supplied brand new in original manufacturer packaging.
Documentation
Datasheets, dimensional drawings, 3D STEP files, declarations of conformity, and certificates are available upon request.
