Cables & Wiring

This twin flexible cable exceeds your expectations. So smooth and flexible you almost want to taste a bit of it. Custom orders please email us first. This item can be supplied in 25/50-meter rolls also. Available in the following dimensions in 25-meter rolls. 2x6 mm² (AWG 10/12)2x10 mm² (AWG 8)2x16 mm² (AWG 6)2x25 mm² (AWG 4)2x35 mm² (AWG 2) Suitable for service cars and can be carried by single person ( 25 roll of 2x35mm2 twin-cable weights around 30 kilos) Typical usage as a jumper cable, starter cable, flexible installations in low temps. CABLE STANDARDSCable based on VDE0250 BS EN 60332-1-2, BS EN 62230 TEMPERATURE RATINGFlexed: -20°C to +70°CFixed: -50 .. +90MINUMUM BENDING RADIUSFixed: 6 x Outer DiameterINSULATION COLOR(s)Red & BlackCONDUCTORExtra Fine&Flexible Quality = Class 6 extra flexible copper conductor(based to BS EN 60228)INSULATION LAYERPVC-NBR Sheath Transparent PVC (Polyvinyl Chloride) Type TM2(according to BS EN 50363)

Read more less

This twin flexible cable exceeds your expectations. So smooth and flexible you almost want to taste a bit of it. Sold By Meter. If you order 5 pieces, we cut you 5-meter long cable.Custom orders please email us first. This item can be supplied in 25/50-meter rolls also. Available in the following dimensions 2x6 mm² (AWG 10/12)2x10 mm² (AWG 8)2x16 mm² (AWG 6)2x25 mm² (AWG 4)2x35 mm² (AWG 2)2x50 mm² (AWG 1/0)2x70 mm² (AWG 2/0)2x95 mm² (AWG 3/0) Common uses as a jumper cable, starter cable, flexible installations in low temps. CABLE STANDARDSCable based on VDE0250 BS EN 60332-1-2, BS EN 62230 TEMPERATURE RATINGFlexed: -20°C to +70°CFixed: -50 .. +90MINUMUM BENDING RADIUSFixed: 6 x Outer DiameterINSULATION COLOR(s)Red & BlackCONDUCTORExtra Fine&Flexible Quality = Class 6 extra flexible copper conductor(based to BS EN 60228)INSULATION LAYERPVC-NBR Sheath Transparent PVC (Polyvinyl Chloride) Type TM2(according to BS EN 50363)

Read more less

HI-FLEX is a high quality flexible multi-strand class 6 cable This flexible and multi-strand cable is suitable for welding cable, vehicle use, starter cable, and solar panel installations for example. Oil resistant PVC cable Wire of fine-grained annealed copper Temperature range -30 ... + 70 ° C

Read more less

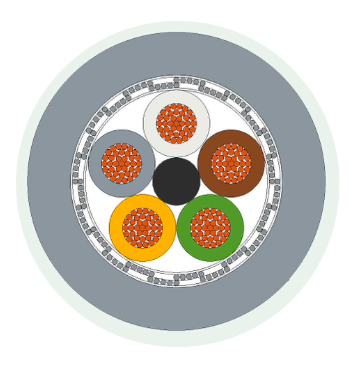

High Quality Signal Cable (suitable for fixed and chain system installations)4 wires, 0,34mm For Indoor & Outdoor use The PUR/PP C Plus Signal Cable is a high-quality multi-core signal cable designed for demanding industrial environments. With a robust PUR (polyurethane) outer sheath and PP (polypropylene) insulation, it provides excellent resistance against abrasion, oils, chemicals, and mechanical stress. These cables are widely used as sensor and signal transmission cables in automation, robotics, and machinery. Thanks to their flexibility and durability, they are also suitable for control systems, measurement equipment, conveyor technology, production lines, and applications with continuous movement. Engineered for reliability, the PUR/PP C Plus Signal Cable ensures secure data and signal transmission even in harsh conditions, making it an ideal choice for factory automation, sensor integration, and dynamic cable chains.   PUR/PP C Plus Signal TSP Cable – Product Data   Conductor: Fine stranded bare copper, Class 5 Cross-sections available: 0.25 mm², 0.34 mm², 0.50 mm², 0.75 mm² Core insulation: Polypropylene (PP) Core design: Twisted signal pairs for reduced interference Shielding: Aluminum/polyester foil with drain wire for EMC protection Outer sheath: Polyurethane (PUR), halogen-free, highly abrasion resistant Sheath color: Typically gray or black Nominal voltage: 300/500 V Test voltage: 1500 V Temperature range: –50 °C to +90 °C Bending radius: Fixed installation: 5 × outer diameter Flexible installation: 10 × outer diameter   Flame resistance: IEC 60332-1-2 compliant Special properties: Excellent resistance to oils, greases, and chemicals UV and ozone resistant High flexibility, drag chain compatible Halogen-free with low smoke emission   Typical applications: Sensor and signal transmission Industrial automation and robotics Measurement and control circuits Conveyor and handling systems Machine tools in harsh environments

Read more less

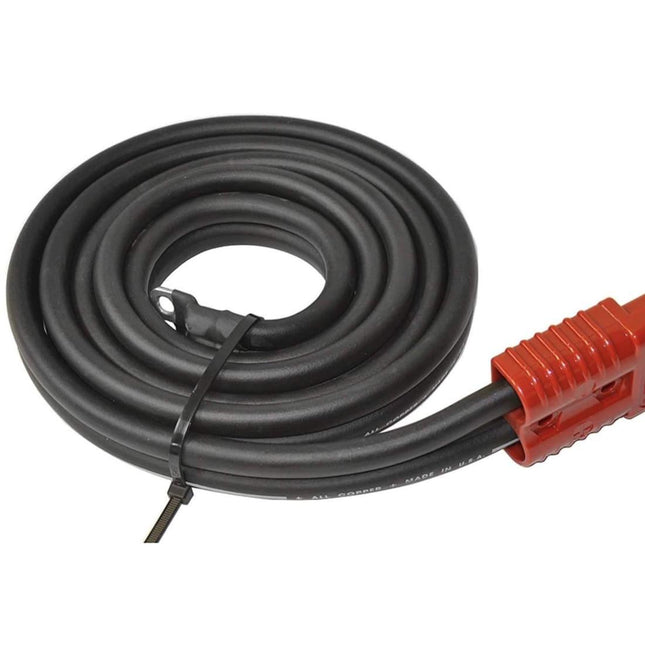

Same as on image, but the cable is 2x AWG 2 oversize = 2x35mm2 Red/Black Radaflex TPE insulated cable This Quick Connect Power Cable DIY -set includes: One Red SB 175 Connector Housing + contacts, 175 Amps, (Original Anderson product, 2x AWG 2 size Contacts included)One 90" (7 1/2 feet = around 230 cm) TWIN FLEX Cable, AWG 2 "oversize" cable = 35 qmm = No Powerloss, Double Shielded, All Copper cable, Fine Strand High Quality Cable made by Synergy CablesTwo Cable Lugs with M8 holeTwo Heat Shrinks included # UPGRADE # A Standard WARN set have AWG 2 which is 33, qmm copper cable. This is superior upgrde for the same connector. Fits 100% with WARN 26405 for example. # Suitable replacement of WARN Quick Connect Power Cable for WARN 26405 Quick Connect set # Provides a safe and simple power source for portable winches and booster cables. The plug allows convenient connection and disconnection to the battery power source. 175 Amps is capable for winches over 3,000 lbs. capacity. A 90" (7 1/2 feet) Quick Connect Power Cable included; for front of vehicle application. Just Crimp / Solder and heat the shrinks and connect - a Perfect upgrade quality DIY SET for very little price.

Read more less
