Differential-Hall-Effect Speed Sensor A5S08B145A
Thread 5/8-18UNF2A with nominal length 145mmPlug-in connection (via connector type Bi4f/... or cable type L3...) with theaded joint
Weight per unit: 0,170 kg / 0,170 kgTariff no.: 90299000, Country of origin: GERMANY
Discover the high-performance A5S Differential-Hall-Effect Speed Sensors, designed for precision and reliability. These contact-free, wear-free, and maintenance-free sensors are ideal for monitoring machine speed from 0 Hz to 25 kHz, ensuring accurate detection of various steel profiles. With a robust stainless steel housing resistant to pressures over 200 bars and customizable connection options, the A5S series is perfect for demanding industrial applications where high accuracy and durability are crucial. Explore a range of customizable options to find the perfect sensor for your specific needs.
Discover the high-performance A5S Differential-Hall-Effect Speed Sensors, designed for precision and reliability. These contact-free, wear-free, and maintenance-free sensors are ideal for monitoring machine speed from 0 Hz to 25 kHz, ensuring accurate detection of various steel profiles. With a robust stainless steel housing resistant to pressures over 200 bars and customizable connection options, the A5S series is perfect for demanding industrial applications where high accuracy and durability are crucial. Explore a range of customizable options to find the perfect sensor for your specific needs.
Differential-Hall-Effect Speed Sensors Series A5S0DD0
The correct choice of sensor is always a prerequisite to achieving a successful solution. Our A5S speed sensors are based on the proven Differential-Hall-Effect principle. Their low end of 0 Hz allows monitoring the machine down to zero speed. In addition, they are contact-free, wear-free, and maintenance-free. Furthermore, they are unsusceptible versus external magnetic stray fields and machine vibration. These characteristics make the series of A5S sensors especially suited to all applications where high accuracy and reliability are at a premium. In contrast, other sensors like magnet-inductive or static Hall-sensors do not meet these demands.
The sensors virtually can detect any steel profile: fine or coarse, helical or straight gear wheels, nuts or pole wheels with small or large cams.
Depending on the application, the speed range spans an area from a stationary state up to 25 000 pulses per second (0 Hz…25 kHz).
Each sensor in the series is available in various lengths and diameters and comes with a choice of connections. However, functionally all sensors have the same characteristics. The stainless steel sensor housing is sealed at the front and pressure-resistant (> 200 bars). A flat shaft with a screw-in thread M12x1.
A5S0DD0
Sensor A5S0DD0 for detection of rotational speed
Contact-free, wear-free, maintenance-free
Unsusceptible versus external magnetic stray fields and machine vibration
Suitable for all applications where high levels of accuracy and reliability are at a premium
Frequency range 0 Hz...25 kHz
Single Channel, the output displays the rotational speed as a single-track frequency signal
TÜV certified for safety level SIL3 / IEC 61508:2010
TÜV certified for PL e; Cat. 3 / DIN EN ISO 13849-1:2016 + DIN EN ISO 13849-2:2012
TÜV certified for SILCL3 / IEC 62061:2015
BRAUN A5S11N3/200-15mT Speed Sensor
Speed Sensor Ex ia acc. data sheet A5S11N3 (Siemensspecific.), frequency range 0Hz...12kHz, shaft diameter 20mm, nominal length 200mm, Teflon cable with 15m length
Positionweight per unit: 1,200 kg / 7,200 kgTariff no.: 90299000, Country of origin: GERMANY
Certs not included in price, you can add cert for 80 EUR per per sensorInspection Certificate acc. to EN 10204-3.1Positionweight per unit: 0,010 kg / 0,060 kgTariff no.: 49019900, Country of origin: GERMANY
BRAUN A5S11N3/200-5mT Speed Sensor
Speed Sensor Ex ia acc. data sheet A5S11N3 (Siemensspecific.)
frequency range 0Hz...12kHz, shaft diameter 20mm,
nominal length 200mm, Teflon cable with 5m length
Positionweight per unit: 0,700 kg / 4,200 kg
Tariff no.: 90299000, Country of origin: GERMANY
Certs not included in price, you can add cert for 80 EUR per per sensorInspection Certificate acc. to EN 10204-3.1Positionweight per unit: 0,010 kg / 0,060 kgTariff no.: 49019900, Country of origin: GERMANY
BRAUN A5S1DD0N5818T165-8M Speed Sensor – SIL3 Certified, Ex-Proof, Maintenance-Free
The BRAUN A5S1DD0N5818T165-8M is a premium differential Hall-effect speed sensor designed for use in demanding industrial environments, including hazardous areas (Zone 2). As part of the trusted A5S1 series, this sensor meets SIL3 safety integrity level, certified by TÜV according to IEC 61508:2010, making it ideal for applications where safety and precision are non-negotiable.
Tariff no.: 90299000Country of origin: GERMANY
This specific model (DD0N5818T165-8M) features:
M18x1 threaded stainless steel housing
165 mm total length
8-meter fixed Teflon® cable
Square-wave output signal (push-pull)
ATEX, UKEX, IECEx, UL/CSA, and EAC certifications
Thanks to its 0 Hz start range, the sensor is capable of zero-speed monitoring, ensuring full machine oversight during startup, shutdown, and operational states. The Differential-Hall-Effect principle eliminates the influence of stray magnetic fields and machine vibration, outperforming traditional inductive or static Hall sensors.
Key Features
SIL3 Certified: TÜV-approved to IEC 61508:2010
Hazardous Area Compliant: ATEX, IECEx, UKEX, UL/CSA (Class I Div 1), EAC
Speed Range: 0 Hz to 25 kHz
Thread Size: M18x1
Cable: Fixed 8 m Teflon® cable
Temperature Range: –40 to +125°C
Robust Housing: Stainless steel, sealed and pressure-resistant >200 bar
Output Signal: Powerful square wave, polarity-protected and short-circuit proof
Zero-Speed Detection: For critical stop/start safety monitoring
Maintenance-Free: Contactless, wear-free, vibration-resistant
Typical Applications
Turbomachinery
Drive trains and motor shafts
Oil & gas and process plants (Zone 2)
Railway, energy, and heavy industrial automation
Speed monitoring in harsh environments
Why Choose the A5S1DD0N5818T165-8M?
This sensor is built for engineers and system integrators who require maximum reliability with zero compromise. Its rugged construction, combined with unmatched signal stability and a wide certification portfolio, ensures seamless integration in safety-critical systems.
Braun Barrier for speed sensors A5S1
Ex ia Barrier (with certification CML15ATEX2128X), for speed sensors A5S1 (with certification CML14ATEX2075X) acc. data sheet D461R1, power supply 85...250 Vac
Attention:This item not to be used in conjunction with sensors A5S1 with expired certification TPS 03ATEX1005X.
Weight per unit: 0,150 kg / 0,150 kgTariff no.: 90291000Country of origin: GERMANY
Braun Speed Monitor, type E16521D.1
This monitor can be used as alternative to type E16651D.1 ,but you do need 2 pieces of this monitor E16521D.1 to have the same functionality as one E16651D.1
Weight per unit: 0,250 kgTariff no.: 90299000Country of origin: GERMANY
JAQUET 830A-36889 PC-T400
Original Jaquet cable is obsolete/discontinued due to Jaquet has stopped manufacturing the T4xx, T5xx and T6xx units these cables are used to. Functional replacement here.Also please check replacement units for the obsolete units:Replacement of Jaquet T401.00Replacement of Jaquet T501.00Replacement of Jaquet T601.00
Reliable Hall-Effect Speed Sensor for Hazardous Environments
The Jaquet FTG 1088.00 Ex (MPN: 343Z-03772) is a rugged, ATEX-approved Hall-effect speed sensor designed for non-contact rotary speed detection in explosive environments. With a wide frequency range and robust mechanical design, it is ideal for industrial applications such as power generation, oil & gas, and process automation.
Key Features:
Certified for Hazardous Zones: ATEX-certified (II 1G / II 1D) for use in gas and dust explosion-risk environments
Output Signal: Square wave signal, proportional to rotational speed (5 Hz to 20 kHz)
Electrical Specs: 5V ±10% power supply (max. 12V), 25 mA sink current, reverse polarity protected
Connection: 400 mm twisted Teflon-insulated open wire
Housing: Argentan (CuNi10Zn42Pb), hermetically sealed, potted electronics for long-term stability
Environmental Resistance: IP68 sensor head, IP67 cable exit, shock resistance 20 g, vibration 3 g
Operating Temp: -40°C to +125°C
Jaquet FTG 1088.00 Ex Speed Sensor (343Z-03772) – ATEX Certified, 400 mm Open Wire
This sensor works with a ferromagnetic pole wheel (module ≥0.5) and supports air gaps up to 1.3 mm depending on wheel geometry. Its differential Hall sensor design ensures high immunity to electromagnetic interference, delivering clean and reliable pulse output even in harsh conditions.
Jaquet DSD 1205.21 ATV (378Z-04760) Ferrostat Speed Sensor
The Jaquet Speed Sensor DSD 1205.21 ATV, with the model number 378Z-04760, is available for purchase. This sensor is a part of Jaquet's product line, known for its precision and quality in measuring speeds. The item is available for international shipping, typically within 1-3 business days for stock items. For more detailed information, including pricing and specific features of this sensor, please ask us for the latest datasheet & drawing of this sensor.
Key Features of DSD 1205.21 ATV (378Z-04760) :
High Performance: Engineered to deliver exceptional results.
Durable Construction: Built with high-quality materials for long-lasting use.
Innovative Design: Incorporates the latest technology for enhanced efficiency.
Cost-Effective: Offers great value for money with competitive pricing.
JAQUET 304Z-03029 FTG 1052 SM
Jaquet Speed Sensor DSE 2220 MTZ (5m) (MPN: 304Z-03029) (old type was FTG 1052 SM)
Are you working with low signal levels but do not need a protective hose?
In case, please see also an alternative DSE 2210 SHV – 304Z-03026, which is quite similar as 304Z-03029 as both has a low signal levels. The main difference is the magnet fitted inside the sensor and the type of cable.
However, depending on the application, this may be not relevant.
Jaquet Speed Sensor DSF 1210.00 SHV (5m)
The Jaquet DSF 1210.00 SHV (5m) is a high-quality, dynamic Hall-effect speed sensor designed for industrial use. This sensor version cable is capable to mounted to High Ambient Temperature locations.
Key Features:
• Housing: M12x1• Detection Capability: Module 1.0 minimum• Cable: 5m Teflon, open wire ends• Temperature Range: -40°C to +125°C• Output: Built-in line amplifier, typically Push-Pull
The Jaquet DSF 1210.00 SHV (5m) is a premium dynamic Hall-effect speed sensor, crafted for demanding industrial applications. Its robust design and precise detection capabilities make it ideal for environments requiring reliable performance in extreme conditions.
Key Features
Housing: Compact M12x1 design for easy installation and compatibility.
Detection Capability: Optimized for Module 1.0 or greater, ensuring precise speed detection.
Cable Length: 5 meters of durable Teflon cable with open wire ends for flexible and secure connections.
Wide Temperature Range: Operates efficiently from -40°C to +125°C, making it suitable for extreme environments.
Output: Equipped with a built-in line amplifier, providing a Push-Pull signal for robust and interference-free output.
This sensor combines durability and precision, making it a dependable choice for various industrial applications such as machinery monitoring, automotive testing, and industrial automation.
Applications
Industrial machinery speed monitoring
Rotational measurement in challenging environments
Automotive testing setups
Why Choose Jaquet DSF 1210.00 SHV?The Jaquet DSF 1210.00 SHV is engineered for accuracy and durability, ensuring reliable performance in high-demand scenarios. Its dynamic detection capability and built-in amplifier ensure superior functionality, even in harsh operating conditions.
For further details or inquiries, please contact us or download the latest full technical datasheet.
Product Overview: Jaquet DSF 1210.00 SHV Ex ATEX
Premium Industrial Hall Effect Speed Sensor
Model Number: 374Z-05176
Specifications: Features an M12x1 housing and is equipped with a 10-meter Teflon cable for superior durability and performance. It also boasts Ex certifications, ensuring its suitability for environments with explosive atmospheres.
Functional Capabilities:
The Jaquet DSF 1210.00 SHV Ex ATEX speed sensor is designed for precision speed measurement applications. It is optimally used alongside a pole wheel to accurately produce speed-proportional frequency signals. This sensor is characterized by its dynamic performance, capable of generating pulses at frequencies as low as 0.05 Hz. At its core is a magnetically biased Hall effect sensor, complemented by an amplifier with a trigger characteristic. The output stage is robust, ensuring short-circuit protection.
ATEX Certification:
This sensor is ATEX-certified, making it a safe choice for use in environments where explosive gases or dust may be present. To maintain its certification, the sensor must be used in a clean, undamaged condition. Any modifications to the sensor, unless explicitly permitted in the operating instructions, are strictly prohibited, ensuring the safety and integrity of its operation in hazardous areas.
Signal Output Characteristics:
Type: Generates a square wave signal through a push-pull output stage, directly coupled to the power supply, with 0V serving as the reference voltage.
Load Current: Maximum of 25 mA.
Output Voltage:
High level (UHi) is greater than the supply voltage minus 4V, at a source current of 25 mA.
Low level (ULo) is less than 2V, at a sink current of 25 mA.
It is important to consider the voltage drop caused by the cable's impedance and the resistance of any safety barriers connected to the circuit. Additionally, the sensor's design ensures protection against short circuits and reverse polarity, enhancing its reliability and safety in industrial applications.
Signal Output Specifications
• Signal Type: Square wave from push-pull output stage
• DC Coupling: Coupled to supply (0V as reference voltage)
• Max Load Current: 25 mA
• Output Voltage Levels:
• High (UHi): Greater than supply voltage minus 4 V (at source current 25 mA)
• Low (ULo): Less than 2 V (at sink current 25 mA)
• Voltage Considerations: Voltage drop due to cable impedance and safety barrier resistance should be accounted for
• Protection: Short-circuit proof and reverse polarity protected
DSF 1210.00 SHV Ex Atex (10m)- Ferrostat sensor with amplifier; 0.05 Hz ... 20 kHz, -40 ... + 125 ° C,- Housing thread M12x1- Connecting cable PTFE 5m, for single-wire safety (Zone 1) Eex ia IIC T6-T1.- Weight: 350 g
Jaquet DSF 1210.00 SHV Ex ATEX - Premium Industrial Hall Effect Speed Sensor
The Jaquet DSF 1210.00 SHV Ex ATEX (374Z-05176) is a premium intrinsically safe Hall-effect speed sensor certified for use in explosive atmospheres. Featuring an M12x1 housing with 5m Teflon cable, this sensor generates speed-proportional frequency signals from 0.05 Hz with dynamic behavior for both static and near-static applications. ATEX certified for flammable gas and dust environments, it combines compact design with robust performance for hazardous area monitoring.
Technical Specifications
Model: DSF 1210.00 SHV Ex ATEX (5m)
Part Number: 374Z-05176
Drawing Number: 110428F1
Housing: M12x1 thread, stainless steel X12CrNiS188 (material 1.4305)
Sensing Technology: Magnetically biased Hall device with trigger amplifier
Supply Voltage: 8-28 VDC (reverse polarity protected, max AC ripple 25 mVpp)
Current Consumption: Max 15 mA (without load)
Frequency Range: 0.05 Hz to 20 kHz (dynamic behavior with guaranteed pulse generation down to 0.05 Hz)
Maximum Tightening Torque: 12 Nm for M12x1
ATEX Certifications
Gas Atmospheres: II 2 G Ex ia IIC T6 Gb (Zone 1)
Dust Atmospheres: II 2 D Ex ia IIIC T155°C Db (Zone 21)
Standards Compliance: EN 60079-0:2012+A11:2013 and EN 60079-11:2012
Certificate: ZELM 03 ATEX 0124X (with supplements 1-4)
EMC Compliance: 2014/30/EU, IEC 61000-6-2
Notified Body: PRIMARA (ID 2572)
Operating Temperature
Gas Environments: -20°C to variable maximum (dependent on electrical power and temperature class - see datasheet TABLE 1)
Dust Environments: -20°C to +100°C
Temperature Class: T1 through T6 supported (varies with available electrical power)
Note: Maximum operating temperature depends on sensor housing size, available electrical power from intrinsically safe supply, and Ex temperature class requirements
Signal Output
Signal Type: Square wave from push-pull output stage
Signal Coupling: DC-coupled to supply (0V = reference voltage)
Maximum Load Current: 25 mA
Output Voltage HIGH: UHi > USupply - 4V (at Isource = 25 mA)
Output Voltage LOW: ULo < 2V (at Isink = 25 mA)
Protection: Short-circuit proof and reverse polarity protected
Note: Voltage drop from cable impedance and safety barrier resistance must be considered
Cable Specifications
Cable Type: Teflon cable (Art. No. 824L-35053)
Cable Length: 5 meters
Conductors: 4-pole, 4 x 0.24 mm² (AWG 24)
Shielding: Mesh screen, isolated from housing
Outer Diameter: Max 4.0 mm
Outer Jacket: White
Minimum Bend Radius: 60 mm
Weight: 32 g/m
Note: Brown wire is not used
Target Wheel Requirements
Material: Magnetically permeable material (e.g., Steel 1.0036)
Preferred Type: Involute gear wheel (module 0.5 minimum)
Minimum Tooth Width: 10 mm
Side Offset: < 0.2 mm
Eccentricity: < 0.2 mm
Air Gap Specifications
Module 1: 0.2 to 1.0 mm
Module 2: 0.2 to 2.5 mm
Module 3: 0.2 to 3.5 mm
Module 4 and larger: 0.2 to 4.5 mm
Note: Within specified air gap, output signal amplitude is not influenced by gap distance
Environmental Protection
Protection Class: IP68 (sensor head), IP67 (cable connection)
Housing Seal: Front side hermetically sealed
Potting: Electronic components fully potted in chemical and age-resistant ceramic compound
Chemical Resistance: Resistant to oil, grease, and harsh industrial conditions
Vibration Immunity: 5 gn in the range 5-2000 Hz
Shock Immunity: 20 g during 20 ms, half-sine wave
Electrical Isolation: Housing, cable screen, and electronics galvanically separated (500V/50Hz/1 min)
Key Features
ATEX Certified: Approved for Zone 1 gas and Zone 21 dust hazardous areas
Near-Zero Speed Detection: Guaranteed pulse generation down to 0.05 Hz for static applications
Dynamic Behavior: Suitable for variable speed applications
Compact M12x1 Design: Space-saving installation in tight locations
High-Quality Cable: Teflon insulation for chemical and temperature resistance
Intrinsically Safe: Type ia certification for maximum safety in explosive atmospheres
No Maintenance Required: Sealed, non-serviceable design for long-term reliability
Applications
Ideal for speed monitoring in explosive atmospheres including:
Oil and gas production and processing facilities
Chemical and petrochemical plants
Paint and solvent production areas
Pharmaceutical manufacturing in classified areas
Grain handling and milling operations
Mining equipment in flammable atmospheres
Turbomachinery in hazardous zones
Any Zone 1 (gas) or Zone 21 (dust) classified location
Installation Requirements
Mounting: Solid and vibration-free mounting essential
Alignment: Sensor must be aligned to pole wheel according to sensor drawing
Positioning: Mount with middle of face over middle of pole wheel; minimum 3mm from wheel edge
Air Gap: Set smallest possible gap without risk of contact during operation
Cable Routing: Keep sensor wires away from large electrical machines; do not run parallel to power cables
Safety Barriers: Must be connected through appropriate Zener barriers for intrinsically safe operation
Shield Connection: Cable shield must be connected to 0V on equipment side
Safety Notice
Usage Condition: Sensor must be used in undamaged and clean condition only
Modifications: Modifications prohibited unless expressly listed in operating instructions
Cable Limitations: Permissible cable length and capacitance/inductance limits per Certificate supplement must be observed
Temperature Monitoring: Surface temperature must not exceed 2/3 of dust/air mixture ignition temperature where dust clouds present
CE Directives: Installation must comply with CE directives for explosive environment apparatus
Important: This sensor is ATEX certified (ZELM 03 ATEX 0124X) for intrinsically safe operation in explosive atmospheres. Must be installed according to sensor drawing and used with appropriate certified safety barriers. The sensor cannot be repaired - replacement only. Available in 2m, 5m, and 10m cable lengths. Sensor is the same, cable can also be cut. Manufactured by TE Connectivity Sensors (Jaquet brand). For complete installation and safety requirements, refer to the full European Certificate of Conformity and supplements.
JAQUET T411 Tachometer, Display; 4..20 mA outputMPN = 383Z-05318Lead time can be 50-70 weeks currently
Item is temporarily not available before Q3/2024
Jaquet T411.00 · 383Z-05318· single-channel speed transmitter with display· 0-35 kHz· speed signal to relay, open collector and analogue output· suitable for active and passive sensors
Jaquet T411 is a Single Channel Tachometer speed switch with a display which converts absolute speed into an analogue signal.
This unit will measure from 0-1 Hz all the way and up to 35 kHz. T411 gives a 4-20 DCmA output, which can be configured with the included Windows software package. Jaquet T411 features a single changeover relay and includes 2 limits (A/B) with programmable hysteresis. The T411's adaptive trigger provides high noise immunity, giving a fast response to over-speed conditions.
Features of T411
T411.00 = Tachometer Only w/4-20 DCmA Output and 1 Relay
Converts absolute speed into an analogue signal
10-30 DCV Power Supply
Includes 2 limits (A/B) with programmable hysteresis
Isolated signal input with automatic trigger level adjustment
Built-in isolated sensor supply with sensor monitoring
Open collector output of sensor frequency
Pluggable terminals
Configuration and status via included Windows software
Accuracy class 0.05% for limits & 0.5% for analog signals
Advantages of T411
Fast response to over-speed conditions
Germanischer Lloyd’s and ABS approval for marine applications
0/4…20 mA or 0/2…10 V analogue output with rising or falling characteristics
Adaptive trigger provides high noise immunity e.g. with electromagnetic sensors
Digital input for direct treatment of frequency signals
2 possible relay configuration sets (e.g. for start-up bridging, controlled via binary inputs)
Pluggable terminals
Integrated 2 or 3 wire sensor monitoring and system watchdog
JAQUET T401.00 under MPN: 383Z-05307 with 4..20mA output
Disontinued and not available from manufacturer anymore, since October 2024
Alternative to T401.00 Jaquet is available:
Replcement can be found here, SpeedSys T10 is an upgraded version and designed to replace T401 which has been made obsolete by Jaquet / TE.**Please note product image is T401 with T411 display, we have this setup also as a replacement on one unit here.
Jaquet Zero Speed DSY 1205.01 AHW 374Z-05124
The DSY 1205.01 AHW [8 .. 32 VDC, PP] Hall sensor is suitable, in conjunction with a pole wheel, for generating square wave signals proportional to rotary speeds. It has a static behavior, so that pulse generation is guaranteed down to a speed corresponding to a frequency of 0Hz. The monitoring element consists of a magnetically biased hall effect semiconductor. Several amplifier variants are offered for covering a wide application range. The internal two-channel structure means that the sensor must be oriented. The sensors have a special orientation sleeve with pin for ease of installation.
Length: 75 mmWeight: 32 grams
The notation "8 .. 32 VDC, PP" indicates the power supply requirements for the device.
"8 .. 32 VDC" suggests that the device operates with a direct current (DC) voltage supply within the range of 8 to 32 volts. This means it can be powered by any DC source within this voltage range.
"PP" stand for "Peak-to-Peak" voltage, indicating the peak-to-peak voltage of the signal the device is capable of handling.
Product overviewONE Light Sensor 12W 1600lm 4000K CRI80 IP54 Black 65748/B/C.12W Solar Light with 4 modes of operation, night sensor and PIR sensor. Mode 1: 100% output for 18s when motion detected. Mode 2: Fixed 30 lumen output. 100% output for 18 seconds when motion detected. Mode 3: Fixed 30 lumen output. Mode 4: Sleep mode.<BR>Complete with 2x2200mAh lithium battery. Complies with standard EN60598-1 and any other specific standards.Key specifications
Product code: 65748/B/C
Type: Sensor
Category: 12 Wall & Ceiling LED
Family: Outdoor Wall Lights
Power: 12W
Lumen output: 1600lm
Colour temperature: 4000K
CRI: 80
IP rating: IP54
Colour: Black
Material: ABS + PC
Light source: LED built in
Length: 184mm
Width: 139mm
Height: 29mm
Warranty: 2 Years
Downloads & links
Datasheet
Manual
Manufacturer page

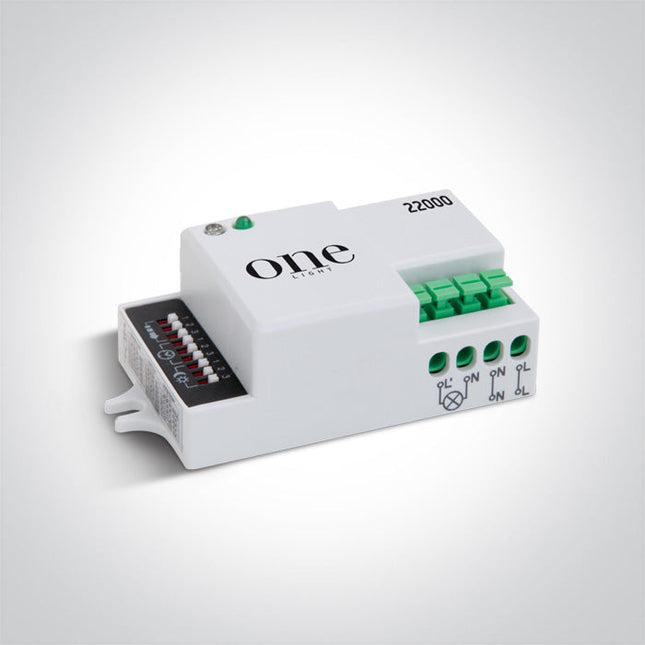

Product overviewONE Light Sensor 22000.230V 300W Microwave motion sensor well suited for installation inside fittings and ceilings. Detection area, hold time and daylight sensor are adjustable via dip switches Complies with standard EN60669 and any other specific standards.Key specifications
Product code: 22000
Type: Sensor
Category: 23 Control & Dimming
Family: Microwave Motion Sensor
Material: Plastic
Length: 80mm
Width: 36mm
Height: 25mm
Warranty: 2 Years
Downloads & links
Datasheet
Manual
Manufacturer page

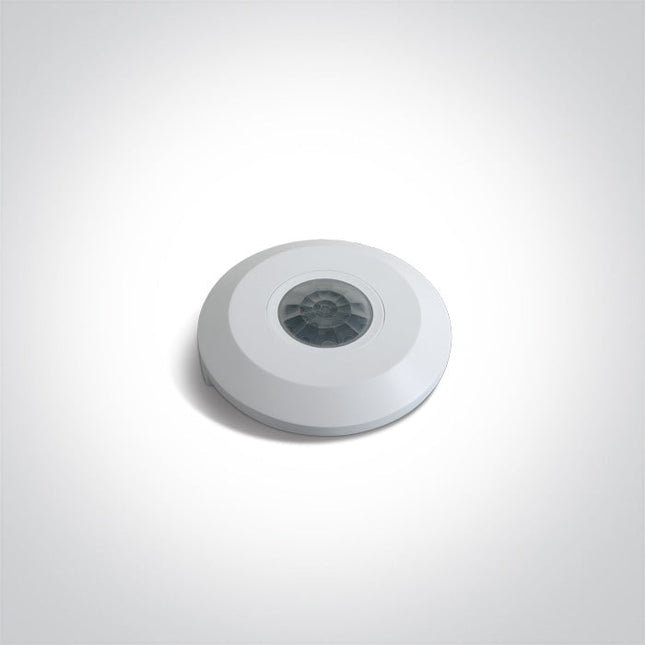

Product overviewONE Light Sensor 22004.230V 300W (LED) 800W (Incandescent) Ceiling Infrared Motion Sensor. Hold time and daylight sensor are adjustable via dip switches Complies with standard EN60669 and any other specific standards.Key specifications
Product code: 22004
Type: Sensor
Category: 23 Control & Dimming
Family: Infrared Ceiling Sensors
Material: Plastic
Diameter: 102mm
Height: 25mm
Warranty: 2 Years
Downloads & links
Datasheet
Manual
Manufacturer page

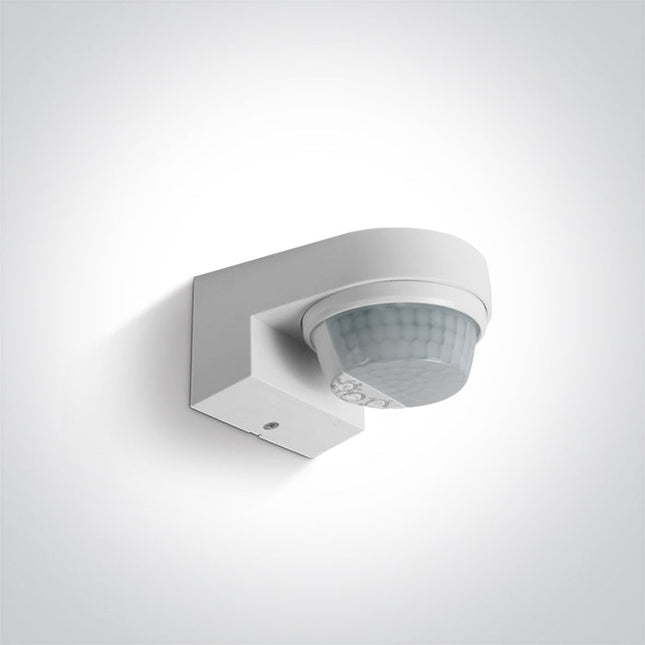

Product overviewONE Light Sensor 22006A.230V 800W (LED) 1500W (Incandescent) Wall mounted Infrared Motion Sensor. Time delay, daylight sensor and detection distance are adjustable. Complies with standard EN60669 and any other specific standards.Key specifications
Product code: 22006A
Type: Sensor
Category: New 2025 Edition 3
Family: Control & Dimming
Material: PC
Length: 100mm
Width: 75mm
Height: 62mm
Warranty: 2 Years
Downloads & links
Datasheet
Manual
Manufacturer page
