Description

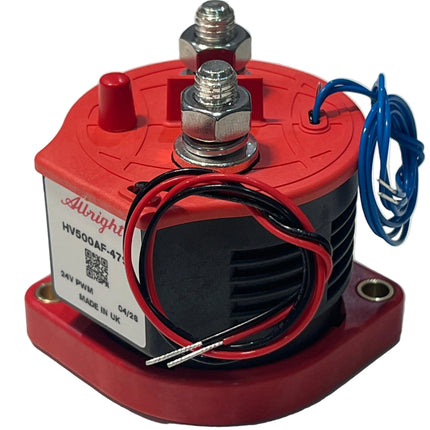

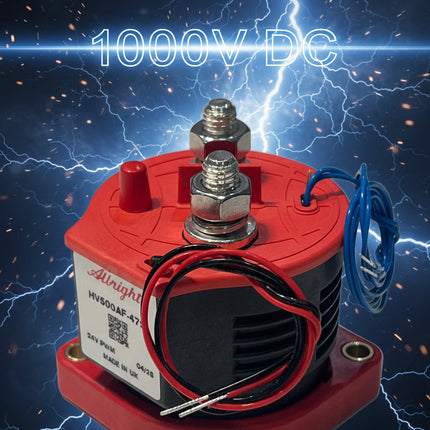

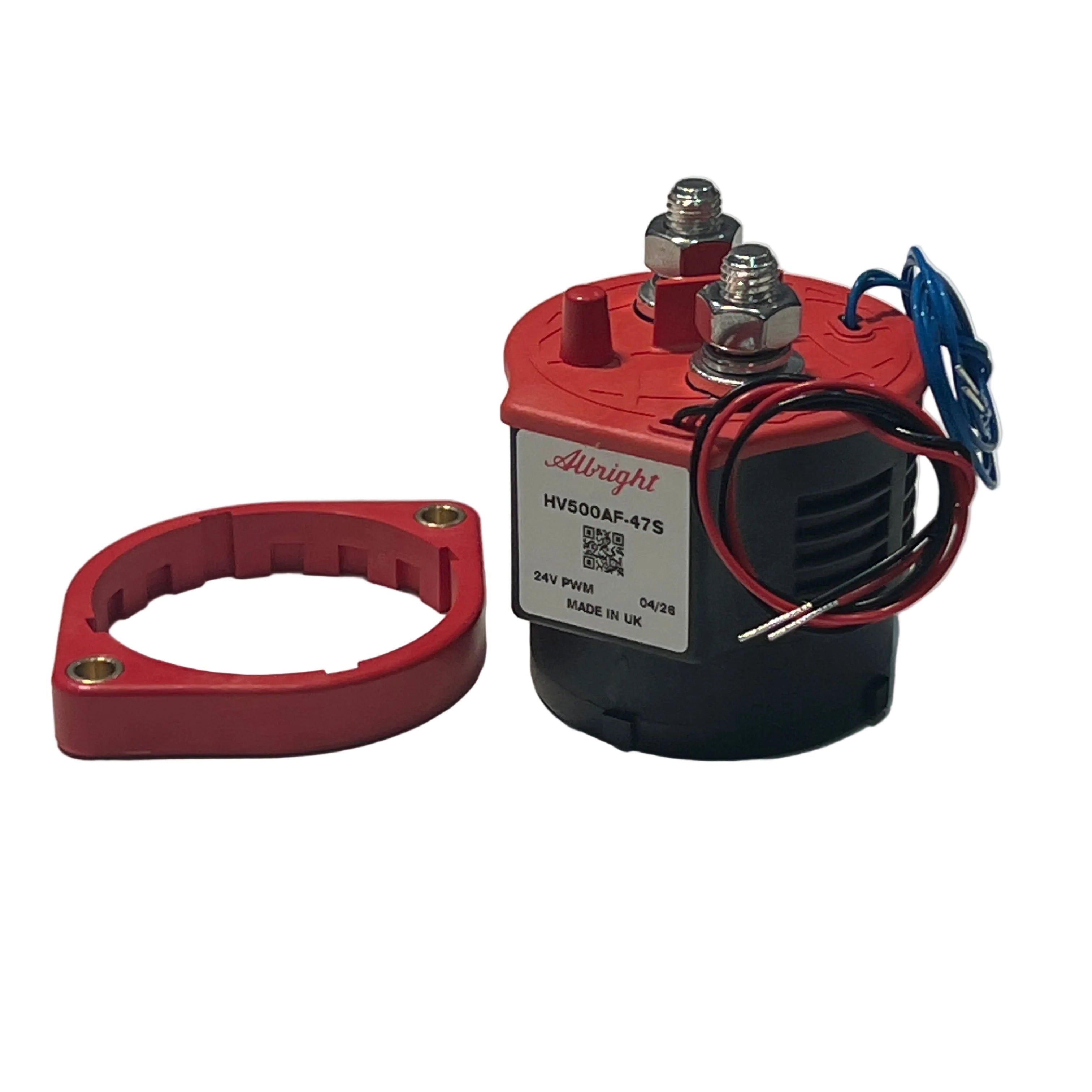

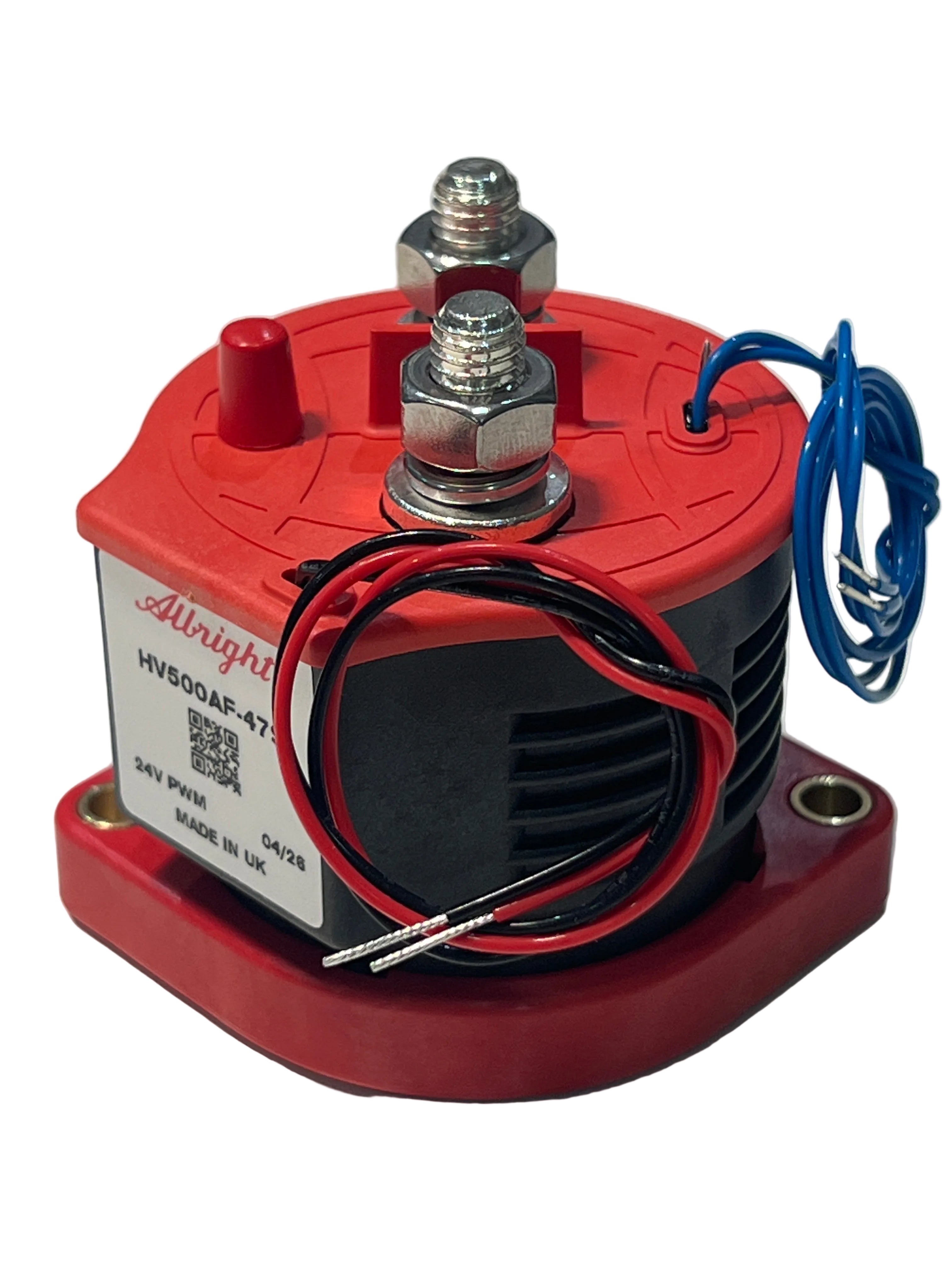

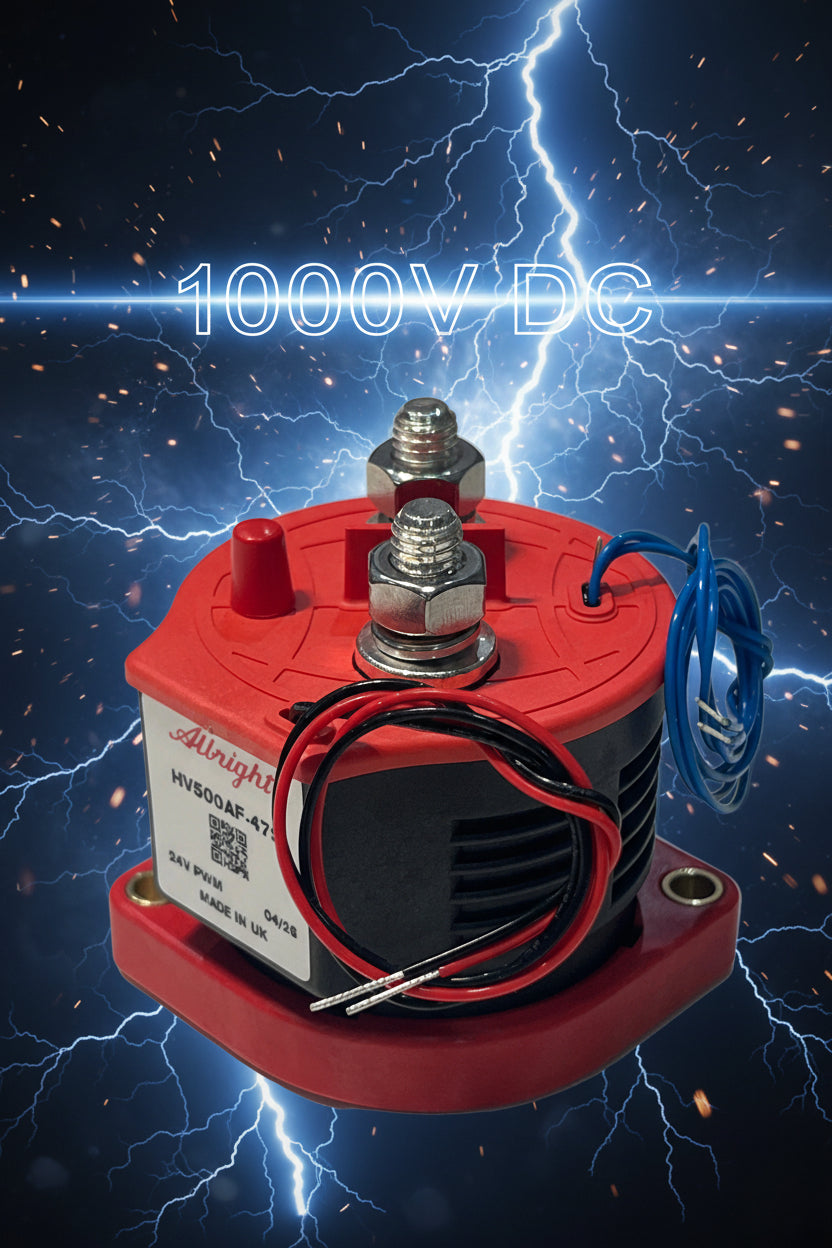

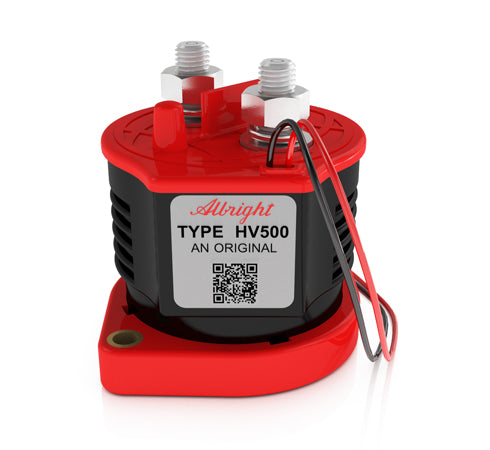

The Albright HV500AF-47S 24V DC PWM + Auxiliary (NC) is a high-performance solid-state relay designed to cater to specific and demanding applications requiring precise control and high reliability. This device is part of Albright’s HV500 series, known for its robust design and advanced technology, making it suitable for critical applications such as electric vehicles, renewable energy systems, and industrial machinery.

Key Specifications and Features:

1. Voltage Rating:

   • The HV500AF-47S is specifically rated for 24V DC applications. This makes it particularly useful in systems where lower voltage levels are essential, such as in certain automotive, solar, and industrial environments.

2. Pulse Width Modulation (PWM):

   • The relay supports PWM control, which is crucial for managing power efficiently and maintaining smooth operation. PWM allows for variable power delivery, reducing wear on components and increasing the overall efficiency of the system. This control mechanism is essential for systems that require fine-tuned power adjustments and enhanced energy savings.

3. Auxiliary Contacts (NC):

   • The HV500AF-47S includes Normally Closed (NC) auxiliary contacts. These contacts provide an additional layer of control and monitoring, useful in safety circuits or for feedback to a control system. The NC contacts ensure that the circuit remains closed and operational until a certain condition is met, which then opens the circuit, providing a safety mechanism or an alert to the system.

4. Durability and Reliability:

   • Constructed from high-quality materials, the HV500AF-47S is designed to operate reliably in harsh environments. Whether it’s extreme temperatures, dust, moisture, or vibration, this relay maintains consistent performance. Its robust design ensures longevity and reliability, critical for systems where maintenance access may be limited.

5. Safety Features:

   • The device is engineered with built-in overcurrent protection and arc suppression. These features protect both the relay and the connected equipment from damage due to electrical faults, making the HV500AF-47S a safe choice for sensitive applications.

6. Compact Design:

   • The compact form factor of the HV500AF-47S allows for easy integration into existing systems, even in space-constrained environments. Despite its small size, it delivers the high performance and reliability expected from Albright products.

7. Applications:

   • The versatility of the HV500AF-47S makes it ideal for a wide range of applications. It is particularly well-suited for electric vehicles, where reliable DC control is crucial for battery management and motor control. In renewable energy systems, it can be used for managing power flow in solar inverters or wind turbines. Additionally, in industrial machinery, it offers precise control in automation systems, enhancing efficiency and reducing downtime.

Summary

The Albright HV500AF-47S 24V DC PWM + Aux (NC) relay is a powerful and reliable component designed for precision control in a variety of demanding applications. Its features, such as PWM control, NC auxiliary contacts, and robust design, make it a top choice for industries requiring high reliability and precise power management. By integrating this relay into your system, you not only improve operational efficiency but also ensure a safer and more durable setup, aligning with the best practices in modern electrical engineering.

Specifications

• Manuafacturer: Albright
• Condition: New
