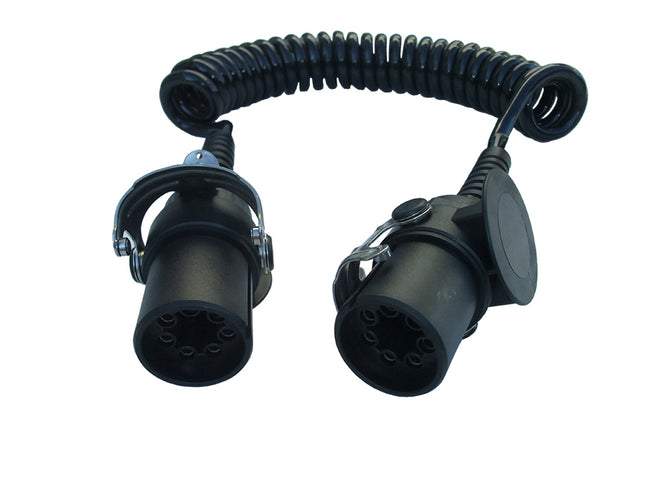

ABS/EBS coil with ISO 7638-1 plugs.▪ 3m working length
Weight: 1.55 kg
ADR certified according to ISO 4141 and ISO 4091
High pull-out forces by strain relief inside
Connection
input:
Plug ABS/EBS 7-pin 24V ISO
7638-1
Connection output:
Plug ABS/EBS 7-pin 24V ISO 7638-1
Cable length:
3m working length (Cable Style: 2x4+3x1,5+1x(2x1,5)mm² PUR)
Mass:
1.55 kg
ABS/EBS coil with ISO 7638-2 plugs.
▪ 3m working length
Weight: 1.55 kg
ADR certified according to ISO 4141 and ISO 4091
High pull-out forces by strain relief inside
Connection input:
Plug ABS/EBS 7-pin 12V ISO 7638-2
Connection output:
Plug ABS/EBS 7-pin 12V ISO 7638-2
Cable length:
3m working length (Cable Style: 2x4+3x1,5+1x(2x1,5)mm² PUR)
Mass:
1.55 kg
ABS Converter with input of 12V to 24V and outputs 24V
Special converter for the supply of a 24V anti-lock system ABS/EBS out of 12V or 24V. The converter input is equipped with a 12V ABS/EBS socket and the output with a 24V ABS/EBS socket. The converter is mounted in a stainless steel rack and is ready for use. Preferential for trailer side mounting. Connection with the truck by the use of a 12V plug-plug-cable. The 24V trailer plug will be plugged into the converter. The contacts 6 and 7 ("CAN-Bus") are unequipped.
▪ IN: 12V ... 24V / OUT: 24V▪ Input: 12V socket▪ Output: 24V socket
Weight: 3.3 kg
input voltage 12V and 24V
high power for additional functions like EBS and level control
compact size by high efficiency
unit ready for use, fast to mount on the (drawbar) trailer
electronic protection against reverse polarity without short circuit
protection against overload
reverse voltage proof independent from polarity
Up to 40km/h, the cable KN-ABSFT for the input is also legal (follow regulations)
Input\n voltage:
9 ... 33V DC both lines
Output voltage:
27V +-5% (27 ... 32V if input above 27V)
Output current line (term.\n 30):
0 ... 10A (15A /20% on time cycle)
Output current line (term.\n 15):
0 ... 500mA
Connection input:
ABS / EBS socket 12V ISO'7638
Connection output:
ABS / EBS socket 24V ISO'7638
Cable length input:
_
Cable length output:
_
Efficiency:
ca. 80%
Mechanical protection:
entirely sealed and a stainless steel rack
Dimensions:
300 x 150 x 87mm + socket 45mm
Mass:
app. 3300g
Converter Dual-Volt ABS, Type: ABS 12-24HBC
Voltage converter for generation of standard 24 volt voltages for a 24 volt ABS device from a 12 volt or 24 volt towing vehicle. The converter is designed for inserting in the bayonet connection of the ABS supply cable. The pins 6 and 7 for data transfer are connected through but are not converted. The converter is also suitable for clocked magnetic valve (Multivolt or similar).
The converter must be mounted in a suitable place. The converter is water proof but look for a place with few water exposure. De-icing salt may cause case corrosion.
The cables must be installed carefully to avoid damages in normal operation
Technical data:
Input voltage: 9...30 (33)V DC
Output voltage: 27V +-5% (27 ... 32V if input above 27V)
Output current line Kl 15: 0...500mA
Output current line Kl 30: 0 ... 15A (20A /20% on time cycle)
Dimensions: 200 x 70 x 25mm without cable outlet
Protection: waterproof IP 65 (casted)
Special converter for the supply of a 24V anti-lock system ABS/EBS out of 12V or 24V. The converter is equipped with
ABS/EBS bayonet connectors. For inserting into the trailer cable. The
contacts 6 and 7 ("CAN-Bus") are connected through.
Attention! The can bus lines require a separate level shifter. Without a level shifter, the brake operates correctly on the ABS level.
▪ IN: 12V ... 24V / OUT: 24V ▪ Input: Bayonet female connector▪ Output: Bayonet male connector
Weight: 1.2 kg
input voltage 12V and 24V
high power for additional functions like EBS and level control
only insert into the ABS/EBS cable at the bayonet connection
electronic protection against reverse polarity without short circuit
protection against overload
reverse voltage proof independent from polarity
very fast done and water protected mounting without additional measures
the function of the info module remains active
compact size by high efficiency
Input
voltage:
9 ... 33V DC both lines
Output voltage:
27V +-5% (27 ... 32V if input above 27V)
Output current line (term.
30):
0 ... 10A (15A /20% on time cycle)
Output current line (term.
15):
0 ... 500mA
Connection input:
Bayonet female connector with lock shell, 7 pins automotive
standard
Connection output:
Bayonet male connector, 7 pins automotive standard
Cable length input:
_
Cable length output:
_
Efficiency:
app. 80%
Electrical protection:
_
Mechanical protection:
entirely sealed
Dimensions:
200 x 70 x 40mm without cable outlet
Mass:
app.1200g
Special converter for the supply of a 24V anti-lock system ABS/EBS out of 12V or 24V. The converter is equipped with
ABS/EBS bayonet connectors. For inserting into the trailer cable. Male
input / female output (Reverse configuration). The contacts 6 and 7
("CAN-Bus") are connected through.
Attention! The can bus lines require a separate level shifter. Without a level shifter, the brake operates correctly on the ABS level.
▪ IN: 12V ... 24V / OUT: 24V▪ Input: Bayonet male connector▪ Output: Bayonet female connector
Weight: 1.2 kg
very fast done and water protected mounting without additional measures
simply insert into the ABS/EBS cable at the bayonet connection (Reverse configuration)
input voltage 12V and 24V
high power for additional functions like EBS and level control
the function of the info module remains active
electronic protection against reverse polarity without short circuit
protection against overload
reverse voltage proof independent from polarity
compact size by high efficiency
Input
voltage:
9 ... 33V DC both lines
Output voltage:
27V +-5% (27 ... 32V if input above 27V)
Output current line (term.
30):
0 ... 10A (15A /20% on time cycle)
Output current line (term.
15):
0 ... 500mA
Connection input:
0 ... 10A (15A /20% on time cycle)
Connection output:
Bayonet female connector with lock shell, 7 pins automotive
standard
Cable length input:
_
Cable length output:
_
Efficiency:
app. 80%
Electrical protection:
_
Mechanical protection:
entirely sealed
Dimensions:
200 x 70 x 40mm without cable outlet
Mass:
app.1200g
Special converter for the supply of a 24V anti-lock system ABS/EBS out of 12V or 24V.
The converter input is equipped with bare sheathed cable ending and the
output with a 24V ABS/EBS socket. Normal case: farming tractor from the distribution box. The contacts 6 and 7 ("CAN-Bus") are unequipped.▪ IN: 12V ... 24V / OUT: 24V ▪ Input: bare cable ▪ Output: 24V socket
Weight: 1.85 kg
input voltage 12V and 24V
high power for additional functions like EBS and level control
compact size by high efficiency
input bare cable ending, output ABS/EBS socket
the function of the info module remains unaffected
electronic protection against reverse polarity without short circuit
protection against overload
reverse voltage proof independent from polarity
ABS-socket divisible for mounting the converter from behind
Input
voltage:
9 ... 33V DC both lines
Output voltage:
27V +-5% (27 ... 32V if input above 27V)
Output current line (term.
30):
0 ... 10A (15A /20% on time cycle)
Output current line (term.
15):
0 ... 500mA
Connection input:
bare sheathed cable
Connection output:
ABS / EBS socket 24V ISO'7638
Cable length input:
app. 3000mm
Cable length output:
app. 500mm
Efficiency:
app. 80%
Electrical protection:
_
Mechanical protection:
entirely sealed
Dimensions:
200 x 70 x 40mm without cable outlet
Mass:
app. 1900g
Special converter for the supply of a 24V anti-lock system ABS/EBS out
of 12V or 24V. The converter input is equipped with a 12V ABS/EBS plug
and the output with a 24V ABS/EBS socket. The converter is mounted in a
stainless steel rack with a parking socket and is ready for use. Normal case: truck side mounting. The contacts 6 and 7 ("CAN-Bus") are unequipped.▪ IN: 12V ... 24V / OUT: 24V ▪ Input: 12V plug ▪ Output: 24V socket ▪ in stainless steel rack
Weight: 3.3 kg
input voltage 12V and 24V
high power for additional functions like EBS and level control
unit ready for use with parking socket, fast to mount on the truck side
electronic protection against reverse polarity without short circuit
protection against overload
reverse voltage proof independent from polarity
high efficiency
Input
voltage:
9 ... 33V DC both lines
Output voltage:
27V +-5% (27 ... 32V if input above 27V)
Output current line (term.
30):
0 ... 10A (15A /20% on time cycle)
Output current line (term.
15):
0 ... 500mA
Connection input:
ABS / EBS plug 12V ISO'7638
Connection output:
ABS / EBS socket 24V ISO'7638
Cable length input:
app. 370mm
Cable length output:
_
Efficiency:
ca. 80%
Mechanical protection:
entirely sealed and stainless steel rack
Dimensions:
300 x 150 x 87mm + socket 45mm
Mass:
app. 3300g
Special converter for the supply of a 12V anti-lock system ABS/EBS out of 12V or 24V. The converter input is equipped with a 24V ABS/EBS socket and the output with a 12V ABS/EBS plug. For trailer side mounting only. The contacts 6 and 7 ("CAN-Bus") are unequipped.▪ IN: 12V ... 24V / OUT: 12V▪ Input: 24V socket▪ Output: 12V plug
Weight: 1.6 kg
input voltage 12V and 24V
compact size because of a high efficiency
simply plug in on the (semi) trailer side
the function of the info module remains effective
protection against overload
ABS-socket divisible for mounting the converter from behind
Input
voltage:
9 ... 33V DC both lines
Output voltage:
13,2V +-5% (at U< 13,2V 8,5...13,2V)
Output current line (term.
30):
0 ... 8A (10A)
Output current line (term.
15):
0 ... 300mA (600mA)
Connection input:
ABS / EBS socket 24V ISO'7638
Connection output:
ABS / EBS plug 12V ISO'7638
Efficiency:
ca. 80%
Mechanical protection:
entirely sealed
Dimensions:
170 x 70 x 25mm without cable outlet
Mass:
app. 1600g
Special converter for the supply of a 12V anti-lock system out of 12V or 24V. Input and output cables are cast solid, open-end.
▪ IN: 12V ... 24V / OUT: 12V▪ Input: open cable end▪ Output: open cable end
Weight: 0.8 kg
input voltage 24V and 12V
compact size by high efficiency in the power line
simple mounting by inserting into cable line (5-pole cable)
Input
voltage:
9 ... 33V DC both lines
Output voltage:
8,5 ... 12V +-5%
Output current line (term.
30):
0 ... 6A (10A /20% on time cycle)
Output current line (term.
15):
300mA
Connection input:
open cable end
Connection output:
open cable end
Cable length input:
app. 450mm
Cable length output:
app. 600mm
Efficiency:
app. 90% at 28V and nominal load, app. 96 ... 85% on term. 15,
app. 92 ... 38% on term. 30
Electrical protection:
Overload protection
Mechanical protection:
entirely sealed
Dimensions:
170 x 70 x 25mm without cable outlet
Mass:
app. 800g
