Trailer Light Converters

Converter to supply the lights of 12V trailers at 24V car line, including reversing lamp. Incandescent lamps and suitable RMS compatible LEDs can be operated. Please ask the LED lamp manufacturer for RMS compatibility. For further details please see our handout “LED lamps in RMS operation”. ▪ IN: 24V / OUT: 12V▪ Input: open cable end▪ Output: open cable end▪ with reversing lamp Weight: 0.96 kg quick and simple to connect:- at rear lamps of car-like equipment- parallel to 24V socket- instead of 24V socket the function of the C2-indicator-lamps of all flasher units is guaranteed works well with lamp-control-units correct function of ABS-info-module is guaranteed solid casting - waterproof and shockproof internal short circuit and overload protection power reserves in case of additional lamps at the trailer Input\n voltage: 24V DC nominal (18 ... 33V) Output voltage: RMS power equation for 12V (9 ... 15.5V) Output power: 2 x 21W + 5 x 60W Connection input: open cable end Connection output: open cable end Cable length input: app. 100cm Cable length output: app. 120cm Current without load: 0mA with open output (no current) Efficiency: flasher unit c. 90%, other units c. 95% Temperature range: -40 ... +75°C Electrical protection: overload current (self-resetting) overtemperature\n (self-resetting) Mechanical protection: entirely sealed Dimensions: 200 x 65 x 25mm without cable outlet Mass: app. 960g Attention: for bulbs and RMS - LEDs only!

Read more less

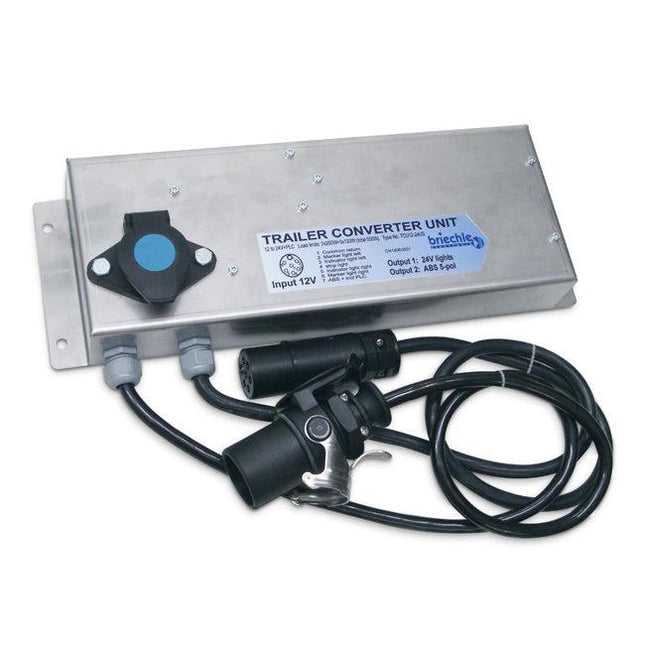

Complete trailer converter system to operate a European trailer with 24Volt at an American or Canadian towing vehicle.PLC signal conversion for the failure status from the trailer to the truck is implemented. Trailer Converter Unit12V to 24V with PLCISO 7638 and 7N plug ▪ IN: 12V / OUT: 24V▪ Input: 12V socket▪ Output 1: 24V plug▪ Input 2: 24V ABS/EBS plug Weight: 6.35 kg   contains all components for “plug and run” input socket 7 pin “N” Standard is allocated according to NATO-coiled cable for US-Canada trucks output 1: 7pin “N” 24V for lights output 2: 7 pin ABS / EBS connector ISO 7638 assembled with our converters ASV 12-24-7Hand ABS12-24 stainless steel module rack

Read more less

Converter to supply the lights of 12V trailers at a 24V car line. Incandescent lamps and suitable RMS compatible LEDs can be operated. Please ask the LED lamp manufacturer for RMS compatibility. For further details please see our handout “LED lamps in RMS operation”.▪ IN: 24V / OUT: 12V▪ Input: open cable end▪ Output: open cable end Weight: 0.96 kg quick and simple to connect: - at rear lamps of car-like equipment - parallel to 24V socket - instead of 24V socket the function of C2-indicator-lamps of all flasher units is guaranteed works well with lamp-control-units correct function of ABS-info-module is guaranteed solid casting - waterproof and shockproof internal short circuit and overload protection power reserves in case of additional lamps at the trailer Input voltage: 24V DC nominal (18 ... 33V) Output voltage: RMS power equation for 12V (9 ... 15.5V) Output power: 2 x 21W + 4 x 60W Connection input: open cable end Connection output: open cable end Cable length input: app. 100cm Cable length output: app. 120cm Current without load: 0mA with open output (no current) Efficiency: flasher unit c. 90%, other units c. 95% Temperature range: -40 ... +75°C Electrical protection: overload current (self-resetting) overtemperature (self-resetting) Mechanical protection: entirely sealed Dimensions: 200 x 70 x 25mm without cable outlet Mass: app. 950g Attention: for bulbs and RMS - LEDs only!

Read more less

Converter to supply the lights of 12V trailers at 24V car line, including reversing lamp. Incandescent lamps and suitable RMS compatible LEDs can be operated. Please ask the LED lamp manufacturer for RMS compatibility. For further details please see our handout “LED lamps in RMS operation”.Input 15 contact plug, output 13 contact socket.▪ IN: 24V / OUT: 12V▪ Input: 24V plug▪ Output: 12V socket▪ with reversing lamp Weight: 0.96 kg for suitable lamp control device (LF-PWM suitable) entirely sealed - waterproof and vibration resistant internal short circuit and overload protection power reserves in case of additional lamps at the trailer ready for mounting with input plug and socket Input voltage: 24V DC nominal (18 ... 33V) Output voltage: RMS power equation for 12V (9 ... 15.5V) Output power: 2 x 21W + 5 x 60W Connection input: sheathed cable, plug 24V/15 contacts ISO'4091 Connection output: corrugated tube, socket 12V/13 contacts ISO'11446 Cable length input: app. 1300mm Cable length output: app. 1300mm Current without load: 0mA at the open output (no current) Efficiency: flasher unit c. 90%, other units c. 95% Temperature range: -40 ... +75°C Mechanical protection: overload current (self-resetting) overtemperature (self-resetting) Mechanical protection: entirely sealed Dimensions: 200 x 70 x 25mm without cable outlet Mass: about 1,640g Attention: for bulbs and RMS - LEDs only!

Read more less

Converter to supply the lights of 12V trailers at 24V car line, including reversing lamp. Incandescent lamps and suitable RMS compatible LEDs can be operated. Please ask the LED lamp manufacturer for RMS compatibility. For further details please see our handout “LED lamps in RMS operation”.Input 15 contact plug, output 13 contact socket.▪ IN: 24V / OUT: 12V▪ Input: 24V plug▪ Output: 12V socket▪ with reversing lamp Weight: 0.96 kg for suitable lamp control device (LF-PWM suitable) entirely sealed - waterproof and vibration resistant internal short circuit and overload protection power reserves in case of additional lamps at the trailer ready for mounting with input plug and socket Input voltage: 24V DC nominal (18 ... 33V) Output voltage: RMS power equation for 12V (9 ... 15.5V) Output power: 2 x 21W + 5 x 60W Connection input: sheathed cable, plug 24V/15 contacts ISO'4091 Connection output: corrugated tube, socket 12V/13 contacts ISO'11446 Cable length input: app. 1300mm Cable length output: app. 1300mm Current without load: 0mA at the open output (no current) Efficiency: flasher unit c. 90%, other units c. 95% Temperature range: -40 ... +75°C Mechanical protection: overload current (self-resetting) overtemperature (self-resetting) Mechanical protection: entirely sealed Dimensions: 200 x 70 x 25mm without cable outlet Mass: about 1,640g Attention: for bulbs and RMS - LEDs only!
