Voltage & Step-Up Converters

Step-up converter of a higher power for 24V devices at 12V car line. ▪ IN: 12V ... 24V / OUT: 24V▪ Connection: open cable end▪ 20(22)A Weight: 1.1 kg Converts input voltage from 12V to constant 27V electronic protection against reverse polarity and misconnection without short circuit impact suitable for 24V voltage boosting (wide range input) protection against overload reverse voltage proof independent from polarity Input\n voltage: 10 ... 33V DC Input current: max. 60A (12V) Output voltage: 27V DC +-5% (27 ... 32V if input\n above 27V) Output current:  0 ... 20A (22A /20% on-time circle)) Connection: the connection cable is sealed in\n the device, open ending Cable length: app. 550mm Current without load:  <4mA (12V) Efficiency:  app. 92% Temperature range: -40°C ... +75°C Electrical protection: overtemperature, overcurrent, reverse polarity Mechanical protection:  entirely sealed (IP69K) Dimensions: 200 x 70 x 40mm without cable outlet Mass: app. 1100g

Read more less

Step-up converter of a higher power for 24V devices at 12V car line. ▪ IN: 12V ... 24V / OUT: 24V▪ Input: open cable end▪ Output: open cable end▪ 10A Permanent positive Weight: 0.92 kg converts input voltage from 12V to 26V regulated electronic protection against reverse polarity and misconnection without short circuit suitable for voltage boosting (wide range input) Input\n voltage: 10 ... 33V DC Input current: max. 35A (12V) Output voltage: 26V DC +-2% Output current: 0 ... 10A (15A /20% duty cycle ED) Connection input: open cable end Connection output: open cable end Cable length input: app. 550mm Cable length output: app. 550mm Current without load: 8mA (12V) Efficiency: app. 80% Temperature range: -40°C ... +75°C Electrical protection: overtemperature, overcurrent, reverse polarity Mechanical protection: entirely sealed (IP69K) Dimensions: 200 x 70 x 40mm without cable outlet Mass: app. 920g

Read more less

Converter for charging a 12V lead-accumulator within a 24V car line 26(35)A-▪ IN: 24V / OUT: 12V  ▪ Connection: open cable end Weight: 0.93 kg in case of charging the 24V battery has priority the charging process starts at a voltage of more than 26.4V and stops at less than 25.0V to avoid a flattering of the circuit, the on/off hysteresis is time-delayed Attention: at input voltages, less than 26.4V the converter is out of work as directed! Input voltage: 16 ... 30V DC Output voltage: half input voltage at input >26.4V Output current: 26A permanent, 35A for about 5 min. Connection: 3-pole plug "Anderson Powerpole Modular" Power-on-voltage: 26.4V Power-off-voltage: 25.0V Cable length: app. 180mm Current without load: 0.7mA at 24V Efficiency: app. 92% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed Dimensions: 200 x 70 x 40mm Mass: app. 930g Time-delay: app. 5 sec.

Read more less

Professional inverter 12V to 230V AC for rough environmental conditions.▪ IN: 12V / OUT: 230V/50Hz▪ Input: 2x open cable ends▪ Output: open cable ends Weight: 8 kg waterproof starts automatically, 5mA standby perfectly suitable for fixed installation in service vehicle, separate socket 100% overload possible Attention: no sinus, but almost all consumers can be connected Input voltage: 10 ... 15V DC Output voltage: 225V +3% / -5%, 50Hz quartz-generated (115V/ 60Hz optional) Output power: 600VA permanent, 1,200VA 10min, 12A (24A at 115V) 4sec Connection input: 2x open cable end Connection output: open cable end Cable length input: 2x app. 1200mm Cable length output: app. 2300mm Current without load: standby current 5mA RMS at 12V Switching level: start at 1W load Current at 1W load: 1A at 12V Overvoltage: >16V, self-resetting Undervoltage: off at 10V, on at 11V Efficiency: app. 95% at 100% load / app. 80% at 10% load / app. 80% at 200% load Electrical protection: against reverse polarity, overtemperature, short circuit Mechanical protection: aluminum casting case IP66 Dimensions: 260 x 160 x 90mm (without screwings) without cable outlet Mass: app. 8,000g incl. Cables Signalform: step weave with fast PWM-modulation (to cos phi 0.2 at 50% load) Safety: potential division with potential compensation (protective conductor)

Read more less

Professional inverter 24V to 230V AC for rough environmental conditions. ▪ IN: 24V / OUT: 230V/50Hz▪ Input: 2x open cable ends▪ Output: open cable ends Weight: 8 kg waterproof starts automatically, 5mA standby perfectly suitable for fixed installation in service vehicle, separate socket 100% overload possible Attention: no sinus, but almost all consumers can be connected Input voltage: 20 ... 30V DC Output voltage: 225V +3% / -5%, 50Hz quartz generated (115V/ 60Hz optional) Output power: 600VA permanent, 1,200VA 10min, 12A (24A at 115V) 4sec Connection input: 2x open cable end Connection output: open cable end Cable length input: 2x app. 1200mm Cable length output: app. 2300mm Current without load: standby current 5mA RMS at 12V Switching level: start at 1W load Current at 1W load: 0.6A at 26V Overvoltage: >33V, self-resetting Undervoltage: off at 20V, on at 22V Efficiency: app. 95% at 100% load / app. 80% at 10% load / app. 80% at 200% load Electrical protection: against reverse polarity, overtemperature, short circuit Mechanical protection: aluminum casting case Dimensions: 260 x 160 x 90mm (without screwings) without cable outlet Mass: app. 8,000g incl. Cables Signalform: step weave with fast PWM-modulation (to cos phi 0.2 at 50% load) Safety: potential division with potential compensation (protective conductor)

Read more less

DC-DC Converter Isolated 9–36 V to 12 V (IP67) This isolated DC-DC converter from Micropower Group is engineered to convert a wide 9–36 V DC input into a stable 12 V output with high efficiency and robust protection. Designed with advanced switching technology, it delivers reliable performance even in harsh environments, making it suitable for industrial and mobile applications.  Key Specifications Input Voltage: 9–36 V DC  Output Voltage: 12 V DC nominal (≈13.5 V actual)  Output Power: 200 W  Efficiency: >96 %  Isolation: Galvanically isolated Ingress Protection: IP67 rated enclosure  Connections: Cable, loose end  Dimensions: 150 × 93 × 31 mm  Weight: 0.82 kg  Main Features Wide Input Range: Accepts 9–36 V DC supply for flexible deployment.  High Efficiency: Advanced switching power conversion minimizes energy loss and heat.  Waterproof Design: IP67 enclosure protects against dust and water for outdoor use.  Electrical Isolation: Galvanic isolation improves safety and noise immunity.  Tough Construction: Durable housing suitable for demanding industrial environments.  Protection Features Reverse polarity protection  Short-circuit protection Overload protection  Typical Applications Industrial automation power supplies Vehicle and mobile power systems Battery-operated equipment Telecommunications power units Control cabinet power conversion Installation & Integration Pre-wired cable connections for easy setup  Full-featured electrical protection for reliable performance  Suitable for outdoor and rugged environments thanks to IP67 enclosure  Note: This isolated DC-DC converter is ideal for applications requiring wide input tolerance, electrical isolation, and rugged protection in both industrial and mobile systems.

Read more less

Step-up voltage converter with medium power from 12V until 24V (wide range) to 24V car line. For the simultaneous supply of permanent positive and ignition positive. The total current can be shared in any relation between both outputs.▪ IN: 12V ... 24V / OUT: 24V▪ Connection: 5-pol plug▪ 5A Permanent positive and ignition positive Weight: 0.022 kg Converts the input voltage of 12V until 24V (wide range) to 26V constant Converts permanent positive (clmp 30) and switched positive (clmp 15) Active reverse polarity protection, the fuse is not blown Case and connector waterproof Overload protection by electronic fuse Very low quiescent current (self consumption) of 0.7mA only, no creeping dircharge of the battery Input voltage: 8 ... 30V DC Input current: 11A at 13,0V (18A at 8,0V) at output current 5A Output voltage: 26V DC +-5% Output current: 5A permanent, 8A peak Connection: Connector Tyco Super Seal 1.5, 5-pol, water protected IP67K Cable length: app. 100mm Current without load: 0.7mA at 12V Efficiency: app. 93% at 5A Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients, polarity Mechanical protection: entirely sealed Dimensions: 70 x 65 x 25mm Mass: app. 220g Technical principle: ignition positive (clmp 15) switches on the second output

Read more less

Step-up voltage converter with medium power from 12V until 24V (wide range) to 24V car line.▪ IN: 12V ... 24V / OUT: 24V▪ Connection: 5-pol plug▪ 5A Permanent positive Weight: 0.22 kg Converts the input voltage of 12V until 24V (wide range) to 26V constant Active reverse polarity protection, the fuse is not blown Case and connector waterproof Overload protection by electronic fuse Very low quiescent current (self-consumption) of 0.7mA only, no creeping discharge of the battery Input voltage: 8 ... 30V DC Input current: 11A at 13,0V (18A at 8,0V) at output current 5A Output voltage: 26V DC +-5% Output current: 5A permanent, 8A peak Connection: Connector Tyco Super Seal 1.5, 5-pol / 3 allocated, water protected IP67K Cable length: app. 100mm Current without load: 0.7mA at 12V Efficiency: app. 93% at 5A Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients, polarity Mechanical protection: entirely sealed Dimensions: 70 x 65 x 25mm without cable outlet Mass: app. 220g

Read more less

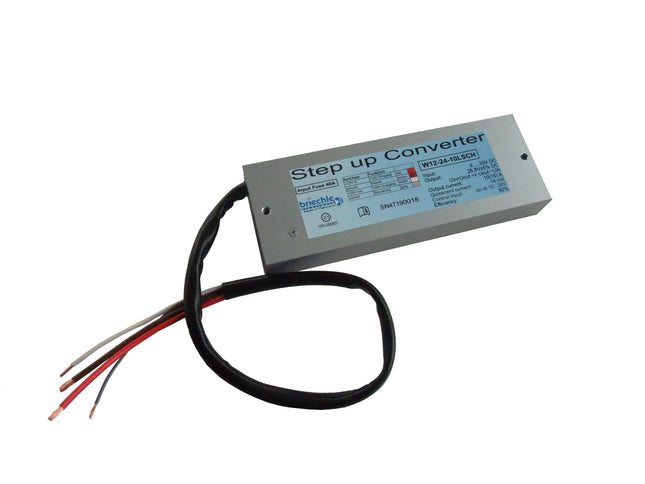

Step-up converter of a higher power for 24V devices at 12V car line. Double Volt 10 Charge ▪ IN: 12V ... 24V / OUT: 28,8V ▪ Connection: open cable end Step-up converter for charging a 24V lead-accumulator out of a 12V car line.The charging procedure is controlled by the ignition switch. converts input voltage from 12V to 28,8V regulated electronical protection against reverse polarity and missconnection without short circuit suitable for 24V voltage boosting (wide range input) Weight: 0.92 kg Technical data: Input voltage 9 ... 33V DC Input current max. 35A (12V) Control input on at 10 ... 33V Output voltage 28,8V DC + - 5% Output current 0 ... 10A (15A) Connection open cable end Cable length about 450mm Current without load <4mA (12V) Efficiency app. 92% Temperature range -40°C ... +75°C Electrical protection overtemperature, overcurrent, reverse polarity Mechanical protection entirely sealed (IP69K) Dimensions 200 x 70 x 25mm without cable outlet Mass app. 770g

Read more less

High-end voltage converter with medium power for 12V devices at 24V car line. For the simultaneous supply of permanent plus and ignition plus.▪ IN: 24V / OUT: 12V▪ Connection: 5-pol plug▪ 10A Permanent positive and ignition positive Weight: 0.385 kg provides permanent plus (term. 30) and ignition plus (term. 15) up to the maximum load concept of high development standard: - real voltage division, discharge protection of 12V device is effective - significant low self current consumption of 0,7 mA - very high efficiency of about 94% overload capacity up to 15A for about 5 min. small dimensions compact plug (AMP Mate Lock) 5kW-peak-safety-diode to prevent overvoltage from car line Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 10A permanent, 15A for about 5 min. Connection: 5-poles connector, round contacts (AMP Mate Lock) Current without load: 0,7mA at 24V Efficiency: app. 94% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed Dimensions: 129 x 70 x 25mm incl. Plug Mass: app. 385g Technical principle: ignition plus (term 15) connects the second output

Read more less

High-end voltage converter with medium power for 12V devices at 24V car line.▪ IN: 24V / OUT: 12V▪ Connection: 3-pol plug▪ 10A Weight: 0.385 kg provides permanent plus (term. 30) or ignition plus (term. 15) up to the maximum load concept of high development standard: - real voltage division, discharge protection of 12V device is effective -significant low self current consumption of 0,7 mA - very high efficiency of about 94% overload capacity up to 15A for about 5 min. small dimensions compact plug (AMP Mate Lock) 5kW-peak-safety-diode to prevent overvoltage from car line Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 10A permanent, 15A for about 5 min. Connection: 3-poles connector, round contacts (AMP Mate Lock) Current without load: 0,7mA at 24V Efficiency: app. 94% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed Dimensions: 129 x 70 x 25mm incl. Plug Mass: app. 385g Technical principle: ignition plus (term 15) connects the second output

Read more less

High-end voltage converter with medium power for 12V devices at 24V car line.▪ IN: 24V / OUT: 12V▪ Connection: cable with open ends▪ 10A Weight: 0.385 kg provides permanent plus (term. 30) or ignition plus (term. 15) up to the maximum load concept of high development standard: - real voltage division, discharge protection of 12V device is effective -significant low self current consumption of 0,7 mA - very high efficiency of about 94% overload capacity up to 15A for about 5 min. small dimensions connected with 3 pin sheathed cable 5kW-peak-safety-diode to prevent overvoltage from car line Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 10A permanent, 15A for about 5 min. Connection: cable with open ends Cable length: about 1000mm 3x1,5mm² Current without load: 0,7mA at 24V Efficiency: app. 94% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed (IP69K) Dimensions: 120 x 70 x 25mm Mass: app. 385g

Read more less

High-end voltage converter of a higher power for 12V consumers at a 24V car line. For the simultaneous supply of permanent plus line and ignition plus line.▪ IN: 24V / OUT: 12V▪ Anschluss: 5Pol Stecker▪ 16A Permanent positive and ignition positive Weight: 0.71 kg provides permanent plus (term. 30) and ignition plus (term. 15) up to the maximum load concept of high development standard: - real voltage division, discharge protection of 12V device is effective - significant low self current consumption of 0,7mA - very high efficiency of about 92% overload capacity up to 24A for about 5 min. small dimensions high-quality high-power-plug, waterproof, the counterpart is included 5kW-peak-protection-diode to prevent overvoltage coming from the car line Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 16A permanent, 24A for about 5 min. Connection: 5-pole plug "Delphi Metri-Pack Series 150 Sealed" IP67K Cable length: ca. 70mm Current without load: 0,7mA at 24V Efficiency: app. 92% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed Dimensions: 200 x 70 x 25mm without calbe outlet Mass: app. 710g Technical principle: ignition plus (term. 15) switches 2nd outlet

Read more less

High-end voltage converter of a higher power for 12V consumers at 24V car line.▪ IN: 24V / OUT: 12V▪ Connection: 5-pol plug▪ 16A Weight: 0.71 kg provides permanent plus (term.30) or ignition plus (term.15) concept of high development standard: - real voltage division, discharge protection of 12V device is effective - significant low self current consumption of 0,7mA - very high efficiency of about 92% overload capacity up to 24A for about 5 min. small dimensions high-quality high-power-plug, waterproof, the counterpart is included 5kW-peak-protection-diode to prevent overvoltage coming from the car line Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 16A permanent, 24A for about 5 min. Connection: 3 contacts in a 5-pole plug "Delphi Metri-Pack Series 150 Sealed" IP67K Cable length: _ Current without load: 0,7mA at 24V Efficiency: app. 92% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed Dimensions: 200 x 70 x 25mm without cable outlet Mass: app. 710g

Read more less

High-end voltage converter of a higher power for 12V consumers at a 24V car line. ▪ IN: 24V / OUT: 12V▪ Connection: 5-pol plug▪ 26A Permanent positive and ignition positive Weight: 0.96 kg provides permanent plus (term.30) or ignition plus (term.15) concept of high development standard: - real voltage division, discharge protection of 12V device is effective - significant low self current consumption of 0,7mA - very high efficiency of about 92% overload capacity up to 24A for about 5 min. small dimensions high-quality high-power-plug, waterproof, the counterpart is included 5kW-peak-protection-diode to prevent overvoltage coming from the car line Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 26A permanent, 35A for about 5 min. Connection: 5-pole plug "Anderson Powerpole Modular" Cable length: app. 170mm Current without load: 0,7mA at 24V Efficiency: app. 92% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed Dimensions: 200 x 70 x 40mm without cable outlet Mass: app. 960g Technical principle: ignition plus (term. 15) switches 2nd outlet

Read more less

High-end voltage converter of a higher power for 12V consumers at a 24V car line.▪ IN: 24V / OUT: 12V▪ Connection: 3-pol plug▪ 26A Weight: 0.93 kg concept of high development standard: - real voltage division, discharge protection of 12V device is effective - significant low self current consumption of 0,7mA - very high efficiency of about 94% overload capacity up to 35A for about 5 min. small dimensions high-power-plug of high quality 5kW-peak-safety-diode to prevent overvoltage from car line Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 26A permanent, 35A for about 5 min. Connection: 3-pole plug "Anderson Powerpole Modular" Cable length: _ Current without load: 0,7mA at 24V Efficiency: app. 92% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed Dimensions: 200 x 70 x 40mm without cable outlet Mass: app. 930g

Read more less

High-end voltage converter with low power for 12V devices at 24V car line. For the simultaneous supply of permanent plus and ignition plus. An ideal solution for point of device supply like telematics and GPS wireless alarm systems.▪ IN: 24V / OUT: 12V▪ Connection: 5-pol plug▪ 4A Permanent positive and ignition positive Weight: 0.19 kg concept of high development standard: -real voltage division, discharge protection of 12V device is effective - significant low self current consumption of 0,7mA - very high efficiency of about 94% overload capacity up to 6A for about 5 min. small dimensions compact plug, sealing option 5kW-peak-safety-diode to prevent overvoltage from car line electronic protection against reverse polarity without the need of a fuse Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 4A permanent, 6A for about 5 min. Connection: 5-poles connector, Mate Lock with sealing option Cable length: _ Current without load: 0,7mA at 24V Efficiency: app. 94% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients, polarity Mechanical protection: entirely sealed Dimensions: 80 x 70 x 25mm incl. Plug Mass: app. 190g Technical principle: ignition plus (term 15) connects second output

Read more less

High-end voltage converter with low power for 12V devices at 24V car line. For the simultaneous supply of permanent plus and ignition plus. An ideal solution for point of device supply like telematics and GPS wireless alarm systems. Fixed voltage 13.6V.▪ IN: 24V / OUT: 13.6V▪ Connection: 5-pol plug▪ 4A Permanent positive and ignition positive Weight: 0.19 kg concept of high development standard: - Fixed voltage 13.6V - significant low self current consumption of 0,7mA - very high efficiency of about 94% overload capacity up to 6A for about 5 min. small dimensions compact plug, sealing option 5kW-peak-safety-diode to prevent overvoltage from car line electronic protection against reverse polarity without the need of a fuse Input voltage: 16 ... 30V DC Output voltage: 13.6V +-5% Output current: 4A permanent, 6A for about 5 min. Connection: 5-poles connector, Mate Lock with sealing option Cable length: _ Current without load: 0,7mA at 24V Efficiency: app. 94% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients, polarity Mechanical protection: entirely sealed Dimensions: 80 x 70 x 25mm incl. Plug Mass: app. 190g Technical principle: ignition plus (term 15) connects the second output

Read more less

High-end voltage converter with low power for 12V devices at 24V car line. An ideal solution for point of device supply like telematics and GPS wireless alarm systems.▪ IN: 24V / OUT: 12V▪ Connection: 3-pol plug▪ 4A Weight: 0.19 kg concept of high development standard: -real voltage division, discharge protection of 12V device is effective - significant low self current consumption of 0,7mA - very high efficiency of about 94% overload capacity up to 6A for about 5 min. small dimensions compact plug, sealing option 5kW-peak-safety-diode to prevent overvoltage from car line electronic protection against reverse polarity without the need for a fuse. Input voltage: 16 ... 30V DC Output voltage: 8 ... 15V DC input voltage gets halved Output current: 4A permanent, 6A for about 5 min. Connection: 3-poles connector, Mate Lock with sealing option Cable length: _ Current without load: 0,7mA at 24V Efficiency: app. 94% Temperature range: -40 ... +75°C, derating T>45°C Electrical protection: overcurrent, overtemperature, input transients Mechanical protection: entirely sealed Dimensions: 80 x 70 x 25mm incl. Plug Mass: app. 190g

Read more less
