Description

PP120 series Powerpole® housings can be used for wire-to-wire, wire-to-board, and wire-to-busbar applications.

PP120 series Powerpole® housings are designed to accommodate up to 1/0 AWG (50 mm²) wires and handle high currents up to 240 amps. Reducing bushings allow PP120 to accept down to 8 AWG (10 mm²) wires.

Multiple colours of stackable housings combine with low resistance flat wiping technology to offer powerful connection capability.

• Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 (10 mm²) wire to be used

• Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps

• UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required

Available in all these colours:

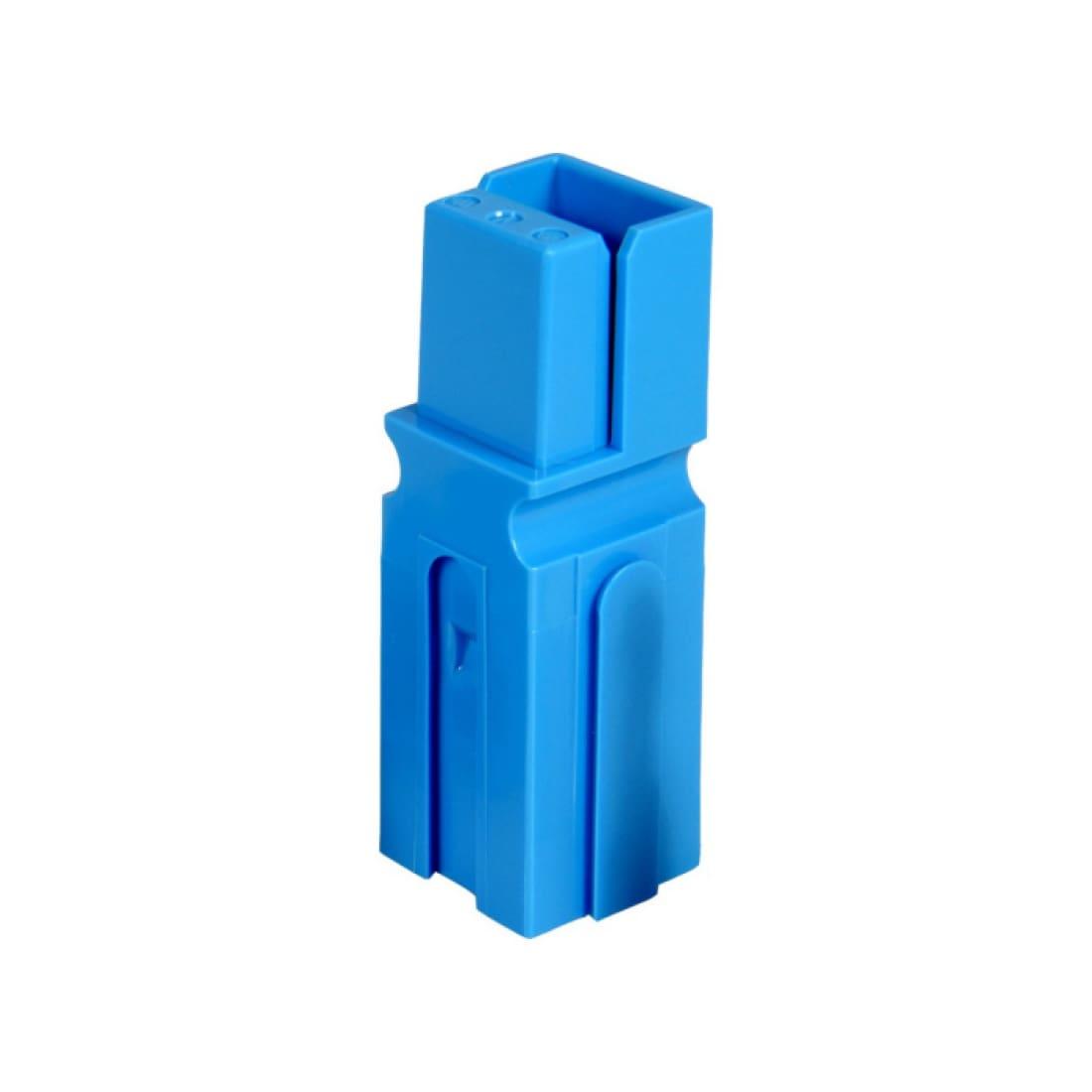

Blue 1321-BK

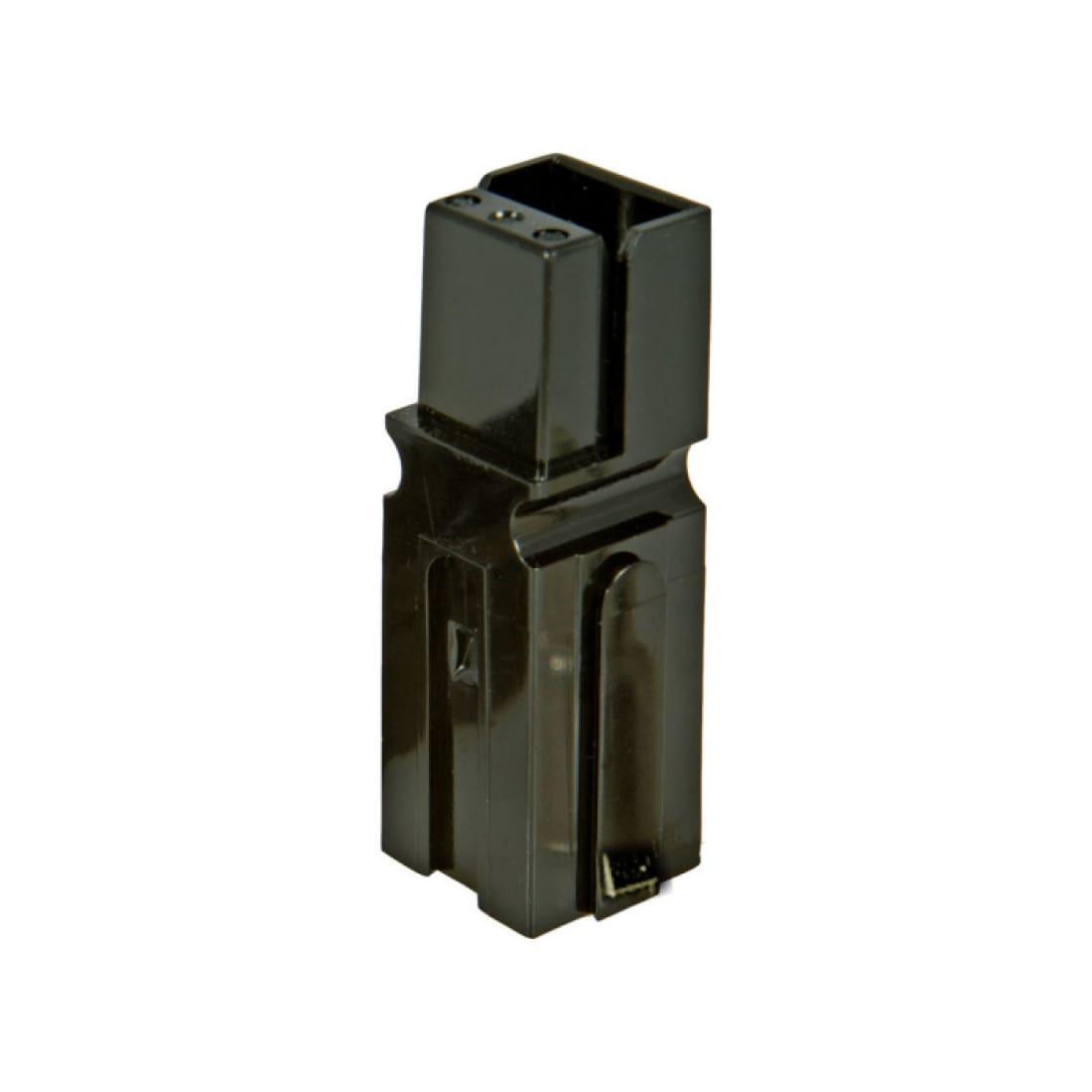

Black 1321G1-BK
White 1321G2-BK

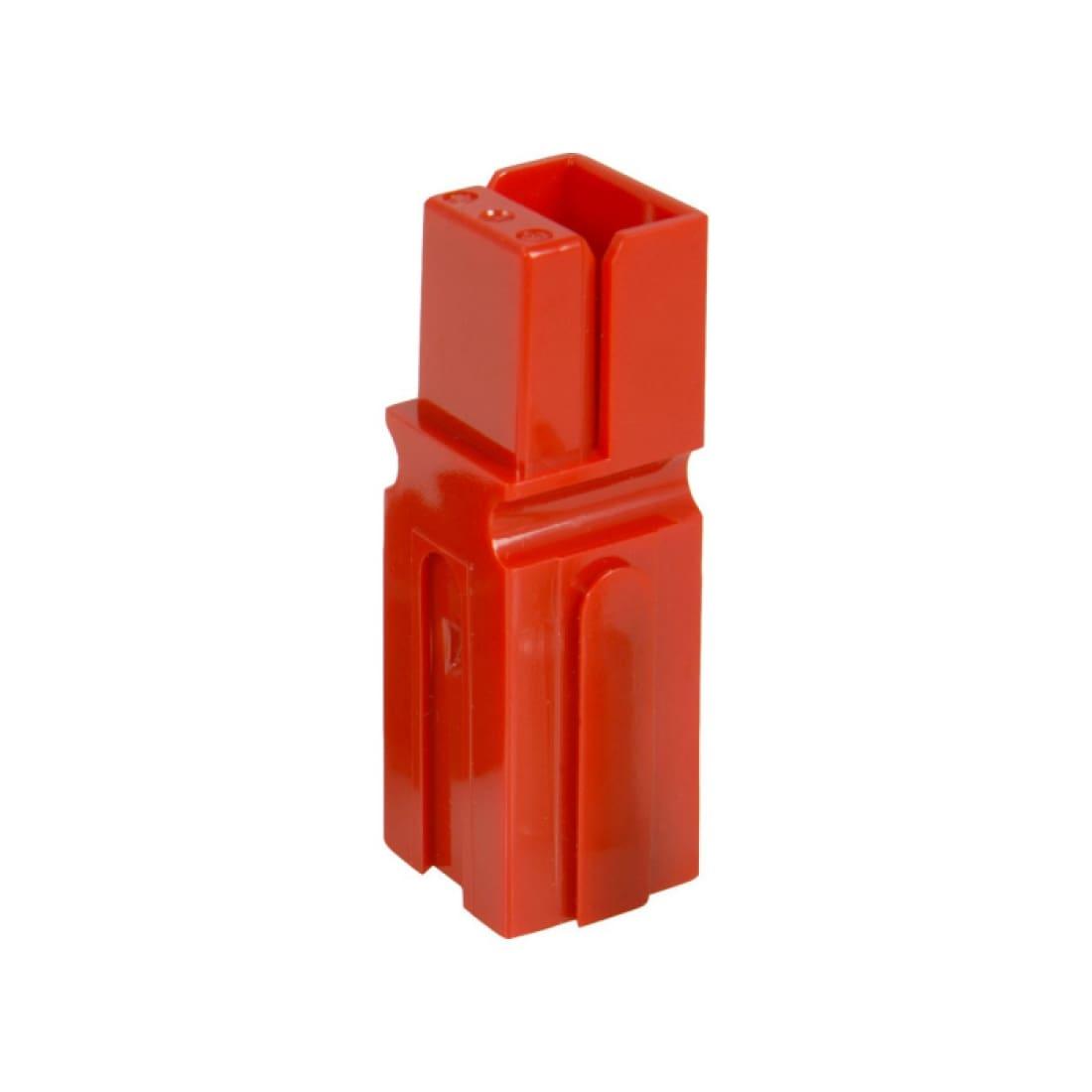

Red 1321G3-BK
Green 1321G4-BK
Orange 1321G5-BK
Brown 1321G6-BK
Yellow 1321G7-BK
Gray 1321G8-BK

Specifications

• Manuafacturer: Anderson Power Products
• Condition: New
