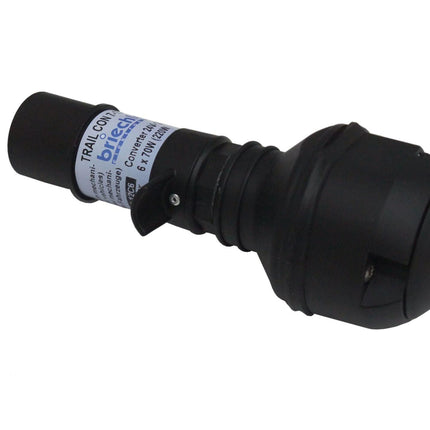

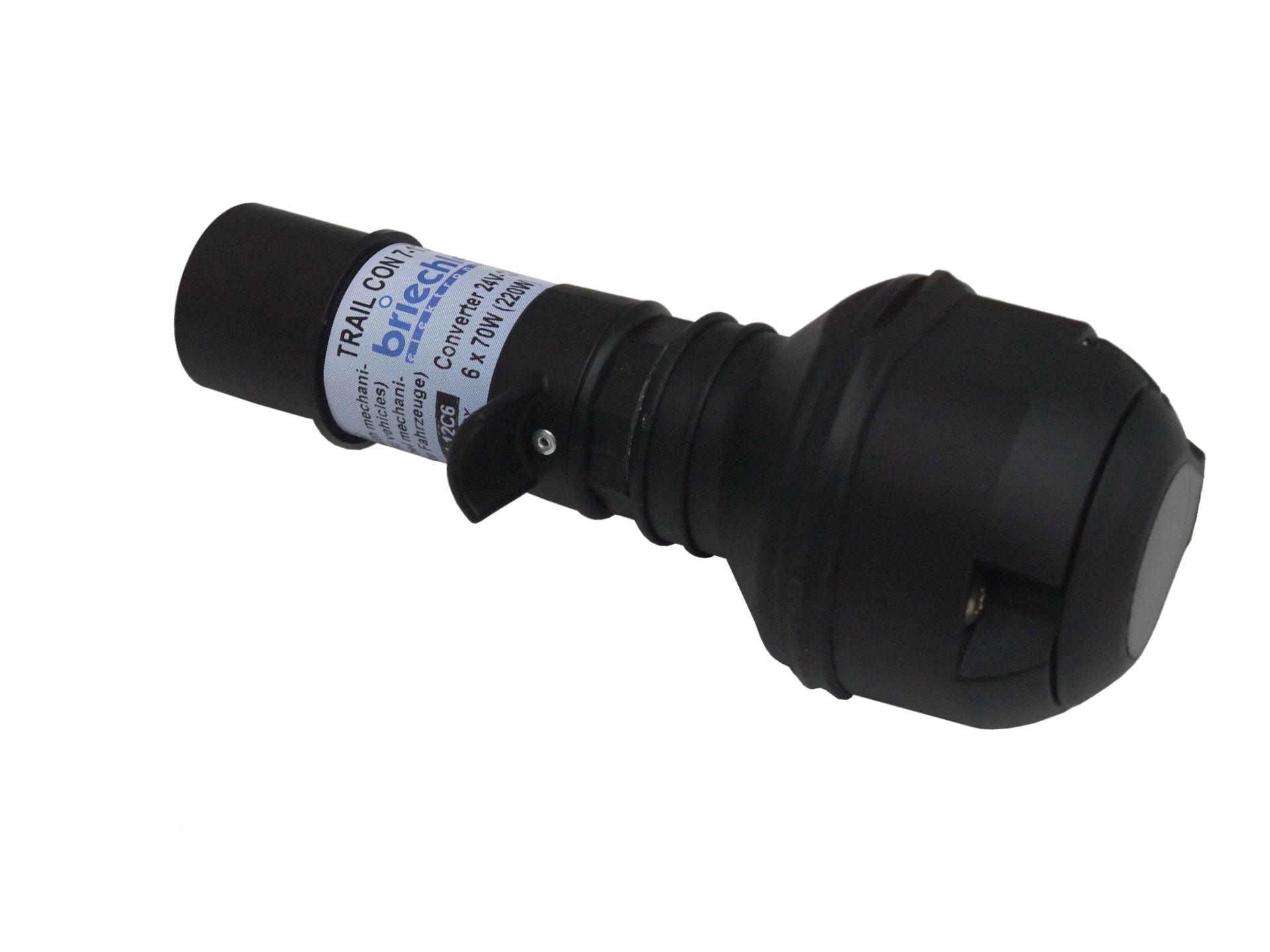

Name: Briechle 7-13 TRAILER CONVERTER 7-13 ABW 24-12C6
Brand: Briechle Elektronik
SKU: 130-11040
Price: 171.83 EUR

Briechle 7-13 TRAILER CONVERTER 7-13 ABW 24-12C6

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Briechle 7-13 TRAILER CONVERTER 7-13 ABW 24-12C6

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

TRAILER CONVERTER 7-13 ABW 24-12C6 Converter to supply a 12V trailer from a 24V vehicle system as short adapter 7... Read more

€195,26 €171,83 Excl. VAT

Guaranteed secure & safe checkout.

Shipped today? Order within: Jun 05, 2026 12:00:00 +0300

Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP

30 days hassle-free returns

Flexible payments

Easily pay with multiple payment options.
Read more

Description

TRAILER CONVERTER 7-13 ABW 24-12C6

Converter to supply a 12V trailer from a 24V vehicle system as short adapter 7 pin to 13 pin, the reversing lights are not connected. Incandescent lamps and suitable RMS compatible LEDs can be operated. Please ask the LED lamp manufacturer for RMS compatibility. For further details please see our handout “LED lamps in RMS operation”.

▪ IN: 24V / OUT: 12V
▪ Input: 24V plug with 7 contacts
▪ Output: 12V socket with 13 contacts

Weight: 0.32 kg

simply plug in between
fulfills the law requirement for fail-safe by 100% separated lines
compatible with lamp control circuits
correct function of ABS-info-module is guaranteed
internal short circuit and overload protection, one each line
power reserves in case of additional lamps at the trailer
European approval E1 10R-046957

Input voltage:	24V DC nominal (18 ... 33V)
Output voltage:	RMS power equation for 12V (9 ... 15.5V)
Output power:	6 x 70W total max 220W lamp power
Connection input:	Plug with 7 contacts 24V ISO'1185
Connection output:	flanged socket with flap cover 13 contacts 12V ISO'11446
Cable length input:	_
Cable length output:	_
Current without load:	0mA at the open output (no current)
Efficiency:	app. 97%
Temperature range:	-40 ... +75°C
Electrical protection:	overcurrent (auto reset), over temperature (auto reset)
Mechanical protection:	overload current (self-resetting) overtemperature (self-resetting)
Mechanical protection:	electronic sealed
Dimensions:	D x L ca 75mm x 190mm with closed cover
Mass:	app. 320g
Restrictions:	the control lamp of ancient mechanical flashing units is not indicating. Use ABW 24-12-6H
Attention:	for bulbs and RMS - LEDs only!

Specifications

Manuafacturer: Briechle Elektronik
Condition: New
