Converter for charging a 12V lead-accumulator within a 24V car line 26(35)A-▪ IN: 24V / OUT: 12V ▪ Connection: open... Read more

€11.498,85 €275,00 Excl. VAT

Guaranteed secure & safe checkout.

Shipped today? Order within: Jun 05, 2026 12:00:00 +0300

Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP

30 days hassle-free returns

Flexible payments

Easily pay with multiple payment options.
Read more

Description

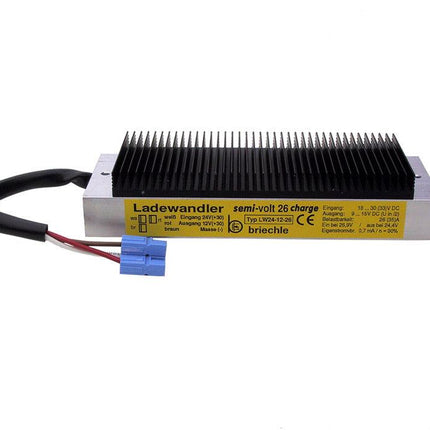

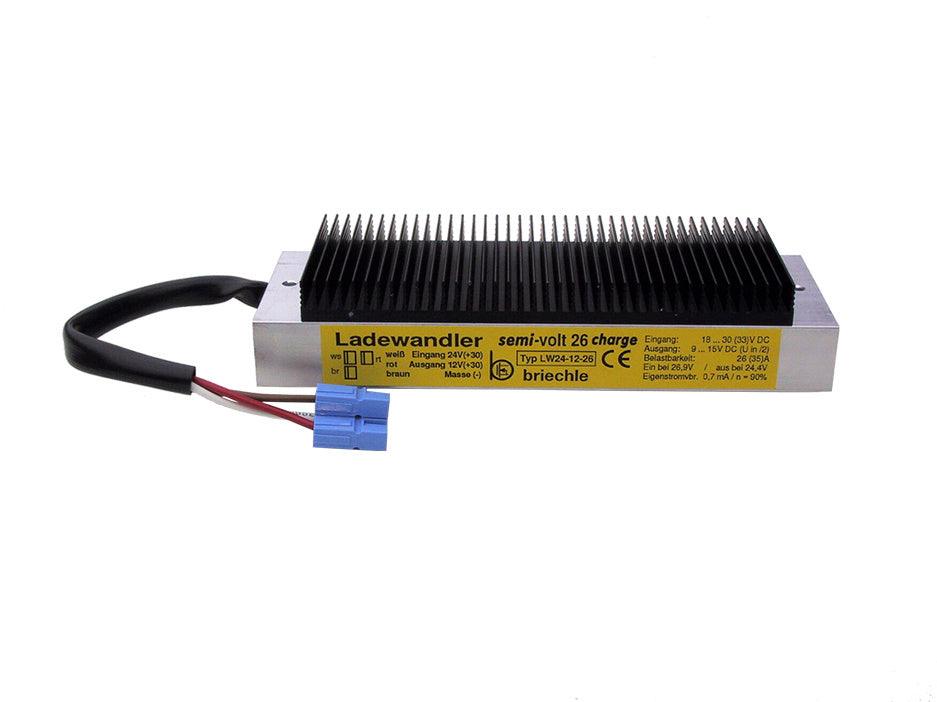

Converter for charging a 12V lead-accumulator within a 24V car line 26(35)A-

▪ IN: 24V / OUT: 12V
▪ Connection: open cable end

\n\n \n

\n \n Weight: 0.93 kg\n \n

\n

in case of charging the 24V battery has priority
the charging process starts at a voltage of more than 26.4V and stops at less than 25.0V
to avoid a flattering of the circuit, the on/off hysteresis is time-delayed
Attention: at input voltages, less than 26.4V the converter is out of work as directed!

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Input\n voltage:	16 ... 30V DC
Output voltage:	half input voltage at input >26.4V
Output current:	26A permanent, 35A for about 5 min.
Connection:	3-pole plug "Anderson Powerpole Modular"
Power-on-voltage:	26.4V
Power-off-voltage:	25.0V
Cable length:	app. 180mm
Current without load:	0.7mA at 24V
Efficiency:	app. 92%
Temperature range:	-40 ... +75°C, derating T>45°C
Electrical protection:	overcurrent, overtemperature, input transients
Mechanical protection:	entirely sealed
Dimensions:	200 x 70 x 40mm
Mass:	app. 930g
Time-delay:	app. 5 sec.

Specifications

Manuafacturer: Briechle Elektronik
Condition: New
