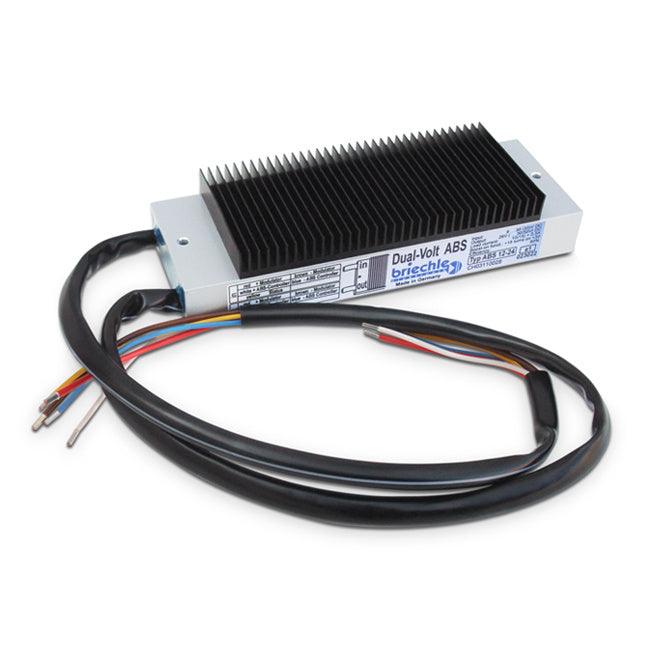

Briechle DUAL-VOLT ABS CONVERTER ABS 12-24

Briechle DUAL-VOLT ABS CONVERTER ABS 12-24

Product form

Special converter for the supply of 24V anti-lock system out of 12V or 24V. Input and output cables are cast... Read more

€311,40  €276,20 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP
    • 30 days hassle-free returns
    Flexible payments

    Easily pay with multiple payment options.
    Read more

    Description

    Special converter for the supply of 24V anti-lock system out of 12V or 24V. Input and output cables are cast solid, open ends.

    ▪ IN: 12V ... 24V / OUT: 24V
    ▪ Input: open cable end
    ▪ Output: open cable end

    Weight: 1.04 kg
    input voltage 12V and 24V
    • high power for additional functions like EBS and level control
    • compact size by high efficiency
    • simple mounting by inserting into cable line (5-pole cable)
    • info-module works properly
    • electronic protection against reverse polarity without short circuit
    • protection against overload
    • reverse voltage proof independent from polarity
    Input\n voltage: 9 ... 33V DC both lines
    Output voltage: 27V +-5% (27 ... 32V if input above 27V)
    Output current line (term.\n 30): 0 ... 10A (15A /20% on time cycle)
    Output current line (term.\n 15): 0 ... 500mA
    Connection input: ABS / EBS socket 12V ISO'7638
    Connection output: ABS / EBS plug 24V ISO'7638
    Cable length input: app. 450mm
    Cable length output: app. 600mm
    Efficiency: ca. 80%
    Mechanical protection: entirely sealed
    Dimensions: 200 x 70 x 40mm without cable outlet
    Mass: app. 950g

    Specifications

    • Manuafacturer: Briechle Elektronik
    • Condition: New
