Description

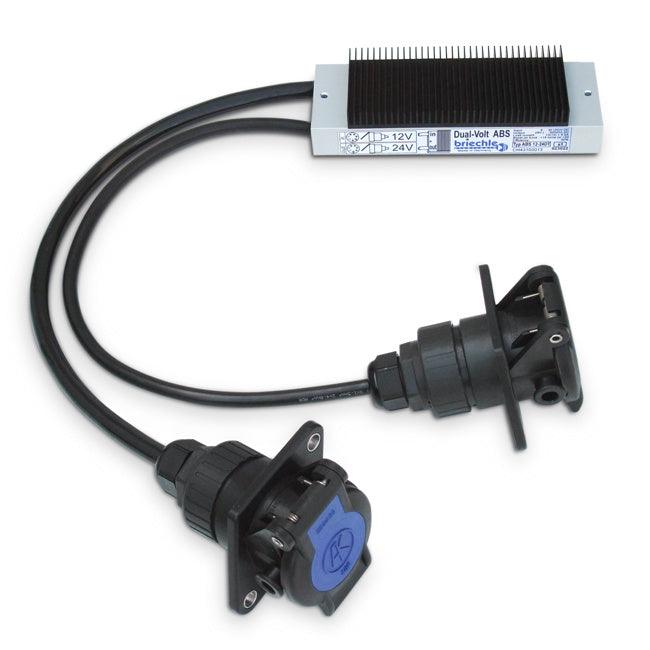

Special converter for the supply of a 24V anti-lock system ABS/EBS out \nof 12V or 24V. The converter input is equipped with a 12V ABS/EBS socket and the output with a 24V ABS/EBS socket. Preferential for trailer side mounting. Connection with the truck by the use of a 12V \nplug-plug-cable. The 24V trailer plug will be plugged into the converter. \nThe contacts 6 and 7 ("CAN-Bus") are unequipped.
▪ IN: 12V ... 24V / OUT: 24V
▪ Input: 12V socket
▪ Output: 24V socket
\n \n\n \n
\n\n \n
\n \n Weight: 1.85 kg
\n
- input voltage 12V and 24V
- high power for additional functions like EBS and level control
- simply plug in on the (drawbar) trailer side
- electronic protection against reverse polarity without short circuit
- protection against overload
- reverse voltage proof independent from polarity
- high efficiency
- Up to 40km/h, the cable KN-ABSFT for the input is also legal (follow regulations)
\n
\n \n
\n | Input\n voltage: | \n 9 ... 33V DC both lines | \n
\n \n | Output voltage: | \n 27V +-5% (27 ... 32V if input above 27V) | \n
\n \n | Output current line (term.\n 30): | \n 0 ... 10A (15A /20% on time cycle) | \n
\n \n | Output current line (term.\n 15): | \n 0 ... 500mA | \n
\n \n | Connection input: | \n ABS / EBS socket 12V ISO'7638 | \n
\n \n | Connection output: | \n ABS / EBS plug 24V ISO'7638 | \n
\n \n | Cable length input: | \n app. 450mm | \n
\n \n | Cable length output: | \n app. 600mm | \n
\n \n | Efficiency: | \n ca. 80% | \n
\n \n | Mechanical protection: | \n entirely sealed | \n
\n \n | Dimensions: | \n 200 x 70 x 40mm without cable outlet | \n
\n \n | Mass: | \n app.1850g | \n
