Description

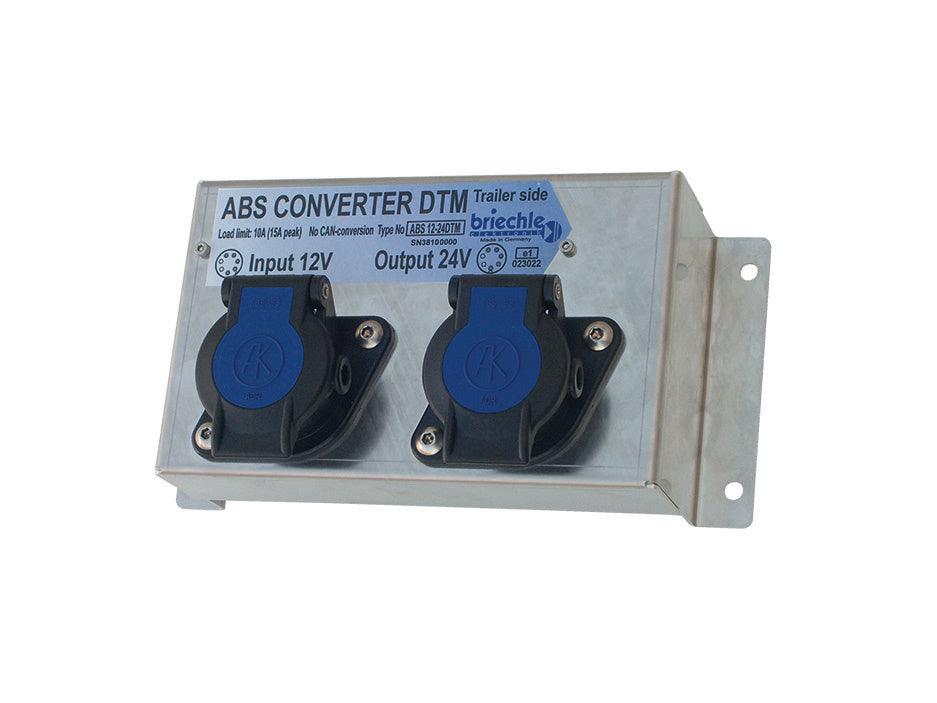

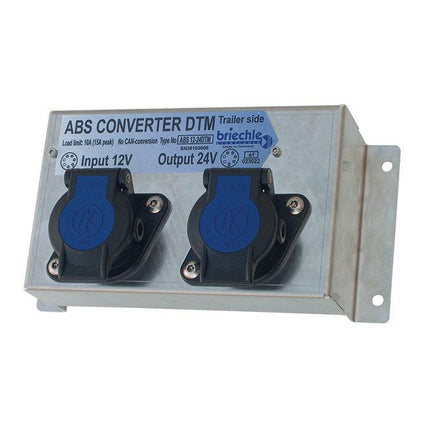

ABS Converter with input of 12V to 24V and outputs 24V
Special converter for the supply of a 24V anti-lock system ABS/EBS out of 12V or 24V. The converter input is equipped with a 12V ABS/EBS socket and the output with a 24V ABS/EBS socket. The converter is mounted in a stainless steel rack and is ready for use. Preferential for trailer side mounting. Connection with the truck by the use of a 12V plug-plug-cable. The 24V trailer plug will be plugged into the converter. The contacts 6 and 7 ("CAN-Bus") are unequipped.
▪ IN: 12V ... 24V / OUT: 24V
▪ Input: 12V socket
▪ Output: 24V socket
- input voltage 12V and 24V
- high power for additional functions like EBS and level control
- compact size by high efficiency
- unit ready for use, fast to mount on the (drawbar) trailer
- electronic protection against reverse polarity without short circuit
- protection against overload
- reverse voltage proof independent from polarity
- Up to 40km/h, the cable KN-ABSFT for the input is also legal (follow regulations)
| Input\n voltage: |
9 ... 33V DC both lines |
| Output voltage: |
27V +-5% (27 ... 32V if input above 27V) |
| Output current line (term.\n 30): |
0 ... 10A (15A /20% on time cycle) |
| Output current line (term.\n 15): |
0 ... 500mA |
| Connection input: |
ABS / EBS socket 12V ISO'7638 |
| Connection output: |
ABS / EBS socket 24V ISO'7638 |
| Cable length input: |
_ |
| Cable length output: |
_ |
| Efficiency: |
ca. 80% |
| Mechanical protection: |
entirely sealed and a stainless steel rack |
| Dimensions: |
300 x 150 x 87mm + socket 45mm |
| Mass: |
app. 3300g |
