Description

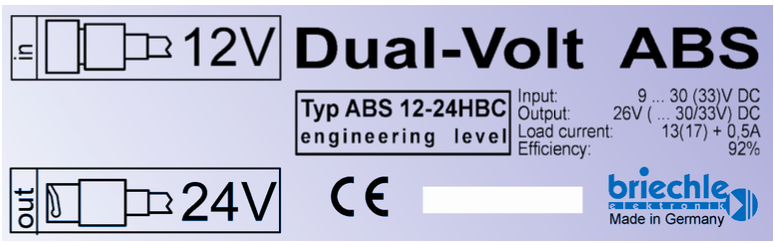

Converter Dual-Volt ABS, Type: ABS 12-24HBC

Voltage converter for generation of standard 24 volt voltages for a 24 volt ABS device from a 12 volt or 24 volt towing vehicle. The converter is designed for inserting in the bayonet connection of the ABS supply cable. The pins 6 and 7 for data transfer are connected through but are not converted. The converter is also suitable for clocked magnetic valve (Multivolt or similar).

The converter must be mounted in a suitable place. The converter is water proof but look for a place with few water exposure. De-icing salt may cause case corrosion.

The cables must be installed carefully to avoid damages in normal operation

Technical data:

Input voltage: 9...30 (33)V DC

Output voltage: 27V +-5% (27 ... 32V if input above 27V)

Output current line Kl 15: 0...500mA

Output current line Kl 30: 0 ... 15A (20A /20% on time cycle)

Dimensions: 200 x 70 x 25mm without cable outlet

Protection: waterproof IP 65 (casted)

Specifications

• Manuafacturer: Briechle Elektronik
• Condition: New
