Description

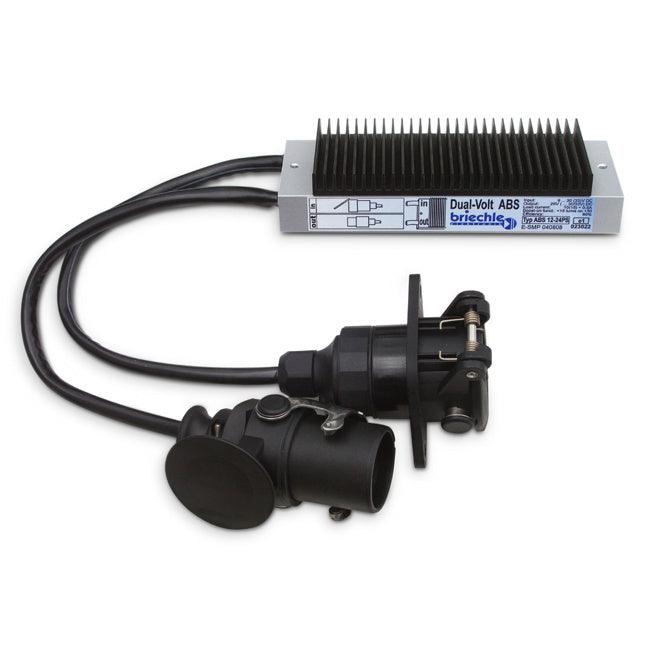

Special converter for the supply of a 24V anti-lock system ABS/EBS out of 12V or 24V. The converter input is equipped with a 12V ABS/EBS socket and the output with a 24V ABS/EBS plug.
Normal use case: Trailer side mounting. The contacts 6 and 7 ("CAN-Bus") are unequipped.
▪ IN: 12V ... 24V / OUT: 24V
▪ Input: 12V socket
▪ Output: 24V plug
Weight: 1.85 kg
Input voltage 12V and 24V
- high power for additional functions like EBS and level control
- simply plug in on the (semi) trailer side
- electronic protection against reverse polarity without short circuit
- protection against overload
- reverse voltage proof independent from polarity
- high efficiency
- Up to 40km/h the cable KN-ABSFT for the input is also legal (follow regulations)
| Input\n voltage: |
9 ... 33V DC both lines |
| Output voltage: |
27V +-5% (27 ... 32V if input above 27V) |
| Output current line (term.\n 30): |
0 ... 10A (15A /20% on time cycle) |
| Output current line (term.\n 15): |
0 ... 500mA |
| Connection input: |
ABS / EBS socket 12V ISO'7638 |
| Connection output: |
ABS / EBS plug 24V ISO'7638 |
| Cable length input: |
_ |
| Cable length output: |
_ |
| Efficiency: |
app. 80% |
| Electrical protection: |
_ |
| Mechanical protection: |
entirely sealed |
| Dimensions: |
200 x 70 x 40mm without cable outlets |
| Mass: |
app.1850g |
