Description

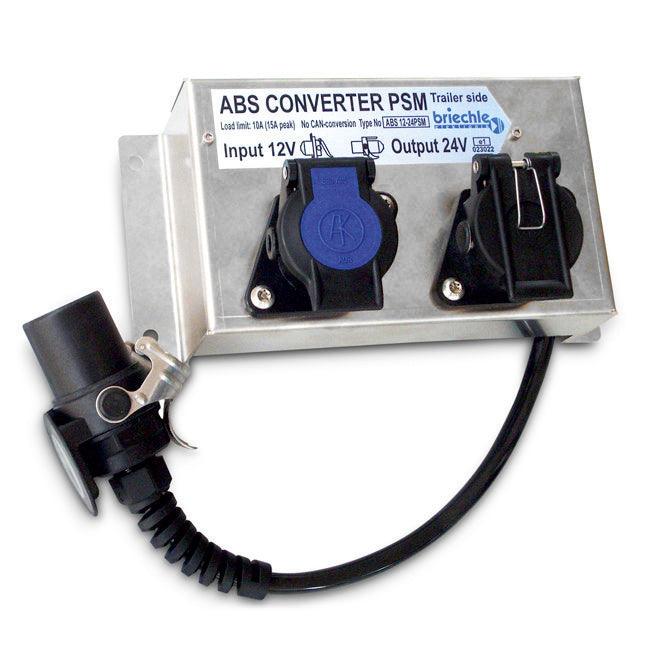

Special converter for the supply of a 24V anti-lock system ABS/EBS out \nof 12V or 24V. The converter input is equipped with a 12V ABS/EBS socket\n and the output with a 24V ABS/EBS plug. The converter is mounted in a \nstainless steel rack with a parking socket and is ready for use.
Normal case: trailer side mounting. The contacts 6 and 7 ("CAN-Bus") are unequipped.

▪ IN: 12V ... 24V / OUT: 24V
▪ Input: 12V socket
▪ Output: 24V plug
▪ in stainless steel rack

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Input\n voltage:	9 ... 33V DC both lines
Output voltage:	27V +-5% (27 ... 32V if input above 27V)
Output current line (term.\n 30):	0 ... 10A (15A /20% on time cycle)
Output current line (term.\n 15):	0 ... 500mA
Connection input:	ABS / EBS socket 12V ISO'7638
Connection output:	ABS / EBS plug 24V ISO'7638
Cable length input:	_
Cable length output:	_
Efficiency:	app. 80%
Electrical protection:	_
Mechanical protection:	entirely sealed and a stainless steel rack
Dimensions:	300 x 150 x 87mm + socket 45mm
Mass:	app. 3300g

Specifications

• Manuafacturer: Briechle Elektronik
• Condition: New
