Description

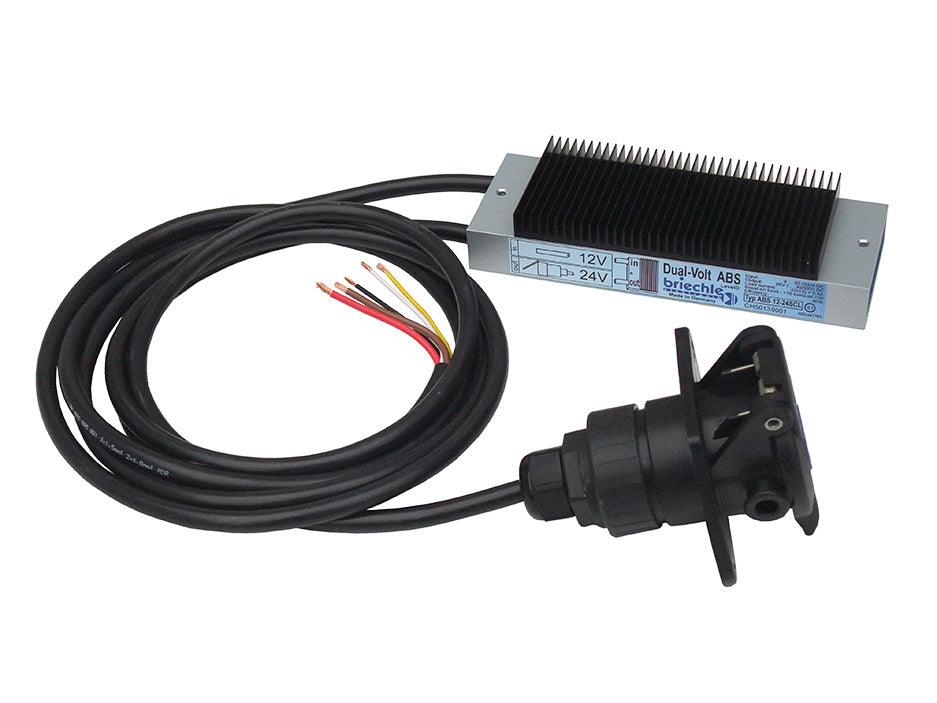

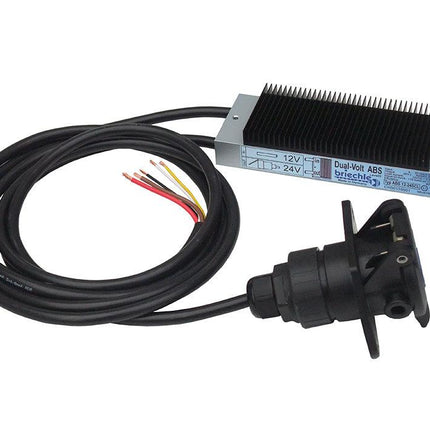

Special converter for the supply of a 24V anti-lock system ABS/EBS out of 12V or 24V.
\n The converter input is equipped with bare sheathed cable ending and the\n output with a 24V ABS/EBS socket. Normal case: farming tractor from the distribution box. The contacts 6 and 7 ("CAN-Bus") are unequipped.

▪ IN: 12V ... 24V / OUT: 24V
▪ Input: bare cable
▪ Output: 24V socket

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Input\n voltage:	9 ... 33V DC both lines
Output voltage:	27V +-5% (27 ... 32V if input above 27V)
Output current line (term.\n 30):	0 ... 10A (15A /20% on time cycle)
Output current line (term.\n 15):	0 ... 500mA
Connection input:	bare sheathed cable
Connection output:	ABS / EBS socket 24V ISO'7638
Cable length input:	app. 3000mm
Cable length output:	app. 500mm
Efficiency:	app. 80%
Electrical protection:	_
Mechanical protection:	entirely sealed
Dimensions:	200 x 70 x 40mm without cable outlet
Mass:	app. 1900g

Specifications

• Manuafacturer: Briechle Elektronik
• Condition: New
