Description

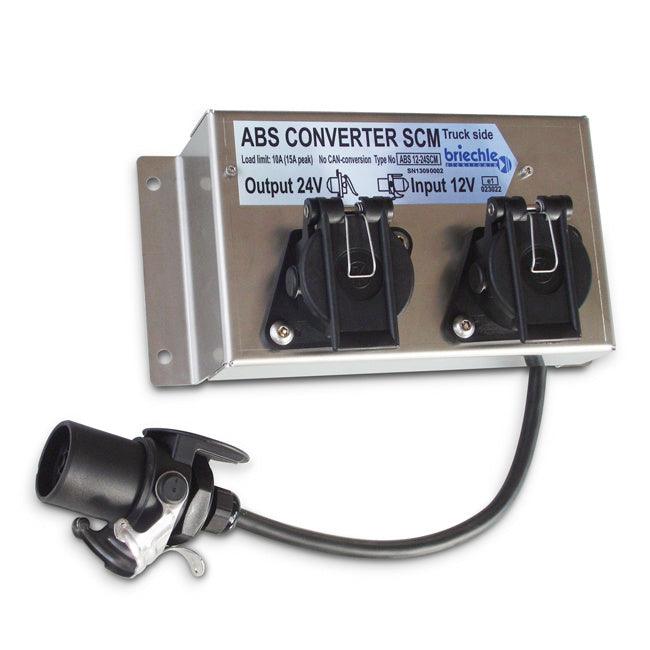

Special converter for the supply of a 24V anti-lock system ABS/EBS out \nof 12V or 24V. The converter input is equipped with a 12V ABS/EBS plug \nand the output with a 24V ABS/EBS socket. The converter is mounted in a \nstainless steel rack with a parking socket and is ready for use. Normal case: truck side mounting. The contacts 6 and 7 ("CAN-Bus") are unequipped.
▪ IN: 12V ... 24V / OUT: 24V
▪ Input: 12V plug
▪ Output: 24V socket
▪ in stainless steel rack
Weight: 3.3 kg
- input voltage 12V and 24V
- high power for additional functions like EBS and level control
- unit ready for use with parking socket, fast to mount on the truck side
- electronic protection against reverse polarity without short circuit
- protection against overload
- reverse voltage proof independent from polarity
- high efficiency
| Input\n voltage: |
9 ... 33V DC both lines |
| Output voltage: |
27V +-5% (27 ... 32V if input above 27V) |
| Output current line (term.\n 30): |
0 ... 10A (15A /20% on time cycle) |
| Output current line (term.\n 15): |
0 ... 500mA |
| Connection input: |
ABS / EBS plug 12V ISO'7638 |
| Connection output: |
ABS / EBS socket 24V ISO'7638 |
| Cable length input: |
app. 370mm |
| Cable length output: |
_ |
| Efficiency: |
ca. 80% |
| Mechanical protection: |
entirely sealed and stainless steel rack |
| Dimensions: |
300 x 150 x 87mm + socket 45mm |
| Mass: |
app. 3300g |
