Description

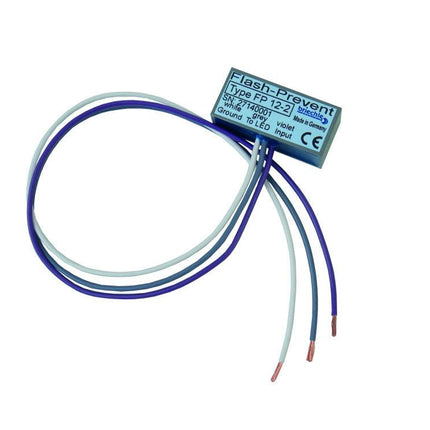

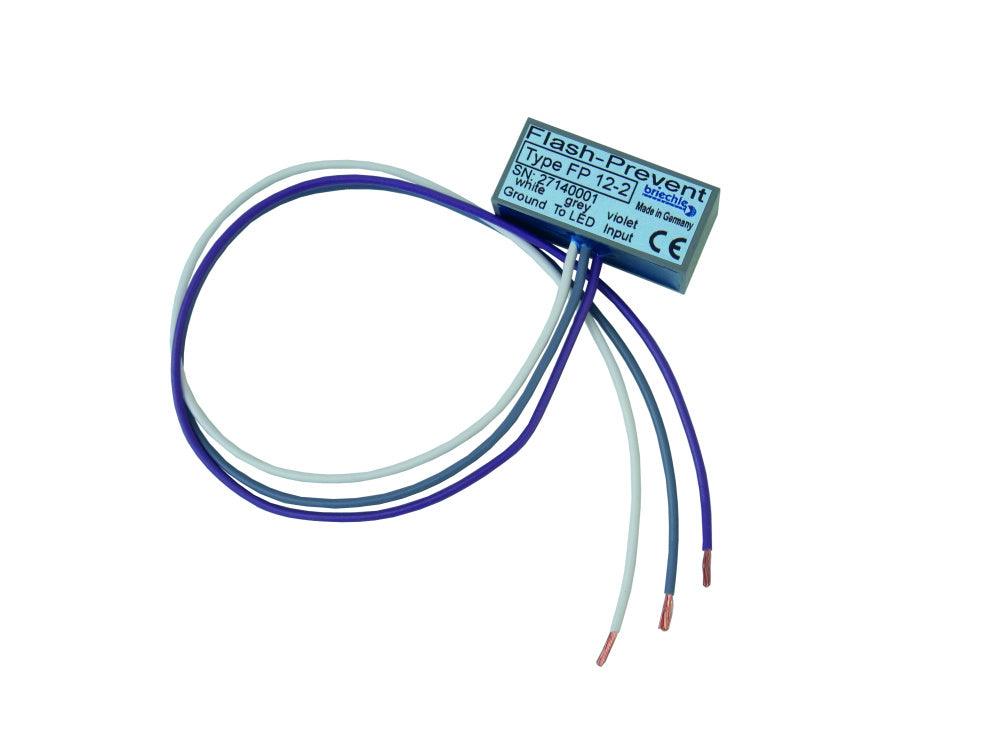

The Flash-Prevent prevents effectively the inadmissible flashing of LED lamps caused by the vehicle's pulsed cold scan ("hard" and short pulse
ab. 10ms). The failure of an LED will be monitored.

Attention! Flash-Prevent doesn't replace LED-ADAPTER.

▪ Prevents flashing of LED lamps
▪ LED failure detection stays in function
▪ Easy installation ahead of to the LED
▪ possible to install inside the lamp housing

\n \n\n \n

• Effectively prevents flashing of LED lamps

• The failure detection stays in function

• Easy installation due to compact dimensions

• Easy installation ahead of to the LED lamps

• Completes LED-ADAPT in combined monitoring

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Operation\n voltage:	12V nominal
Output current:	LED (max 0.4A)
Connection input:	strand with bare endings
Connection output:	strand with bare endings
Load imitation:	within 0-50ms cold filament
Cable length input:	0.30 m
Cable length output:	0.30 m
Temperature range:	-40...+75°C
Electrical protection:	__
Mechanical protection:	entirely sealed (IP69K)
Dimensions:	40 x 18 x 15 mm without cable outlet
Mass:	approx. 27g
Failure monitor LEDs:	integrated
Mounting rule:	__

Specifications

• Manuafacturer: Briechle Elektronik
• Condition: New
