Description

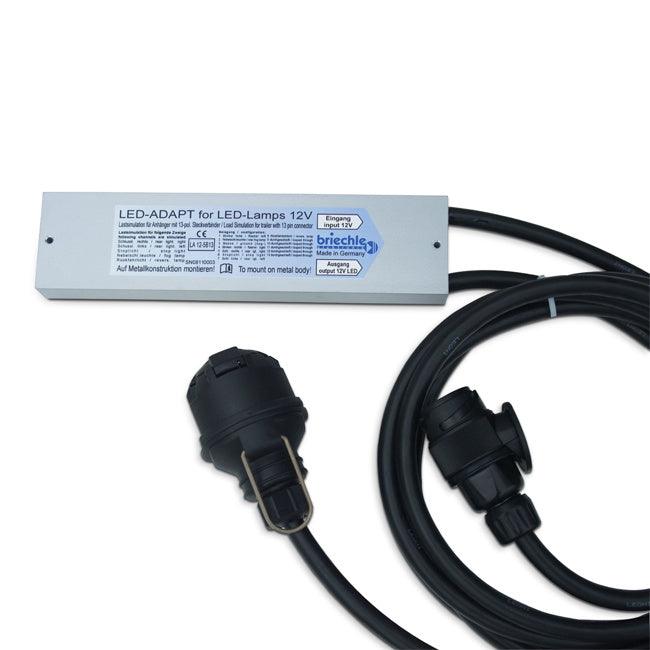

12 Volt resistor replacement load for the adaptation of light-emitting \ndiode (LED) trailer lamps at vehicles with incandescent lamp monitoring.\n The direction indicator lamps and the contacts 9 to 13 are looped. \nLED-ADAPT must be mounted on a metal surface. Important: The direction \nindicators must be incandescent lamps or LEDs with their own monitoring. Other\n lines may have additional load of 10W maximum, in this case monitoring \nis disabled.

▪ Operating voltage: 12V
▪ Input: 12V 13-pol plug
▪ Output: 12V 13-pol socket

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Operation\n voltage:	12V nominal
Output current:	0.8A (Over current protection time delay 1...2000s !)
Connection input:	Male connector 13-pin 12V ISO'11446
Connection output:	Female socket with flap cover 13 pin 12V ISO'11446
Load imitation:	2x4W (rear lamps), 1x34W (stoplight) 1x17W (fog lamp), 1x17W\n (reversing lamp)
Cable length input:	app. 3300mm
Cable length output:	app. 600mm
Temperature range:	-40...+75°C
Electrical protection:	Overcurrent, overtemperature, reverse polarity
Mechanical protection:	entirely sealed
Dimensions:	280 x 70 x 25mm without cable outlet
Mass:	app. 2850g
Failure monitor LEDs:	3mA (rear lamp) 8mA (stoplight) 8mA (fog lamp) 20mA\n (reversing lamp)
Mounting rule:	cooling plate 8dm² (aluminum\n sheet 1.5mm thickness) or on chassis frame, lamp configuration only 2 x\n incandescent lamps + 5xLED(+0...10W)

Specifications

• Manuafacturer: Briechle Elektronik
• Condition: New
