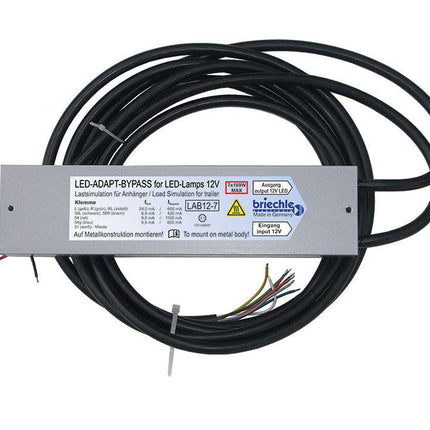

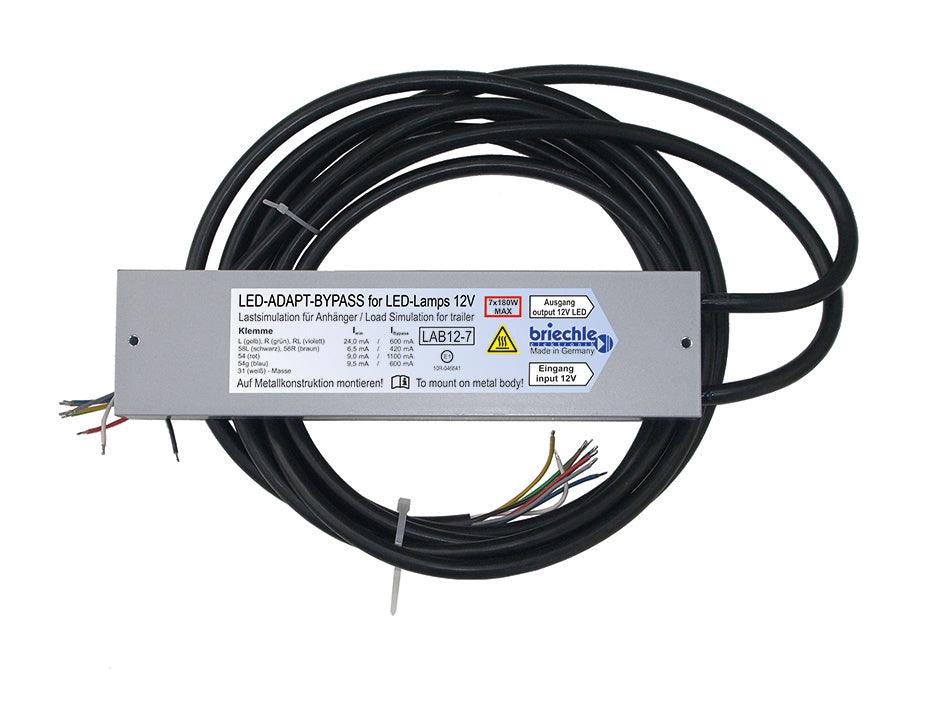

Briechle LED ADAPTER (BYPASS) LAB 12-7

Briechle LED ADAPTER (BYPASS) LAB 12-7

Product form

MPN: 11223 - LED ADAPTER (BYPASS) LAB 12-7 12 Volt resistor replacement load for the adaptation of light-emitting diode (LED)... Read more

€311,40  €274,03 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP
    • 30 days hassle-free returns
    Flexible payments

    Easily pay with multiple payment options.
    Read more

    Description

    MPN: 11223 - LED ADAPTER (BYPASS) LAB 12-7

    12 Volt resistor replacement load for the adaptation of light-emitting diode (LED) trailer lamps at vehicles with incandescent lamp monitoring. The failure of a LED unit is indicated and the replacement load is turned off. To cool the system a metal surface is needed. The Bypass-function enables subsequent mounting of bulbs up to 95W.

    11223 LED ADAPTER operating data:

    ▪ Operating voltage: 12V
    ▪ Input: open cable end
    ▪ Output: open cable end

    Weight: 1.68 kg

    Simply connect ahead of LED lamps
    • LED-failure is indicated
    • The input will be connected to the output in a bulb connection
    • Serves all lines with replacement resistors
    • Short circuit proof
    • Input cable 3,5m can be connected directly to the plug
    Operation\n voltage: 12V nominal
    Output current: max. 8A each line (bypass on)
    Connection input: Sheathed cable 7x1+1x2,5mm², bare endings
    Connection output: Sheathed cable 7x1+1x2,5mm², bare endings
    Load imitation: 2x17 W (direction), 2x4W (rear lamp), 1x34W (stoplight) 1x17W\n (fog lamp), 1x17W (reversing lamp)
    Cable length input: app. 3,5m
    Cable length output: app. 1,2m
    Temperature range: -40...+75°C
    Electrical protection: Overcurrent, overtemperature, reverse polarity
    Mechanical protection: entirely sealed (IP69K)
    Dimensions: 280 x 70 x 25mm
    Mass: app. 1680g
    Failure monitor LEDs: 24mA (direction), 860mA bypass,\n 6,5mA (rear lamps), 600mA bypass, 9mA (stoplight), 1510mA bypass, 9,5mA\n (rear fog lamp), 860mA bypass, 24mA (reversing light), 860mA bypass
    Mounting rule: cooling plate 8dm² (aluminum sheet 1.5mm thickness) or on\n chassis frame


    Specifications

    • Manuafacturer: Briechle Elektronik
    • Condition: New
