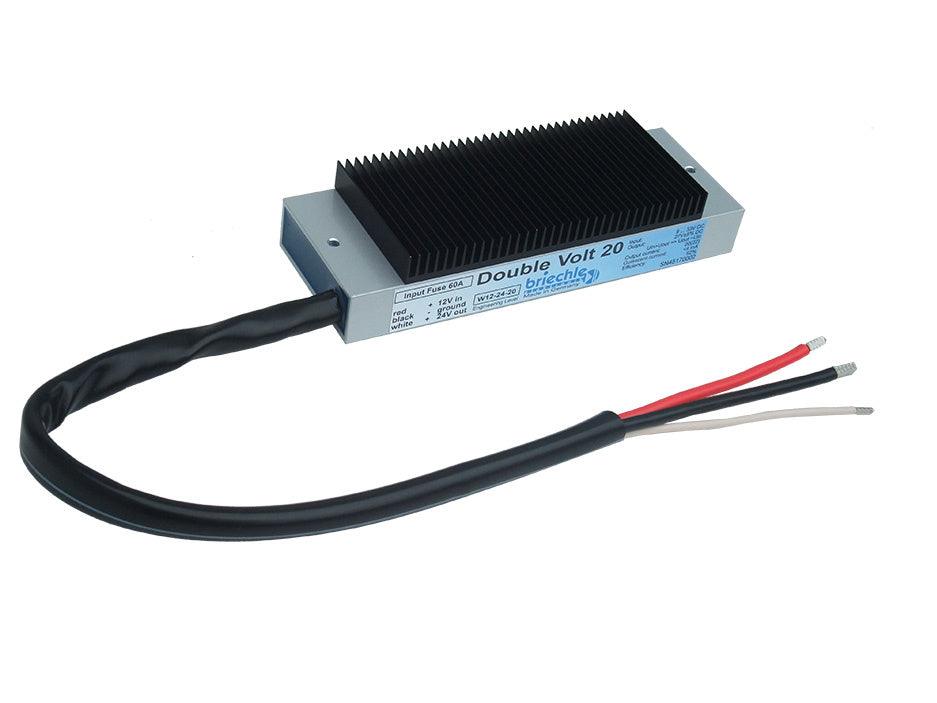

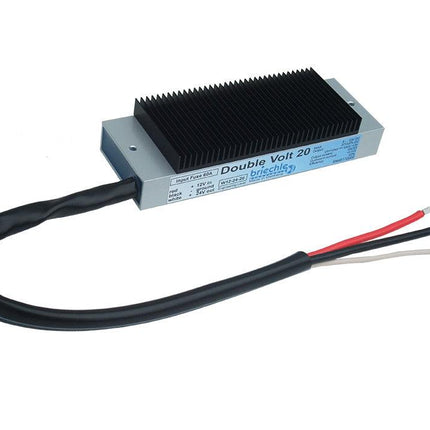

Name: Briechle STEP UP CONVERTER DOUBLE VOLT 20 DOUBLE VOLT 20 W 12-24-20
Brand: Briechle Elektronik
SKU: 130-11150
Price: 337.72 EUR

Briechle STEP UP CONVERTER DOUBLE VOLT 20 DOUBLE VOLT 20 W 12-24-20

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Briechle STEP UP CONVERTER DOUBLE VOLT 20 DOUBLE VOLT 20 W 12-24-20

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Step-up converter of a higher power for 24V devices at 12V car line. ▪ IN: 12V ... 24V / OUT: 24V▪... Read more

€383,78 €337,72 Excl. VAT

Guaranteed secure & safe checkout.

Shipped today? Order within: Jun 05, 2026 12:00:00 +0300

Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP

30 days hassle-free returns

Flexible payments

Easily pay with multiple payment options.
Read more

Description

Step-up converter of a higher power for 24V devices at 12V car line.

▪ IN: 12V ... 24V / OUT: 24V
▪ Connection: open cable end
▪ 20(22)A

Weight: 1.1 kg

Converts input voltage from 12V to constant 27V

electronic protection against reverse polarity and misconnection without short circuit impact
suitable for 24V voltage boosting (wide range input)
protection against overload
reverse voltage proof independent from polarity

Input\n voltage:	10 ... 33V DC
Input current:	max. 60A (12V)
Output voltage:	27V DC +-5% (27 ... 32V if input\n above 27V)
Output current:	0 ... 20A (22A /20% on-time circle))
Connection:	the connection cable is sealed in\n the device, open ending
Cable length:	app. 550mm
Current without load:	<4mA (12V)
Efficiency:	app. 92%
Temperature range:	-40°C ... +75°C
Electrical protection:	overtemperature, overcurrent, reverse polarity
Mechanical protection:	entirely sealed (IP69K)
Dimensions:	200 x 70 x 40mm without cable outlet
Mass:	app. 1100g

Specifications

Manuafacturer: Briechle Elektronik
Condition: New
