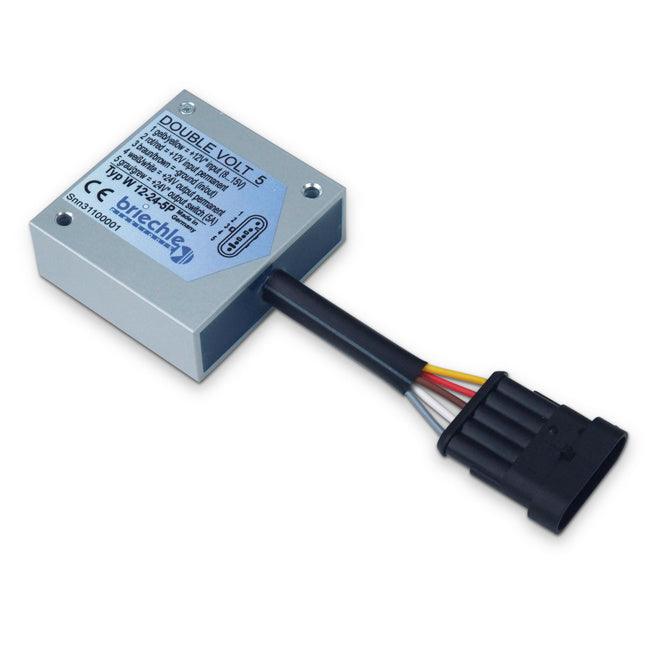

Name: Briechle STEP UP CONVERTER DOUBLE VOLT 5P W 12-24-5P
Brand: Briechle Elektronik
SKU: 130-11043
Price: 148.13 EUR

Briechle STEP UP CONVERTER DOUBLE VOLT 5P W 12-24-5P

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Briechle STEP UP CONVERTER DOUBLE VOLT 5P W 12-24-5P

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Step-up voltage converter with medium power from 12V until 24V (wide \nrange) to 24V car line. For the simultaneous supply... Read more

€168,33 €148,13 Excl. VAT

Guaranteed secure & safe checkout.

Shipped today? Order within: Jun 05, 2026 12:00:00 +0300

Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP

30 days hassle-free returns

Flexible payments

Easily pay with multiple payment options.
Read more

Description

Step-up voltage converter with medium power from 12V until 24V (wide \nrange) to 24V car line. For the simultaneous supply of permanent \npositive and ignition positive. The total current can be shared in any \nrelation between both outputs.

▪ IN: 12V ... 24V / OUT: 24V
▪ Connection: 5-pol plug
▪ 5A Permanent positive and ignition positive

\n\n \n

\n \n Weight: 0.022 kg\n \n

\n

Converts the input voltage of 12V until 24V (wide range) to 26V constant
Converts permanent positive (clmp 30) and switched positive (clmp 15)
Active reverse polarity protection, the fuse is not blown
Case and connector waterproof
Overload protection by electronic fuse
Very low quiescent current (self consumption) of 0.7mA only, no creeping dircharge of the battery

\n

\n \n \n \n\n \n \n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Input\n voltage:	8 ... 30V DC
Input current:	11A at 13,0V (18A at 8,0V) at output current 5A
Output voltage:	26V DC +-5%
Output current:	5A permanent, 8A peak
Connection:	Connector Tyco Super Seal 1.5, 5-pol, water protected IP67K
Cable length:	app. 100mm
Current without load:	0.7mA at 12V
Efficiency:	app. 93% at 5A
Temperature range:	-40 ... +75°C, derating T>45°C
Electrical protection:	overcurrent, overtemperature, input transients, polarity
Mechanical protection:	entirely sealed
Dimensions:	70 x 65 x 25mm
Mass:	app. 220g
Technical principle:	ignition positive (clmp 15) switches on the second output

Specifications

Manuafacturer: Briechle Elektronik
Condition: New
