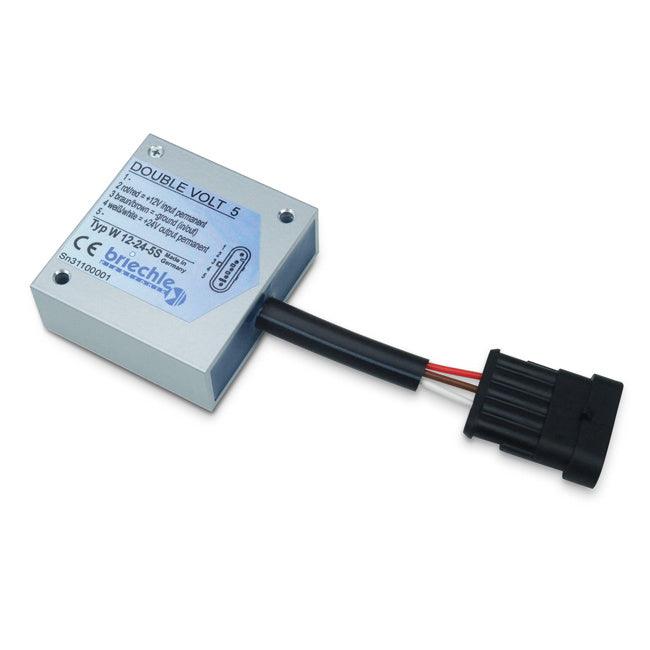

Name: Briechle STEP-UP CONVERTER DOUBLE VOLT 5S W 12-24-5S
Brand: Briechle Elektronik
SKU: 130-11044
Price: 133.31 EUR

Briechle STEP-UP CONVERTER DOUBLE VOLT 5S W 12-24-5S

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Briechle STEP-UP CONVERTER DOUBLE VOLT 5S W 12-24-5S

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Step-up voltage converter with medium power from 12V until 24V (wide range) to 24V car line.▪ IN: 12V ... 24V /... Read more

€151,49 €133,31 Excl. VAT

Guaranteed secure & safe checkout.

Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP

30 days hassle-free returns

Flexible payments

Easily pay with multiple payment options.
Read more

Description

Step-up voltage converter with medium power from 12V until 24V (wide range) to 24V car line.

▪ IN: 12V ... 24V / OUT: 24V
▪ Connection: 5-pol plug
▪ 5A Permanent positive

\n\n \n

\n \n Weight: 0.22 kg\n \n

\n

Converts the input voltage of 12V until 24V (wide range) to 26V constant
Active reverse polarity protection, the fuse is not blown
Case and connector waterproof
Overload protection by electronic fuse
Very low quiescent current (self-consumption) of 0.7mA only, no creeping discharge of the battery

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Input\n voltage:	8 ... 30V DC
Input current:	11A at 13,0V (18A at 8,0V) at output current 5A
Output voltage:	26V DC +-5%
Output current:	5A permanent, 8A peak
Connection:	Connector Tyco Super Seal 1.5, 5-pol / 3 allocated, water\n protected IP67K
Cable length:	app. 100mm
Current without load:	0.7mA at 12V
Efficiency:	app. 93% at 5A
Temperature range:	-40 ... +75°C, derating T>45°C
Electrical protection:	overcurrent, overtemperature, input transients, polarity
Mechanical protection:	entirely sealed
Dimensions:	70 x 65 x 25mm without cable outlet
Mass:	app. 220g

Specifications

Manuafacturer: Briechle Elektronik
Condition: New
