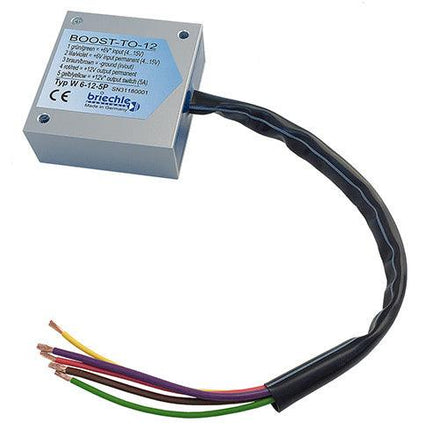

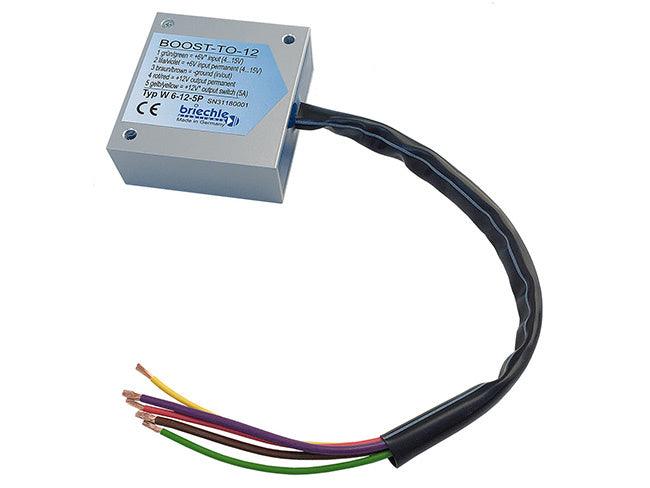

Briechle STEP-UP VOLTAGE CONVERTER BOOST-TO-12 5 W 6-12-5P

Briechle STEP-UP VOLTAGE CONVERTER BOOST-TO-12 5 W 6-12-5P

Product form

Step-up voltage converter with medium power from 6V until 12V (wide \nrange) to 12V car line. For the simultaneous supply... Read more

€168,33  €148,13 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: May 17, 2026 12:00:00 +0300
    • Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP
    • 30 days hassle-free returns
    Flexible payments

    Easily pay with multiple payment options.
    Read more

    Description

    Step-up voltage converter with medium power from 6V until 12V (wide \nrange) to 12V car line. For the simultaneous supply of permanent \npositive and ignition positive. The total current can be shared in any relation between both outputs.

    ▪ IN: 6V ... 12V / OUT: 24V
    ▪ Connection: open cable end
    ▪ 5A Permanent positive and ignition positive

    Weight: 0.022 kg
    Converts the input voltage of 6V until 12V (wide range) to 13V constant
    • Converts permanent positive (clamp 30) and switched positive (clamp 15)
    • Active reverse polarity protection, the fuse is not blown
    • Case waterproof
    • Overload protection by electronic fuse
    • Very low quiescent current (self-consumption) of 0.7mA only, no creeping discharge of the battery

    Technical specifications:

    Input\n voltage: 4 ... 15V DC
    Input current: 11A at 6,0V at output current 5A
    Output voltage: 13V DC +-5%
    Output current: 5A permanent, 7A peak
    Connection: the connection cable is sealed in the device, open ending
    Cable length: about 200mm
    Current without load: 0.7mA at 6V
    Efficiency: about 93% at 5A
    Temperature range: -40 ... +75°C
    Electrical protection: overcurrent, overtemperature, reverse polarity
    Mechanical protection: entirely sealed (IP69K)
    Dimensions: 70 x 65 x 25mm
    Mass: about 220g
    Technical principle: ignition plus (term 15) connects the second output


    Specifications

    • Manuafacturer: Briechle Elektronik
    • Condition: New
