Description

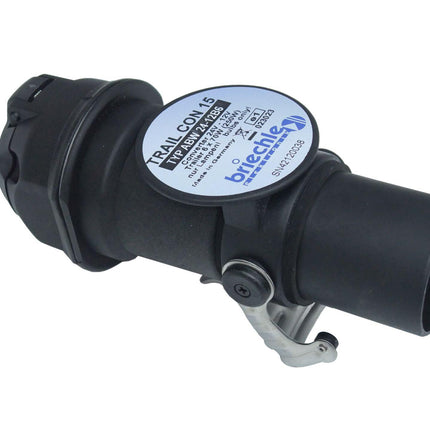

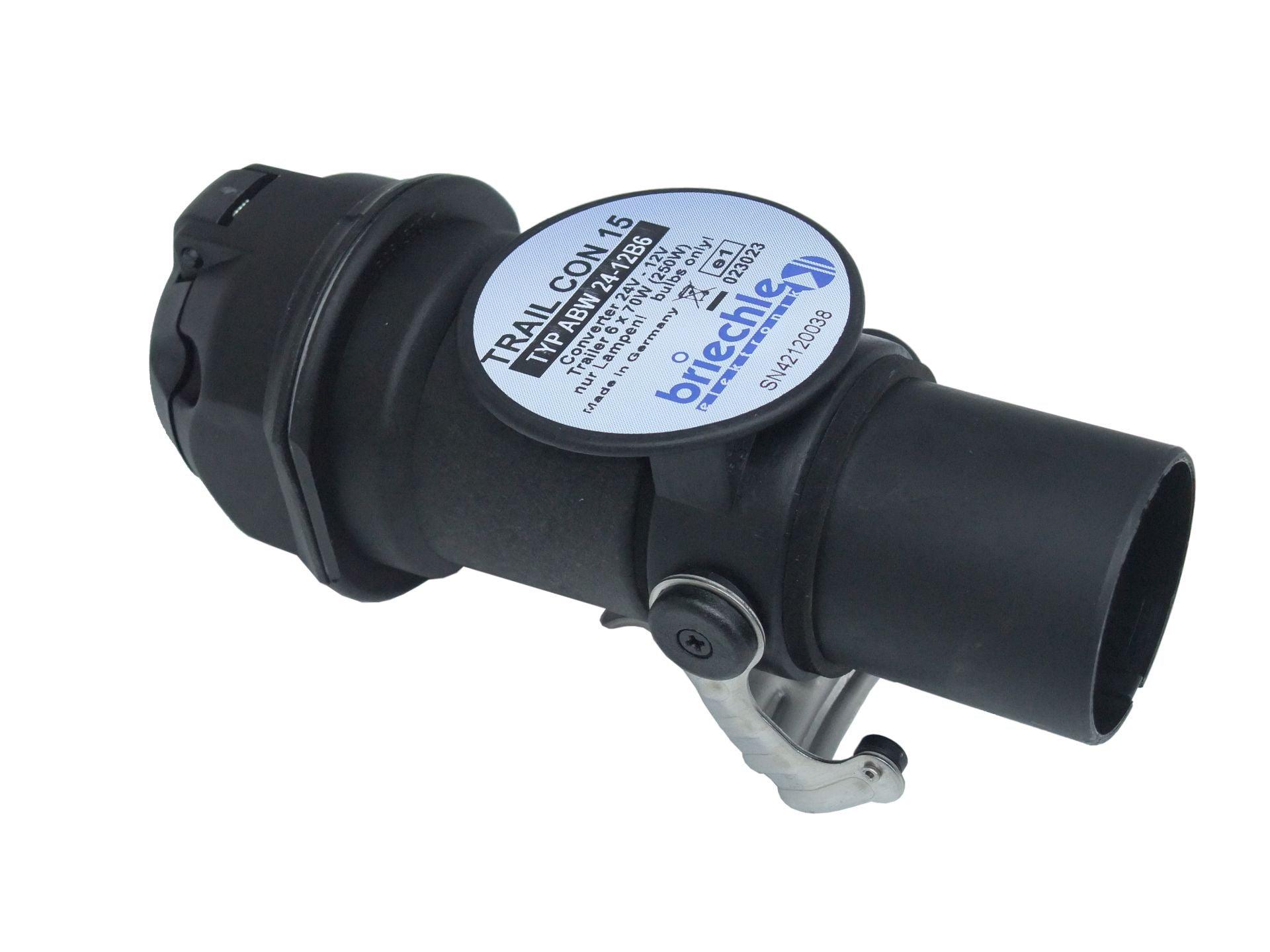

Converter to supply a 12V trailer from a 24V vehicle system as short \nadapter 15 pin to 7 pin, the reversing lights are not connected. \nIncandescent lamps and suitable RMS compatible LEDs can be operated. \nPlease ask the LED lamp manufacturer for RMS compatibility. For further \ndetails please see our handout “LED lamps in RMS operation”.

▪ IN: 24V / OUT: 12V
▪ Input: 24V plug with 15 contacts
▪ Output: 12V socket with 7 contacts

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Input\n voltage:	24V DC nominal (18 ... 33V)
Output voltage:	RMS power equation for 12V (9 ... 15.5V)
Output power:	6 x 70W total max 250W lamp power
Connection input:	plug with clamp 15 contacts 24V ISO'4091
Connection output:	flanged socket with flap cover 7 contacts 12V DIN72577
Cable length input:	_
Cable length output:	_
Current without load:	0mA at the open output (no current)
Efficiency:	app. 97%
Temperature range:	-40 ... +75°C
Electrical protection:	overload current (self-resetting) overtemperature\n (self-resetting)
Mechanical protection:	overload current (self-resetting) overtemperature\n (self-resetting)
Mechanical protection:	electronic sealed
Dimensions:	D x L approx. 75mm x 200mm with closed cover
Mass:	app. 500g
Attention:	for bulbs and RMS - LEDs only!

Specifications

• Manuafacturer: Briechle Elektronik
• Condition: New
