Description

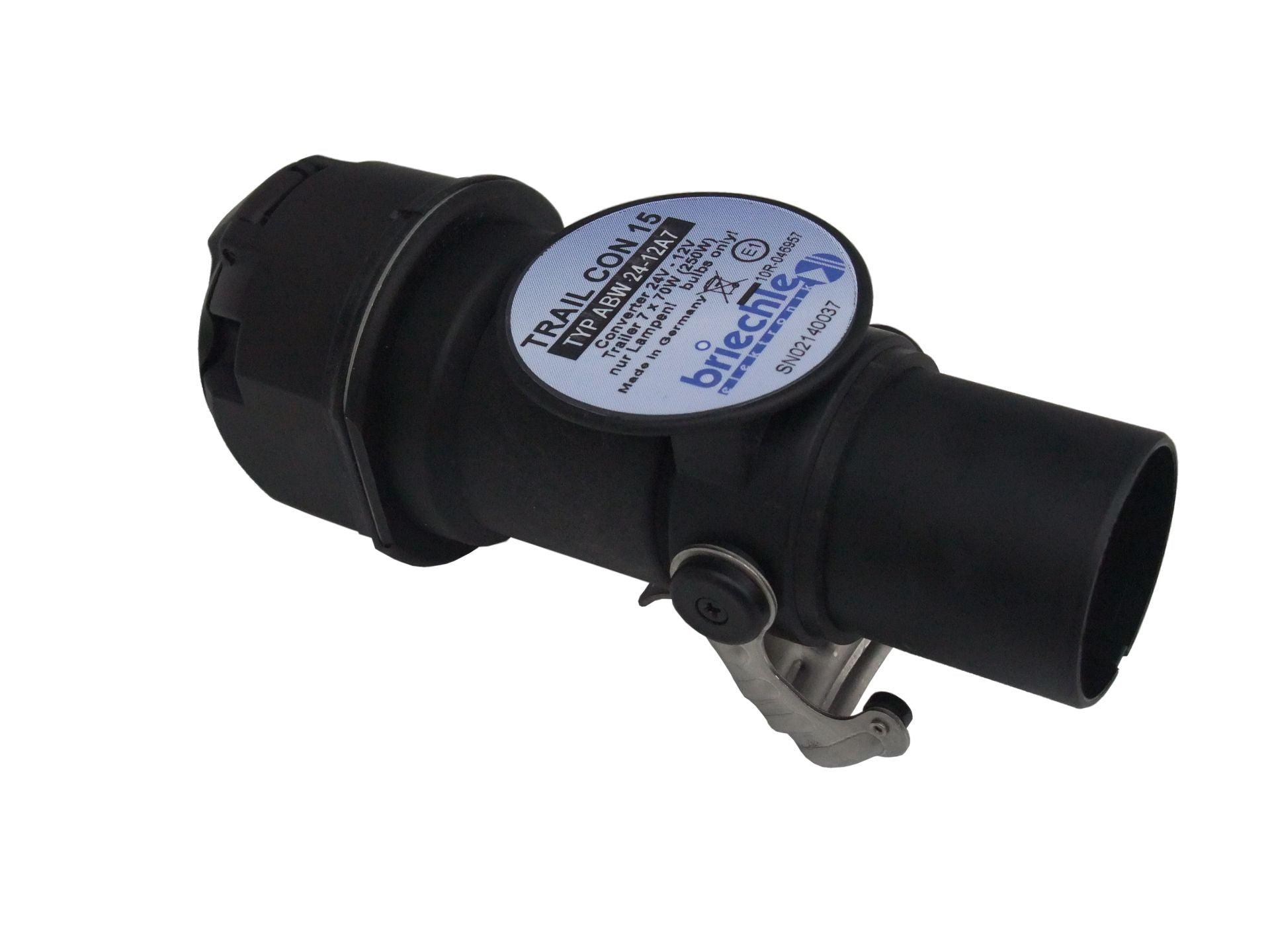

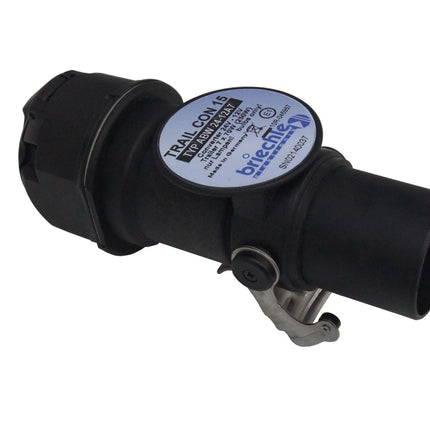

Converter to supply a 12V trailer from a 24V vehicle system as short \nadapter 15 pin to 13 pin, including reversing lamp. Incandescent lamps \nand suitable RMS compatible LEDs can be operated. Please ask the LED \nlamp manufacturer for RMS compatibility. For further details please see \nour handout “LED lamps in RMS operation”.

▪ IN: 24V / OUT: 12V
▪ Input: 24V plug with 15 contacts
▪ Output: 12V socket with 13 contacts

Weight: 0.5 kg\n \n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Input\n voltage:	24V DC nominal (18...33V)
Output voltage:	RMS power equation for 12V (9 ... 15.5V)
Output power:	7 x 70W total max 250W lamp power
Connection input:	Plug with clamp 15 contacts 24V ISO'4091
Connection output:	flanged socket with flap cover 13 contacts 12V ISO-11446
Current without load:	0mA when output is open (no current path)
Efficiency:	app. 97%
Temperature range:	-40 ... +75°C
Electrical protection:	over current (auto reset), over temperature (auto reset)
Mechanical protection:	electronic sealed
Dimensions:	D x L ca 75mm x 200mm with closed cover
Mass:	app. 500g
Restrictions:	the control lamp of ancient mechanical flashing units is not\n indicating. Use ABW 24-12-7H
Attention:	for bulbs and RMS - LEDs only!

Specifications

• Manuafacturer: Briechle Elektronik
• Condition: New
