Description

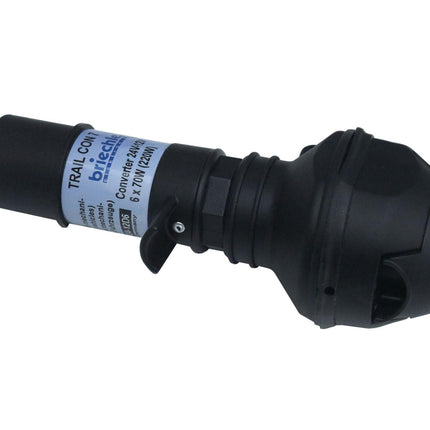

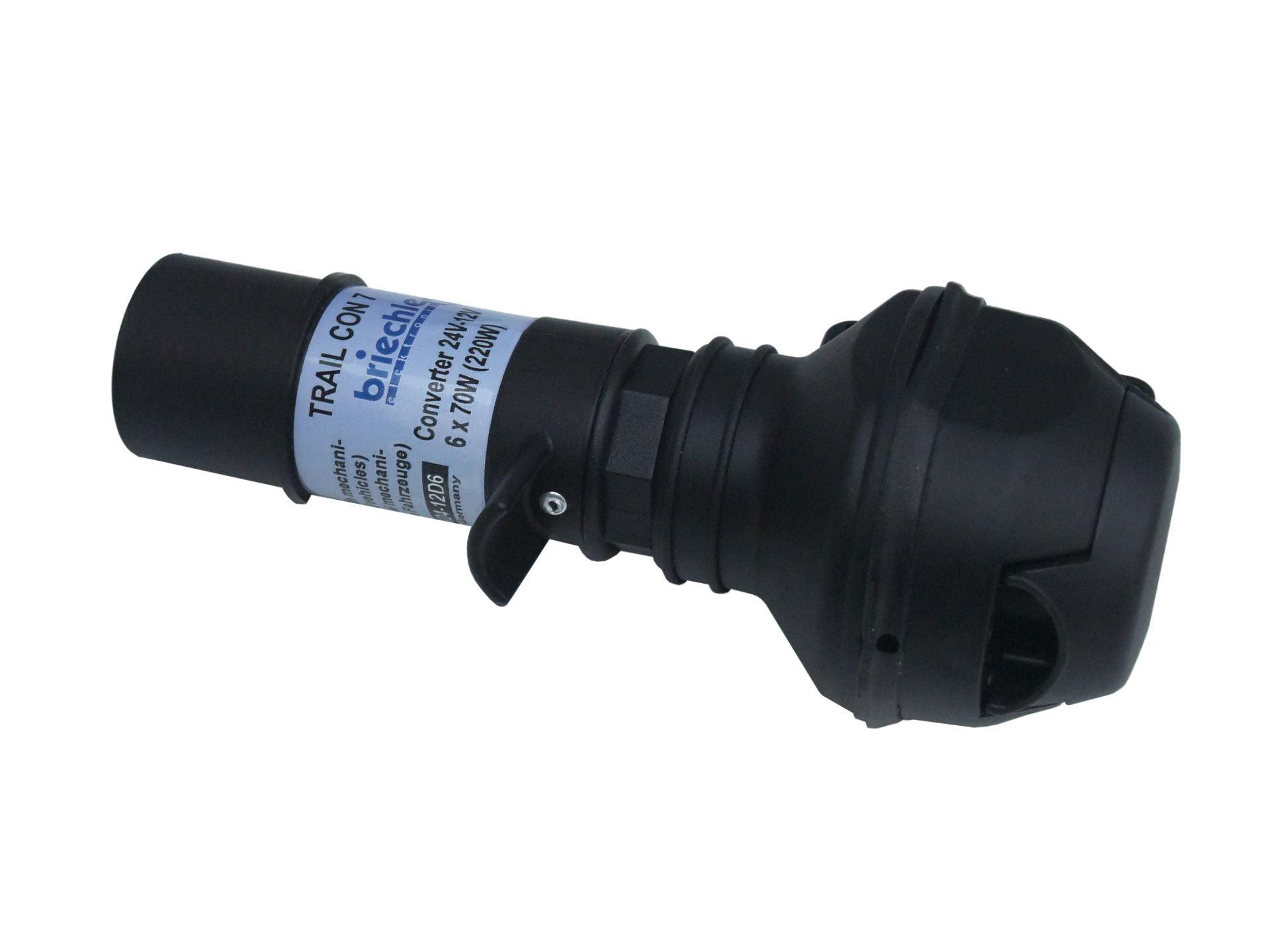

Converter to supply a 12V trailer from a 24V vehicle system as short \nadapter 7 pin to 7 pin. Incandescent lamps and suitable RMS compatible \nLEDs can be operated. Please ask the LED lamp manufacturer for RMS \ncompatibility. For further details please see our handout “LED lamps in \nRMS operation”.

▪ IN: 24V / OUT: 12V
▪ Input: 24V plug with 7 contacts
▪ Ausgang: 12V socket with 7 contacts

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Input\n voltage:	24V DC nominal (18 ... 33V)
Output voltage:	RMS power equation for 12V (9 ... 15.5V)
Output power:	6 x 70W total max 220W lamp power
Connection input:	Plug with clamp 7 contacts 24V ISO'1185
Connection output:	flanged socket with flap cover 7 contacts 12V ISO'1724
Cable length input:	_
Cable length output:	_
Current without load:	0mA at the open output (no current)
Efficiency:	app. 97%
Temperature range:	-40 ... +75°C
Electrical protection:	overcurrent (auto reset), over temperature (auto reset)
Mechanical protection:	overload current (self-resetting) overtemperature\n (self-resetting)
Mechanical protection:	electronic sealed
Dimensions:	D x L ca 75mm x 190mm with closed cover
Mass:	app. 320g
Restrictions:	the control lamp of ancient mechanical flashing units is not\n indicating. Use ABW 24-12-6H
Attention:	for bulbs and RMS - LEDs only!

Specifications

• Manuafacturer: Briechle Elektronik
• Condition: New
