Description

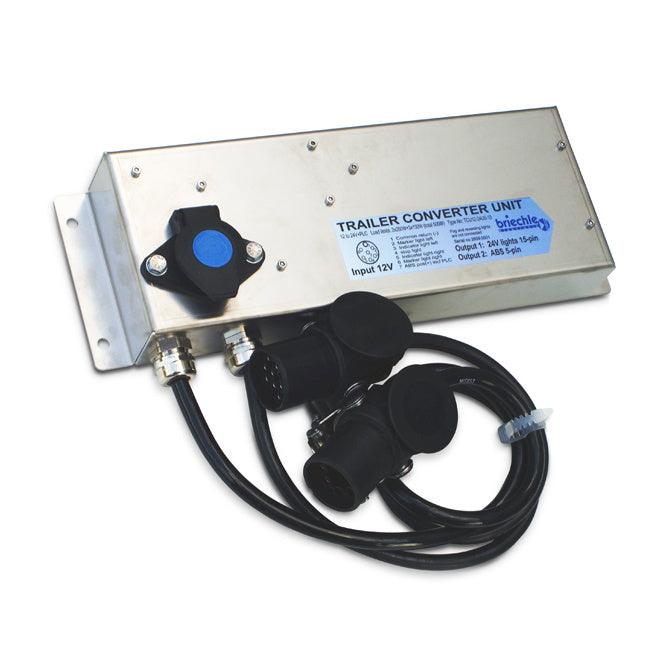

Complete trailer converter system to operate a European trailer with 24Volt at an American or Canadian towing vehicle.
PLC signal conversion for the failure status from the trailer to the truck is implemented.

▪ IN: 12V / OUT: 24V
▪ Input: 12V socket
▪ Output 1: 24V plug
▪ Input 2: 24V ABS/EBS plug

Weight: 6.37 kg

contains all components for "plug and run"
input socket 7 pin "N" Standard is allocated according to NATO-coiled cable for US-Canada trucks
output 1: 15 pin connector 24V for lights
output 2: 7 pin ABS / EBS connector ISO 7638
assembled with our converters ASV 12-24-7H and ABS 12-24
and ABS12-24
stainless steel module rack

Input\n voltage:	9 ... 18V DC
Output voltage:	27V +-5%
Output current	on ABS/EBS plug: 10A / max 15A modulator, 0,5 / max 1A control unit
Output power:	for lights: 2x260W + 3x130W, maximum 500W nominal
Connection input:	socket "7N" ISO'1185, NATO-allocation
Connection output:	plug 15 pin ISO'4091 with ISO light line allocation
Connection output 2:	ABS / EBS plug 24V ISO'7638
Cable length output:	app. 1000mm per output cable
Mechanical protection:	each component entirely sealed
Dimensions:	440 x 144 x 65mm rack without cable outlet and socket
Mass:	app. 6370g

Specifications

Manuafacturer: Briechle Elektronik
Condition: New
