Name: Briechle TRAILER VOLTAGE DOUBLER ASV 12-24-6H
Brand: Briechle Elektronik
SKU: 130-10191
Price: 443.41 EUR

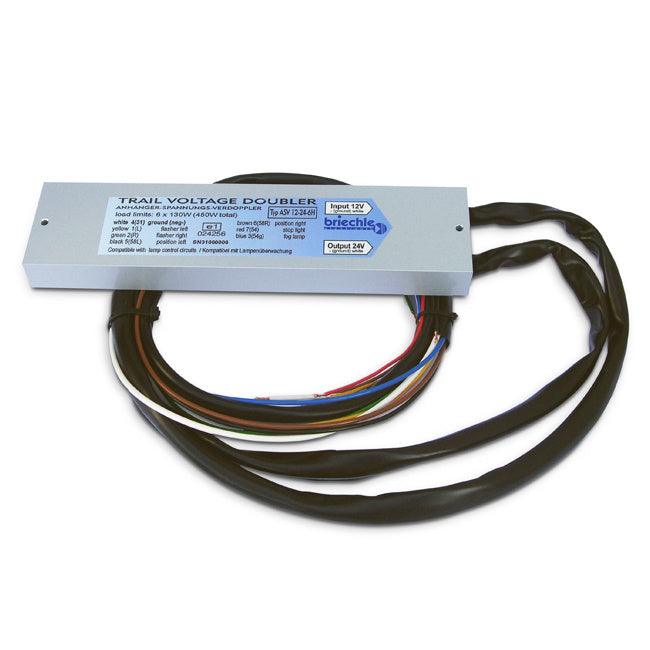

Briechle TRAILER VOLTAGE DOUBLER ASV 12-24-6H

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Briechle TRAILER VOLTAGE DOUBLER ASV 12-24-6H

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

\n Converter for the supply of a 24V trailer from a \n12V or a 24V vehicle line, high-performance, also for... Read more

€499,93 €443,41 Excl. VAT

Guaranteed secure & safe checkout.

Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP

30 days hassle-free returns

Flexible payments

Easily pay with multiple payment options.
Read more

Description

\n

Converter for the supply of a 24V trailer from a \n12V or a 24V vehicle line, high-performance, also for LEDs. For Mercedes\n Sprinter and Volkswagen Crafter the adaption module EC-ASV1 is \nrequired.

\n

Important:
In the case of high loads and long cables on the input \nside the current consumption could increase enormously determined by the\n system. Please contact us, we provide planning aid and adaption \nsolutions.

\n

▪ IN: 12V ... 24V / OUT: 24V
▪ Input: open cable end
▪ Output: open cable end

\n\n \n

\n \n Weight: 1.5 kg\n \n

\n

extremely high performance in a small design
also supplies LEDs
quick and simple to connect:
- at rear lamps of car-like equipment
- parallel to 12V-socket
- instead of 12V-socket
the function of the C2-indicator-lamps of the flasher unit remains active
works well with lamp-control-units
correct function of ABS-info-module
solid casting - waterproof and shockproof
wide range input 12V and 24V

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Input\n voltage:	12V...24V DC nominal (8 ... 30V)
Output voltage:	26V + -5%
Output power:	6 x 130W, total max. 450W
Connection input:	open cable end
Connection output:	open cable end
Cable length input:	app. 100cm
Cable length output:	app. 120cm
Current without load:	0,5mA at open output
Efficiency:	about 92%
Temperature range:	-40 ... +75°C (load derating above 50° about 10W/°C
Electrical protection:	overload current (self-resetting) overtemperature\n (self-resetting)
Mechanical protection:	entirely sealed
Dimensions:	280 x 75 x 25mm without cable outlet
Mass:	about 1,500g
Attention:	for bulbs and LEDs only!
