    Description

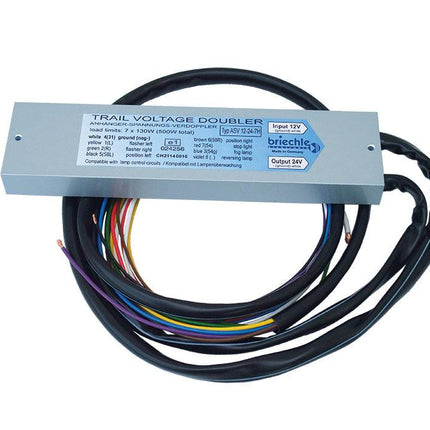

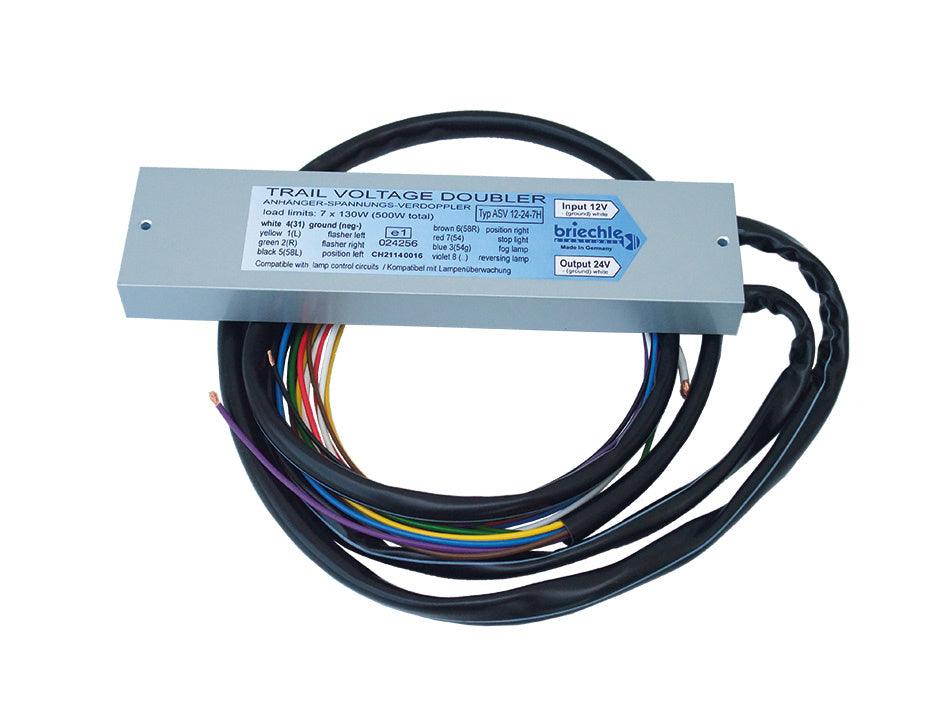

    Converter for the supply of 24V trailers from a 12V or a 24V vehicle line, with reversing lamp, high-performance, also for LEDs. For Mercedes Sprinter and Volkswagen Crafter, the adaption module EC-ASV1 is required.

    Important:
    In case of high loads and long cables on the input side the current consumption could increase enormously determined by the system. Please contact us, we provide planning aid and adaption solutions.

    ▪ IN: 12V ... 24V / OUT: 24V
    ▪ Input: offenes Kabelende
    ▪ Output: offenes Kabelende
    ▪ with reversing lamp

    Weight: 1.5 kg
    • also supplies LEDs
    • extremely high-performance in a small design
    • quick and simple to connect:
      - at rear lamps of car-like equipment
      - parallel to 12V-socket
      - instead of 12V-socket
    • the function of the C2-indicator-lamps of the flasher unit remains active
    • works well with lamp-control-units
    • correct function of ABS-info-module
    • solid casting - waterproof and shockproof
    • wide range input 12V and 24V
    Input voltage: 12V...24V DC nominal (8 ... 30V)
    Output voltage: 26V + -5%
    Output power: 6 x 130W, total max. 500W
    Connection input: open cable end
    Connection output: open cable end
    Cable length input: app. 100cm
    Cable length output: app. 120cm
    Current without load: 0,5mA at the open output
    Efficiency: about 92%
    Temperature range: -40 ... +75°C (load derating above 50° about 10W/°C
    Electrical protection: overload current (self-resetting) overtemperature (self-resetting)
    Mechanical protection: entirely sealed
    Dimensions: 280 x 75 x 25mm without cable outlet
    Mass: about 1,500g



    Specifications

    • Manuafacturer: Briechle Elektronik
    • Condition: New
