Name: Briechle VOLTAGE CONVERTER SEMI VOLT 10S W 24-12-10S
Brand: Briechle Elektronik
SKU: 130-10185
Price: 103.69 EUR

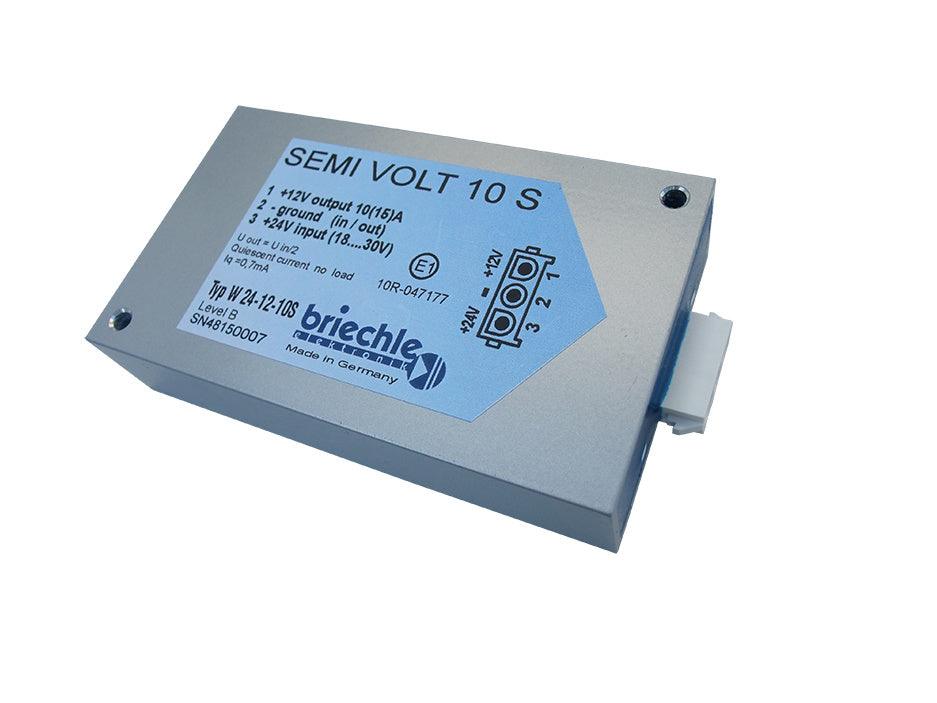

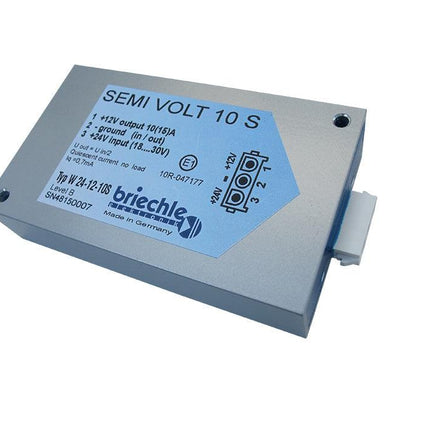

Briechle VOLTAGE CONVERTER SEMI VOLT 10S W 24-12-10S

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Briechle VOLTAGE CONVERTER SEMI VOLT 10S W 24-12-10S

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

High-end voltage converter with medium power for 12V devices at 24V car line.▪ IN: 24V / OUT: 12V▪ Connection: 3-pol... Read more

€117,83 €103,69 Excl. VAT

Guaranteed secure & safe checkout.

Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP

30 days hassle-free returns

Flexible payments

Easily pay with multiple payment options.
Read more

Description

High-end voltage converter with medium power for 12V devices at 24V car line.

▪ IN: 24V / OUT: 12V
▪ Connection: 3-pol plug
▪ 10A

\n\n \n

\n \n Weight: 0.385 kg\n \n

\n

provides permanent plus (term. 30) or ignition plus (term. 15) up to the maximum load
concept of high development standard:
- real voltage division, discharge protection of 12V device is effective
-significant low self current consumption of 0,7 mA
- very high efficiency of about 94%
overload capacity up to 15A for about 5 min.
small dimensions
compact plug (AMP Mate Lock)
5kW-peak-safety-diode to prevent overvoltage from car line

\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Input\n voltage:	16 ... 30V DC
Output voltage:	8 ... 15V DC input voltage gets halved
Output current:	10A permanent, 15A for about 5 min.
Connection:	3-poles connector, round contacts (AMP Mate Lock)
Current without load:	0,7mA at 24V
Efficiency:	app. 94%
Temperature range:	-40 ... +75°C, derating T>45°C
Electrical protection:	overcurrent, overtemperature, input transients
Mechanical protection:	entirely sealed
Dimensions:	129 x 70 x 25mm incl. Plug
Mass:	app. 385g
Technical principle:	ignition plus (term 15) connects the second output

Specifications

Manuafacturer: Briechle Elektronik
Condition: New
