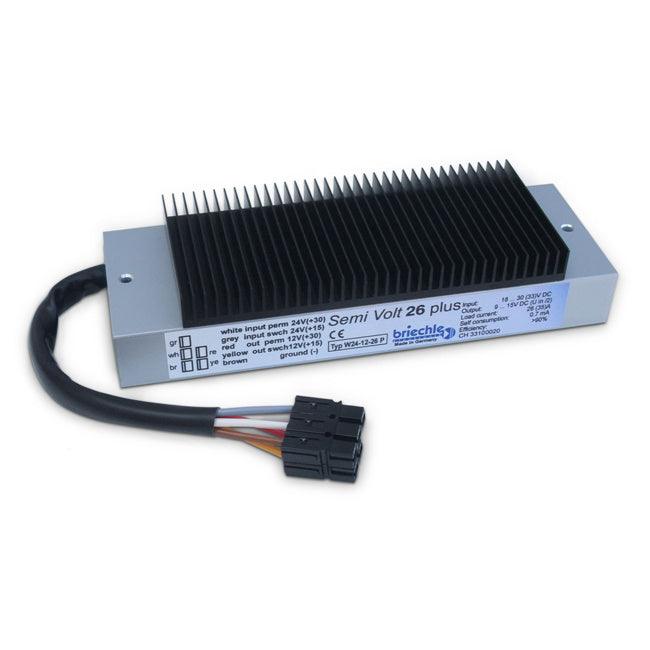

Name: Briechle VOLTAGE CONVERTER SEMI VOLT 26 PLUS W 24-12-26P
Brand: Briechle Elektronik
SKU: 130-10080
Price: 244.41 EUR

Briechle VOLTAGE CONVERTER SEMI VOLT 26 PLUS W 24-12-26P

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Briechle VOLTAGE CONVERTER SEMI VOLT 26 PLUS W 24-12-26P

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

High-end voltage converter of a higher power for 12V consumers at a 24V car line. ▪ IN: 24V / OUT:... Read more

€277,74 €244,41 Excl. VAT

Guaranteed secure & safe checkout.

Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP

30 days hassle-free returns

Flexible payments

Easily pay with multiple payment options.
Read more

Description

High-end voltage converter of a higher power for 12V consumers at a 24V car line.

▪ IN: 24V / OUT: 12V
▪ Connection: 5-pol plug
▪ 26A Permanent positive and ignition positive

Weight: 0.96 kg\n \n

provides permanent plus (term.30) or ignition plus (term.15)
concept of high development standard:
- real voltage division, discharge protection of 12V device is effective
- significant low self current consumption of 0,7mA
- very high efficiency of about 92%
overload capacity up to 24A for about 5 min.
small dimensions
high-quality high-power-plug, waterproof, the counterpart is included
5kW-peak-protection-diode to prevent overvoltage coming from the car line

Input\n voltage:	16 ... 30V DC
Output voltage:	8 ... 15V DC input voltage gets halved
Output current:	26A permanent, 35A for about 5 min.
Connection:	5-pole plug "Anderson Powerpole Modular"
Cable length:	app. 170mm
Current without load:	0,7mA at 24V
Efficiency:	app. 92%
Temperature range:	-40 ... +75°C, derating T>45°C
Electrical protection:	overcurrent, overtemperature, input transients
Mechanical protection:	entirely sealed
Dimensions:	200 x 70 x 40mm without cable outlet
Mass:	app. 960g
Technical principle:	ignition plus (term. 15) switches 2nd outlet

Specifications

Manuafacturer: Briechle Elektronik
Condition: New
