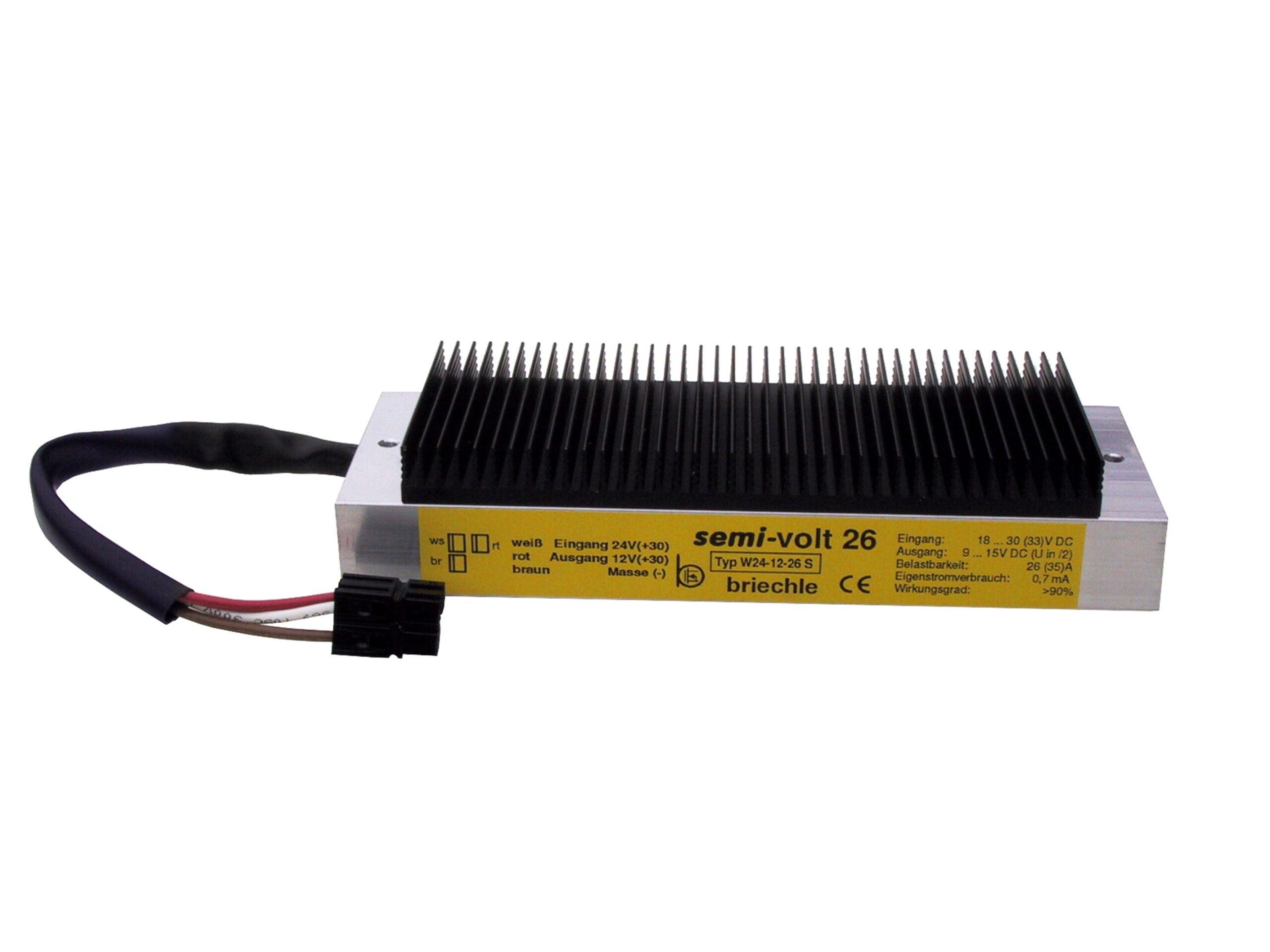

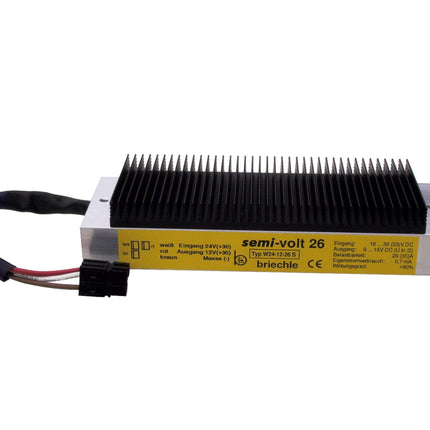

Name: Briechle VOLTAGE CONVERTER SEMI VOLT 26S W 24-12-26S
Brand: Briechle Elektronik
SKU: 130-10079
Price: 225.15 EUR

Briechle VOLTAGE CONVERTER SEMI VOLT 26S W 24-12-26S

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Briechle VOLTAGE CONVERTER SEMI VOLT 26S W 24-12-26S

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

High-end voltage converter of a higher power for 12V consumers at a 24V car line.▪ IN: 24V / OUT: 12V▪... Read more

€255,85 €225,15 Incl. VAT

Guaranteed secure & safe checkout.

Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP

30 days hassle-free returns

Flexible payments

Easily pay with multiple payment options.
Read more

Description

High-end voltage converter of a higher power for 12V consumers at a 24V car line.

▪ IN: 24V / OUT: 12V
▪ Connection: 3-pol plug
▪ 26A

\n \n\n \n

\n\n \n

\n \n Weight: 0.93 kg\n \n

\n

concept of high development standard:
- real voltage division, discharge protection of 12V device is effective
- significant low self current consumption of 0,7mA
- very high efficiency of about 94%
overload capacity up to 35A for about 5 min.
small dimensions
high-power-plug of high quality
5kW-peak-safety-diode to prevent overvoltage from car line

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Input\n voltage:	16 ... 30V DC
Output voltage:	8 ... 15V DC input voltage gets halved
Output current:	26A permanent, 35A for about 5 min.
Connection:	3-pole plug "Anderson Powerpole Modular"
Cable length:	_
Current without load:	0,7mA at 24V
Efficiency:	app. 92%
Temperature range:	-40 ... +75°C, derating T>45°C
Electrical protection:	overcurrent, overtemperature, input transients
Mechanical protection:	entirely sealed
Dimensions:	200 x 70 x 40mm without cable outlet
Mass:	app. 930g

Specifications

Manuafacturer: Briechle Elektronik
Condition: New
