Name: Briechle VOLTAGE CONVERTER SEMI VOLT 4S W 24-12-4S
Brand: Briechle Elektronik
SKU: 130-W 24-12-4S
Price: 99.0 EUR

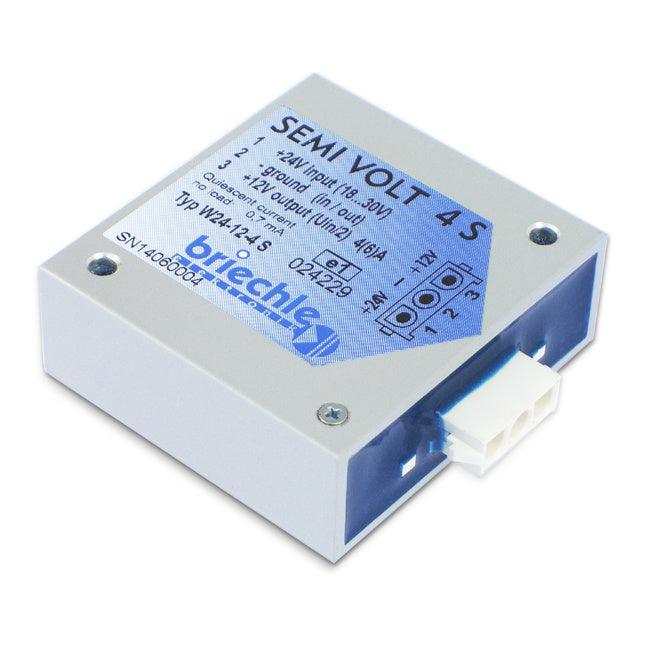

Briechle VOLTAGE CONVERTER SEMI VOLT 4S W 24-12-4S

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Briechle VOLTAGE CONVERTER SEMI VOLT 4S W 24-12-4S

Briechle Elektronik
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

High-end voltage converter with low power for 12V devices at 24V car \nline. An ideal solution for point of device... Read more

€11.498,85 €99,00 Excl. VAT

Guaranteed secure & safe checkout.

Free shipping on all orders above 115 USD / 100 EUR / 165 AUD / 85 GBP

30 days hassle-free returns

Flexible payments

Easily pay with multiple payment options.
Read more

Description

High-end voltage converter with low power for 12V devices at 24V car \nline. An ideal solution for point of device supply like telematics and GPS \nwireless alarm systems.

▪ IN: 24V / OUT: 12V
▪ Connection: 3-pol plug
▪ 4A

\n\n \n

\n \n Weight: 0.19 kg\n \n

\n

concept of high development standard:
-real voltage division, discharge protection of 12V device is effective
- significant low self current consumption of 0,7mA
- very high efficiency of about 94%
overload capacity up to 6A for about 5 min.
small dimensions
compact plug, sealing option
5kW-peak-safety-diode to prevent overvoltage from car line
electronic protection against reverse polarity without the need for a fuse.

\n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Input\n voltage:	16 ... 30V DC
Output voltage:	8 ... 15V DC input voltage gets halved
Output current:	4A permanent, 6A for about 5 min.
Connection:	3-poles connector, Mate Lock with sealing option
Cable length:	_
Current without load:	0,7mA at 24V
Efficiency:	app. 94%
Temperature range:	-40 ... +75°C, derating T>45°C
Electrical protection:	overcurrent, overtemperature, input transients
Mechanical protection:	entirely sealed
Dimensions:	80 x 70 x 25mm incl. Plug
Mass:	app. 190g

Specifications

Manuafacturer: Briechle Elektronik
Condition: New
