Description

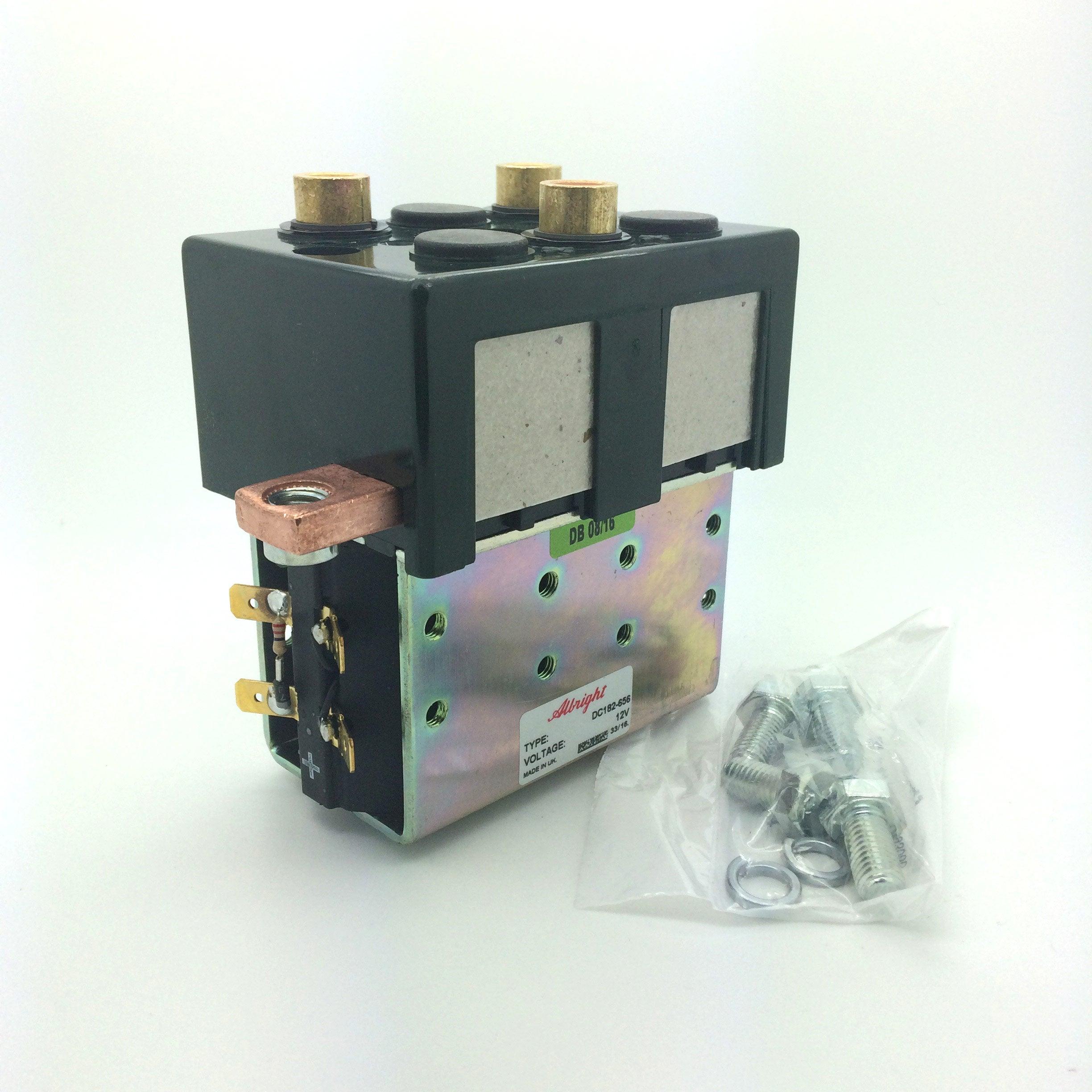

DC182-656 Albright Motor Reversing Solenoid
The DC182-656 Albright 150A 12V DC - INT Motor Reversing Contactor is a robust electrical component designed for controlling the direction of rotation of a motor in applications that require a 12-volt DC power supply. Here's a breakdown of its specifications:
-
DC182-656: This alphanumeric code serves as the specific model number or identifier for this contactor within Albright's product range.
-
Albright: Albright is the manufacturer of this contactor. They are recognized for producing high-quality electrical components, including contactors, solenoids, and related products.
-
150A: This indicates the maximum current rating of the contactor, which is 150 amperes. It specifies the maximum amount of current that the contactor is designed to handle safely during operation.
-
12V DC: This specifies the voltage rating of the contactor. It is designed to operate with a DC voltage of 12 volts, meaning that the coil within the contactor is powered by a 12-volt DC power supply.
-
INT: Similar to the previous examples, "INT" suggests that this contactor is suitable for intermittent or interruptible operations, meaning it can handle applications where the current flow may vary or be temporarily interrupted.
-
Motor Reversing Contactor: This indicates the primary function of the contactor, which is to control the direction of rotation of a motor. By reversing the polarity of the current flow, the contactor enables the motor to change its direction of rotation.
This contactor is well-suited for various industrial and automotive applications where precise control over motor direction is required. With its 150-ampere current rating and 12-volt DC voltage compatibility, it can effectively manage the demands of motors in diverse settings.
In summary, the DC182-656 Albright 150A 12V DC - INT Motor Reversing Contactor is a high-quality electrical component designed by Albright for controlling motor direction in applications requiring a 12-volt DC power supply. It offers reliability, durability, and precise control, making it a suitable choice for a wide range of industrial and automotive applications.
DC182 has M8 stud main terminals and 6.3mm spade coil connections. Mounted using brackets available separately via the M5 mounting holes - 16 off, 8 per side), mounting of the solenoids can be horizontal or vertical, when vertical the M8 contact studs should point upwards.
Replacement data:
DC182-656 can be used to replace DC182-116
