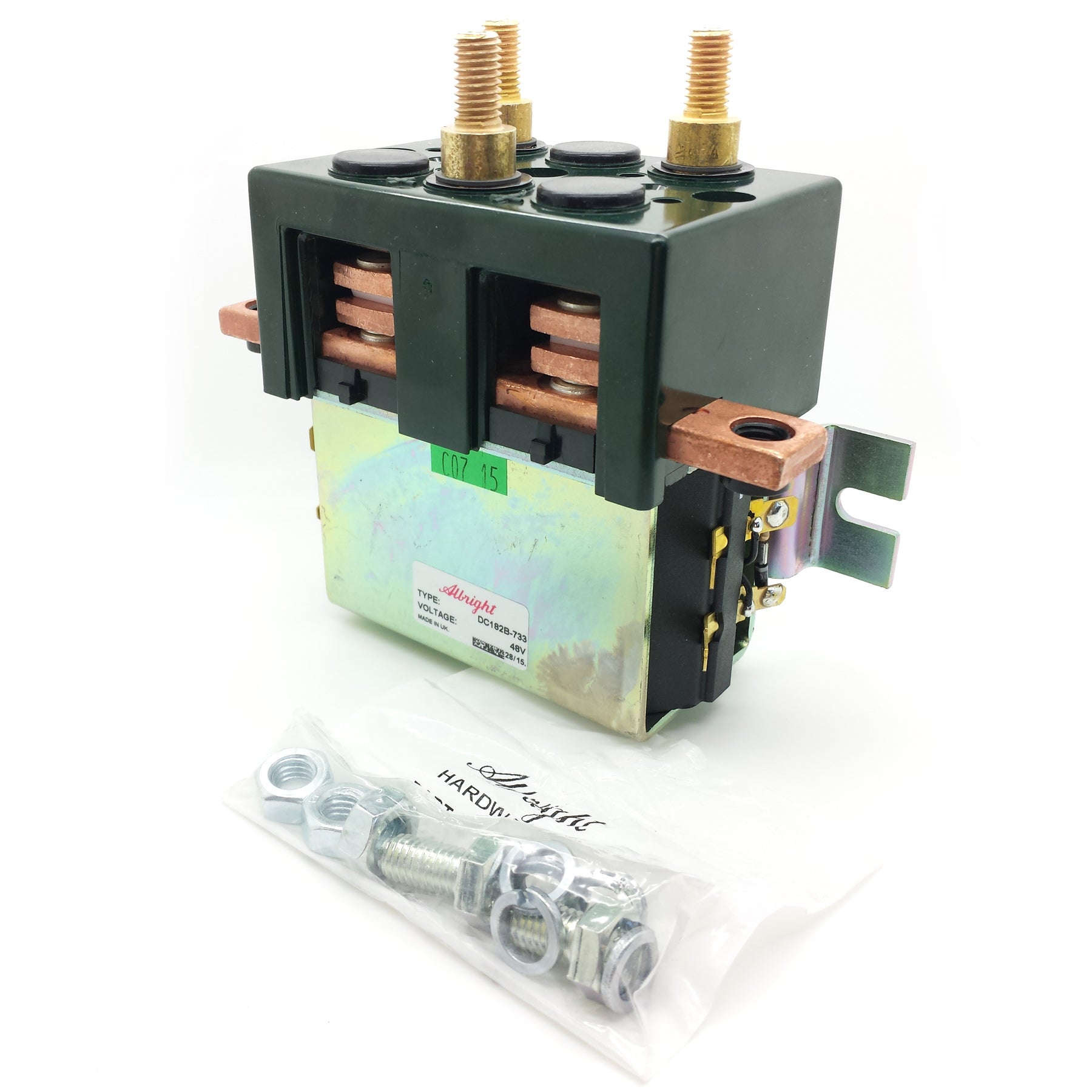

Albright DC182B-733 – 48V DC Motor Reversing Contactor with Magnetic Blowouts
The DC182B-733 is a high-performance motor reversing contactor designed for demanding DC applications, including electric vehicles, materials handling equipment, and industrial machinery. As part of Albright’s trusted DC182 series, this compact contactor is engineered for safe, efficient, and reliable bidirectional motor control.
Featuring magnetic blowouts for enhanced arc suppression, the DC182B-733 delivers superior performance in high-current environments. Its robust single-pole, double-throw (SPDT) design ensures long service life, mechanical reliability, and protection against simultaneous coil energization.
Key Features
-
Rated Voltage: 48V DC
-
Continuous Current: 150A (up to 275A intermittent)
-
Magnetic Blowouts: Fitted for safe, high-current switching
-
Contact Configuration: Monoblock reversing, failsafe design
-
Durability: Over 5 million mechanical cycles
-
Mounting: Compact with universal bracket, M8 terminals
-
Typical Applications: Forklifts, electric vehicles, winches, industrial trucks
Benefits
-
Reliable Reversing: Prevents contact damage from misoperation
-
Arc Suppression: Extends contact life under load
-
Compact & Serviceable: Easily integrates into DC systems
-
Custom Coil Options: Available in multiple voltages (24V, 36V, 80V, etc.)
The Albright DC182B-733 is the ideal choice for reversing motor control in DC circuits requiring consistent performance, compact design, and long operating life.
