Description

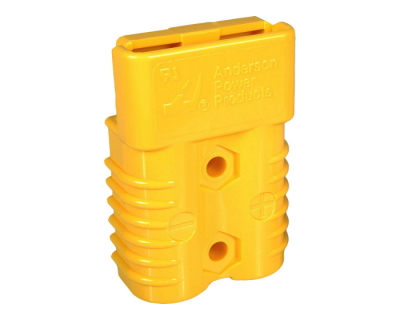

Anderson Power Products SB175 Housing – Yellow (MPN: 943-BK)
Housing only for the Anderson Power Products SB®175 high-current connector series. This yellow, color-coded SB175 shell is designed for rugged DC power connections in industrial, battery, charger and mobile power applications.
Original / Genuine Anderson Power Products product. All items are new and delivered in the manufacturer’s standard packaging.
Key Benefits
-
Genderless design: Mates with identical SB175 housings – no male/female halves required.
-
Color-coded housing: Yellow housing prevents cross-mating with other voltage/keyed systems.
-
Heavy-duty construction: Durable polycarbonate (PC) housing for demanding environments.
-
Flexible configuration: Compatible with SB175 crimp contacts and busbar contacts.
Technical Summary
| Manufacturer |
Anderson Power Products |
| Series |
SB®175 |
| Part Number |
943-BK |
| Positions |
2-pole |
| Nominal Current Class |
175A (depends on selected contacts and cable size) |
| Max Voltage Rating |
Up to 600V DC |
| Housing Material |
Polycarbonate (PC) |
| Wire Range Compatibility |
Up to 1/0 AWG (approx. 50 mm²) depending on contact type |
What’s Included
- 1 × SB175 Yellow Housing (shell only)
Not Included
- SB175 contacts (must be ordered separately) please find contacts 1382-BK, 1383-BK, 1384-BK, 1348-BK here.
- Dust covers, handles, auxiliary contacts or accessories
Typical Applications
- Battery-to-charger connections
- Forklifts and material handling equipment
- UPS and inverter systems
- Industrial DC distribution systems
- Mobile power and renewable energy installations
