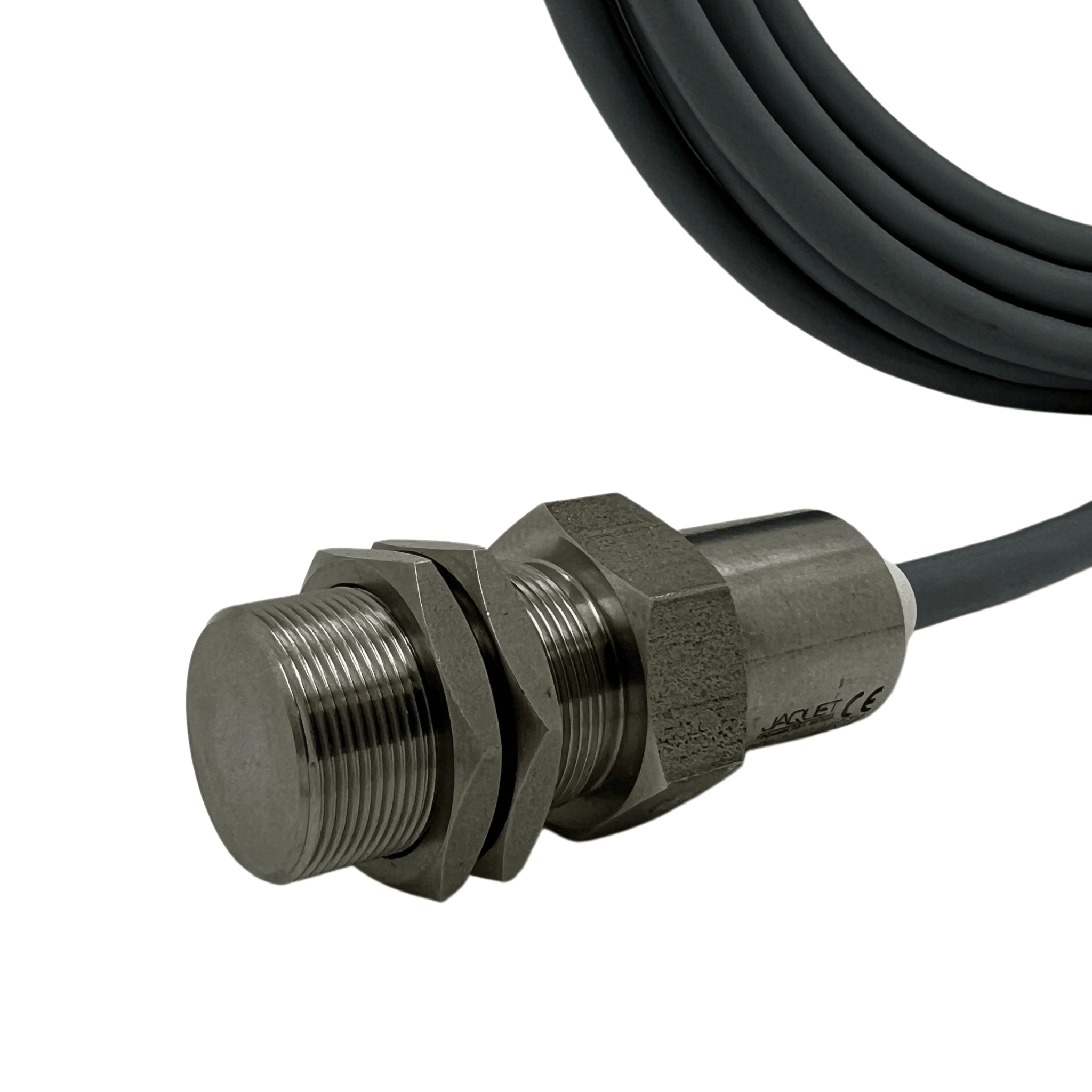

TE / Jaquet Speed Sensor – DSD 2210.01 STV (5 m)
MPN: 374Z-03750 · Series: DSD 2210.01 STV (5 m)
Type: Differential ferrostat Hall-effect sensor
The Jaquet DSD 2210.01 STV (5 m) is a high-reliability differential Hall-effect speed sensor designed for both static and dynamic detection of ferrous targets. It is particularly suited for applications where robust signal detection is required at zero and low speeds.
Key Features
-
M22×1 threaded housing – durable metal construction for secure installation.
-
Module 1.0 detection capability – able to detect the smallest tooth structure with a 1.0 module pitch.
-

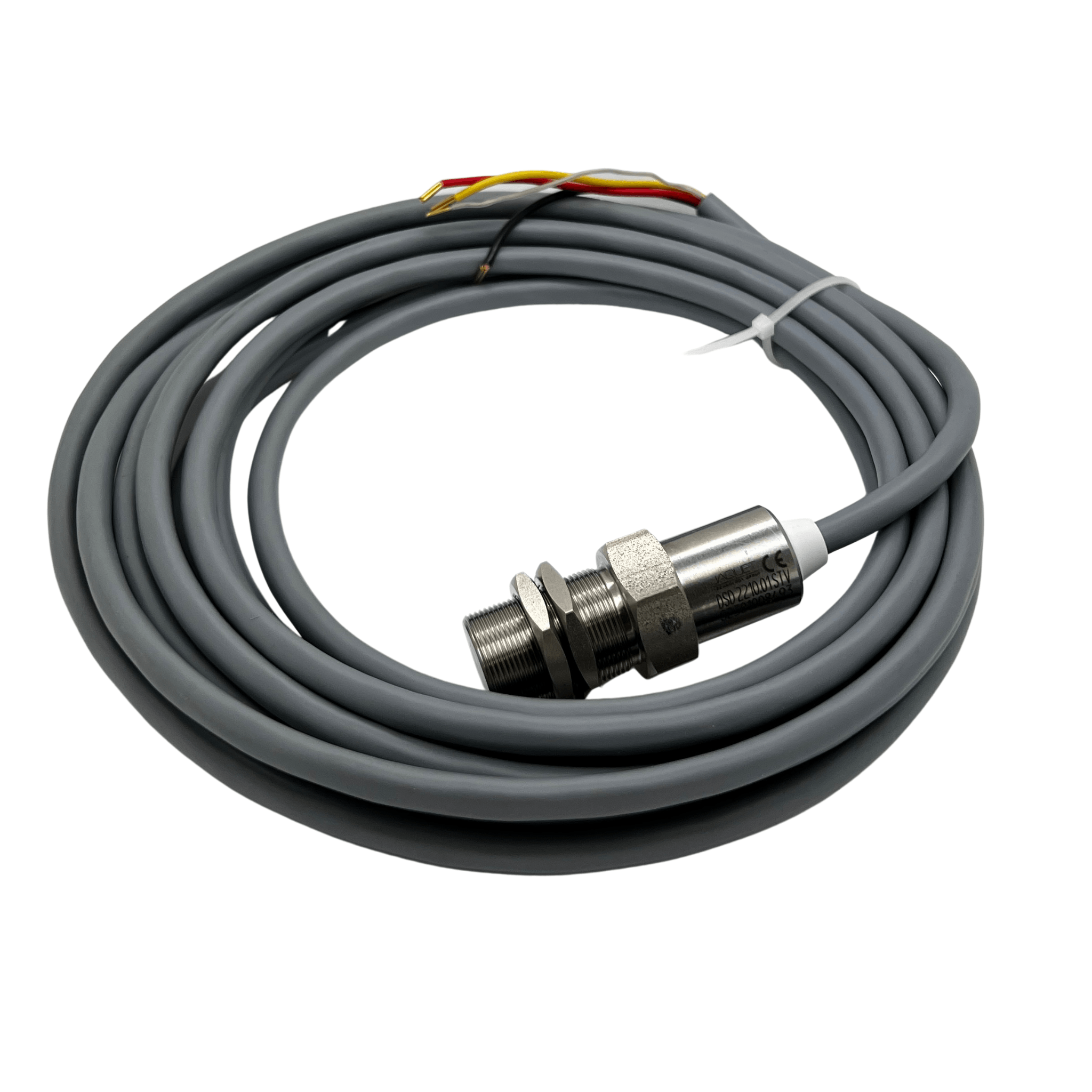

Integral 5 m PVC cable – open wire ends for flexible connection to control systems.
-
Wide operating range – works from –25 °C to +85 °C.
-
Push-Pull output – standard built-in line amplifier ensures strong, noise-immune signal transmission.
-
Differential ferrostat technology – improved resistance to vibration, EMI, and air gap variation compared to single Hall sensors.
Applications
-
Rotational speed monitoring in industrial drives
-
Gear tooth sensing in heavy machinery
-
Low-speed shaft detection in rail, marine, and energy systems
-
Harsh-environment sensing where temperature stability and signal integrity are critical
The DSD 2210.01 STV delivers precise, reliable speed measurements across a wide speed range, making it a preferred choice for demanding industrial and transportation applications.
