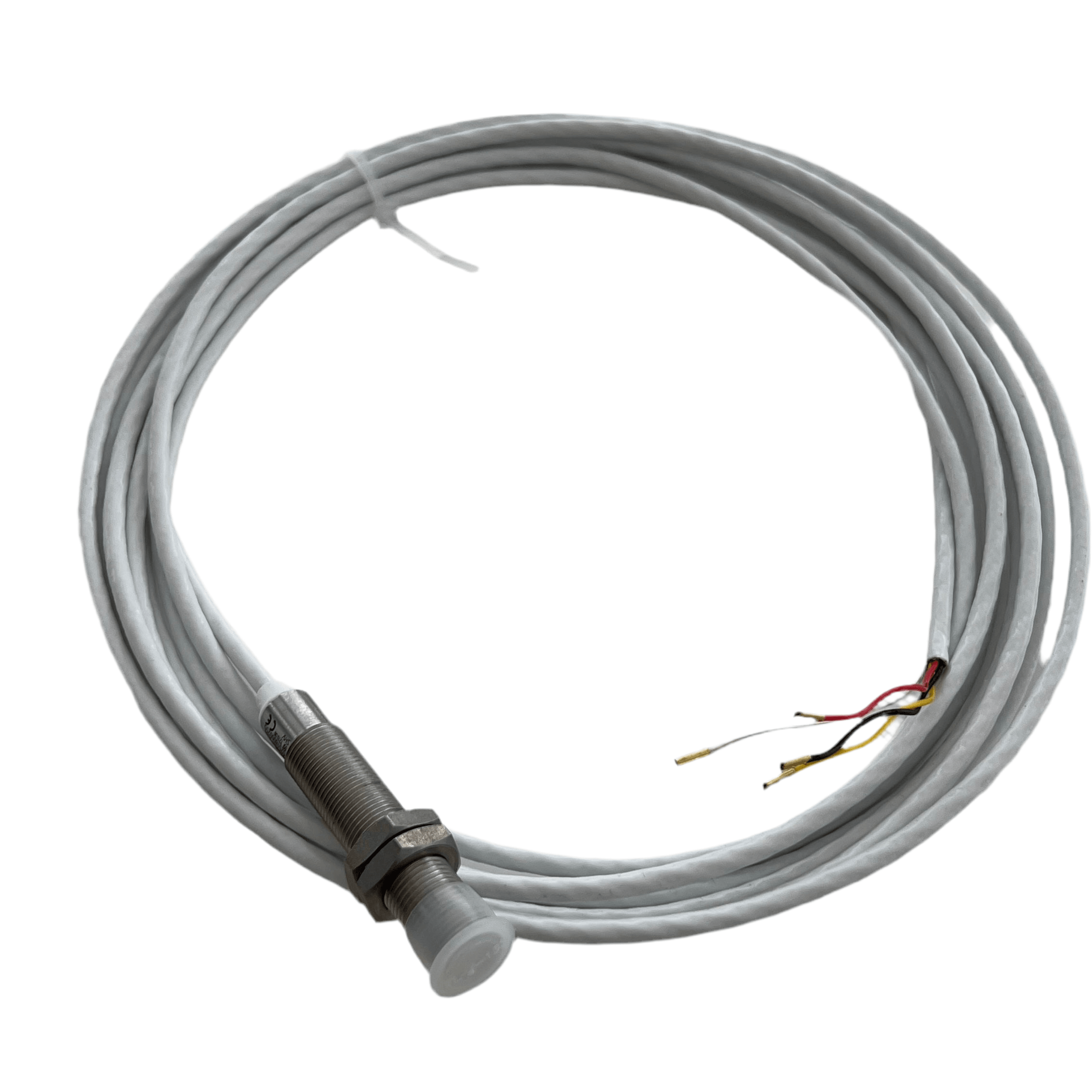

Product Overview: Jaquet DSF 1210.00 SHV Ex ATEX
Premium Industrial Hall Effect Speed Sensor
-
Model Number: 374Z-05176
-
Specifications: Features an M12x1 housing and is equipped with a 10-meter Teflon cable for superior durability and performance. It also boasts Ex certifications, ensuring its suitability for environments with explosive atmospheres.
Functional Capabilities:
The Jaquet DSF 1210.00 SHV Ex ATEX speed sensor is designed for precision speed measurement applications. It is optimally used alongside a pole wheel to accurately produce speed-proportional frequency signals. This sensor is characterized by its dynamic performance, capable of generating pulses at frequencies as low as 0.05 Hz. At its core is a magnetically biased Hall effect sensor, complemented by an amplifier with a trigger characteristic. The output stage is robust, ensuring short-circuit protection.
ATEX Certification:
This sensor is ATEX-certified, making it a safe choice for use in environments where explosive gases or dust may be present. To maintain its certification, the sensor must be used in a clean, undamaged condition. Any modifications to the sensor, unless explicitly permitted in the operating instructions, are strictly prohibited, ensuring the safety and integrity of its operation in hazardous areas.
Signal Output Characteristics:
-
Type: Generates a square wave signal through a push-pull output stage, directly coupled to the power supply, with 0V serving as the reference voltage.
-
Load Current: Maximum of 25 mA.
-
Output Voltage:
- High level (UHi) is greater than the supply voltage minus 4V, at a source current of 25 mA.
- Low level (ULo) is less than 2V, at a sink current of 25 mA.
It is important to consider the voltage drop caused by the cable's impedance and the resistance of any safety barriers connected to the circuit. Additionally, the sensor's design ensures protection against short circuits and reverse polarity, enhancing its reliability and safety in industrial applications.
Signal Output Specifications
• Signal Type: Square wave from push-pull output stage
• DC Coupling: Coupled to supply (0V as reference voltage)
• Max Load Current: 25 mA
• Output Voltage Levels:
• High (UHi): Greater than supply voltage minus 4 V (at source current 25 mA)
• Low (ULo): Less than 2 V (at sink current 25 mA)
• Voltage Considerations: Voltage drop due to cable impedance and safety barrier resistance should be accounted for
• Protection: Short-circuit proof and reverse polarity protected
DSF 1210.00 SHV Ex Atex (10m)
- Ferrostat sensor with amplifier; 0.05 Hz ... 20 kHz, -40 ... + 125 ° C,
- Housing thread M12x1
- Connecting cable PTFE 5m, for single-wire safety (Zone 1) Eex ia IIC T6-T1.
- Weight: 350 g
