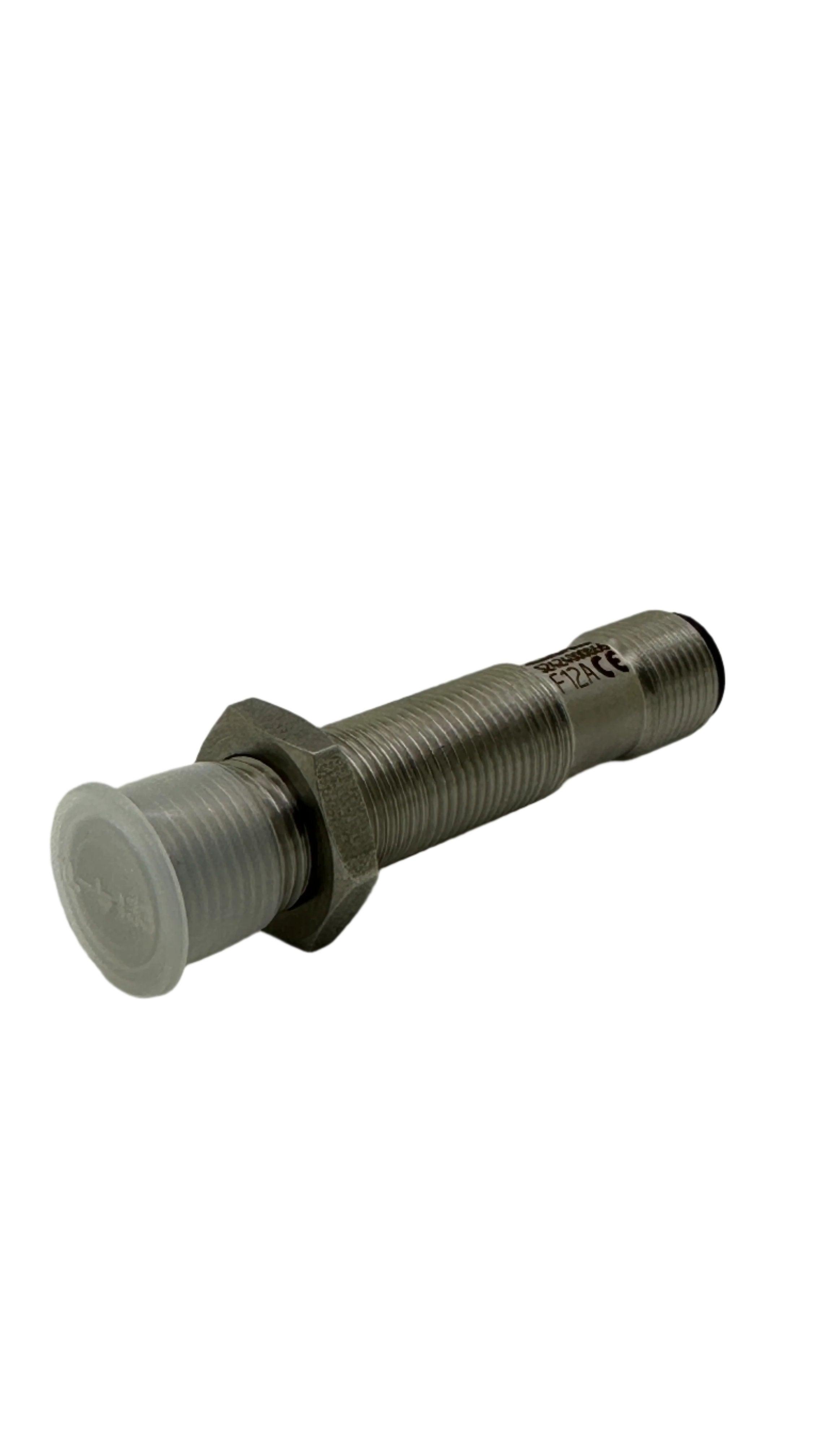

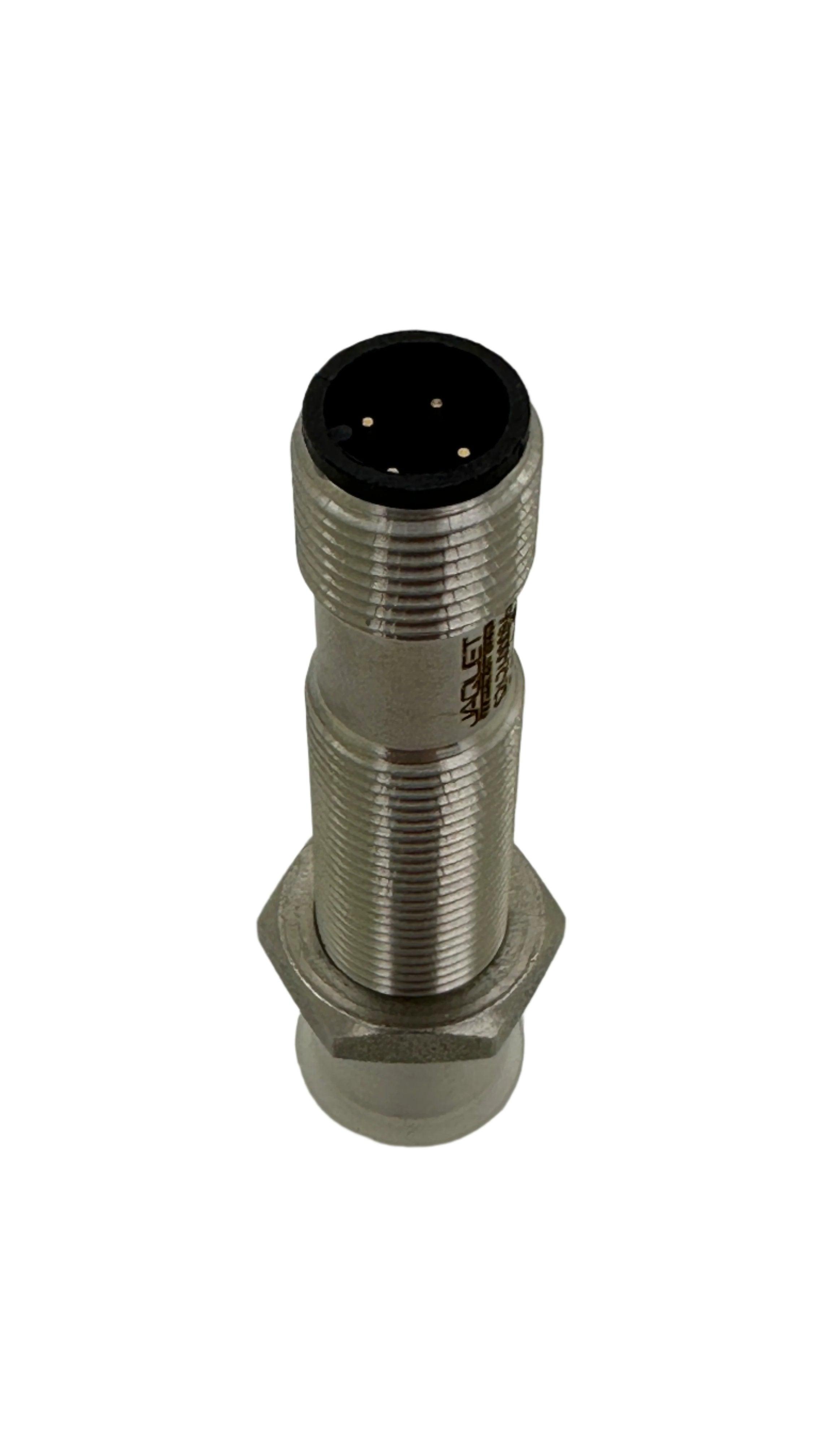

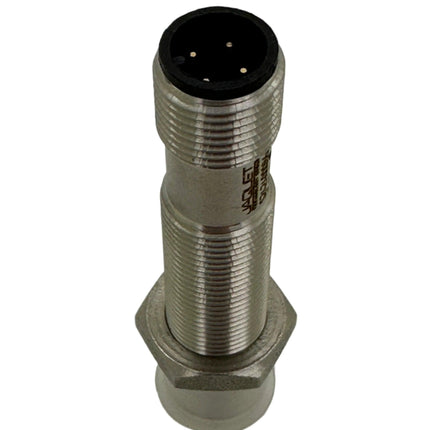

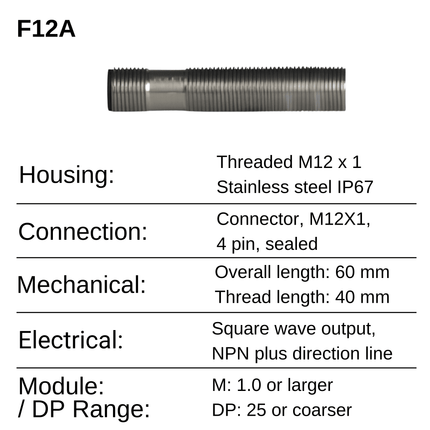

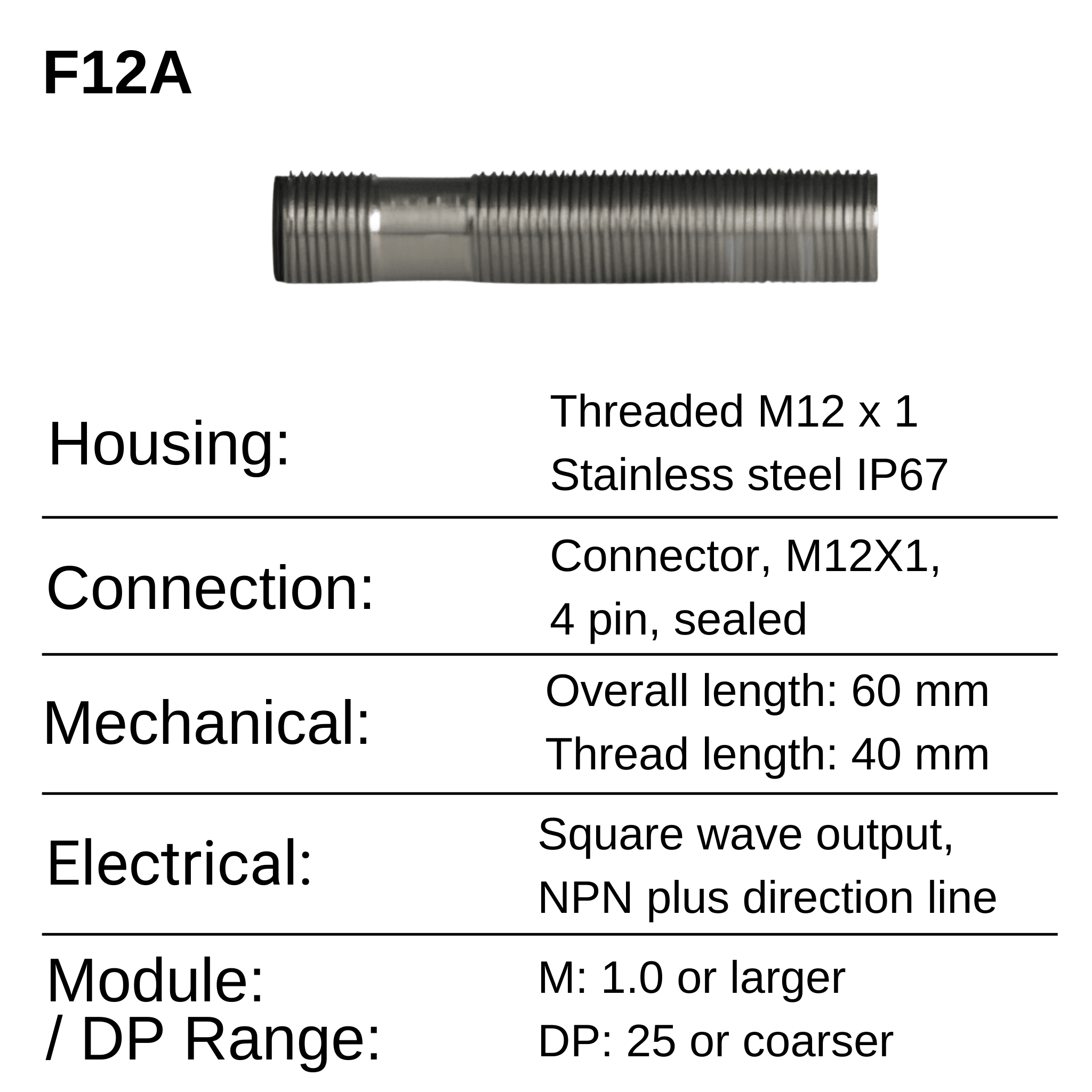

JAQUET 385Z-05322 Hall Effect Sensor M12x1 with integral Connector

• Connector:  M 12x1 standard / 4 pins
• Housing M12x1mm, length 60 mm
• Supply voltage: 8...25 VDC
• Frequency range: 0 Hz...15Khz
• Temperature Rating -20 ... 100 °C
• Current consumption Max. 12 mA (without load)
• Signal output Square wave signal from NPN output transistor with internal 2.7 kOhm pull-up resistor, DC coupled to supply (negative pole = reference Voltage). • Sink current: max. 25 mA • Output voltage: • Uhigh ~ supply voltage • Ulow < 0.5 V at I = 25 mA

Signal output: Square wave signal from NPN transistor (2.7 kOhm pull-up), DC coupled

The F12A series Hall effect speed sensors generate square wave signals and direction signals in coordination with a ferrous pole wheel. They offer static functionality, ensuring pulse generation even at 0 Hz, and maintain consistent signal output regardless of the sensor’s rotational mounting angle.

Specifications

• Manuafacturer: Jaquet
• Condition: New
